Faac 780D control unit (without transformer)

Faac 780D control unit (without transformer)

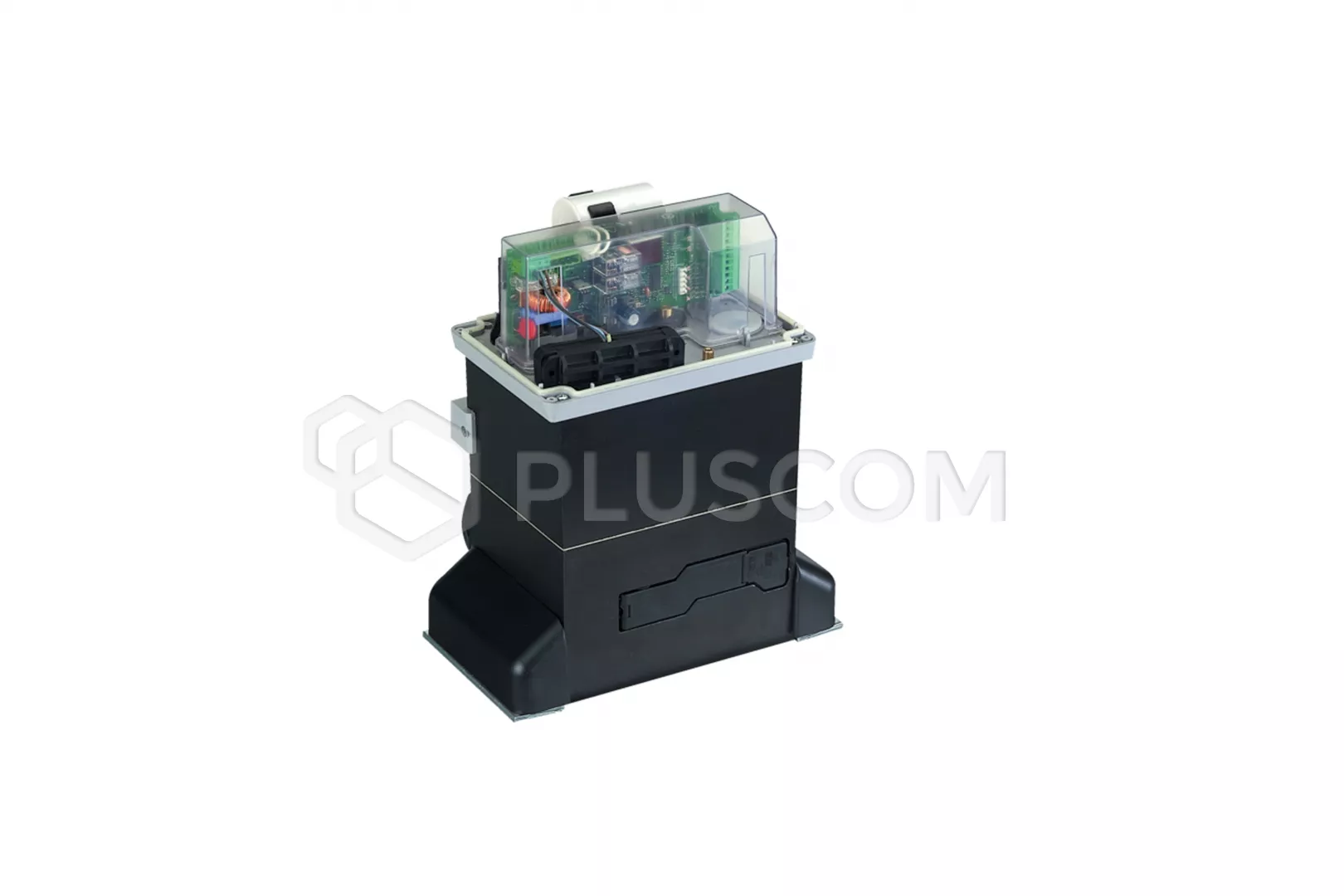

Control panel built into the automatic system, designed to control FAAC 746 ER and 844 ER drives, equipped with with a 5-pin connector for RP and DECODER radio receivers.
780D features:

Work logic:

• semi-automatic (E)
• semi-automatic progressive (EP)
• automatic (A)
• automatic gradual (AP)
• automatic safe (S)
• semi-automatic with "Open" and "Close" input (b)
• mixed - impulse opening, dead-man closing (bC)
• “dead-man” (C)

Working time: programmable (0 to 4 min)
Automatic gate closing: programmable (0 to 4 min)
Thrust force: adjustable at 50 levels

Inputs:

• full opening
• partial opening
• STOP (emergency stop)
• opening protection
• closing protection
• edge strip
• mains power

Outputs:

• engine
• 24V DC power supply for accessories
• 24V DC indicator lamp
• warning lamp
• temporal output power
• electric lock control
• lighting
• fail-safe protection

Quick connector: 5-pin connector for RP and DECODER radios
Panel programming: LCD display + 3 keys (+, -, F); "basic" and "advanced" mode
Status indication: on the display

Programmable features of "basic" mode:

• work logic
• downtime
• thrust force
• open/close direction

Programmable "advanced" mode features:

• initial stroke torque
• inhibition
• fail-safe
• warning lamp
• gate status indicator
• temporal output power
• electric opening and closing lock (electric lock)
• opening and closing protection
• encoder
• anti-impact lock
• deceleration of running speed
• partial opening time
• working time
• review request
• cycle counter

TECHNICAL SPECIFICATIONS:

• Supply voltage: 230V AC (+6% -10%) 50/60Hz
• Max. power consumption: 1000 W (10 W in standby mode)
• Accessory power supply: 0.5 A (500 mA)
• Operating temperature range: -20°C to +55°C
• Fuses: F1=5 A; F2=T 800 mA
