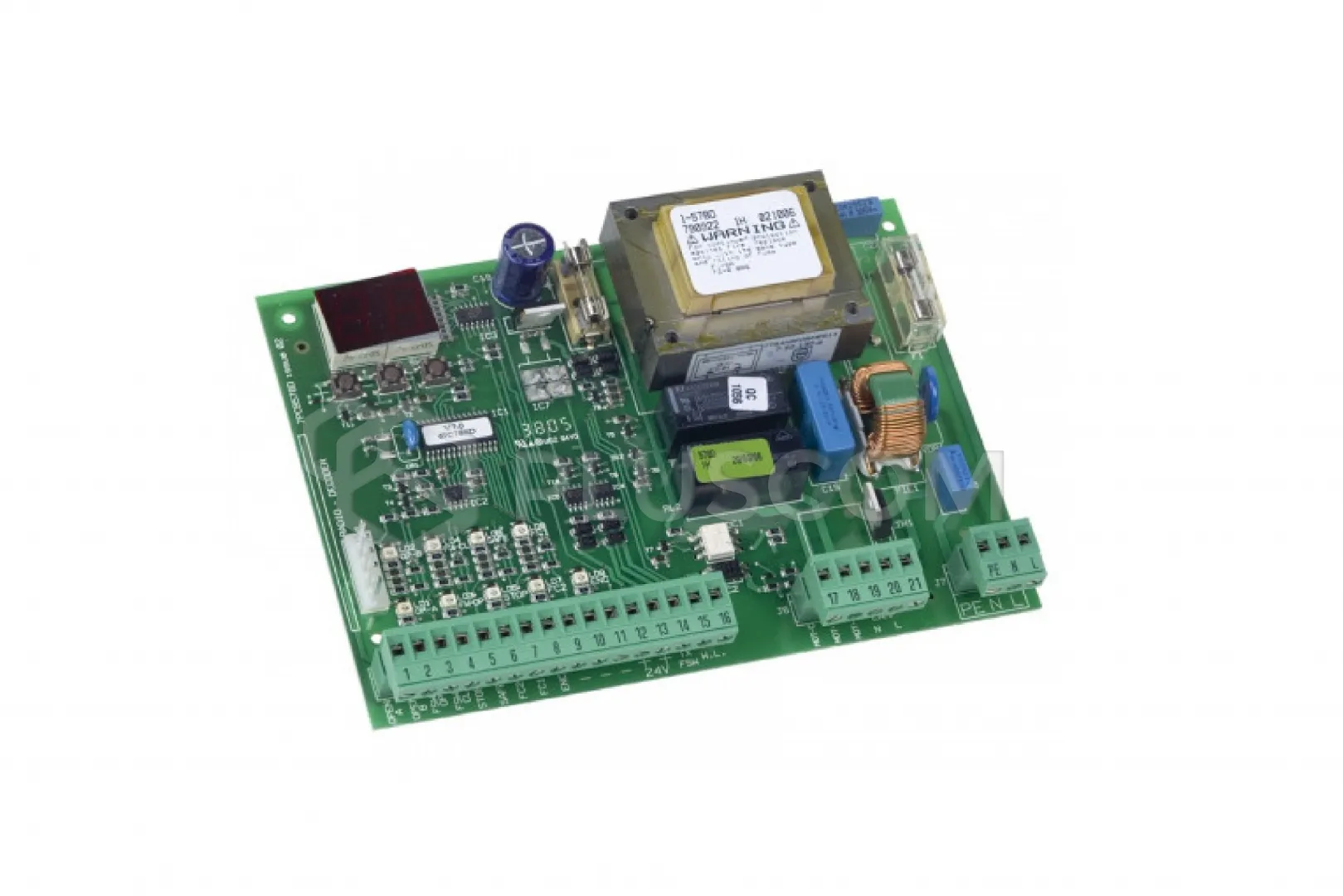

Faac 790922 Control unit board 578D

403,54 EUR including 23.00% VAT
Product code: #26821
Manufacturer: FAAC
  • Power supply: 230V AC
  • Case Compatibility: Mod. E - L - LM
  • Off-Drive Installation
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 109837 844 E R Z16 Electromechanical drive with gear immersed in oil bath 230V Faac 109542 541 Industrial sectional door operator 230V Faac 109838 844 R Electromechanical drive with gear immersed in oil bath 230V

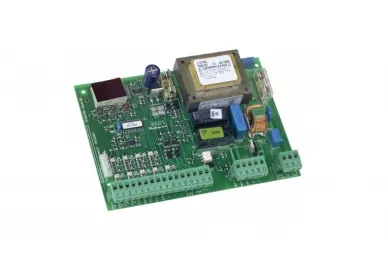

Faac 790922 Control unit 578D board

Technical data:

  • Power supply voltage: 230 V AC (+6%-10%) 50(60) Hz
  • Max. power consumption: 10 W
  • Max. motor power: 1,000 W
  • Max. output load: 0.5 A
  • Programming: 3 keys (+, -, F) and display, "basic" and "advanced" mode
  • Status indication: On display
  • Operating logic: Semi-automatic (E), semi-automatic step (EP), automatic (A), automatic step (AP), automatic safe (S), semi-automatic with "Open" input and “Close” (b), mixed - impulse opening/dead-man closing (bC), dead-man (C)
  • Programmable functions: Logic, pause time, thrust, opening/closing direction, max. thrust at start of movement, brake, fail-safe, warning light pre-flashing, indicator light, time output, electric lock on opening and closing, logic for safety devices on opening and closing, encoder, anti-crushing protection, slowdown, partial opening time, operating time, service request, cycle counter
  • Operating time: Programmable (from 0 to 4 min)
  • Pause time: Programmable (from 0 to 4 min)
  • Thrust: Adjustable in 50 levels
  • Inputs: Full opening, partial opening, overrun protection opening, closing protection, emergency stop, safety edge, power supply + grounding, opening and closing limit switches, encoder
  • Outputs: Warning lamp, motors, 24 V DC accessory power supply, 24 V DC control lamp, time output, electric lock control, semaphore signaling, fail-safe
  • Quick connectors: 5-pin for RP radio receivers/DECODERS
  • Fuses: F1 = F 5 A, F2 = T 800 mA
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Housing compatibility: Mod. E - L - LM
