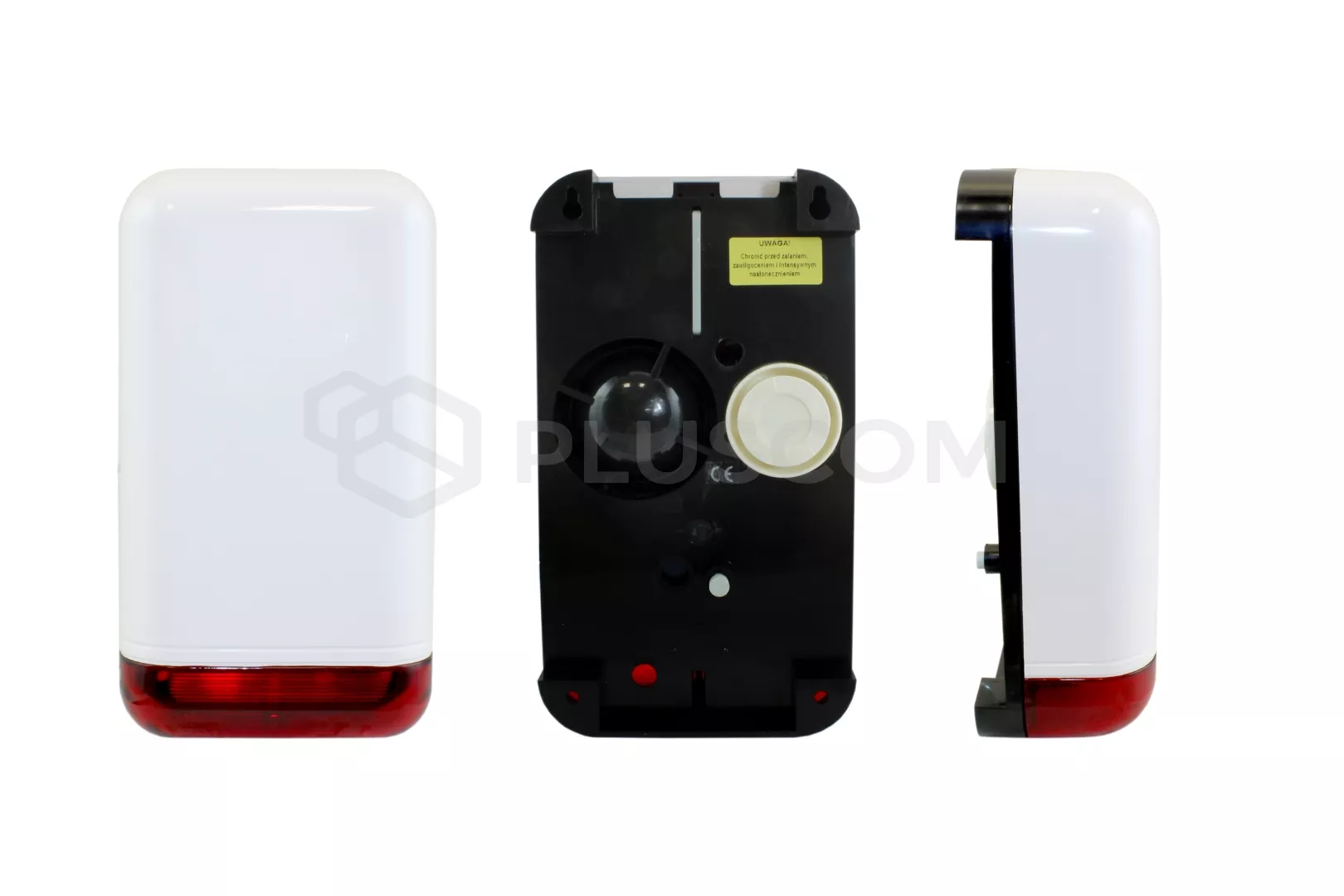

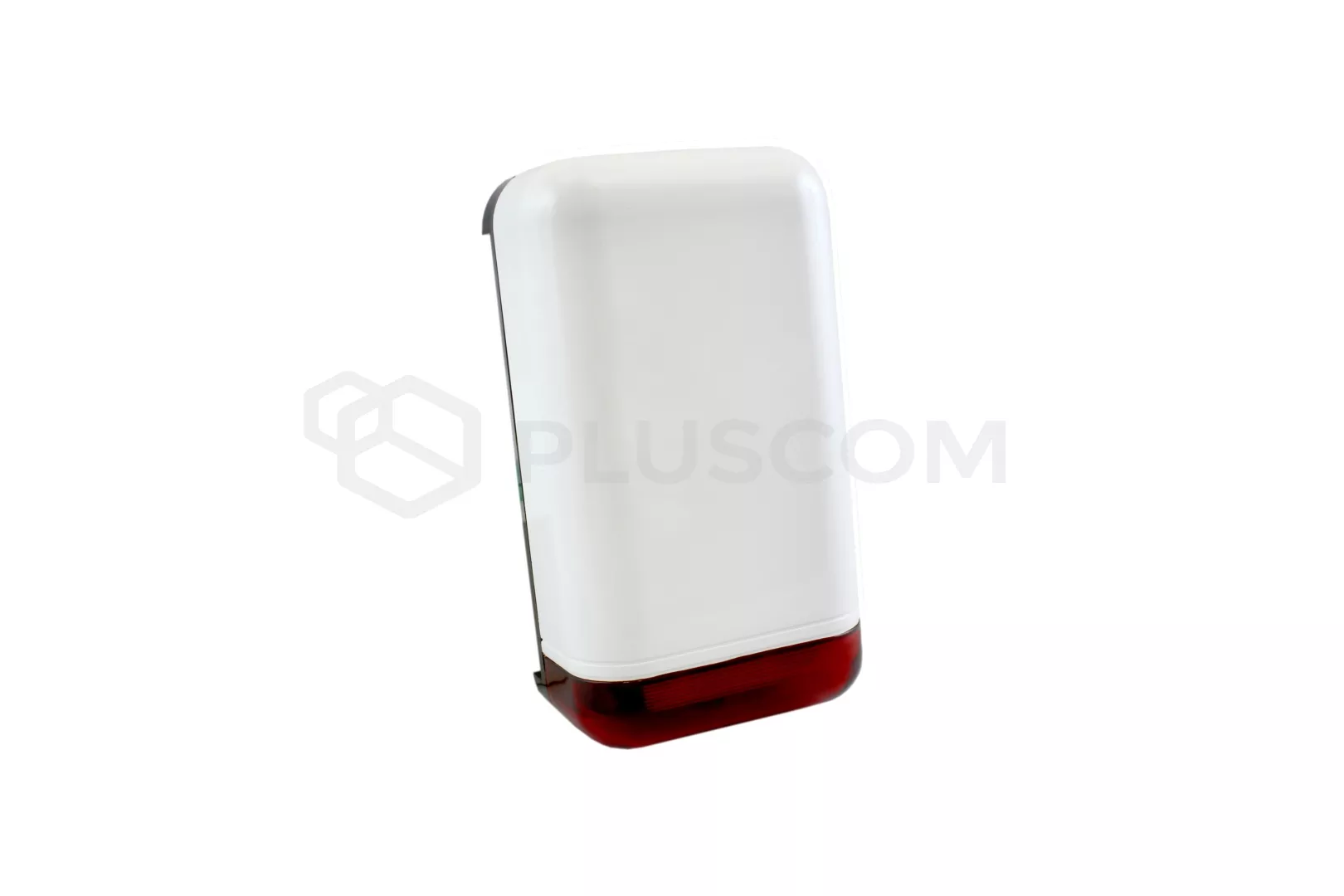

Elmes WSS Wireless alarm outdoor siren & strobe

WSS wireless siren is designed for operation with Elmes CB32 control panel. With the optional control module WSM can be connected to any alarm system.
The siren generates sound intensity 120dBi and flashes of light (bulb 5W 12V)
The siren can select:

• acoustic signaling modulation (fast / slow)
• 2 volumes


POWER SUPPLY

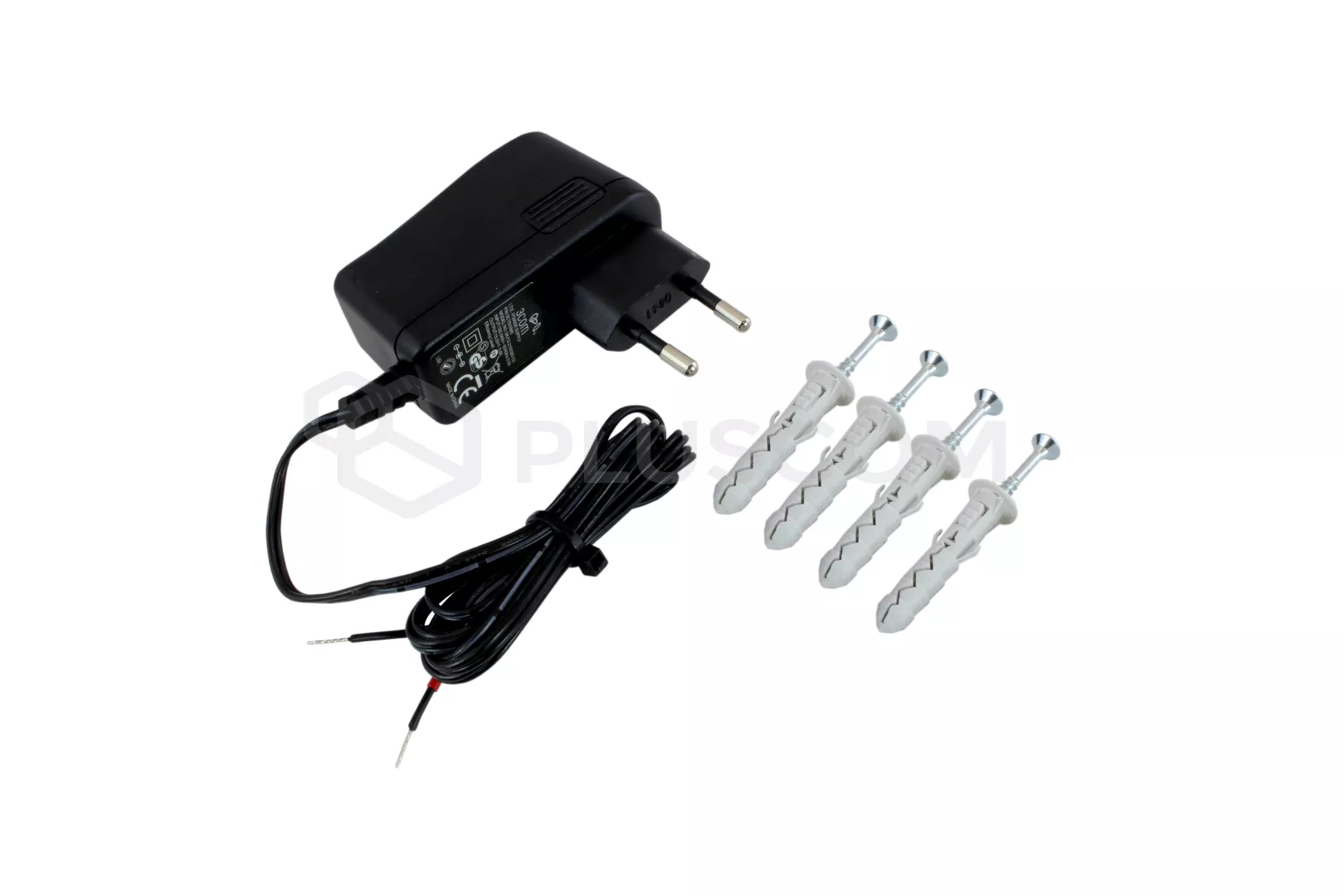

The main power source is a battery 12V 1,3Ah which also provides sustain in the event of a power outage. The battery is charged using the supplied charger included. We may also use the line DC 13.8V

SECURITY
Wireless communication is protected KEELOQ rolling code system which ensures a high level of security.The system detects tamper siren, separating from the wall and a photo of the housing. In each of these cases immediately start alerting siren and radio notify the central office. The siren also sends information about emergency (eg. The lack of power supply) which are recorded and signaled headquarters.

TECHNICAL SPECIFICATIONS

• transceiver (transceiver system) 433.92 MHz, sensitivity: -105dBm, erp <10mW
• power 16V DC/100mA (adapter included) or from the 13,8VDC
• internal Battery maintenance-free 12V 1.2Ah
• acoustic signaling: piezoelectric transducer 120dB
• optical signaling: light bulb 12V/5W
• operating temperature range from -20°C...+40°C
• external dimensions: (d / s / w) 260x145x82mm
• hermetic housing

The optional WSM module for connecting the device to any control panel:
