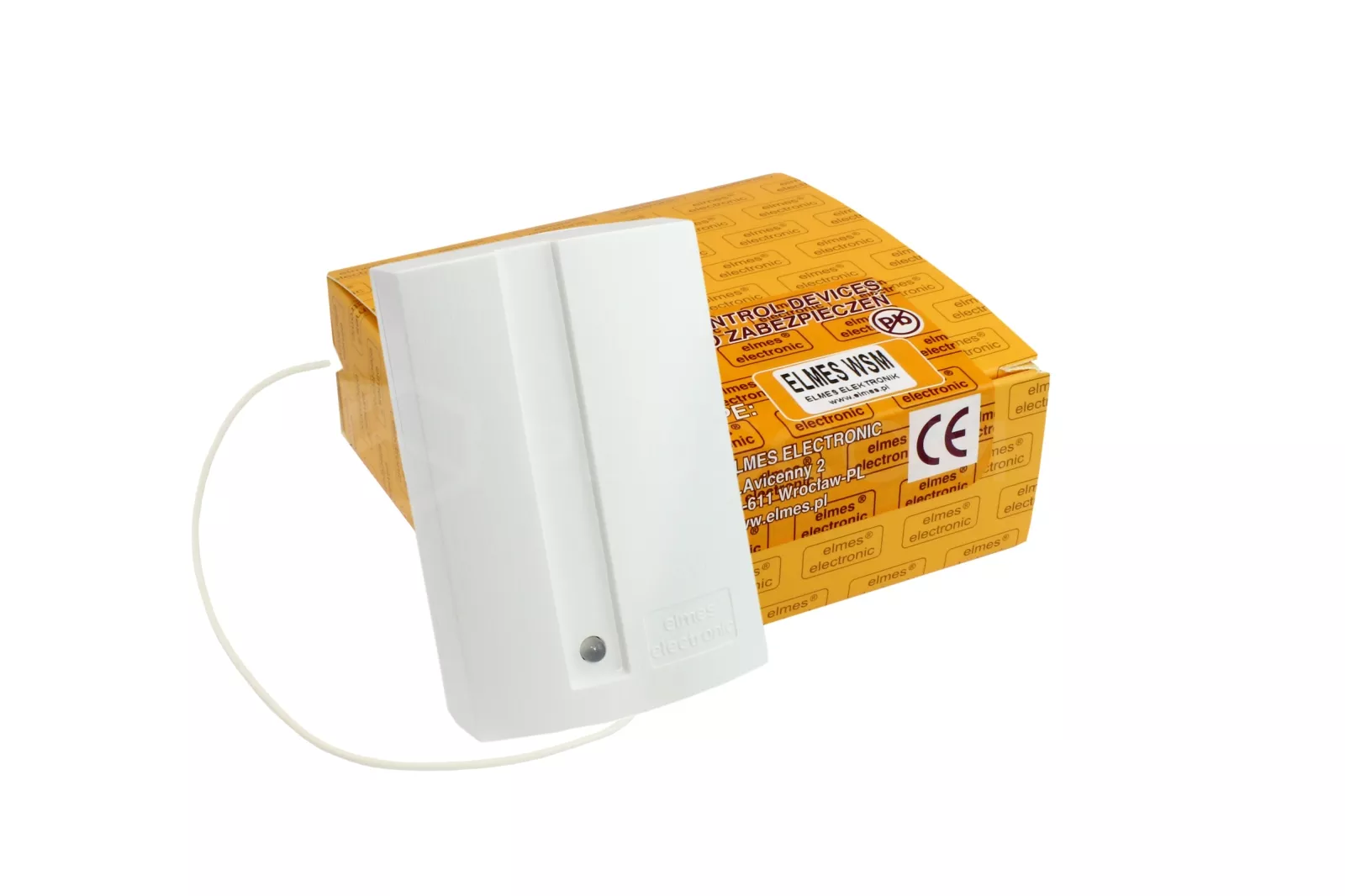

Elmes WSM Wireless siren control module

ELMES WSM module allows you to connect wireless siren Elmes WSS to any wired control panel. An important feature that distinguishes a set of wireless siren module is that communication between them is bi-directional. Using the module WSM get a fully functional network connection as a wired connection, we have:

• the possibility of independent control of audible and visual alarm
• control tamper siren
• control transmissions with the siren
• warning of wireless siren
• • no voltage in the mains
  • battery failure


Additionally, the module adds functionality to the system by adding the ability to remotely arm and disarm the system using the remote control and signaling of these events in the form of pulses on the siren.

The operating range of the siren module exceeds 100m in the open field. When installing the unit a particular subject to be reckoned with radio signal attenuation when passing through walls, ceilings, etc.

he module works with most commercially available control panels. In the case of panels that do not have inputs for remote arming and disarming, it will be possible to achieve only the basic functionality of the system, which is alarming and failures signaling without the possibility of arming using the remote control.

SPECIFICATIONS

• CE transceiver 433.92MHz, sensitivity: -105dBm, erp <10mW
• power supply: 9..16 V DC power consumption: Quiescent - 25mA, maximum - 40 mA at 5 outputs
• OC outputs rated at 50mA, active state: short circuit to ground
• type switched inputs: active high signal (12V DC) or low (0V)
• opening tamper protection module housing - TAMP terminal, type NC
• operating temperature range of 0 to + 40°C
• external dimensions: (d/s/w) 78x40x24mm
