Elmes MTX 2-channel transmitter

Elmes MTX is a miniature dual-channel radio transmitter operating at 433.92MHz band. It uses variable KEELOQ dynamic code in order to ensure the highest level of transmission security. It works with any receiver Elmes. Due to its small dimensions it can be placed directly behind the flush box BELL double switch. The transmitter is powered by a 9V alkaline battery. With it, you can remotely control, blinds, lighting, gate or other electrical devices.

SPECIFICATIONS

• 433.92MHz radio band
• radiation power <5mW
• variable coding system KEELOQ
• power supply:
• • 9V alkaline battery
  • DC 9..12V (I = 20mA when transmitting)
• trigger way:
• • shorting pins 1 and 3 (first channel) or 2 and 3 (second channel)
  • applying voltage range from -3V Vcc to Vcc input 1 or 2
• operating temperature range from -20°C...+45°C
• transmitter plate dimensions 22x31mm

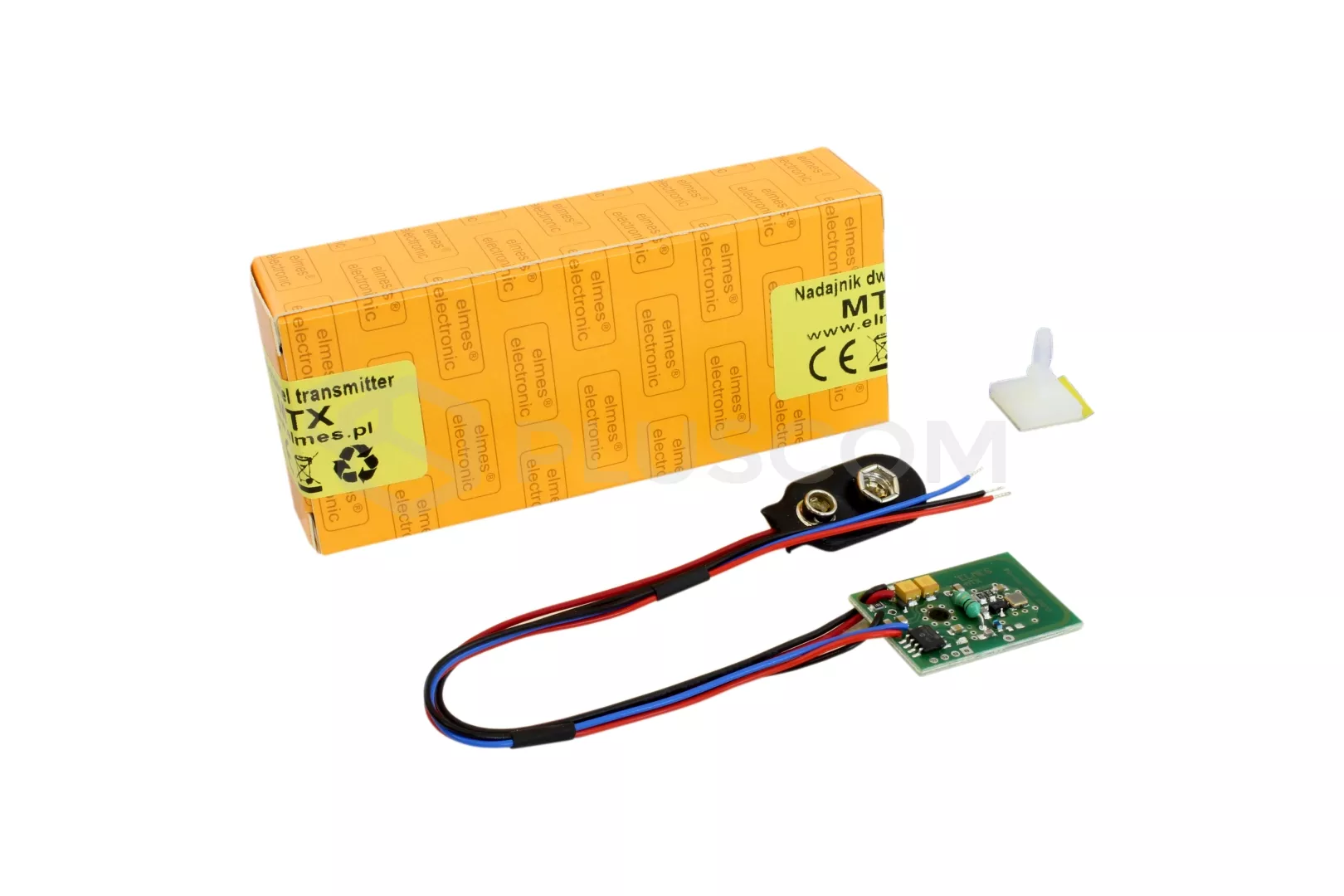

INCLUDES

• MTX transmitter plate
• installation bracket
• user manual
