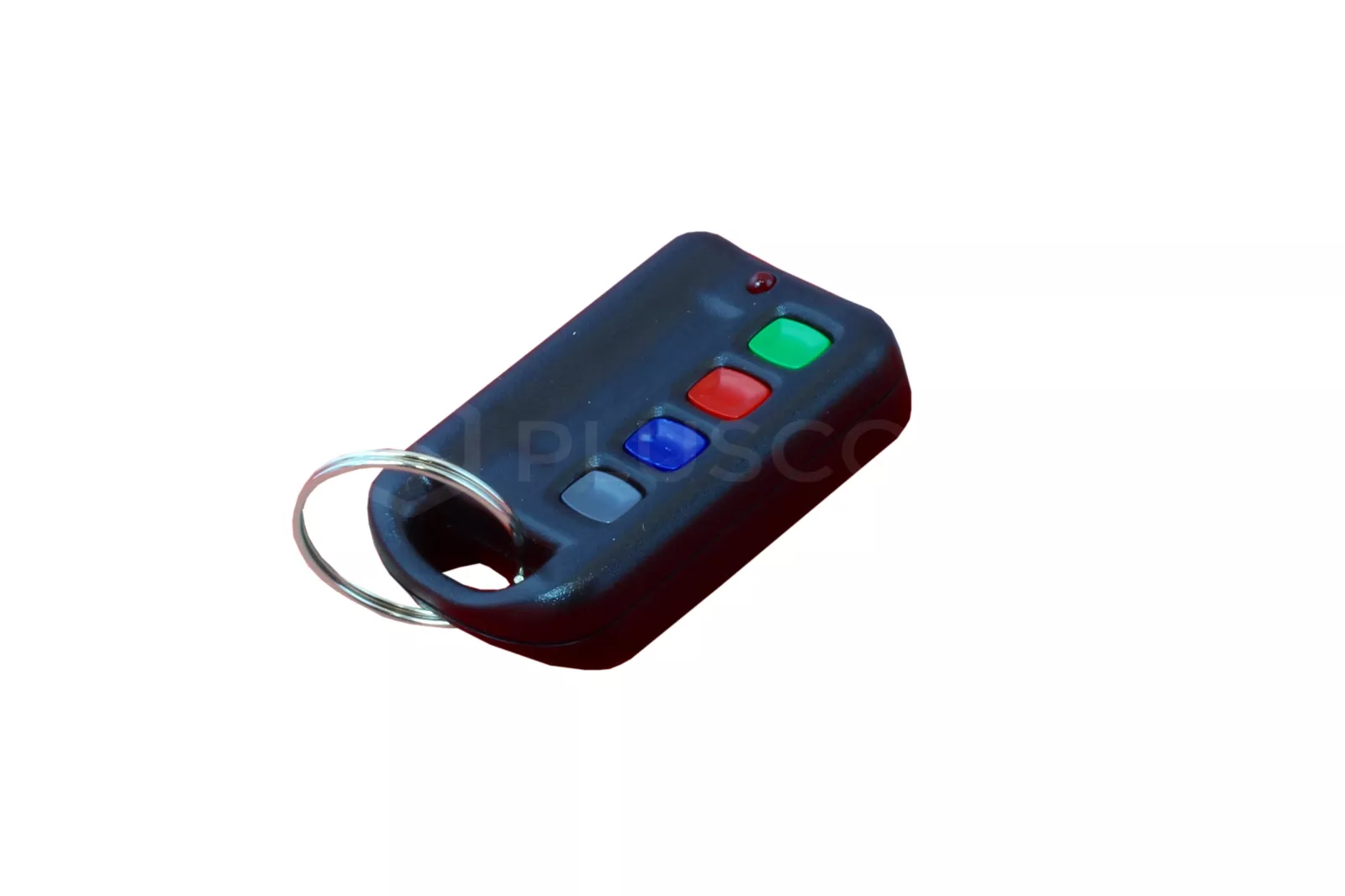

Elmes CH4HT Four channels transmitter

13,07 EUR including 23.00% VAT
In stock. Ships today!
Product code: #6771
Manufacturer: Elmes
  • operating frequency: 433.92 MHz
  • power: 3-5mW
  • the range: 100m in open space
  • power supply: 12V battery GP23A
  • size: 50x37x14mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

CH4HT pilot four-channels, 433.92 MHz bandwidth, variable dynamic code KEELOQ
Elmes CH4HT Four channels transmitter

Elmes CH4HT Four channels transmitter


The remote control
works with any Elmes receiver 433.92 MHz. It has a LED indicator for signal transmission.

In the pilot
we use radio frequency stabilization based on the quality SAW resonators produced by EPCOS.

Radio transmissions
sent by the pilot are protected KEELOQ variable coding system.
The system significantly increases safety in use, each code is different and intercepted transmission can not be reused.

TECHNICAL DATA

  • four-channels remote control
  • 433.92 MHz operating frequency
  • power 3-5mW
  • range: 100m in open space
  • power supply: 12V battery GP23A
  • dimensions (length/width/height) 50x37x14mm

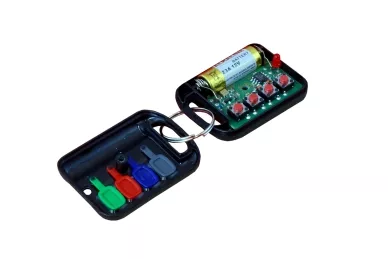

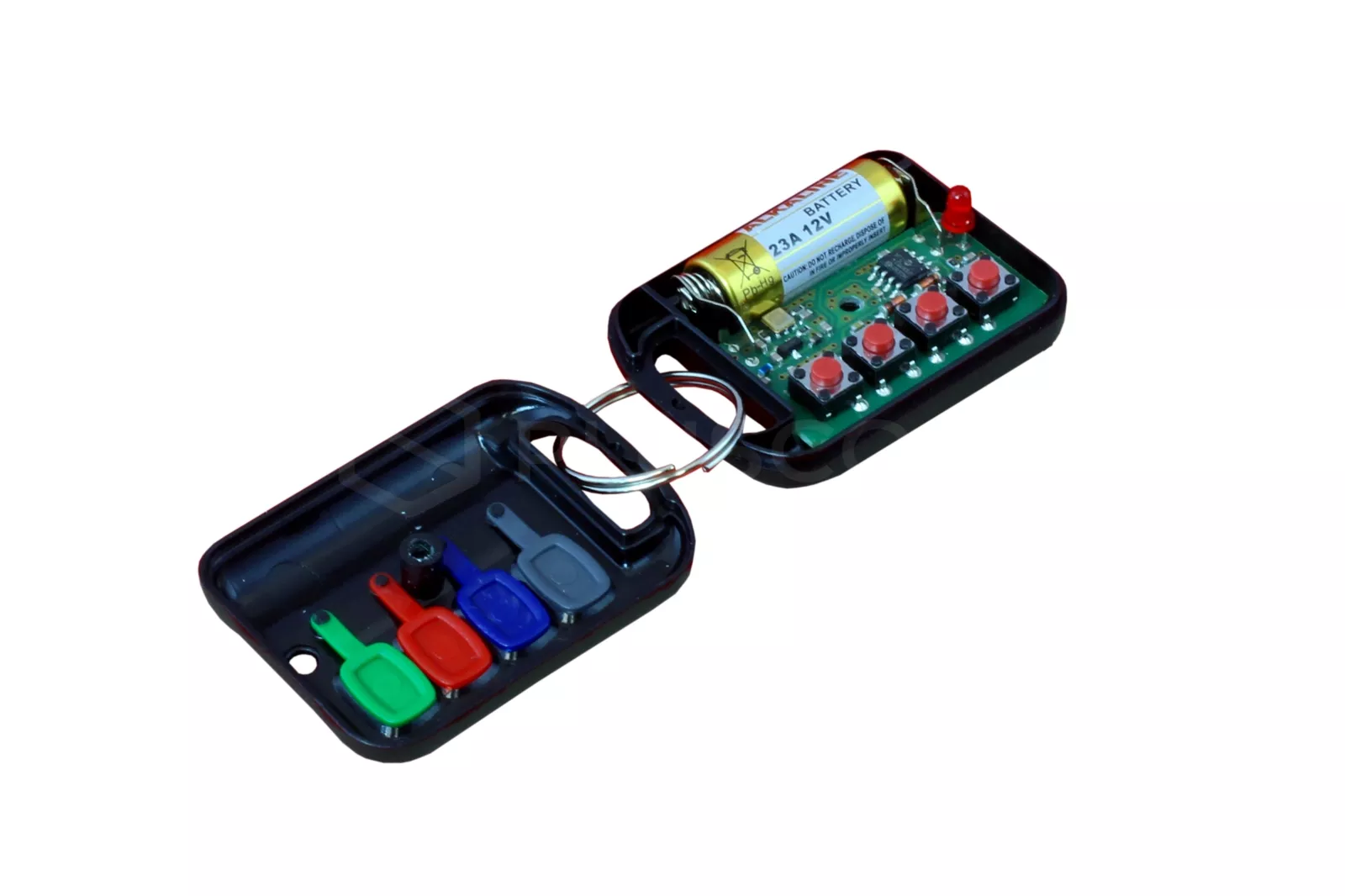

Casing removed:

Casing removed:


Download
Datasheet 0.03 MB
