Came AXI20DGS 24V actuator wing up to 2m / 200kg

358,08 EUR including 23.00% VAT
Product code: #26000
Manufacturer: CAME
  • Gate weight up to 200kg, lenght up to 2m
  • Motor power supply: 24V DC
  • Opening time (up to 90 °): 15s
  • CAME CONNECT technology
  • Can be connected to the RIO system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came DIR30 photocells synchronized up to 30m Came R700 Interface Came DIR20 photocells synchronized up to 20m Came H3000 Release mechanism from the outside Came DIR10 photocells synchronized up to 10m Came AF43S 433.92 MHz frequency card Came TOPD4RBS 4-channel remote control - blue Came ZL65 Control unit for single or double-leaf gates Came PL0033 12V 7Ah battery Came RLB Card for supplying the system with batteries

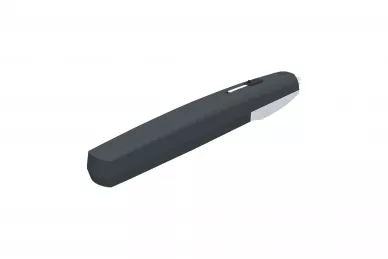

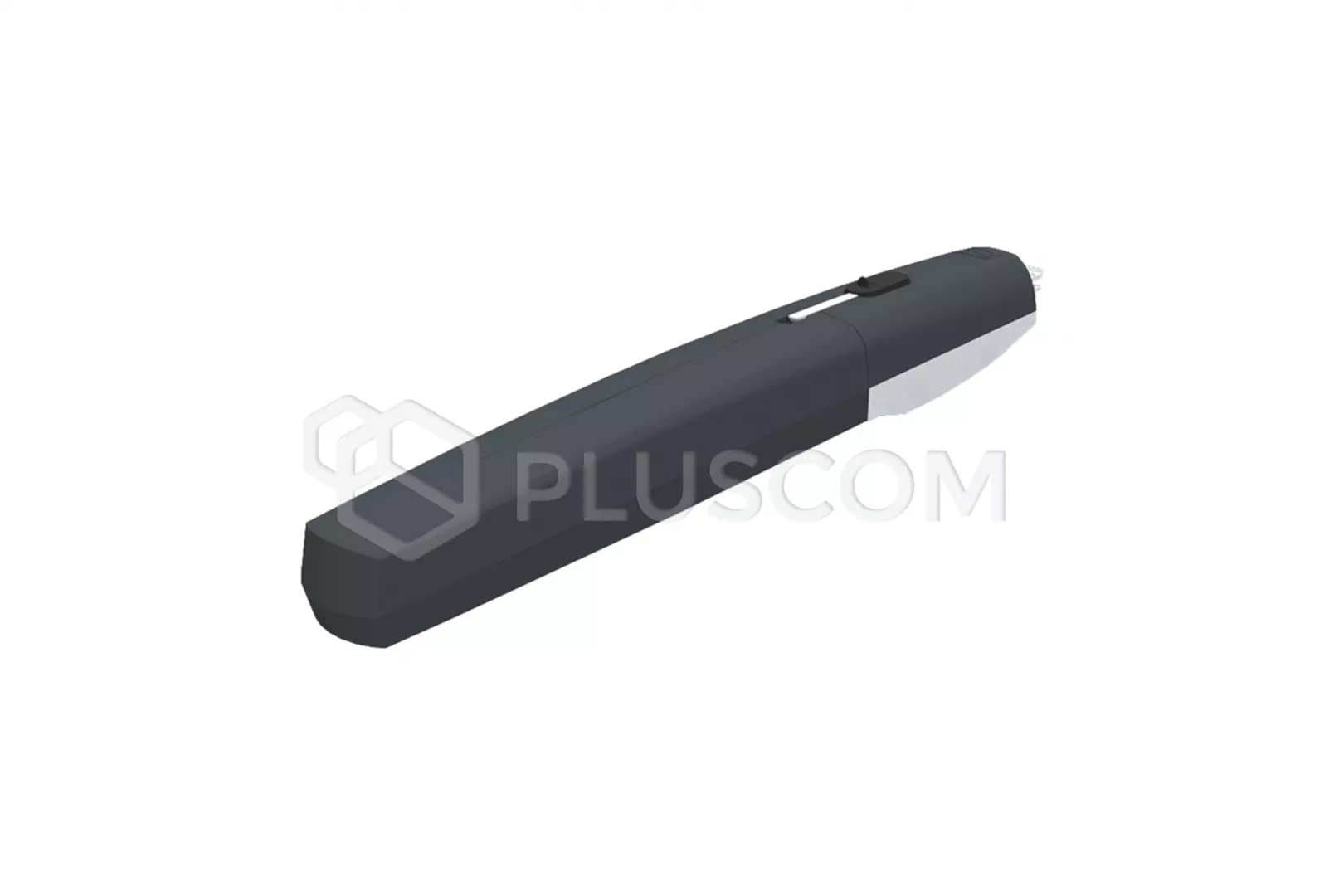

CAME AXI20DGS Gearmotor for single or double-leaf gates up to 2m


Self-locking electromechanical actuator equipped with a gearmotor z bevel gear, tapered thread and integrated and adjustable stops mechanical. Thanks to this technology, the actuator ensures smooth operation and function slowing down makes the device ideally suited to the application residential.

Application range:
  • 2m / 200kg
  • 1.5m / 250kg

The drive combines innovative technical solutions with the most modern electronics.

PRODUCT ADVANTAGES
  • motor power supply: 24 V
  • slowdown in final phases of closing and opening
  • silent operation
  • taper thread and new worm screw guarantee smooth and quiet movement work with increased power at the same time
  • built-in mechanical end position resistances
  • self-diagnosis of security devices
  • possible connection to the cloud using CAME CONNECT
  • technology
  • connectable to RIO
The optional EMERGENCY POWER SUPPLY system ensures that the drive works even at no mains power. The lever for manual disengagement of the actuator is locked standard CAME key.

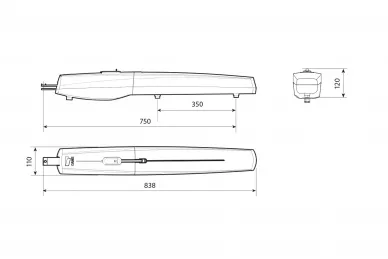

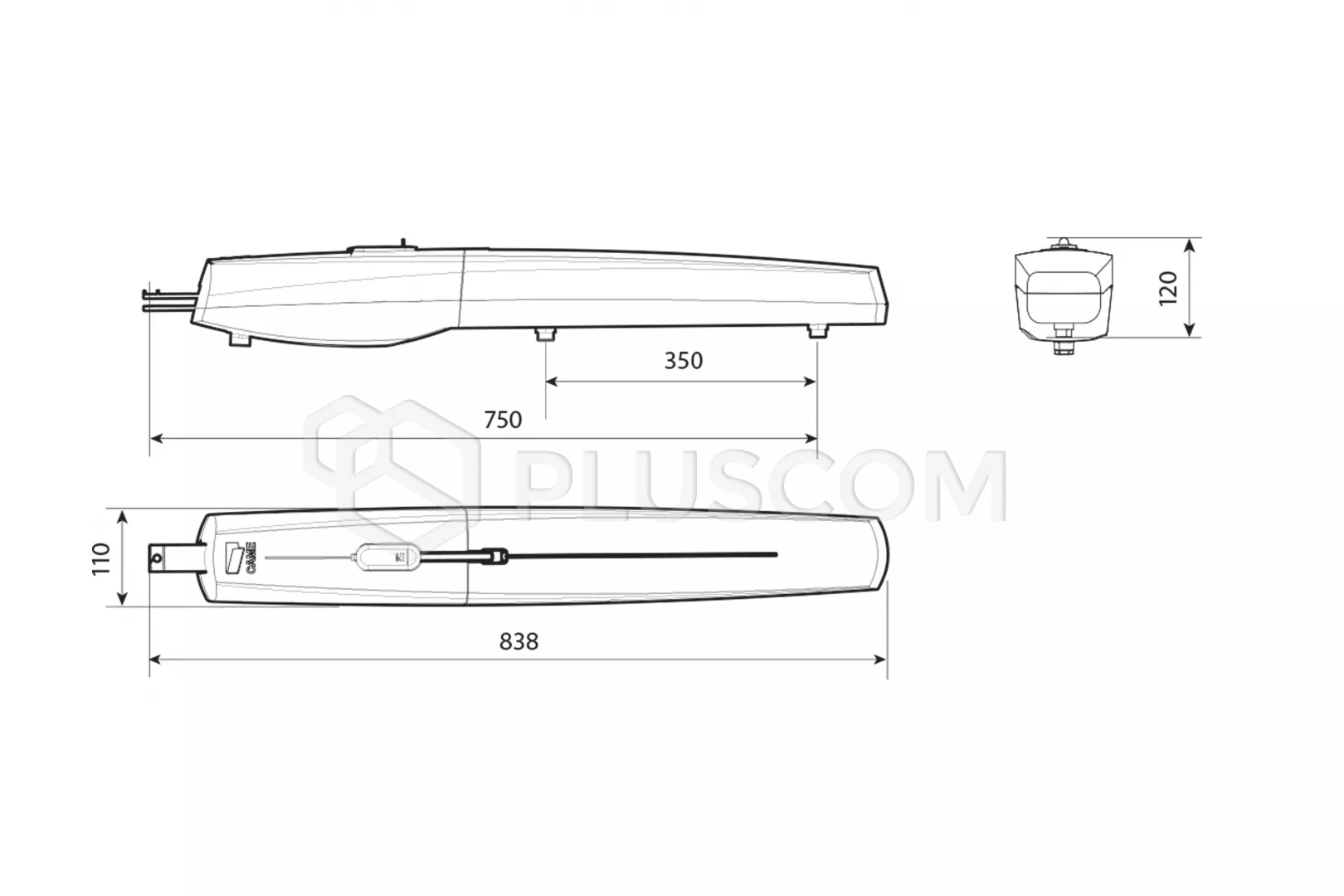

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power supply: 24V DC
  • power consumption in stand-by mode: 7 W
  • power consumption in stand-by mode with RGP1 module: 0.5 W
  • maximum power 120 W
  • duty cycle: 50%
  • thrust: 400 ÷ 2000 N
  • opening time (up to 90 °): 15s
  • degree of protection: IP44
  • dimensions: 838x110x120mm
  • weight: 5.5kg
Download
Manual 5.13 MB
