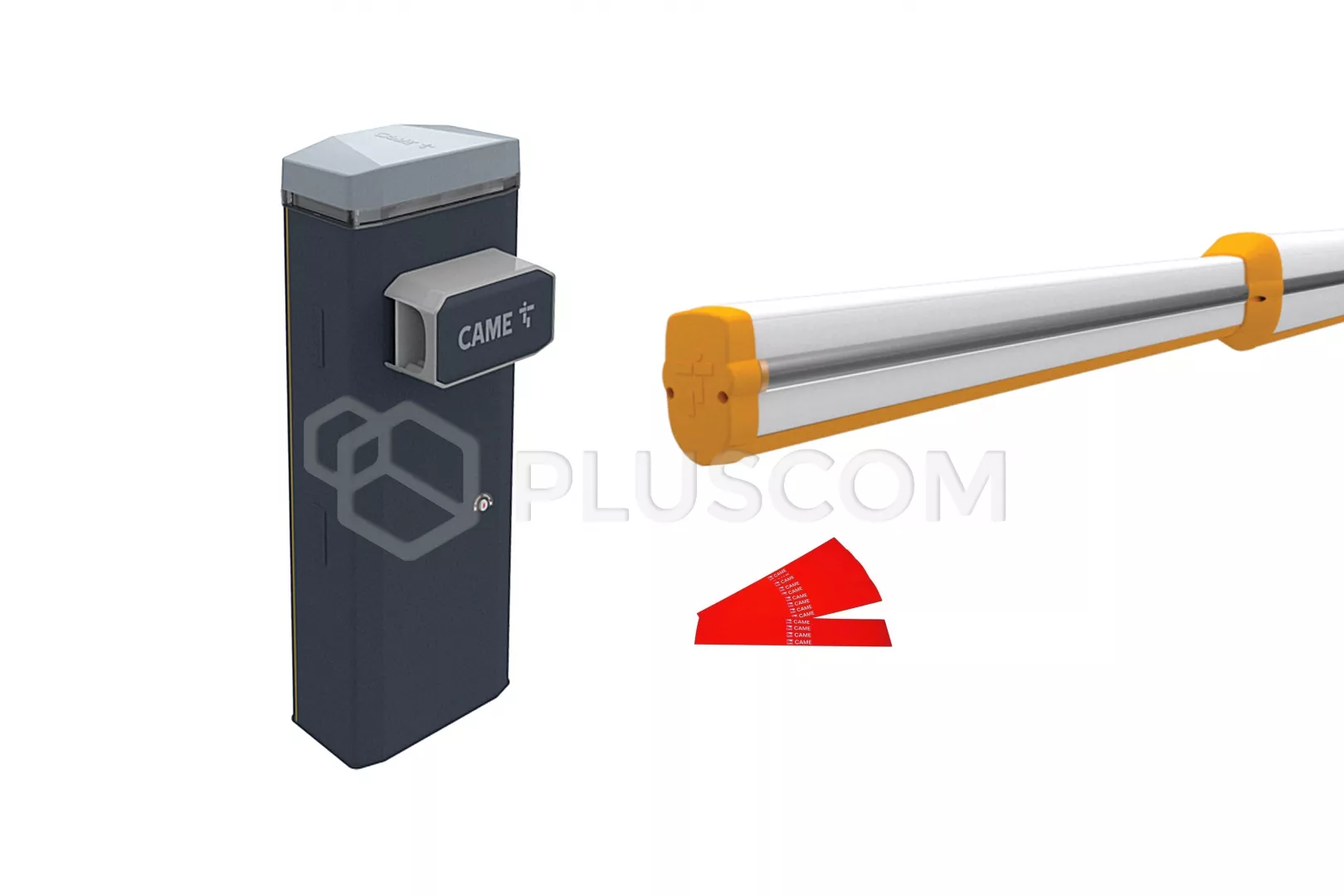

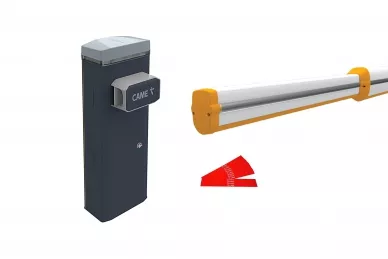

Came GARD GT8 - MCBF 3M CYCLES Set with 7.8m arm

2266,87 EUR including 22.00% VAT
Product code: #26668
Manufacturer: CAME
  • THE KIT:
  • 803BB-0180 - central unit with a mounting plate
  • 803XA-0420 - two piece aluminum arm
  • G02809 - warning stickers
  • CXN BUS technology
Delivery and tax:
Italy VAT: 22.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came G02807 Fixed arm support Came Came KEY WIFI interface managed by automation app (806SA-0110) Came RSE RS485 communication card Came 806TF-0110 Photocell DXR20SAP Came R800 Interface Came 803XA-0430 Luminous red/green LED crown Came R700 Interface Came 803XA-0390 Arm release handle Came 803XA-0240 R/G LED strip for 6.5m arm Came 803XA-0370 Emergency power supply module for the GT8 barrier

CAME GARD GT8 - MCBF 3M CYCLES Set with tonearm 7.8m


PACKAGE CONTAINS
CAME GARD GT8 - MCBF 3M CYCLES Set with 7.8m arm

CAME GARD GT8 - MCBF 3M CYCLES Set with 7.8m arm
GT8 electromechanical barrier with built-in encoder is perfect for work with high loads. It is irreplaceable on crossings where long and trouble-free operation is necessary. Tested for intensive use up to 160 cycles per hour and MCBF at the level of 3 million cycles.
The GT8 has a built-in control unit located directly under the cover housing. Thanks to this, all stages of setup and maintenance can be left carried out in a comfortable standing position, with the housing closed.

PROPERTIES
  • DURABILITY - galvanized and painted steel housing
  • RELIABILITY - gearmotor with 24 V DC motor and ENCODER for advanced speed control
  • FUNCTIONALITY - built-in RG LED lighting system for full device status indication
  • SAFETY - EN12453 - rubber profile in the arm and effective obstacle detection system guarantee full safety
  • VERSATILITY - control electronics with digital inputs, CXN BUS technology, MODBUS protocol allowing for integration with systems external
  • EFFICIENCY - opening / closing speed from 2 to 4s, depending on on the length of the barrier
803XA-0420 arm is made of two elements of different mean dimensions, mounted one into the other.
The first section of the arm is mounted directly in the handle of the barrier. Second section, smaller diameter, it may be of variable length, but not more than 4 m, and it is inserted about 30 cm deep into the center of the first section and firmly fastened.

Warning stickers G02809 stuck on the white arm of the barrier significantly improve the visibility of the arm. They are made of reflective foil.

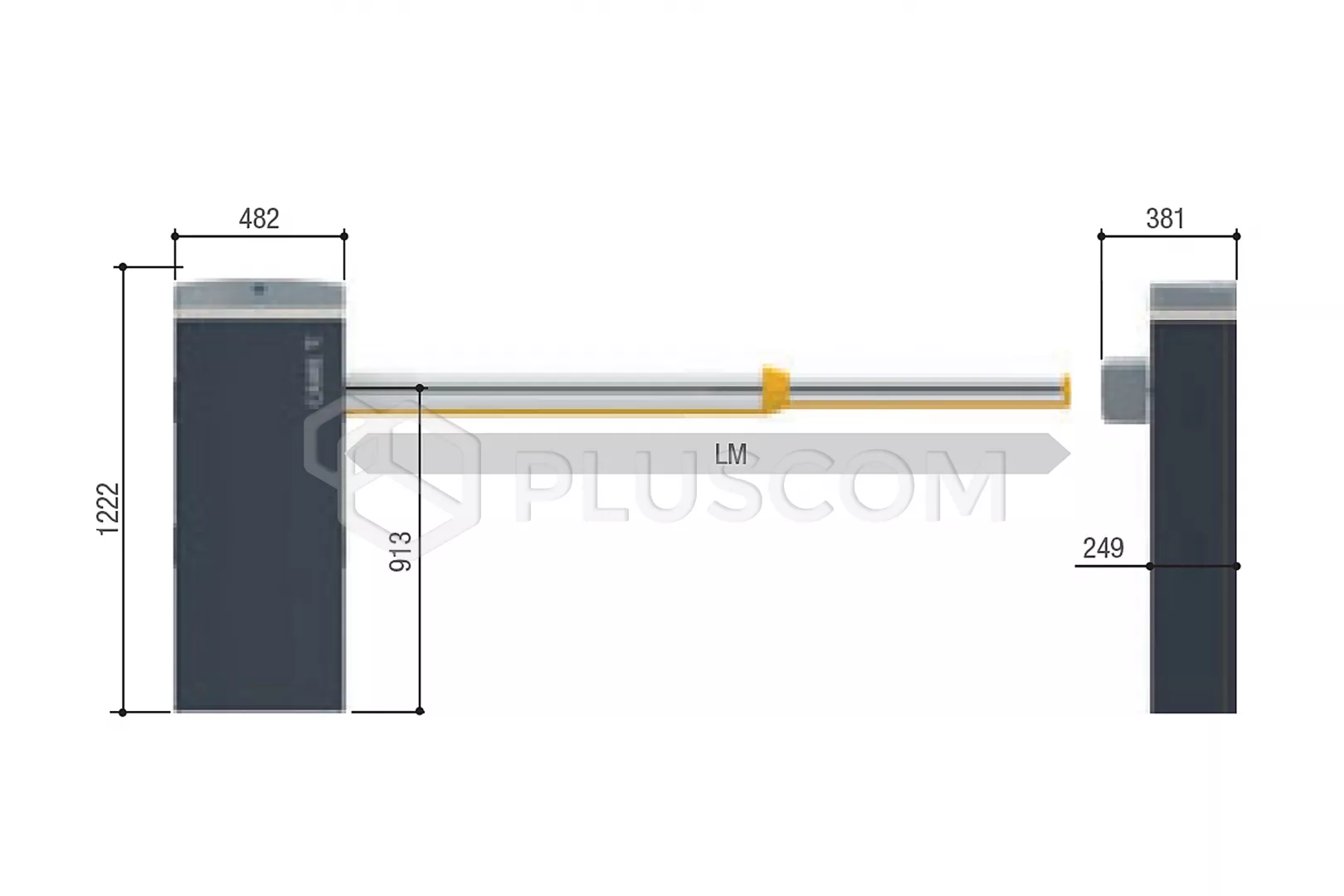

Dimensions:

Dimensions:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 1.1A
  • Motor power: 300 W
  • Duty cycle: up to 160 cycles / hour
  • Open time up to 90 °: 4-8 sec
  • Torque: 600 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1222x482x381mm
Download
Datasheet 0.5 MB
