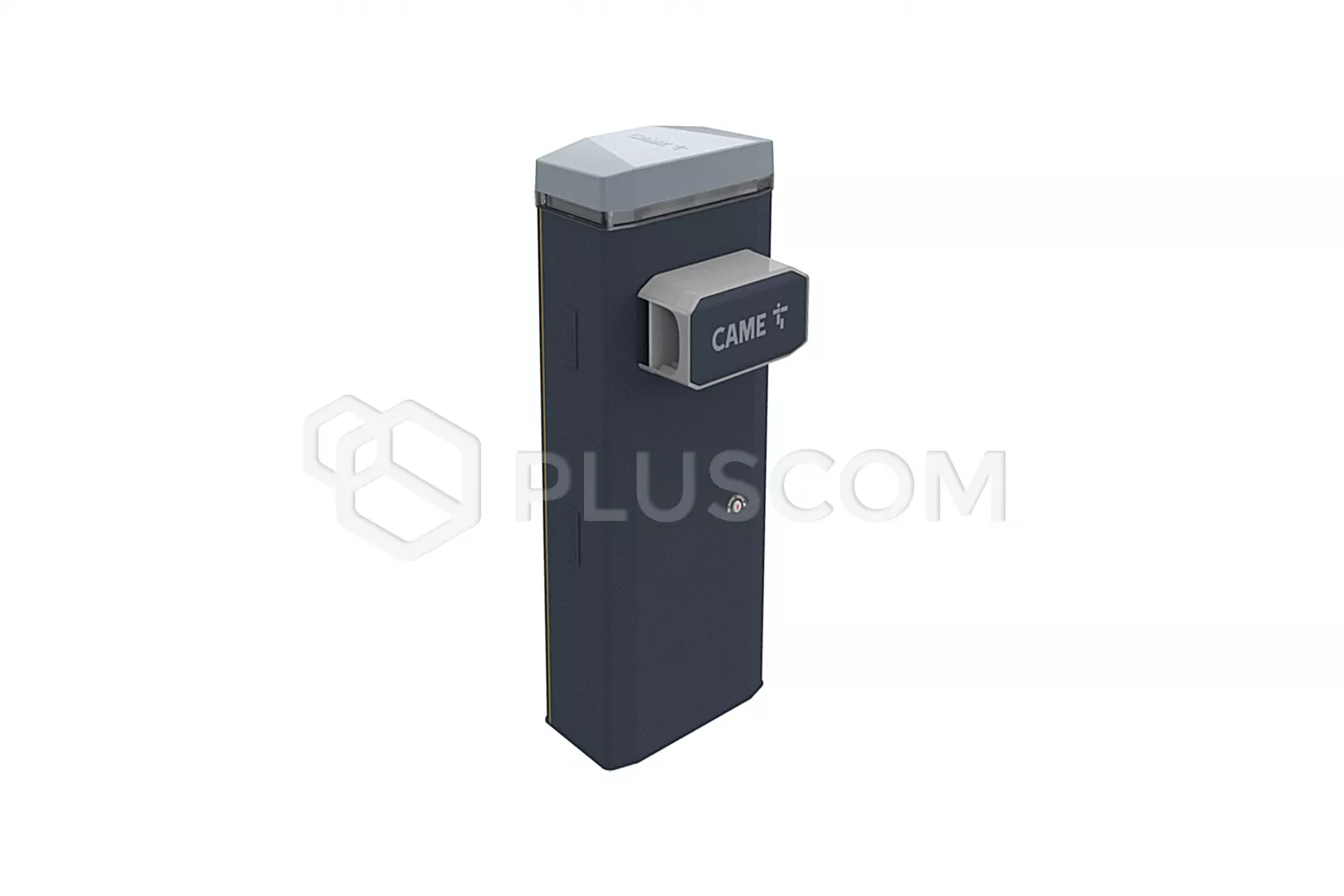

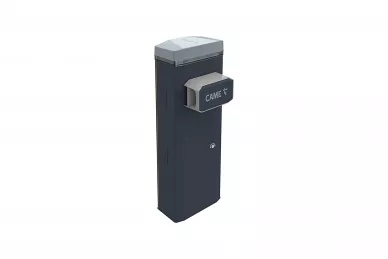

Came GGT80AGS Electromechanical barrier up to 7.8m

BLADE CAME GARD GGT80AGS UNIT CENTRAL FOR ARM UP TO 7.8m

GT8 electromechanical barrier with built-in encoder is perfect for work with high loads. It is irreplaceable on crossings where long and trouble-free operation is necessary. Tested for intensive use up to 160 cycles per hour and MCBF at the level of 3 million cycles.
The assembly of the barrier does not require any special preparations. It has a technological prepared openings in the housing for the installation of photocells and accessories directly on the barrier structure. A very large number additional accessories allow the GARD barrier to be uniquely adapted to specific installation location.

The GGT80AGS has a built-in control unit located directly under the cover housing. Thanks to this, all stages of setup and maintenance can be left carried out in a comfortable standing position, with the housing closed.
The control panel includes:

• inputs for safety accessories configurable both as contacts N.C. and resistive (8k2)
• control inputs
• inputs for CXN BUS accessories
• output for arm end safety electro-block
• interface for radio receiver with fixed and rolling code for max. 250 users (AF435 / AF868)
• connector for external keyboard or RFID reader (R800 / R700)
• serial port to CONNECT gateway for remote management barrier
• connector for CAME KEY for smartphone configuration
• MEMORY to save configuration
• serial port with MODBUS protocol

Practical 7-segment display and control buttons allow to navigate through the entire menu and configure the barrier in a few simple steps.

ADVANCED SPEED CONTROL
Modern technology in combination with a 24V DC motor with an ENCODER allows precise management of opening and closing speeds. Thanks this the innovative function, the movement is smooth both during opening and closure without any vibrations that could adversely affect the service life mechanical system.
The control unit analyzes the forces acting on the arm in real time and adjusts it speed based on the measured parameters, which allows the behavior long-term resistance and reliability in all weather conditions.

PROPERTIES

• DURABILITY - galvanized and painted steel housing
• RELIABILITY - gearmotor with 24 V DC motor and ENCODER for advanced speed control
• FUNCTIONALITY - built-in RG LED lighting system for full device status indication
• SAFETY - EN12453 - rubber profile in the arm and effective obstacle detection system guarantee full safety
• VERSATILITY - control electronics with digital inputs, CXN BUS technology, MODBUS protocol allowing for integration with systems external
• EFFICIENCY - opening / closing speed from 2 to 4s, depending on on the length of the barrier

TECHNICAL DATA:

• Powered: 230V AC
• Motor power: 24V DC
• Current consumption: 1.1A
• Motor power: 300 W
• Duty cycle: up to 160 cycles / hour
• Open time up to 90 °: 4-8 sec
• Torque: 600 Nm
• Grade of protection: IP 54
• Working temperature: -20 ° C ~ 55 ° C

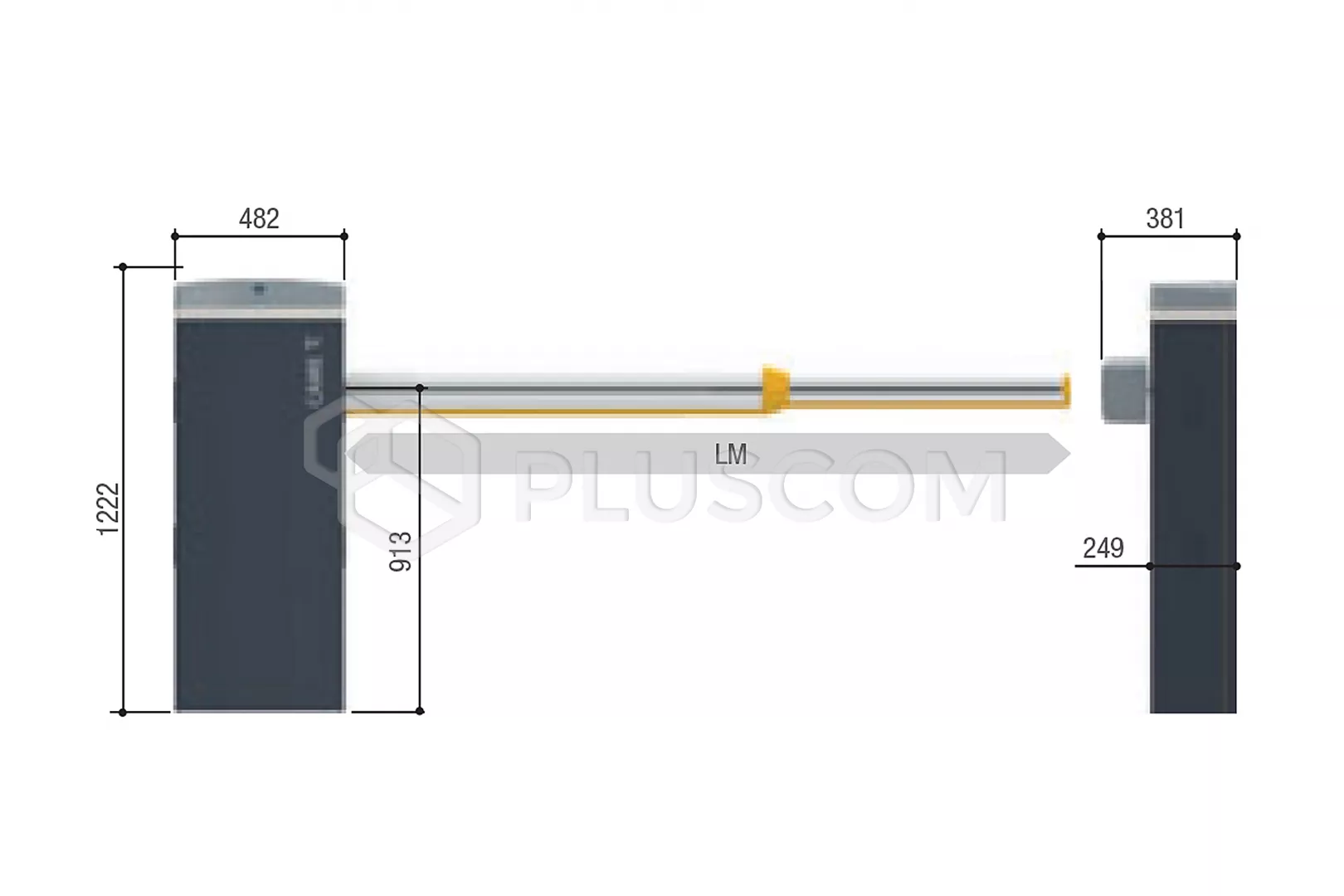

• Dimensions: 1222x482x381mm
