Came 806TF-0110 Photocell DXR20SAP

101,19 EUR including 23.00% VAT
Product code: #26384
Manufacturer: CAME
  • 180 ° IR beam adjustment
  • Range up to 30m
  • Power supply: BUS CXN
  • Możliwość synchronizacji do 8 par fotokomórek
  • Integrated filter function
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came DIR-L Column for DIR photocells 0.5m silver Came 806TF-0050 Aluminum anti-impact covers Came DIR-PN Extension of the column to the DIR series black Came DIR-P Extension of the column to the DIR series silver Came DIR-LN Column for DIR photocells 0.5m black

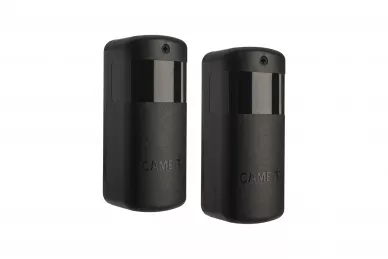

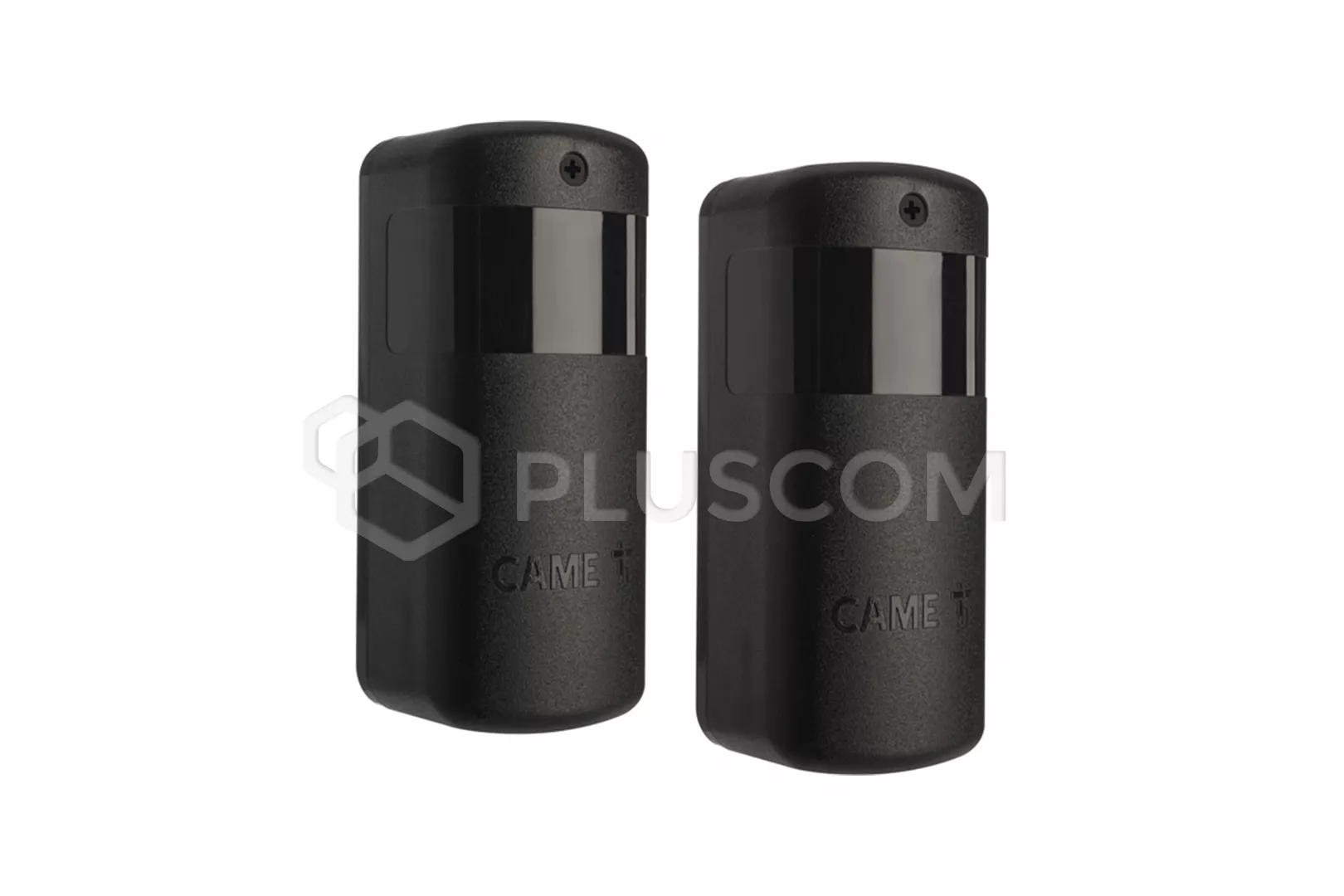

CAME 806TF-0110 Photocell DXR20SAP with regulation


New generation photocell in a rotating housing. Finds wide use in places where the assembly space and construction of the installation do not allow for perfect matching, front to front, with standard photocells.

The infrared beam is adjustable 180 ° on the horizontal axis and 5 ° on the axis vertical and can be locked in any position by a heavy-duty interlock snap on housing. The efficiency of the action radius in each direction is ensure by a high quality lens, specially designed for optimizing device performance and ensuring perfect pairing in each direction.

KEY FEATURES:
  • ADJUSTING THE BEAM RANGE up to 30 m
  • SYNCHRONIZE UP TO 8 PAIRS OF PHOTOCELLS without interference or connection between the transmitter and receiver
  • FILTER FUNCTION to avoid false detection caused by bad weather conditions or sunlight
  • ADJUSTABLE CONTACT OUT to use the photocell also as control device
  • COMPATIBLE with load-bearing columns from the DIR series (also with double height)

TECHNICAL DATA:
  • power supply: BUS CXN (V - 50 / 60Hz)
  • power: 0.29W
  • infrared range Max .: 30m
  • working temperature: -20 ° C ÷ + 55 ° C
  • degree of protection: IP54
Download
Manual 0.76 MB
