Came GARD G5000 - MCBF 1M CYCLES Set with 5m arm with

1926,46 EUR including 19.00% VAT
Product code: #26660
Manufacturer: CAME

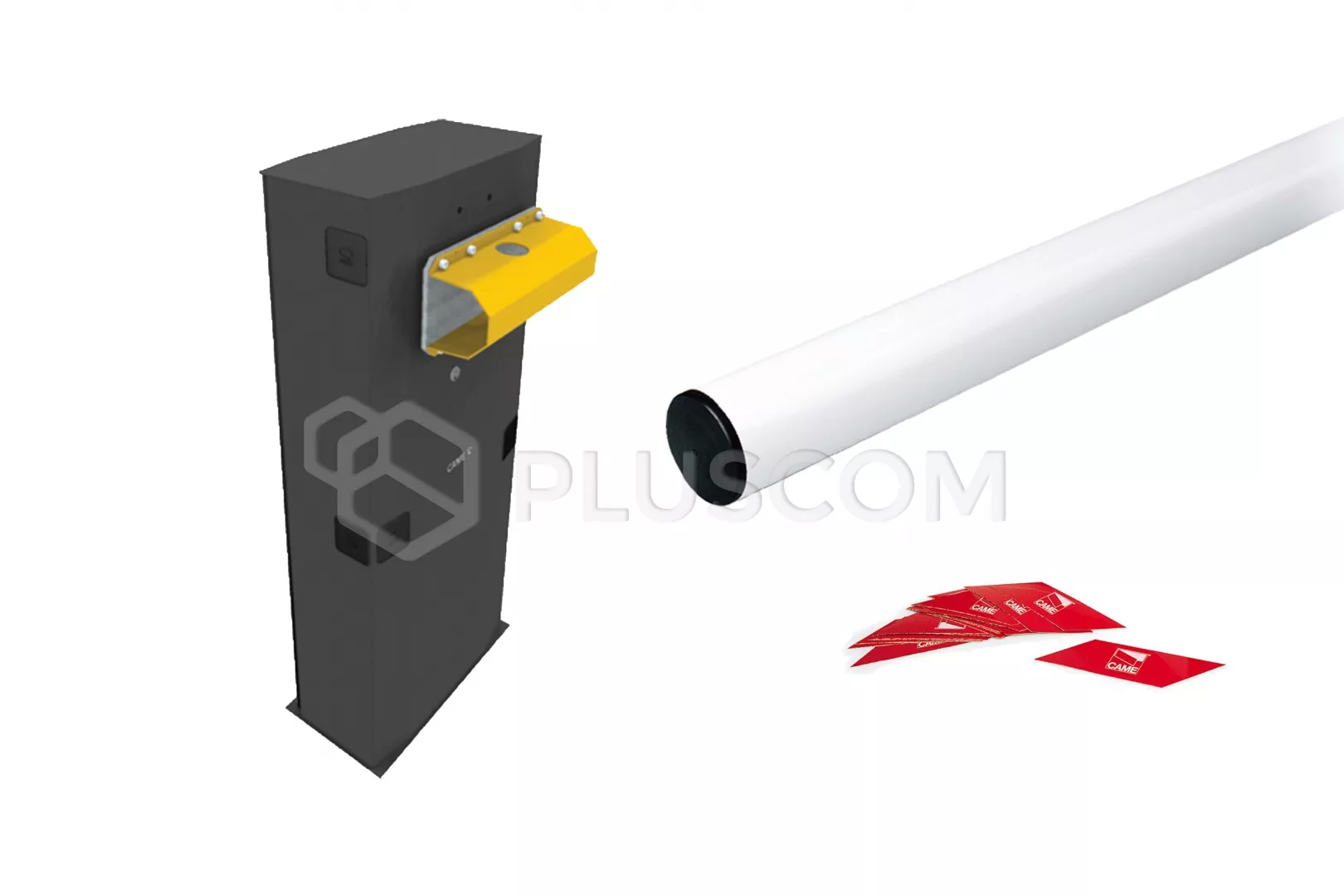

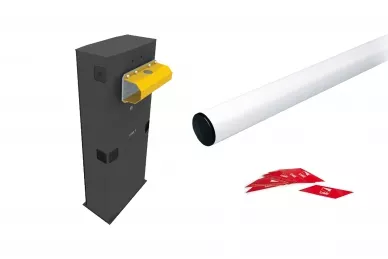

  • THE KIT:
  • G4000 - central unit with a mounting plate
  • G0502 - oval arm 5350mm
  • G0461 - warning stickers
Delivery and tax:
Germany VAT: 19.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came KLED24 LED warning light 24V Came DIR30 photocells synchronized up to 30m Came DIR20 photocells synchronized up to 20m Came DIR10 photocells synchronized up to 10m Came G06802 Strengthening the arm Came G05350 Aluminum tube arm with dimensions Ø 100 x 5350 [mm] with the possibility of LED installation Came G028401 LED lighting strip Came G02808 Movable arm support Came G02807 Fixed arm support Came G0465 Curtainsider attached to the arm

CAME GARD G5000 - MCBF 1M CYCLES Set with oval arm 5m


PACKAGE CONTAINS
CAME GARD G5000 - MCBF 1M CYCLES Set with 5m arm with

CAME GARD G5000 - MCBF 1M CYCLES Set with 5m arm with
The barrier is suitable for both left and right side installation. It has a built-in ZL 39 control unit with a single-channel radio decoder, arm balance springs, built-in arm mounting bracket, and springs balancing arm and a manual arm declutching system with a key, in the case of power outage. The control board powers the engine and all accessories low voltage (24 V) - making the system very safe.
Housing made of galvanized and painted steel RAL 7024.

BENEFITS OF G5000
  • EMERGENCY POWER - the emergency power card recognizes automatically no 230 V mains supply and activates emergency power supply from batteries
  • SPEED UNDER CONTROL - the control panel has the ability adjusting the speed of opening and closing so that it can be adjusted for installation and user needs
  • OVERLOAD SENSOR - the amperometric sensor detects when obstacles and allows the movement to be stopped or reversed immediately arm
  • INTENSIVE WORK - 24 V D.C. low voltage motor provides maximum efficiency enabling continuous work in places where it is required
Maximum length of a rectangular or round boom for a barrier G5000 is 5m (without accessories).

The oval frame G0502 measuring 100 × 4200 mm is made of aluminum which guarantees resistance to mechanical damage and wear and liquid work.
The arm can be equipped with additional accessories such as warning stickers, curtains and supports (fixed or movable) - they have a very important function shock absorption when stopping the arm.

Warning stickers G0461 stuck to the white barrier of the barrier significantly improve the visibility of the arm. They are made of reflective foil.

Warning stickers G0461 stuck to the white barrier of the barrier significantly improve the visibility of the arm. They are made of reflective foil.

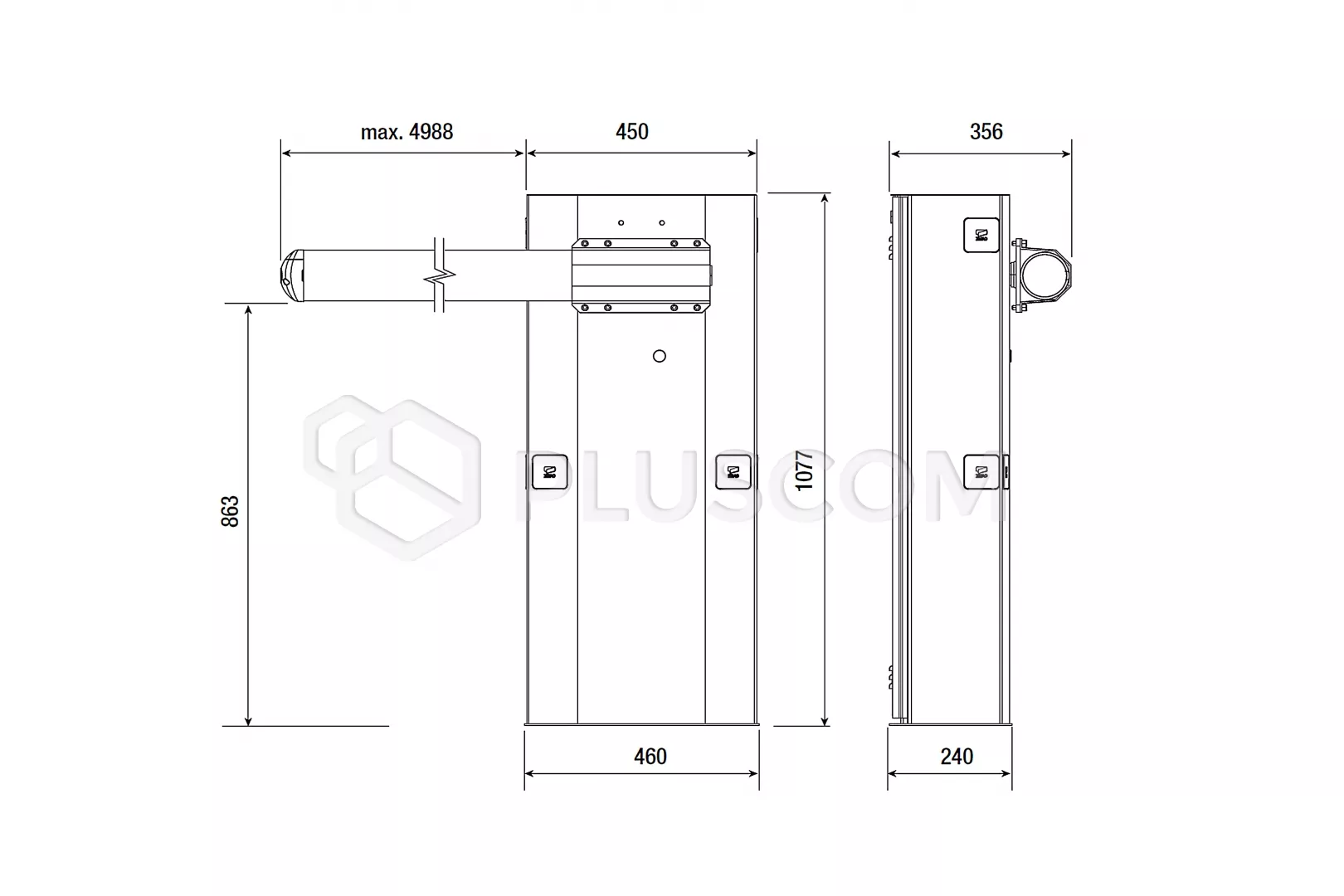

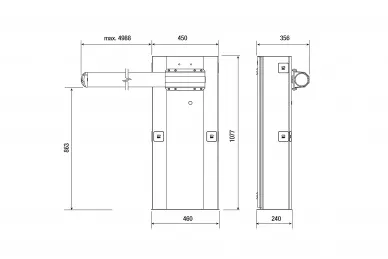

Dimensions:

Dimensions:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 15A
  • Motor power: 200 W
  • Work cycle: intensive work
  • Open time up to 90 °: 4-8 sec
  • Torque: 600 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1077x460x356mm
  • Weight: 78.5kg
