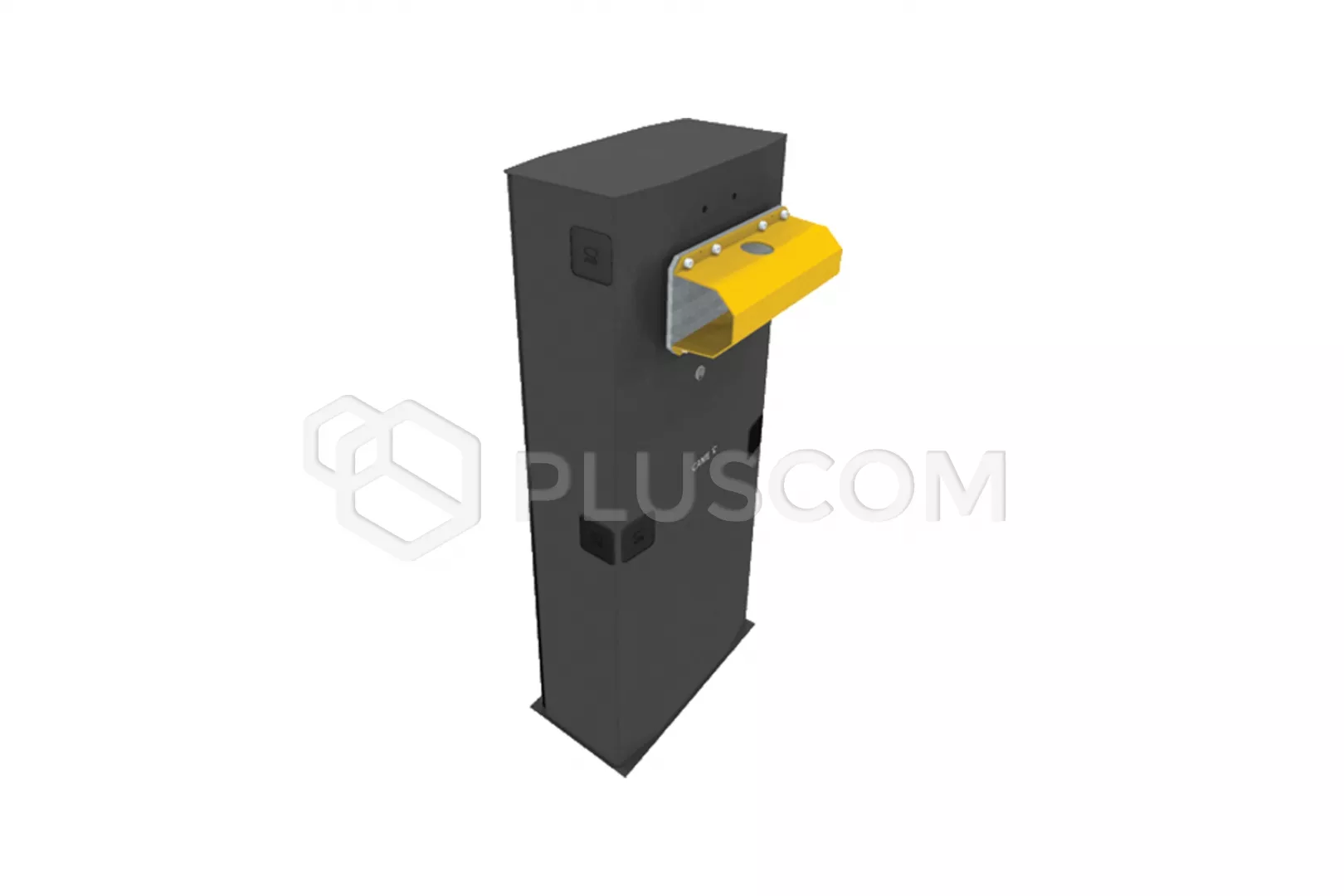

Came G5000 Electromechanical barrier up to 5m

1740,40 EUR including 23.00% VAT
Product code: #26205
Manufacturer: CAME
  • Permissible arm length: 5m
  • Minimum opening time: 4s
  • Housing made of galvanized and painted steel RAL 2004
  • Arm speed adjustment
  • 24V DC motor power supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came G02808 Movable arm support Came RSE RS485 communication card Came G02807 Fixed arm support Came R800 Interface Came PL0066 Closing system after crossing the line of photocells Came R700 Interface Came PL0064 Traffic light control system Came G06802 Strengthening the arm Came LB39 Card for supplying the system with batteries Came G05350 Aluminum tube arm with dimensions Ø 100 x 5350 [mm] with the possibility of LED installation

BARRIER CAME GARD G5000 CENTRAL UNIT FOR ARMS UP TO 5m


The G5000 electromechanical barrier will prove itself in all parking lots guarded, at universities, offices, housing communities and others industrial facilities, where the journey does not exceed 5m. Robust construction makes the barrier suitable for intensive work.
Installation that does not require special preparation. It has a technological prepared openings in the housing for the installation of keyboards and key locks, photocells and a warning lamp. A very large number of additional accessories allows for a unique adjustment of the GARD barrier to a specific place installation.

The barrier is suitable for both left and right side installation. It has a built-in ZL 39 control unit with a single-channel radio decoder, arm balance springs, built-in arm mounting bracket, and springs balancing arm and a manual arm declutching system with a key, in the case of power outage. The control board powers the engine and all accessories low voltage (24 V) - making the system very safe.
Housing made of galvanized and painted steel RAL 7024.

BENEFITS OF G5000
  • EMERGENCY POWER - the emergency power card recognizes automatically no 230 V mains supply and activates emergency power supply from batteries
  • SPEED UNDER CONTROL - the control panel has the ability adjusting the speed of opening and closing so that it can be adjusted for installation and user needs
  • OVERLOAD SENSOR - the amperometric sensor detects when obstacles and allows the movement to be stopped or reversed immediately arm
  • INTENSIVE WORK - 24 V D.C. low voltage motor provides maximum efficiency enabling continuous work in places where it is required
Maximum length of a rectangular or round boom for a barrier G5000 is 5m (without accessories).

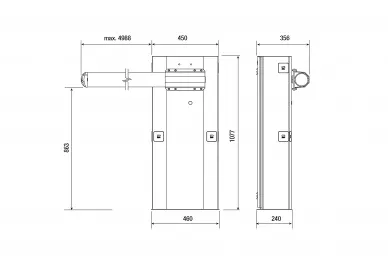

Dimensiosn:

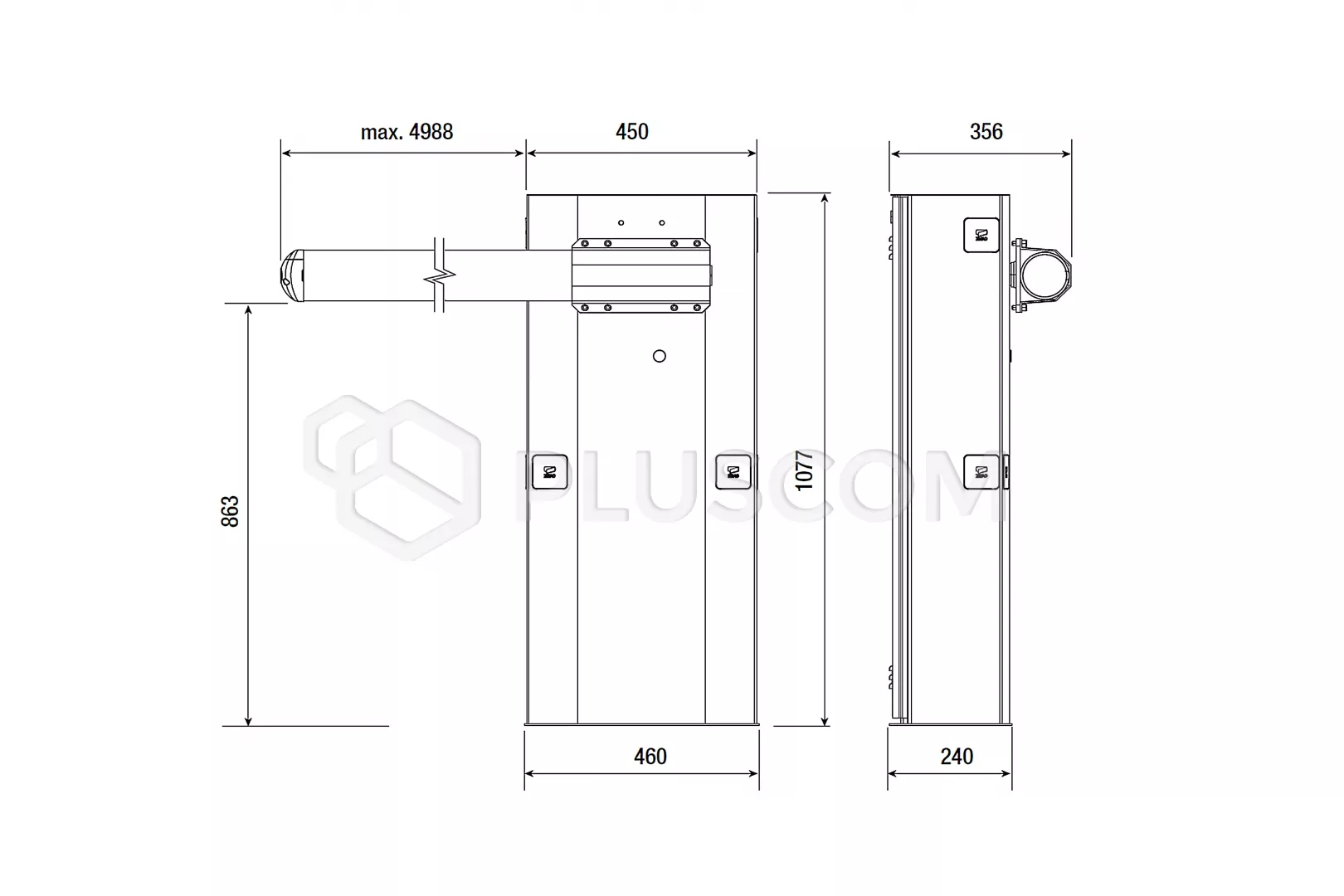

Dimensiosn:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 15A
  • Motor power: 200 W
  • Work cycle: intensive work
  • Open time up to 90 °: 4-8 sec
  • Torque: 600 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1077x460x356mm
  • Weight: 78.5kg
Download
Manual 25.48 MB
