CAME AXI 25 SAFE ATOMO kit for gates leafs with a
maximum leaf weight of 300 kg and max. 2.5m length

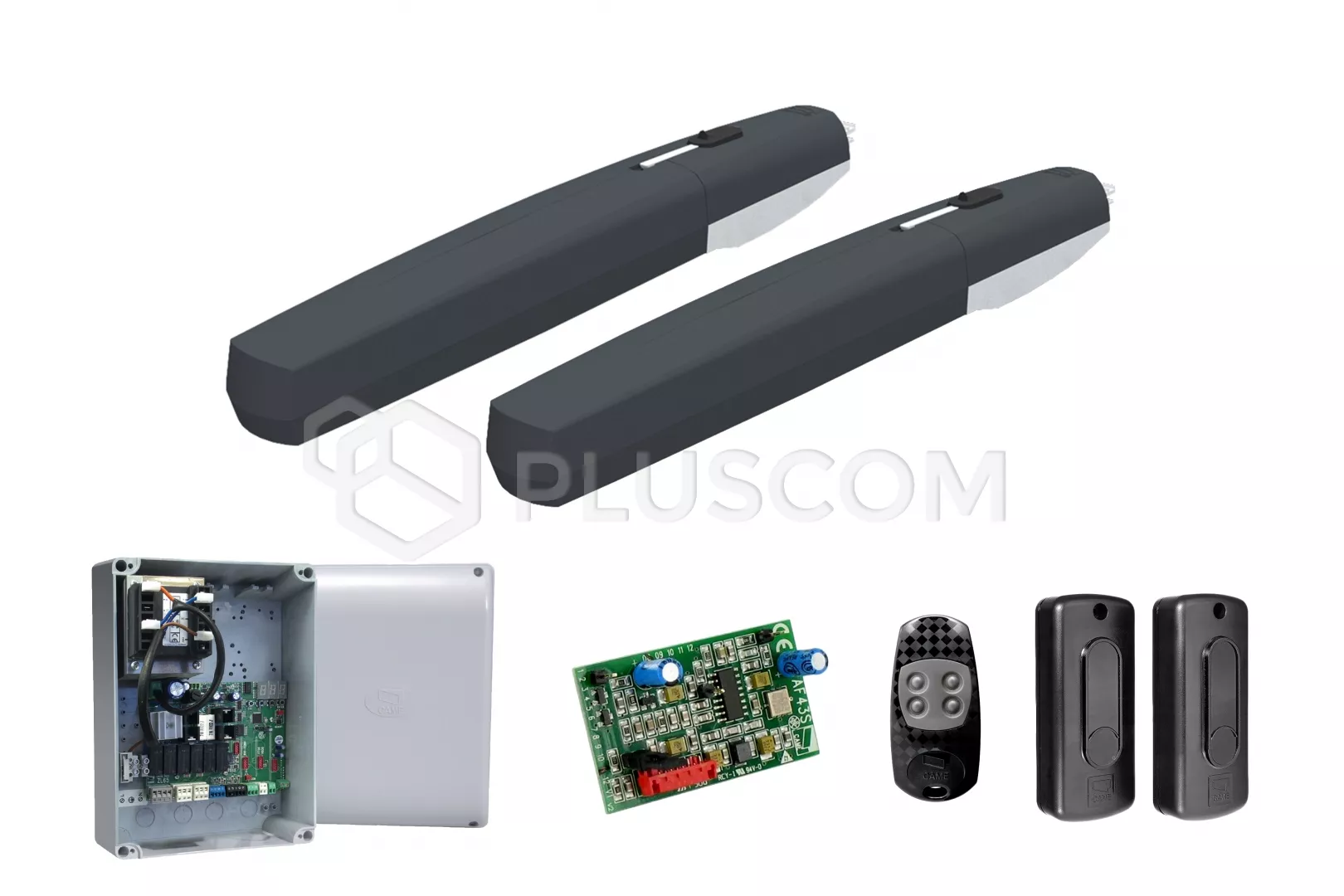

PACK CONTAINS:
|
CAME AXI 25 SAFE ATOMO Set for double-leaf gates
|

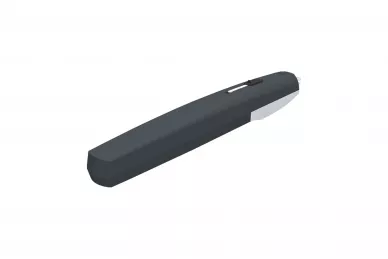

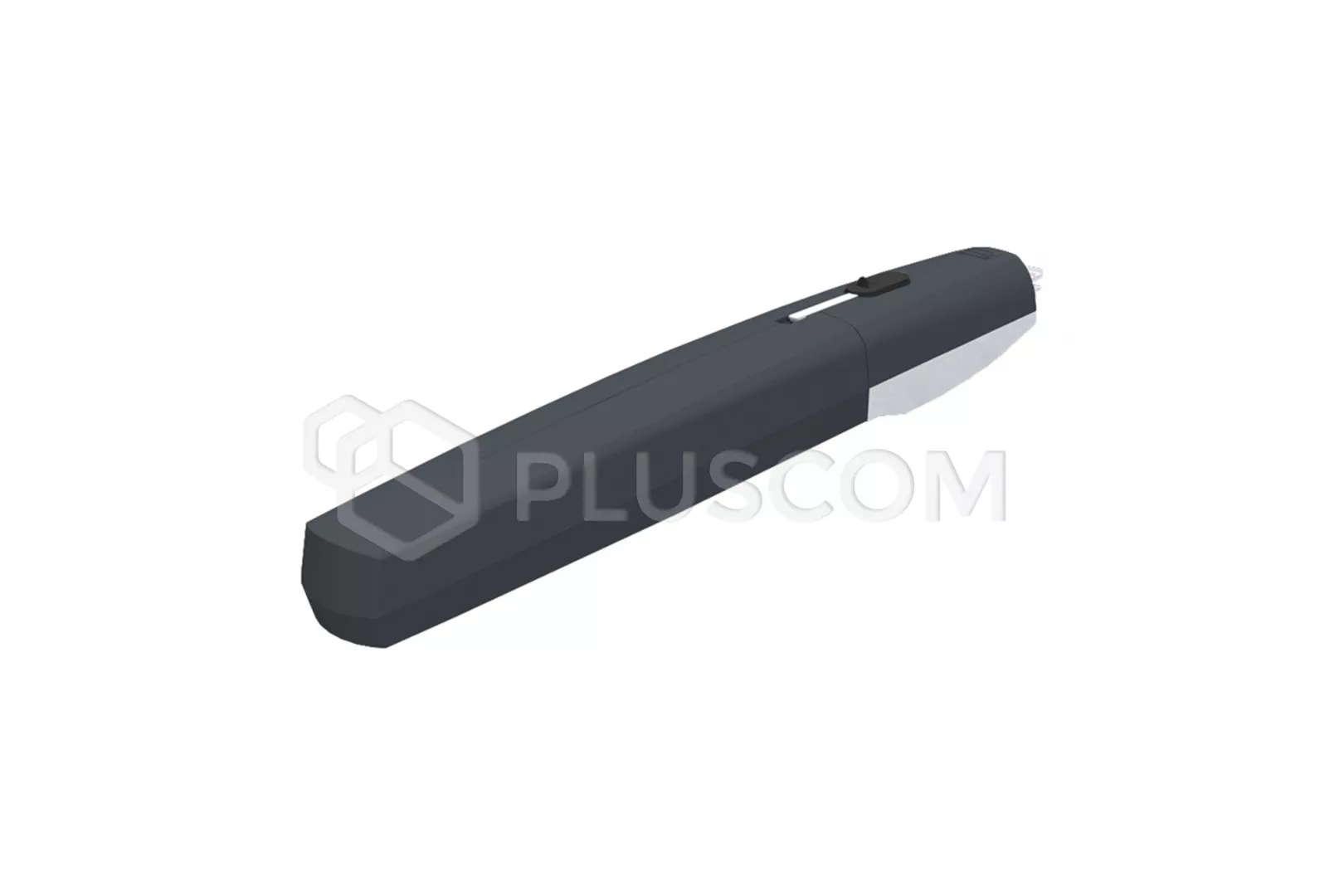

Self-locking actuator AXI25DGS equipped with a
gearmotor z bevel gear, tapered thread and integrated and adjustable stops
mechanical. Thanks to this technology, the actuator ensures smooth operation
and function slowing down makes the device ideally suited to the application
residential.
PRODUCT ADVANTAGES
- motor power supply: 24 V
- slowdown in final phases of closing and opening
- silent operation
- taper thread and new worm screw guarantee smooth and quiet movement work
with increased power at the same time
- built-in mechanical end position resistances
- self-diagnosis of security devices
- possible connection to the cloud using CAME CONNECT
- technology
- connectable to RIO

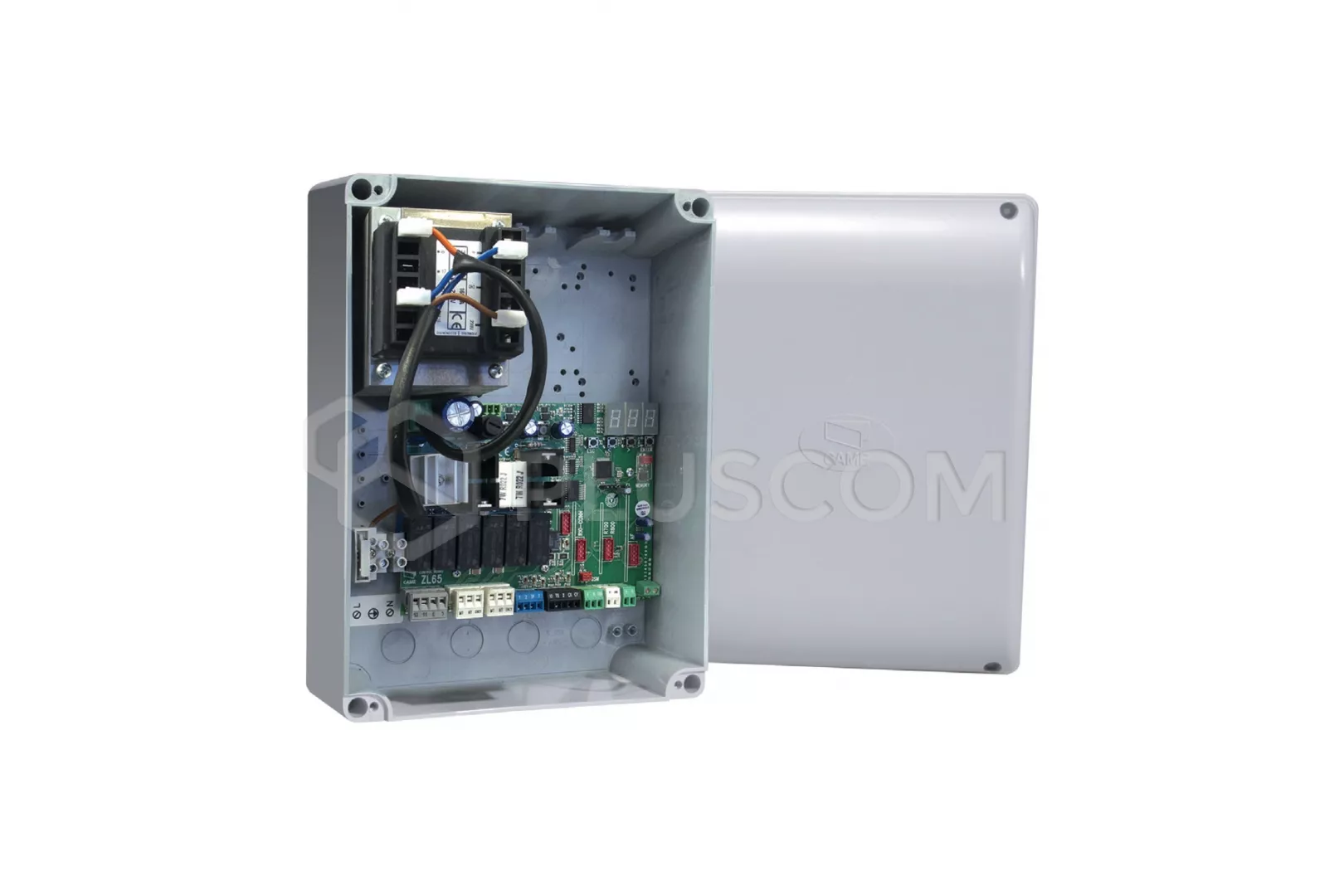

The ZL65 control panel has a multi-segment graphic display for
programming individual functions, displaying messages, equipped with
self-diagnosis of safety devices.
The ZL65 has many optional features available as additional modules, that can
be connected directly to it. The ZL65 is prepared for:
- connection of the RGP1 module enabling the reduction of energy
consumption
- connection of the RLB39 electronic board ensuring operation in in the
event of a power cut and charging batteries
- connection of RIO-CONN card to set up Rio accessories
- connection of CONNECT GW module for remote control of devices CAME
automatics, with the CAME CLOUD
- system

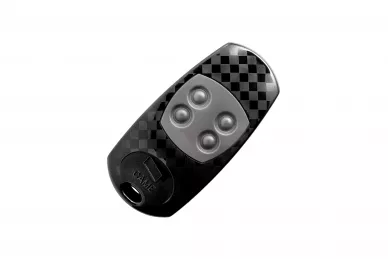

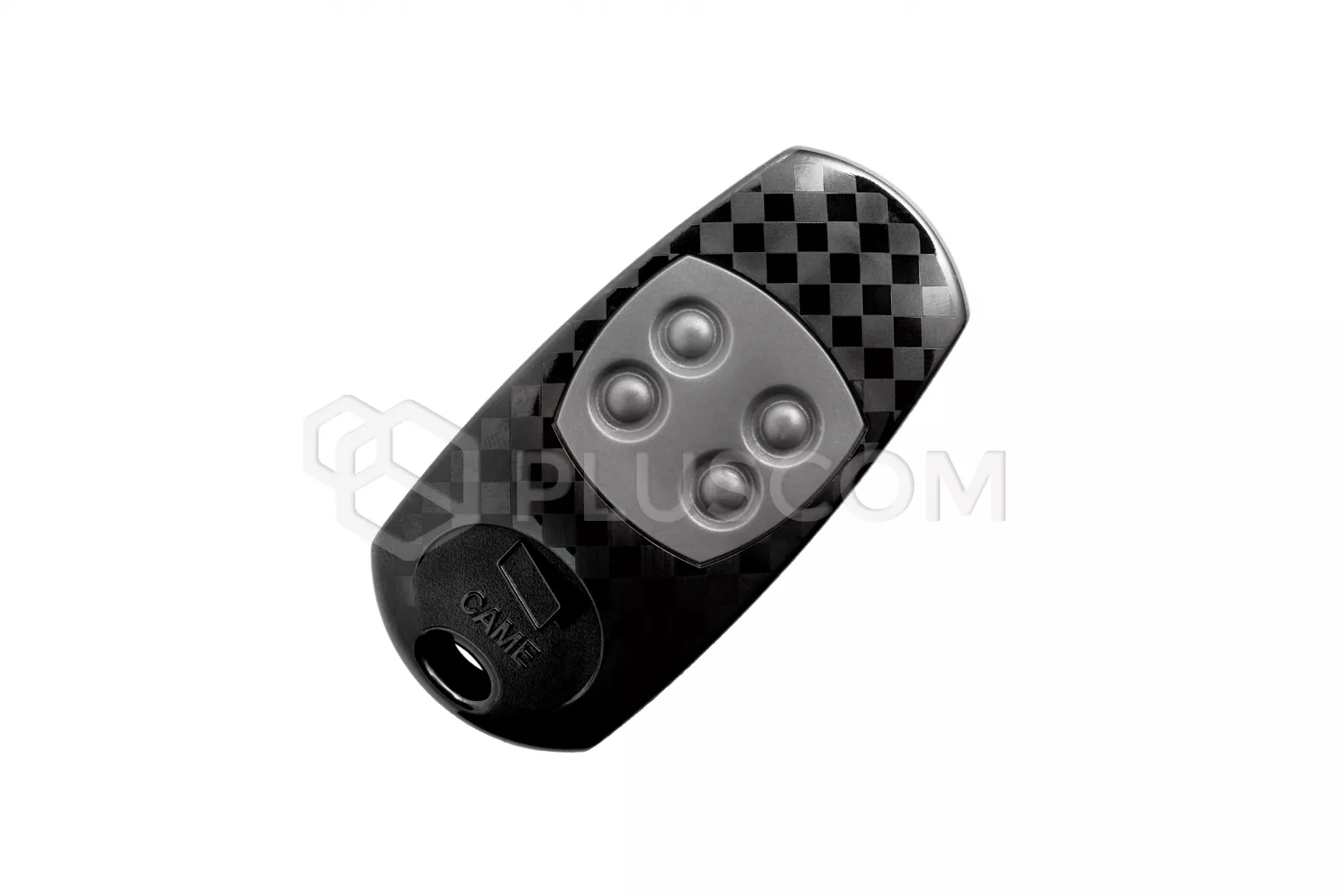

AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

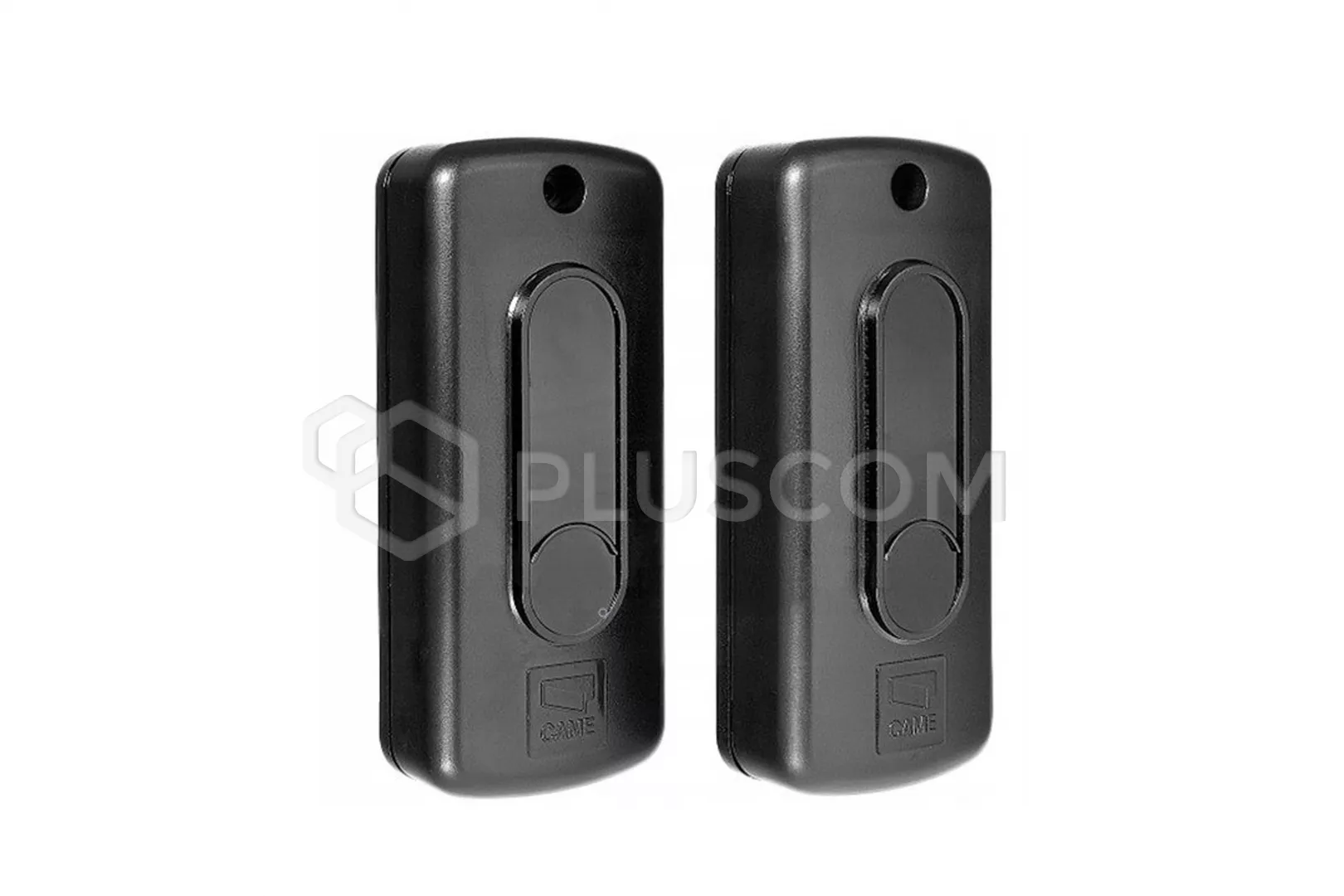

DIR photocells are distinguished by a modern design and very
small dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

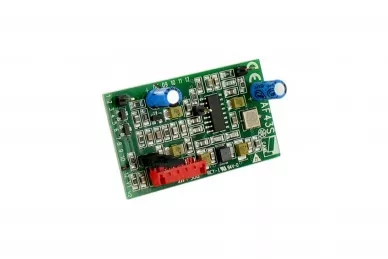

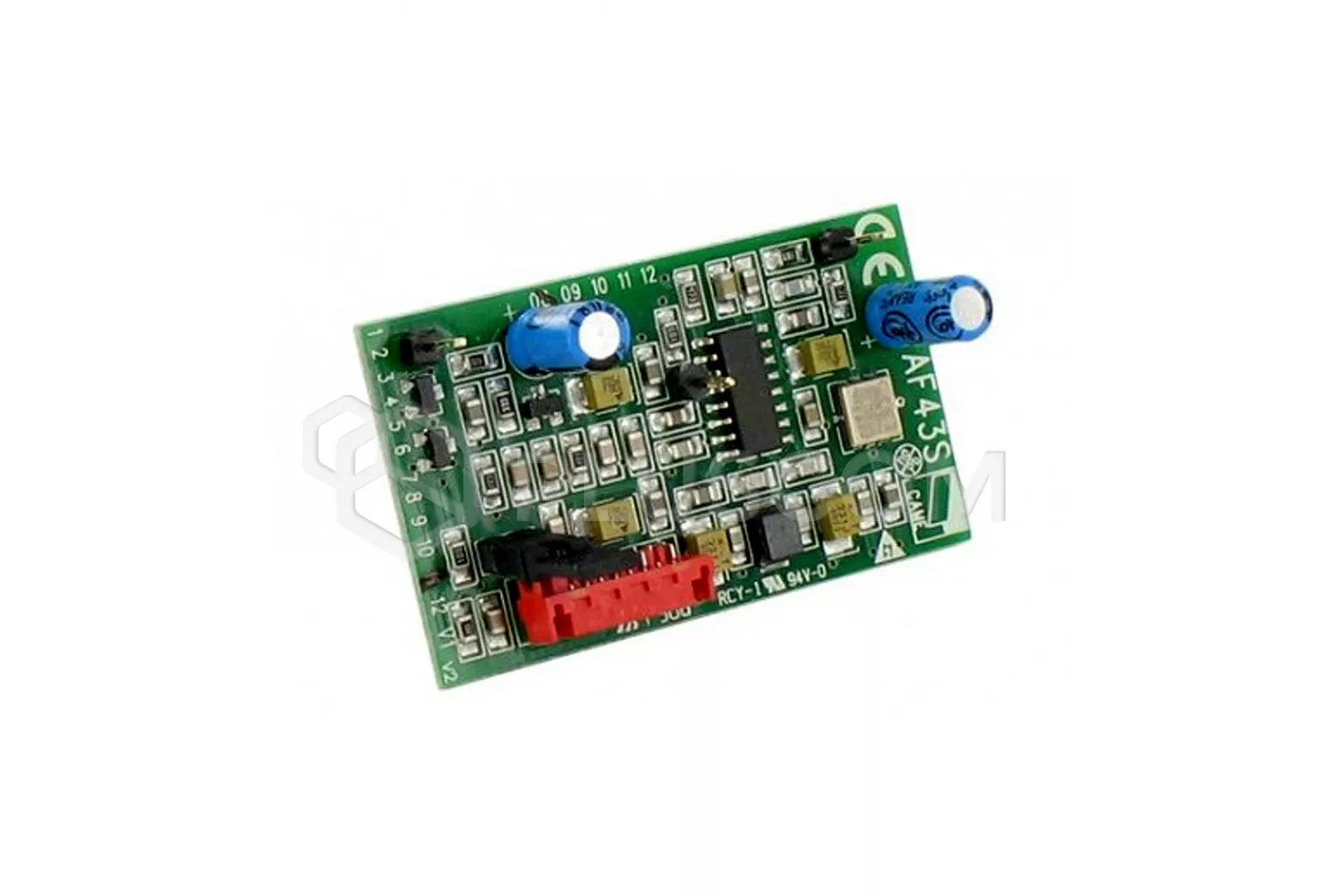

The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.

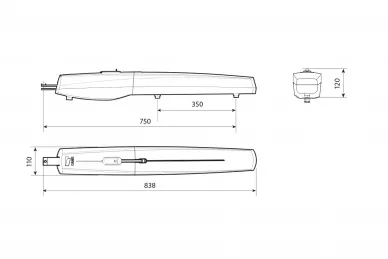

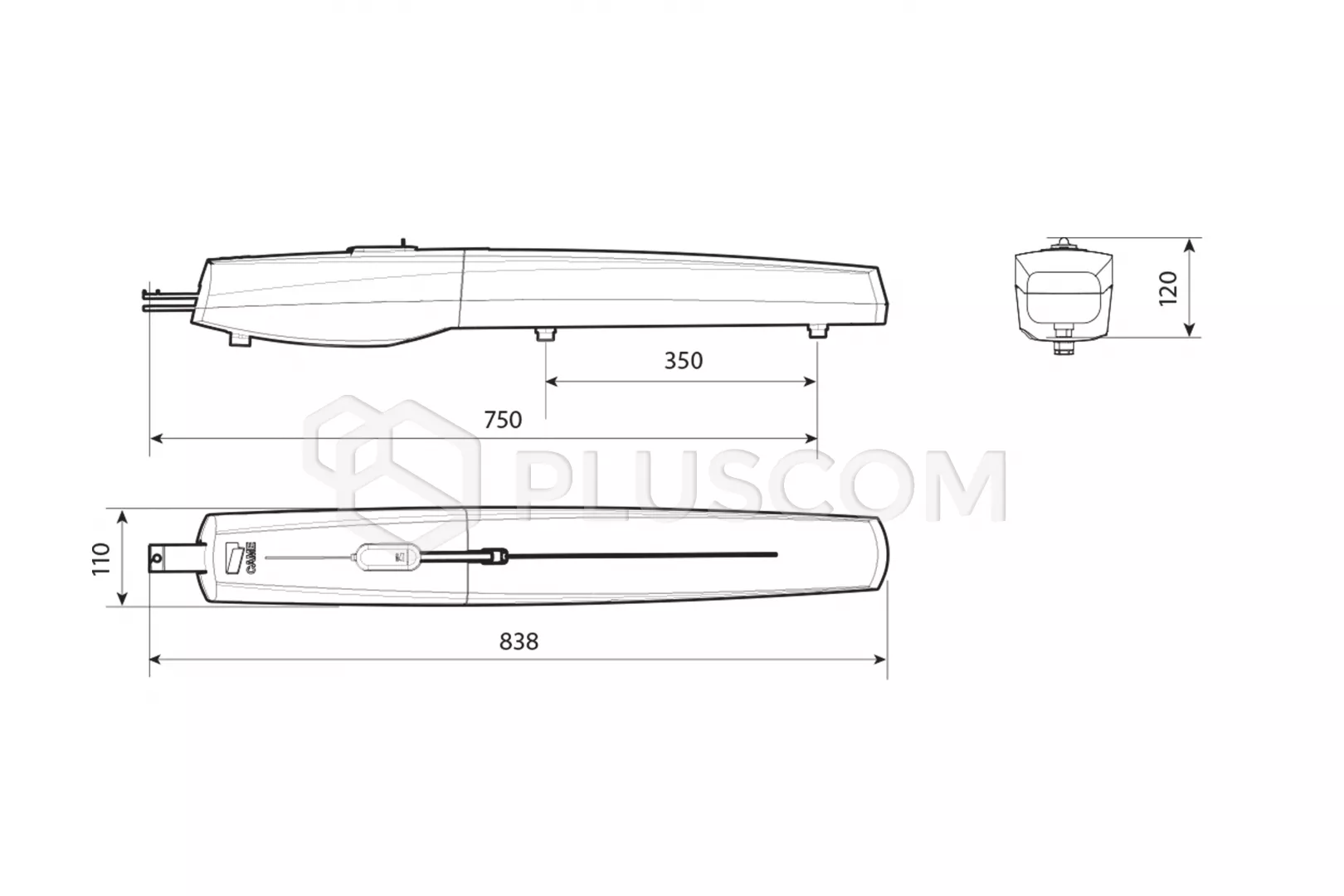

Dimensions:
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power supply: 24V DC
- power consumption in stand-by mode: 7 W
- power consumption in stand-by mode with RGP1 module: 0.5 W / li>
- maximum power 120 W / li>
- duty cycle: 50%
- thrust: 400 ÷ 2000 N
- opening time (up to 90 °): 15s
- degree of protection: IP44
- dimensions: 838x110x120mm
- weight: 6kg
