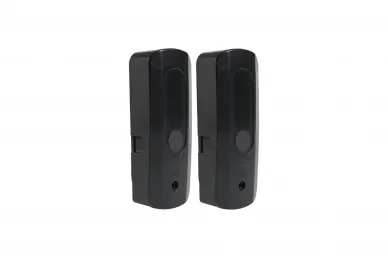

Came RIOPH8WS A pair of wireless photocells

168,31 EUR including 22.00% VAT
Product code: #26568
Manufacturer: CAME
  • Infrared beam range: 10m
  • For the CAME RIO system
  • Frequency: 868.95MHz
  • Fault and battery discharge indication
  • RIOCN8WS module required
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came RIOCN8WS radio control module Came RIOCT8WS Radio control module Came RIOLX8WS Wireless warning light

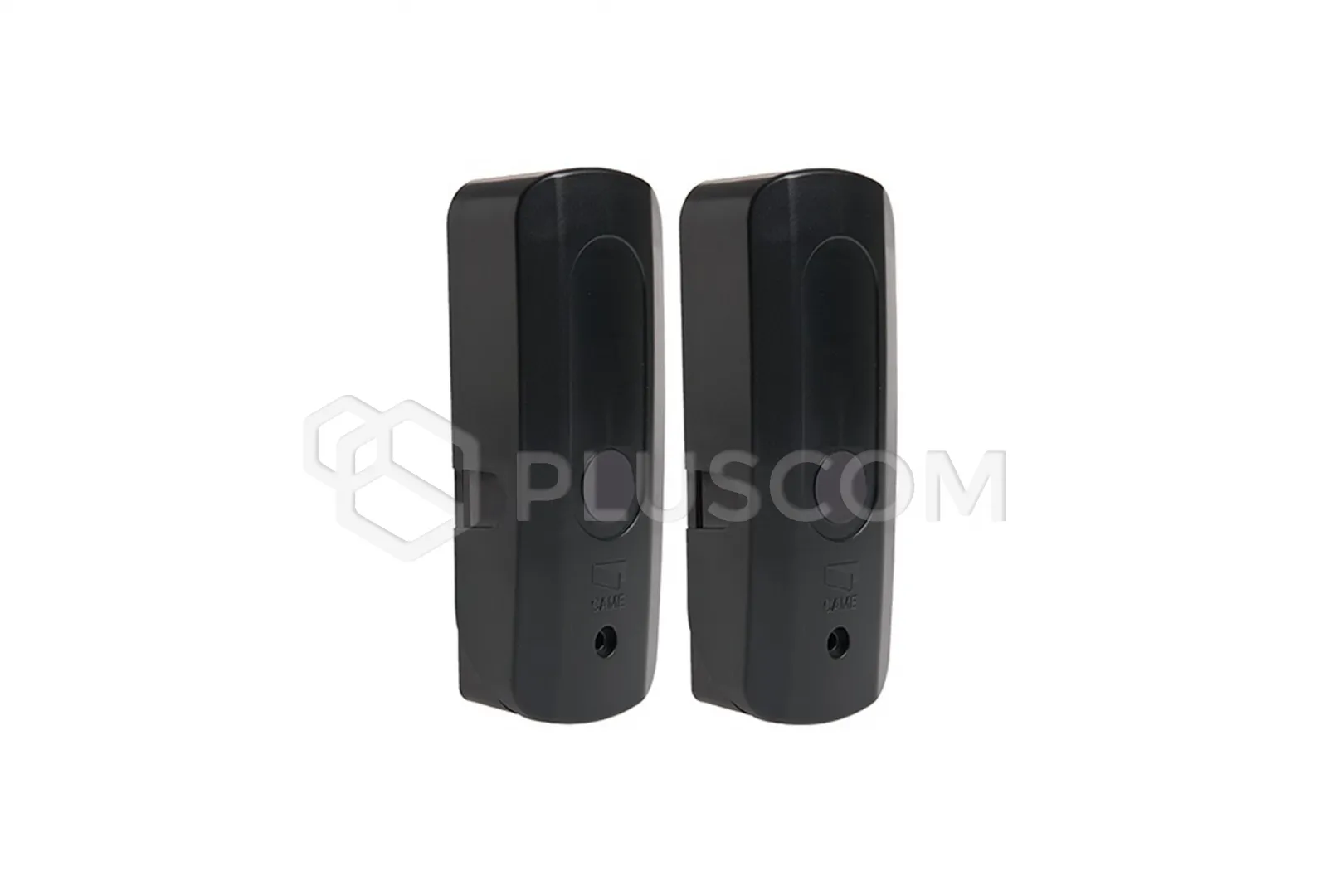

CAME RIOPH8WS Pair of wireless infrared photocells

RIOPH8WS is a pair of wireless infrared photocells designed for the RIO series.
The range of the infrared beam is 10 m, while the radio range in free space is up to 30 m.

Installation of the detector is simple and does not require any masonry work or cable routing. Effective design makes that we can easily integrate the device into the surroundings.

The photocells are powered by a CR123A 3V DC battery, have low battery consumption and provide full safety in accordance with EU legal regulations. They have fault and battery discharge indication.

TECHNICAL DATA:

  • Power supply: CR123A 3V DC 1700mAh battery (RX and TX)
  • Current consumption in stand-by mode: 80μA
  • Current consumption in the transmission phase: 15mA
  • Radio frequency: 868.95MHz
  • Radio range in free space: up to 30 m
  • Infrared signal range: up to 10 m
  • Transmission power: up to 10 dBm
  • Storage temperature: -25 ÷ +70 °C
  • Materials: PC-ABS
Download
User manual 0.61 MB
