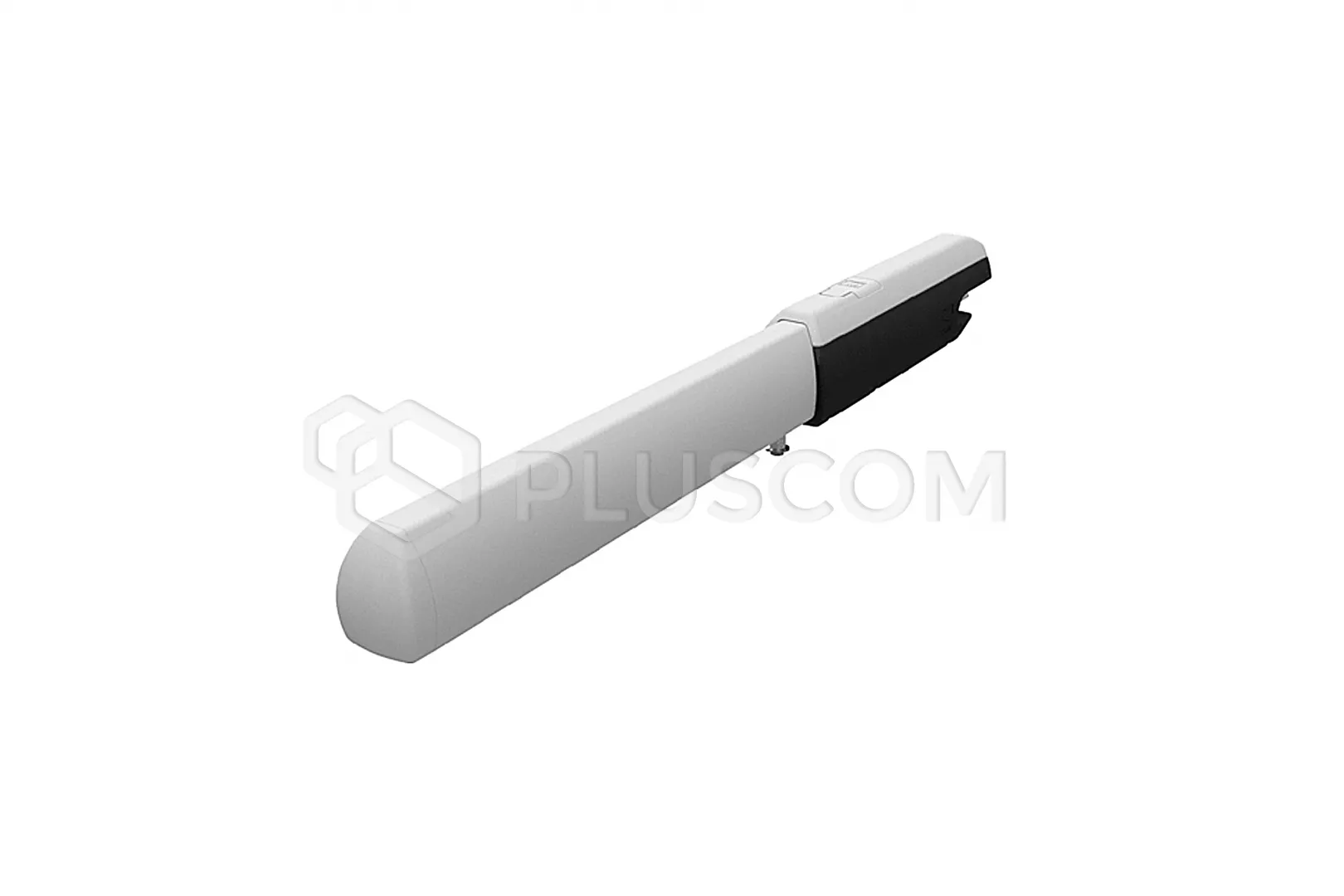

Came A5000 Actuator 230V, leaf up to 5m / 400kg with limit switch

CAME A5000 Gearmotor for single or double-leaf gates up to 5m with a switch extreme

A5000 self-locking electromechanical actuator , connects durability, compact shapes and reliable operation. It is made for gates with wings up to 5m wide.
In addition to the usual control and safety functions, the A5000 offers the practical function of partially opening the sash. Control board performs a test of safety devices against each movement of the gate, both when opening, as when closing (self-diagnosis).
The actuator has one built-in FA limit switch.

The ZF1N control panel for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is powered by 230V AC.

Application range:

• 5m / 400kg
• 4m / 500kg
• 3m / 600kg
• 2.5m / 800kg
• 2m / 1000kg

The telescopic steel arm is protected by an aluminum housing that provides resistance to weather conditions. There is a socket for the key in it unlocker. It can be used to unlock the drive and when required manually open the gate.
The actuator has one built-in FA limit switch.

TECHNICAL PARAMETERS:

• power supply: 230V 50/60 Hz
• motor power supply: 230V
• motor current consumption: 1.2A
• maximum engine power: 150W
• duty cycle: 50%
• thrust: 400 ÷ 3000 N
• opening time (up to 90 °): 32s
• degree of protection: IP44

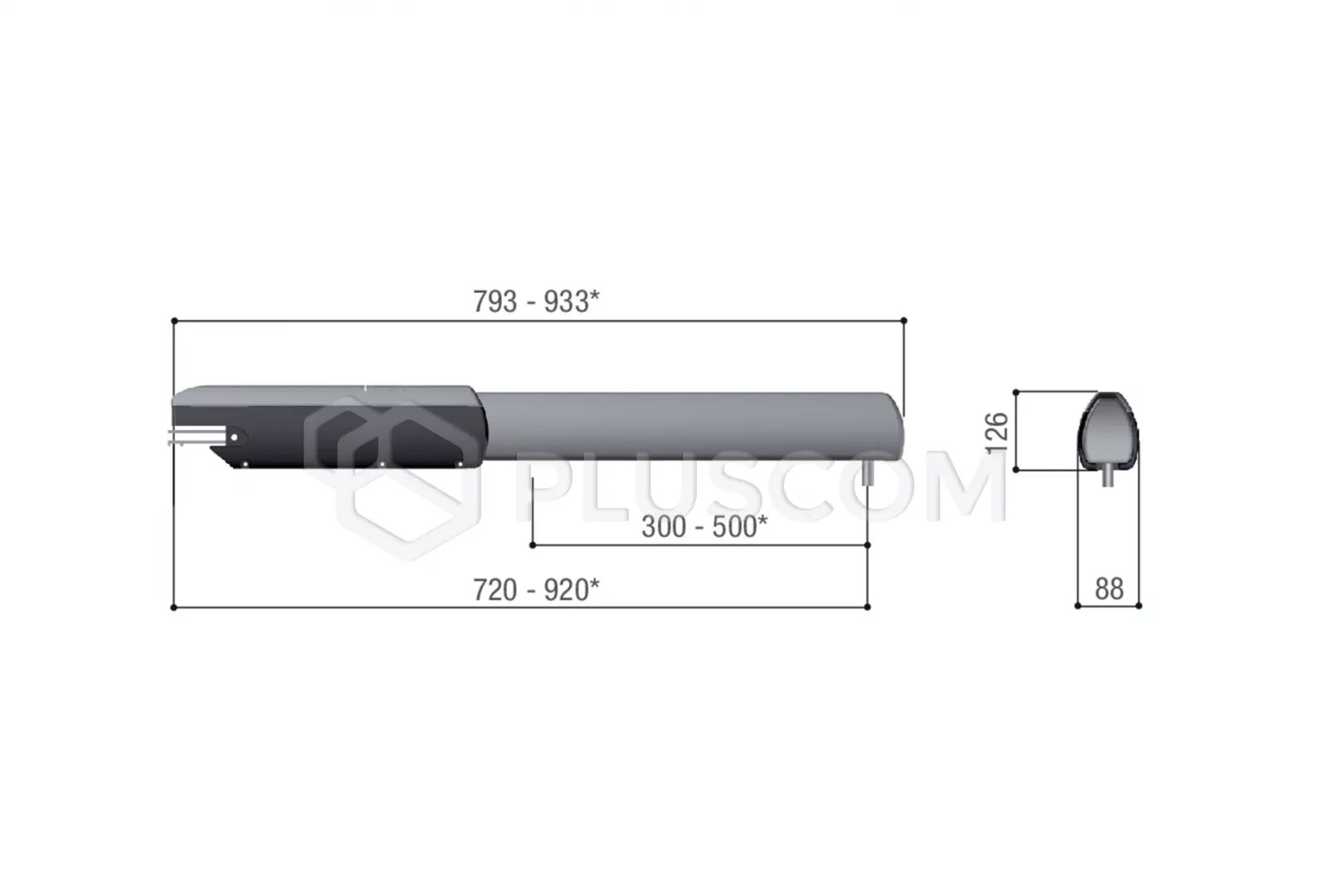

• dimensions: 126x88x933mm

To ensure effective and reliable closing and to protect the gears of the drives, it is recommended to install an electric lock. If the wings are more than 3m, an electric lock is compulsory.
,
