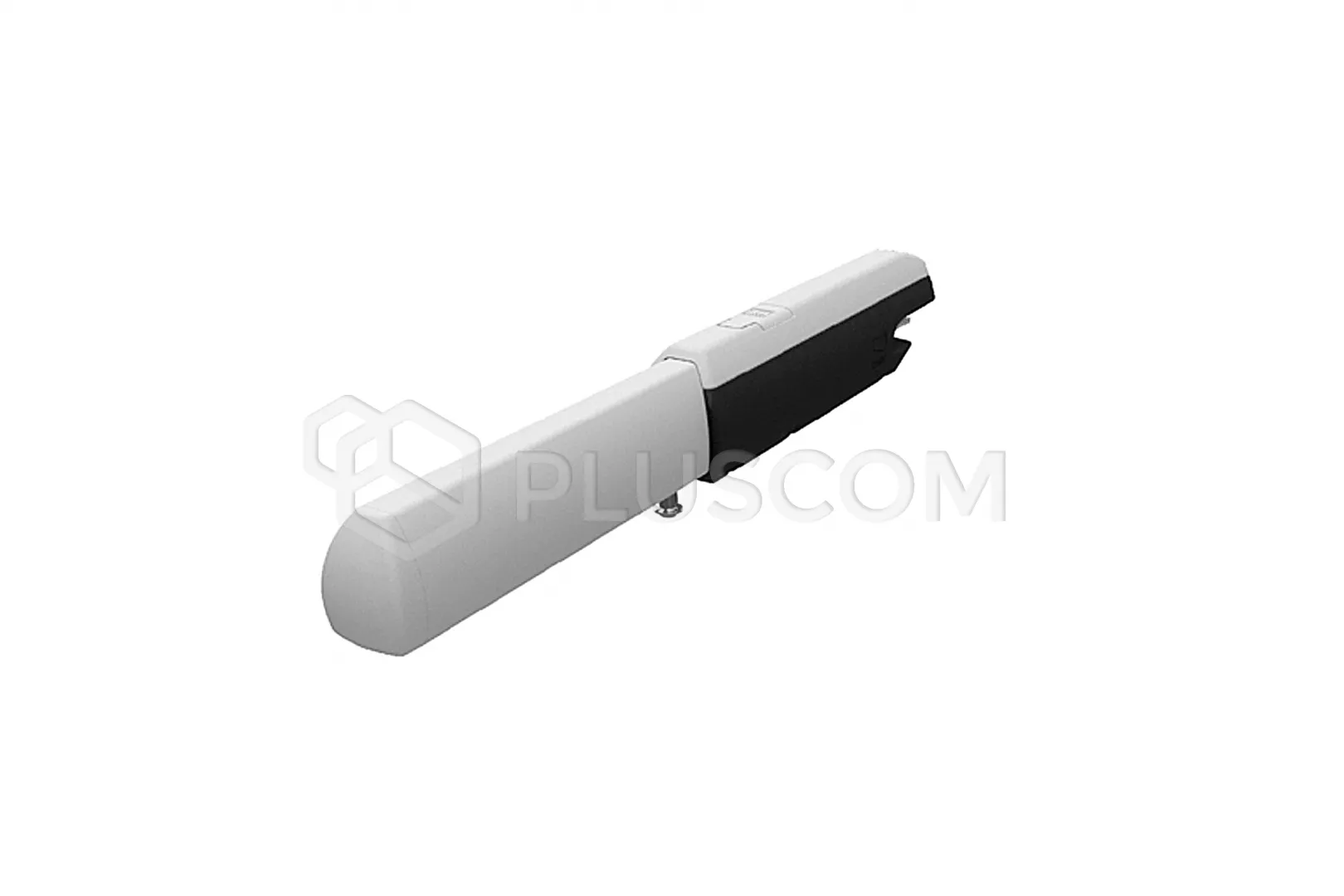

Came A3000A Actuator 230V, leaf up to 3m / 400kg with limit switches

CAME A3000A Gearmotor for single or double-leaf gates up to 3m with limit switches

Self-locking electromechanical cylinder that combines robustness, compact shapes and reliable operation. It is designed for medium-sized gates 3m wide wings.
In addition to the usual control and safety functions, the A3000A offers the practical function of partially opening the sash. Control board performs a test of safety devices against each movement of the gate, both when opening, as when closing (self-diagnosis).

Application range:

• 3m / 400kg
• 2.5m / 600kg
• 2m / 800kg

The telescopic steel arm is protected by an aluminum housing that provides resistance to weather conditions. There is a socket for the key in it unlocker. It can be used to unlock the drive and when required manually open the gate.
The actuator has two built-in limit switches FA and FC.

TECHNICAL PARAMETERS:

• power supply: 230V 50/60 Hz
• motor power supply: 230V
• motor current consumption: 1.2A
• maximum engine power: 150W
• duty cycle: 50%
• thrust: 400 ÷ 3000 N
• opening time (up to 90 °): 19s
• degree of protection: IP44

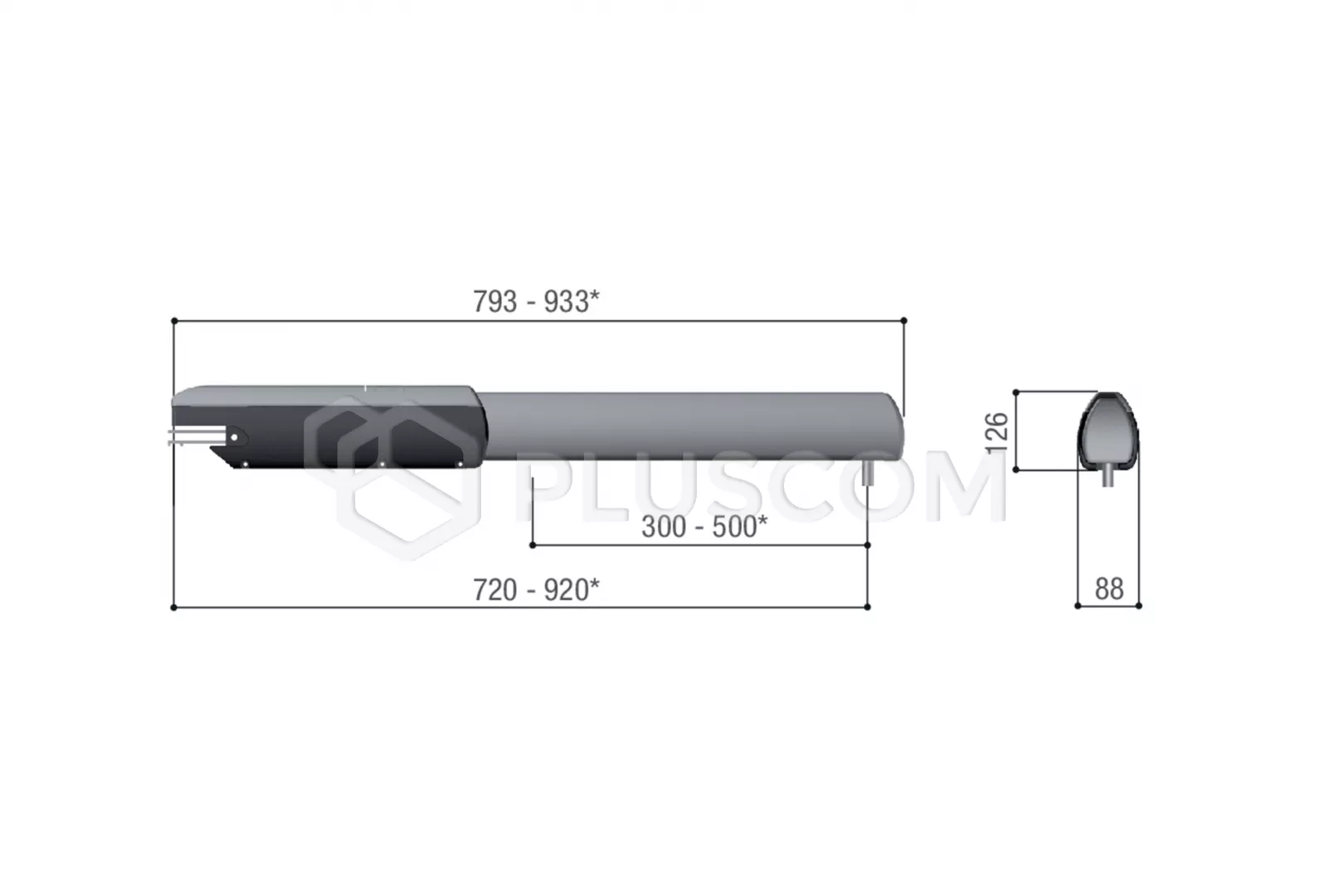

• dimensions: 126x88x793mm

To ensure effective and reliable closing and to protect the gears of the drives, it is recommended to install an electric lock. If the wings are more than 3m, an electric lock is compulsory.
,
