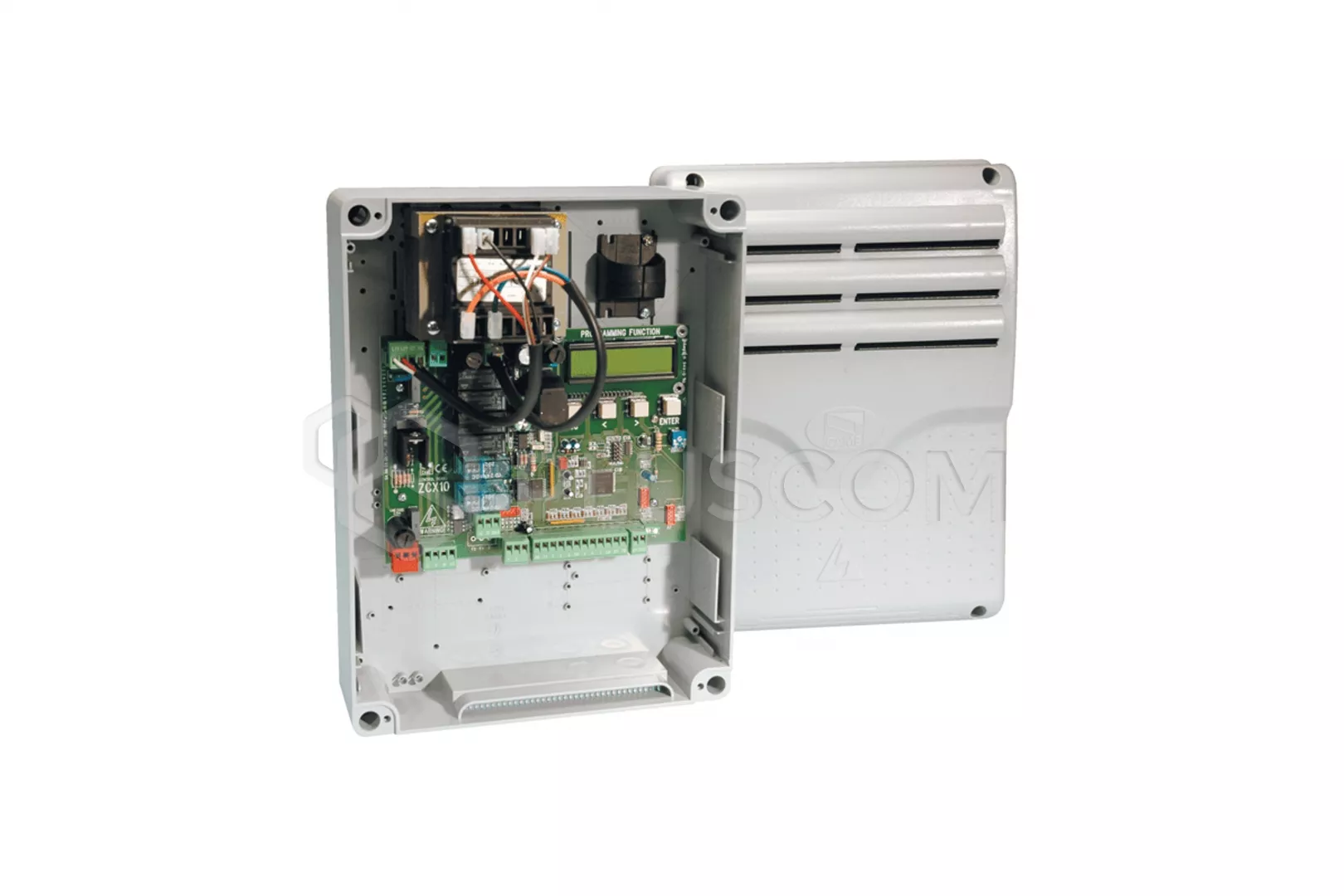

Came ZL92 Control unit for double-leaf gates with an encoder

CAME ZL92 Control unit for double-leaf gates with built-in encoder for gates 2-leaf

The ZL92 control panel for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is powered by 24V DC.
It enables the extension of the installation with the necessary control accessories and safety devices such as photocells, flashing light, electric lock, card frequencies, antenna or remote controls. The total power of the accessories must not exceed 50 W.
The ZL92 has inputs for two lines of photocells and all connections are protected are through fuses.

Supports STYLO-ME, FROG-J and A1824 actuators.

Control panel characteristics:

• opening one leaf
• buttons: open, close; open - stop - close - stop and open - close - reverse move
• 1st leaf opening delay and 2nd leaf opening delay closing (adjustable)
• self-diagnosis of security devices
• reopen or close while moving
• stop button
• amperometric sensor adjustment
• detection of obstacles by safety devices at the fixed gate

TECHNICAL DATA

• Power supply: 230 V 50/60 Hz
• Maximum power: 300 W
• Standby current consumption: 110 mA
• Maximum total power of 24V accessories: 20W
• Fuses:
• • smartcard (line): 3.15A and 1.6A
  • control devices: 1A
  • accessories: 2A
• Housing material: ABS
• Degree of protection: IP54
• Working temperature: -20 ° C ~ 55 ° C

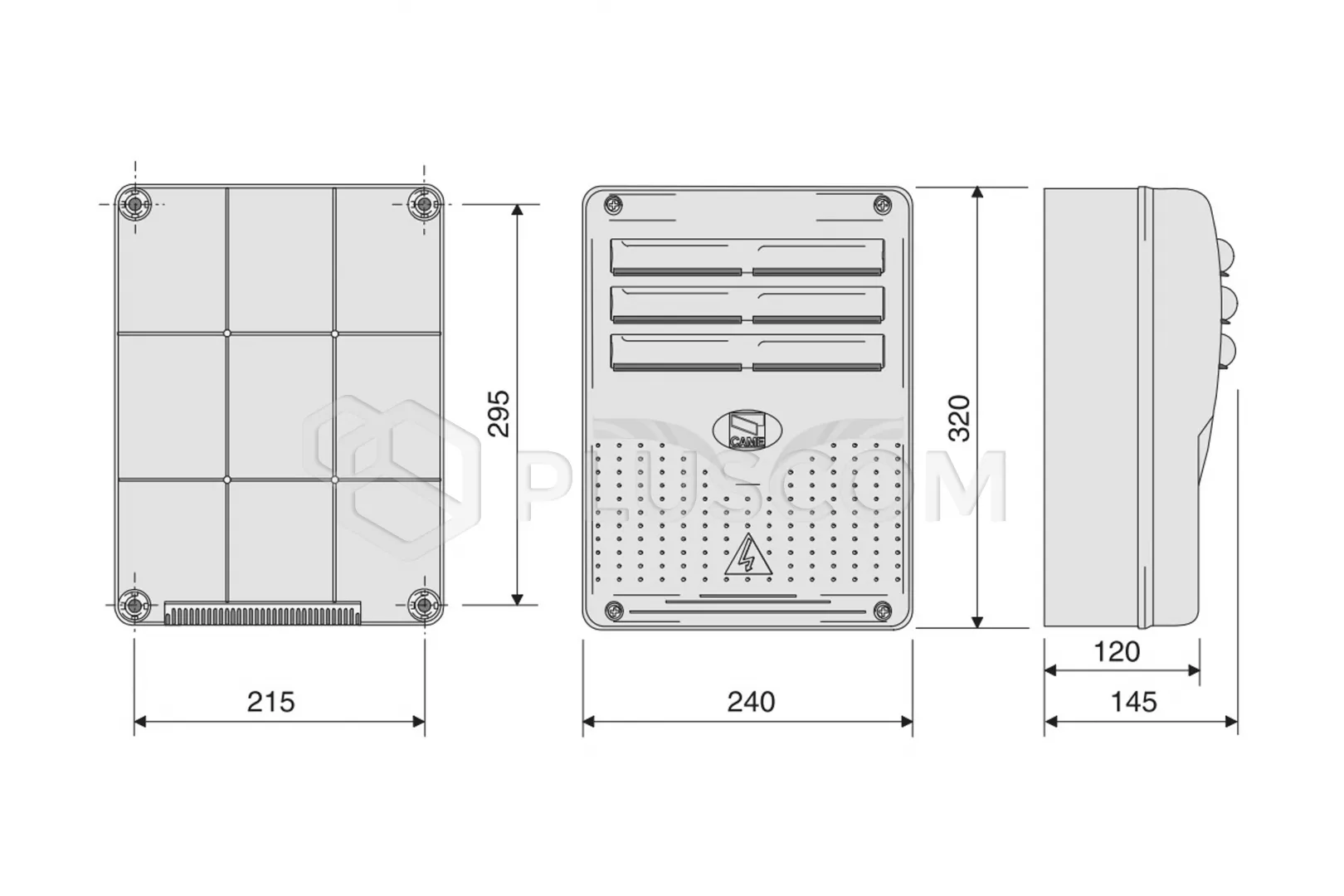

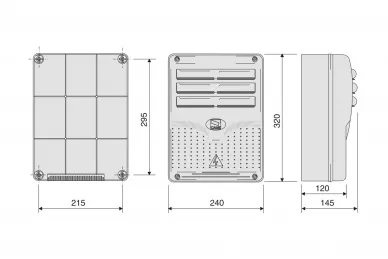

• Housing dimensions: 320 × 240 × 145 mm
