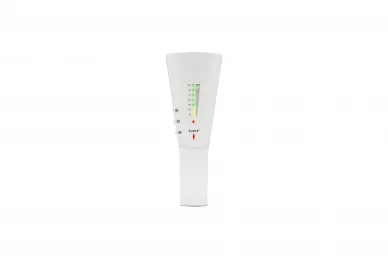

Satel ARF-200 Radio signal strength tester

73,81 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #19481
Manufacturer: Satel
  • Cooperation with ABAX 2 and ABAX system controllers
  • Operating frequency 868 MHz
  • Connection quality simulation mode
  • LED indicator of the radio signal level
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller

Satel ARF-200 Radio signal strength tester


ARF-200 is a diagnostic tool that facilitates the testing of wireless communication conditions in the building. The tester is designed to work with controllers of the ABAX 2/ABAX two-way wireless system. The device indicates the level of signal received by the controller from the tester, and by the tester from the controller. It can work in the simulation mode of battery-powered devices or other devices, powered from external sources. It has a LED indicator of the radio signal strength. It is also provided with the function of recording the signal level indications*. The ARF-200 power source is a built-in lithium-polymer battery. It is charged via the MICRO USB socket, using a 5 V DC power supply.

FEATURES:
  • ability to check the radio signal strength in location where the ABAX 2 device is installed
  • two operating modes to check the strength of signal:
    • received by the tester from the controller
    • received by the controller from the tester
  • ability to check the radio noise level in all 4 channels of the ABAX 2 system
  • LED indicator of radio signal strength
  • LED indicators of the operating mode
  • built-in piezoelectric transducer for audible signal
  • built-in non-replaceable battery
  • battery status indicator
Download
Datasheet 0.1 MB
Quick quade 0.55 MB
Manual 0.4 MB
