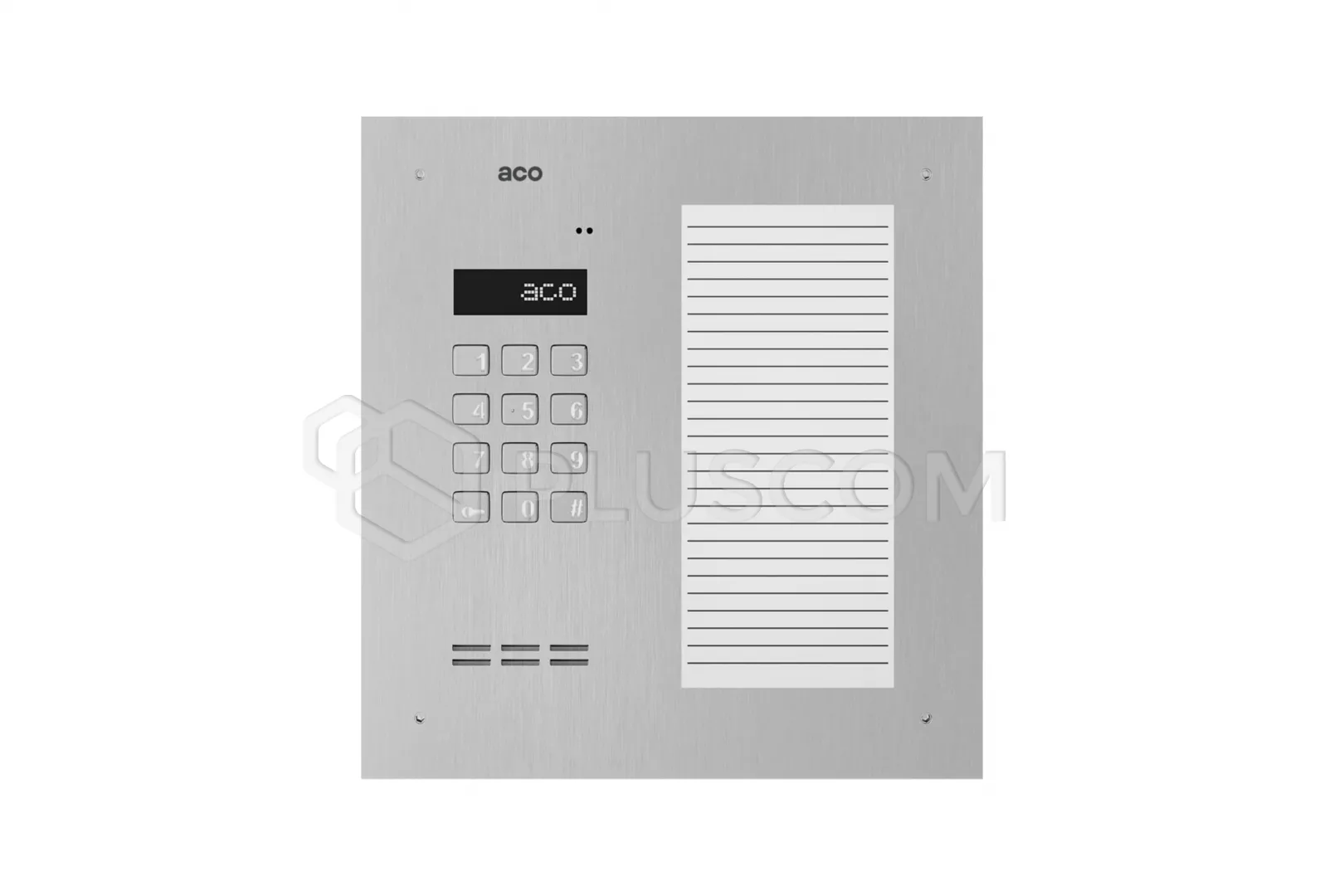

INSPIRO 17S+ Digital outside unit Slave with code lock and large description list

INSPIRO 17S+ is very elegant and resistant to weather conditions and acts intercom vandalism. The housing and buttons are made of brushed 2mm thick stainless steel. Modern design, high quality used materials ensure trouble-free operation for many years.
The device is compatible with all digital devices from the groups: CDN, Inspiro and Familio P and programming is done using a USB cable or computer.

To make it easier for disabled people, the panel has backlights Braille keys with optical signaling and sounds. In addition, without having to answer the call we can remotely or automatically open the door and with the help of the CDN-U module, we can connect in additional acoustic or lighting device signaling that someone is calling.
INSPIRO 17S+ serves 1020 premises for which a 4-digit code is available condominiums (for everyone different). It is equipped with a large module of the highlighted list descriptive. Has wide individual possibilities configuration settings for each apartment and the service itself is easy and comfortable. The device supports many extension modules, which increases system functionality.

FEATURES:

• operates multi-input Slave
• Heated LCD display
• possibility to set a 6-digit apartment number
• 4 different code tables
• available codes: 1020 apartment codes (4 digits), 5 administrator codes (4 or 6 digits), 1 installer code (8 digits)
• programmable entry on the main display (max. 30 characters)
• adjustable max. conversation time (40 - 120 seconds)
• connects to different extension modules that extend system functionality
• opening e-locks or additional relay outputs without a call (CDN-I/O)
• home automation system: control over external devices like gates, barriers, lights or blind rollers using a code lock, keyfob or inside unit Functions also available without an active connection: gate opening triple key or external device control (CDN-I/O module) - triple key
• enabling/disabling access to external equipment control separately for each apartment
• connects numerous inside units under the same number
• extensive customisation of settings for each apartment
• intuitive and convenient operation and configuration
• option for collective modification of the call number range
• option for collective modification of call numbers
• possibility to set up to 8 numbers with a doorbell without call option
• auto-opening function for each apartment
• corridor opening
• doorman calling
• possibility to enter any (max. 6-character) text on the display during doorkeeper call re-routing
• adjustable number of door opening actions during a conversation (1 - 3)
• compatible with different e-lock and magnetic lock types
• 8 additional priority numbers with customisable calling parameter settings
• device serial number displayed in software
• call re-routing for additional numbers
• call re-routing always active for basic (passive) receivers (INS-UP720B/M, INS-UP)
• possibility to disable call re-routing for “active” inside units (INS-UP720MR, UP800,INS-MP7, INS-MPR)
• compatible with all digital devices from the CDN, Inspiro and Familio P ranges

TECHNICAL SPECIFICATIONS:

• mounting method: flush-mounted

• dimensions:
• • front panel: 216x229mm
  • flush mounting back box: 197x210x31.5mm
  • Description place: 73x166mm
• installation type- digital: 2 wires
• line lenght: max 1000m
• power supply: 15V DC or 12V AC
• stand-by power consumption: 1.23W
• first outputs to connect:
• • traditional e-lock (max. 1A)
  • reverse e-lock (max. 0,5A)
  • relay module CDN-PK (max. 5A)
• second output to connect:
• • home automation (max. 2A,30VDC)
• input: 1x normally open (NO)
