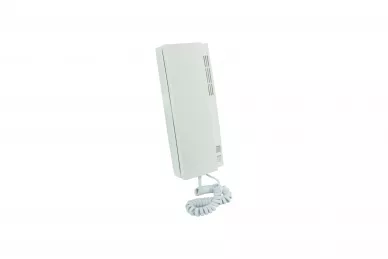

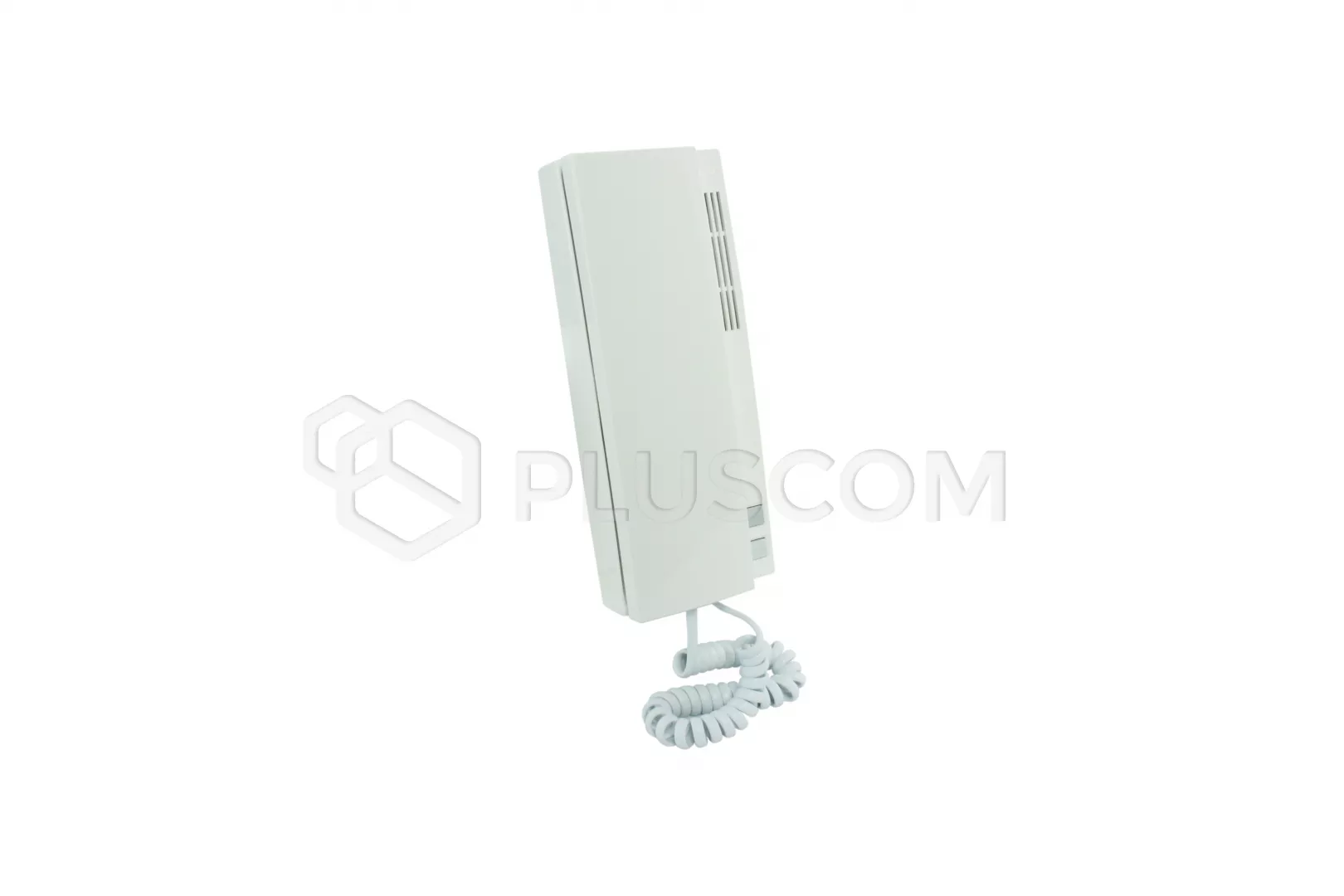

Aco INS-UP720MR Digital uniphone with magnetic hang up

ACO INS-UP720MR Digital uniphone with magnetic hang up

Modern, elegant uniphone cooperating with digital intercom systems CDN, Inspiro, and Familio P / PV by ACO.
Perfect for intercom installations for buildings multi-apartment.

White housing is made of high quality ABS plastic.
There are two buttons on the front of the housing:

• opening the door
• functional for controlling external devices
• and a 3-stage ring volume control switch.


The most important uniphone features include:

• door realease or control over home automatics without established connection
• individual conversation volume control
• many handsets can be connected in the same apartment
• hold feature – handset can be put on hold without disconnecting
• control over external, devices like gates, lights or blind rollers

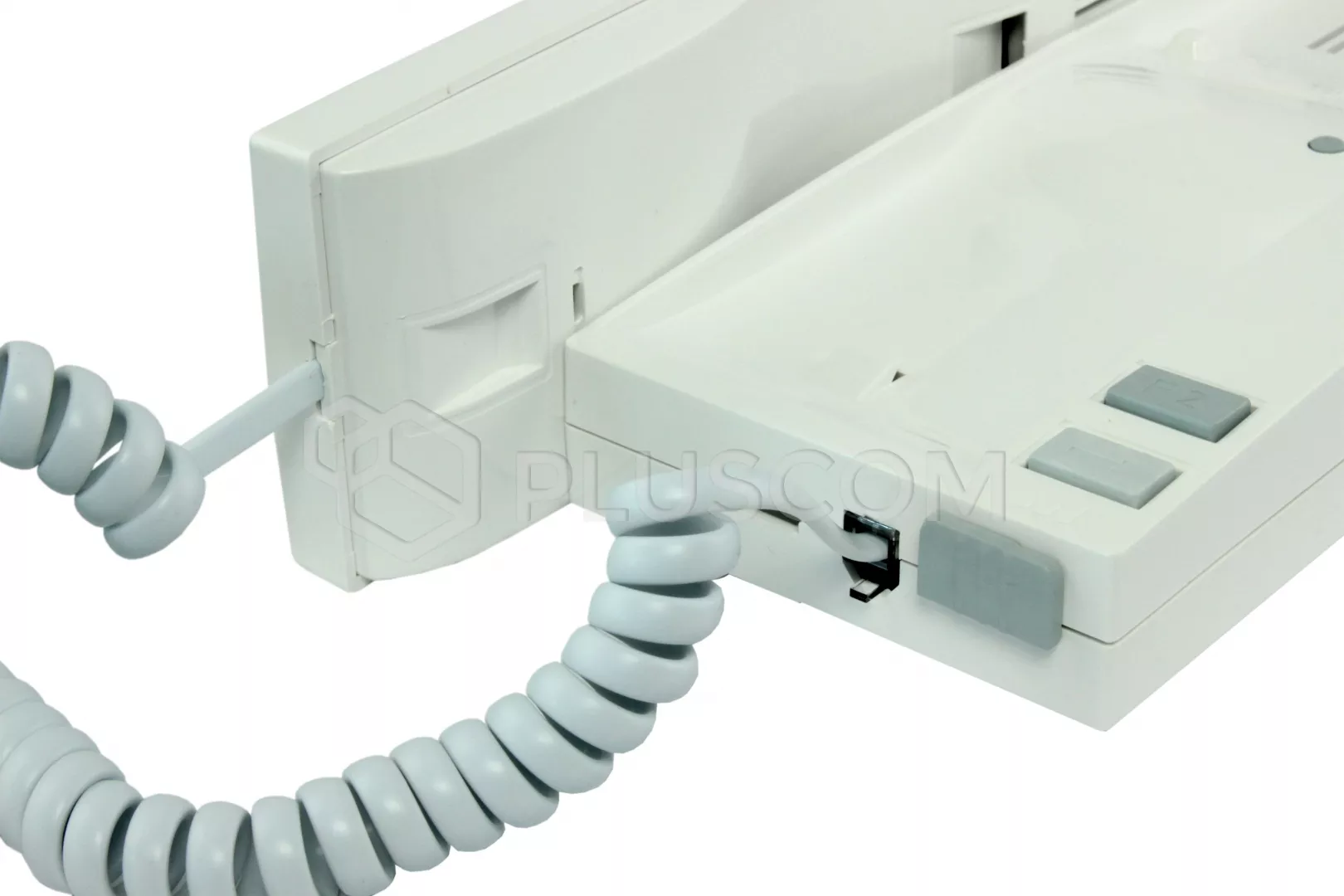

The uniphone has been equipped with a magnetic handset hang up mechanism there are no traditional catches.


TECHNICAL DATA

• 2-wire digital installation + power (4 wires required)
• power supply: DC 15V
• power consumption: 0.09W in standby mode
• power consumption:

• • 7mA in standby mode
  • 50mA when calling

• ARK screw connectors
• surface mounting
• ABS plastic housing, white colour
• dimensions: 200x80x39mm
• working temperature: 10°C...50°C
