Aco UP800 Digital handsfree audio inside unit (G2)

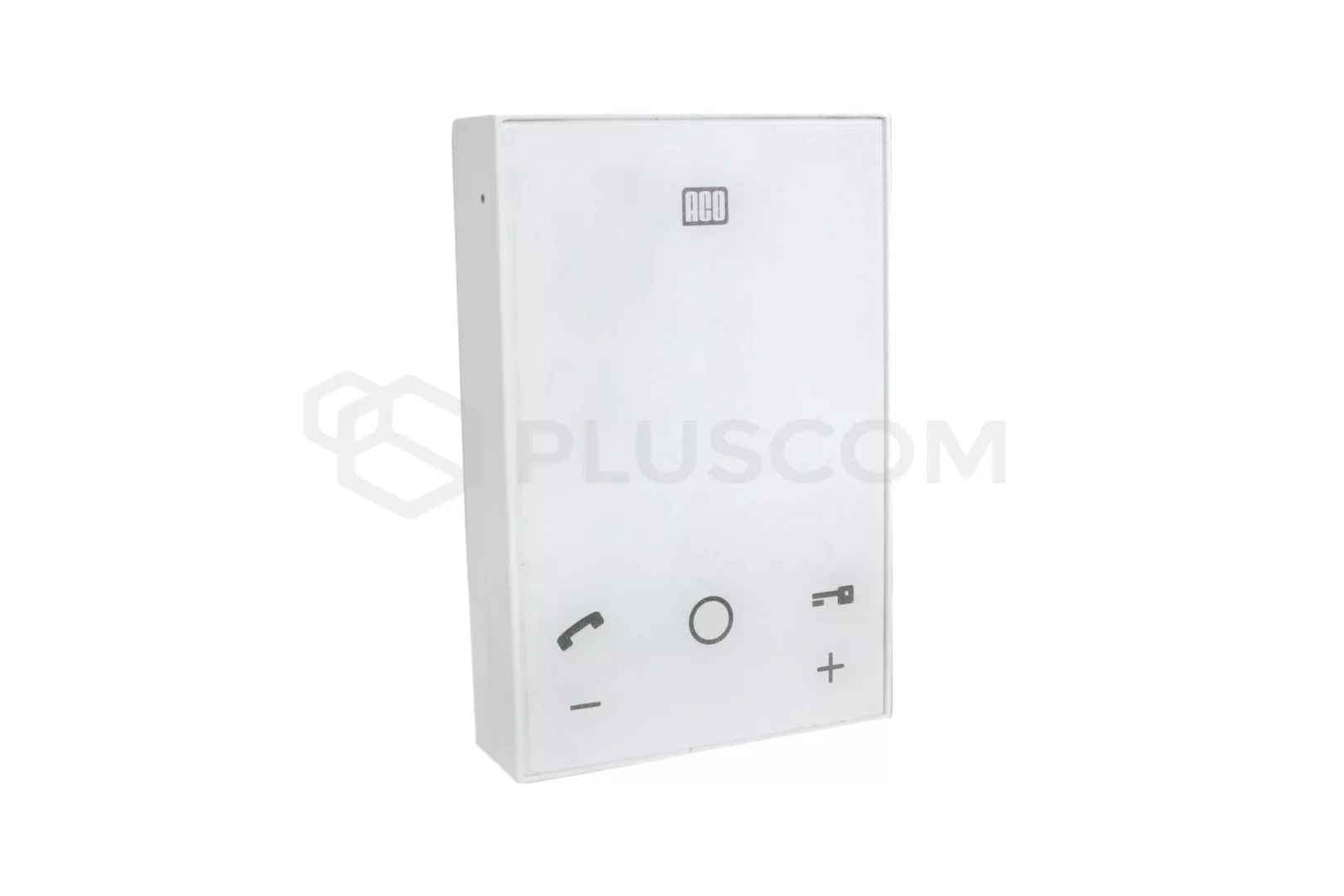

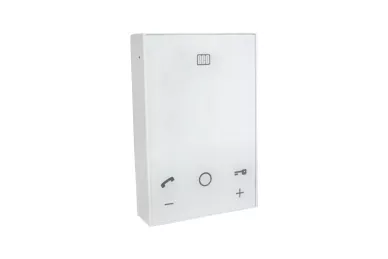

ACO UP800 digital hands-free uniphone

A modern and intuitive uniphone designed to work with digital devices CDN, Inspiro, and Familio P / PV intercom systems by ACO. Intuitive, reliable and comfortable to use, it is an ideal solution as an intercom in single-family houses and apartment blocks.

The UP800 receiver is the company's first hands-free uniphone available on the market WHY. Due to the modern, minimalist form and functionality, i easy operation, it is a very convenient, awaited solution. Flat touch the front with illuminated functional icons makes the UP800 uniphone elegant and at the same time easy to keep clean.

The white housing is made of high quality ABS plastic. The main advantages of the UP800 Receiver are: complete connection privacy and clean distortion-free sound with volume control in 7 levels. It enables also opening and controlling home automation without an active connection.

TECHNICAL DATA:

• Type: hands-free
• Installation type: digital, 2-wire + power
• Power supply: 15V DC (min 13.5V max 18V)

• Standby power consumption: ~ 0.2W
• Dimensions: 122.5 x 81.5 x 26.5mm
• Additional function key

• Color: white

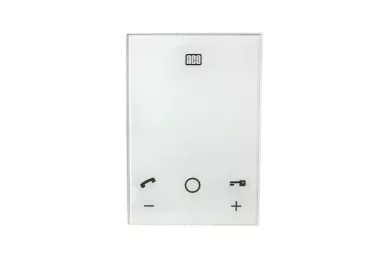

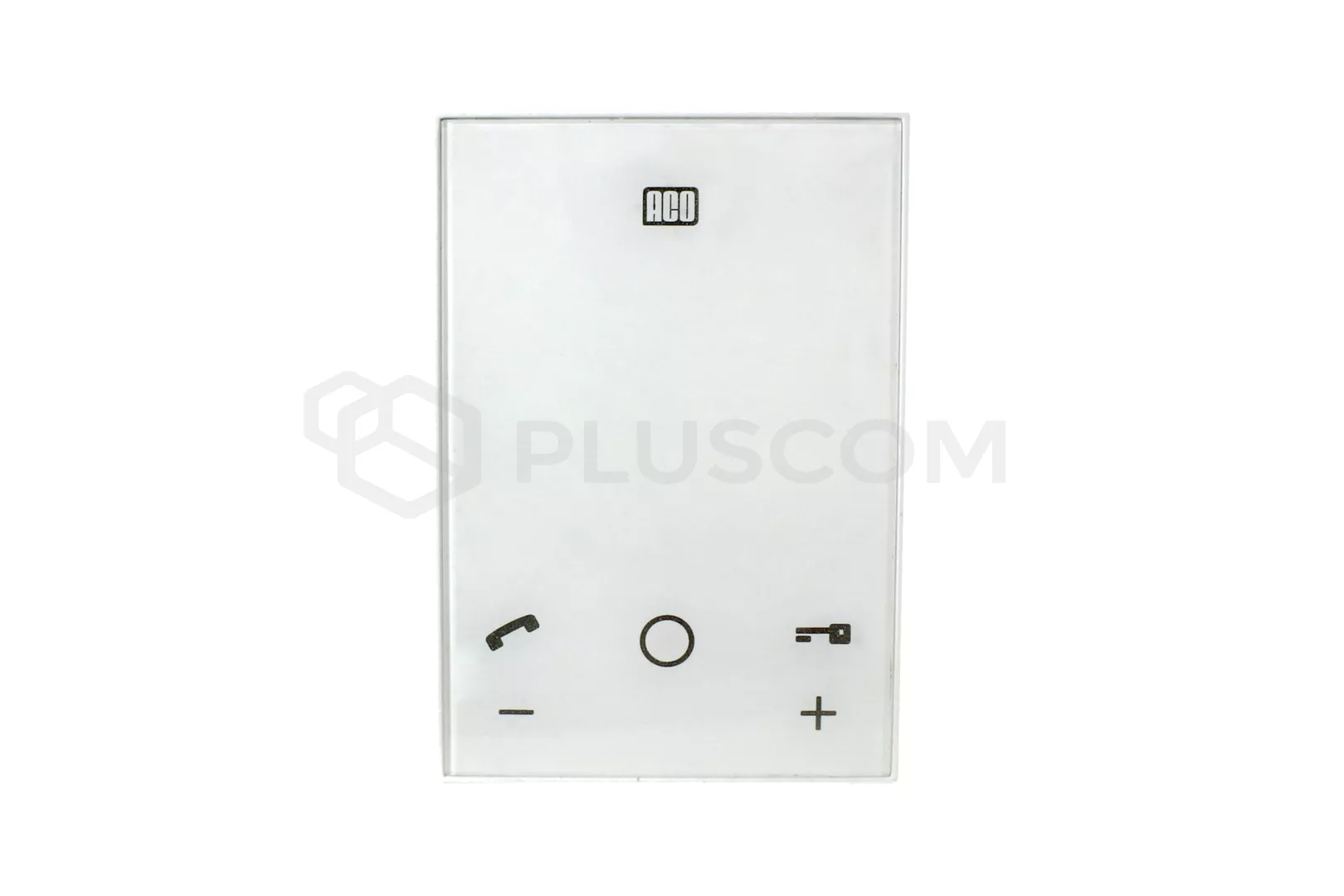

Full operation of the intercom system is possible thanks to the simple operation 5 function buttons. Each of them has an illuminated icon by which operation is intuitive and should not cause any problems:

• Earpiece - button to start a conversation after calling
• Circle - additional function button to control devices home automation. It can be used to control e.g. a gate drive, barrier, shutters or lighting
• Key - a button for controlling the electric strike in the gate (no active connection required)
• '' + / - '' - buttons for 7-step volume control

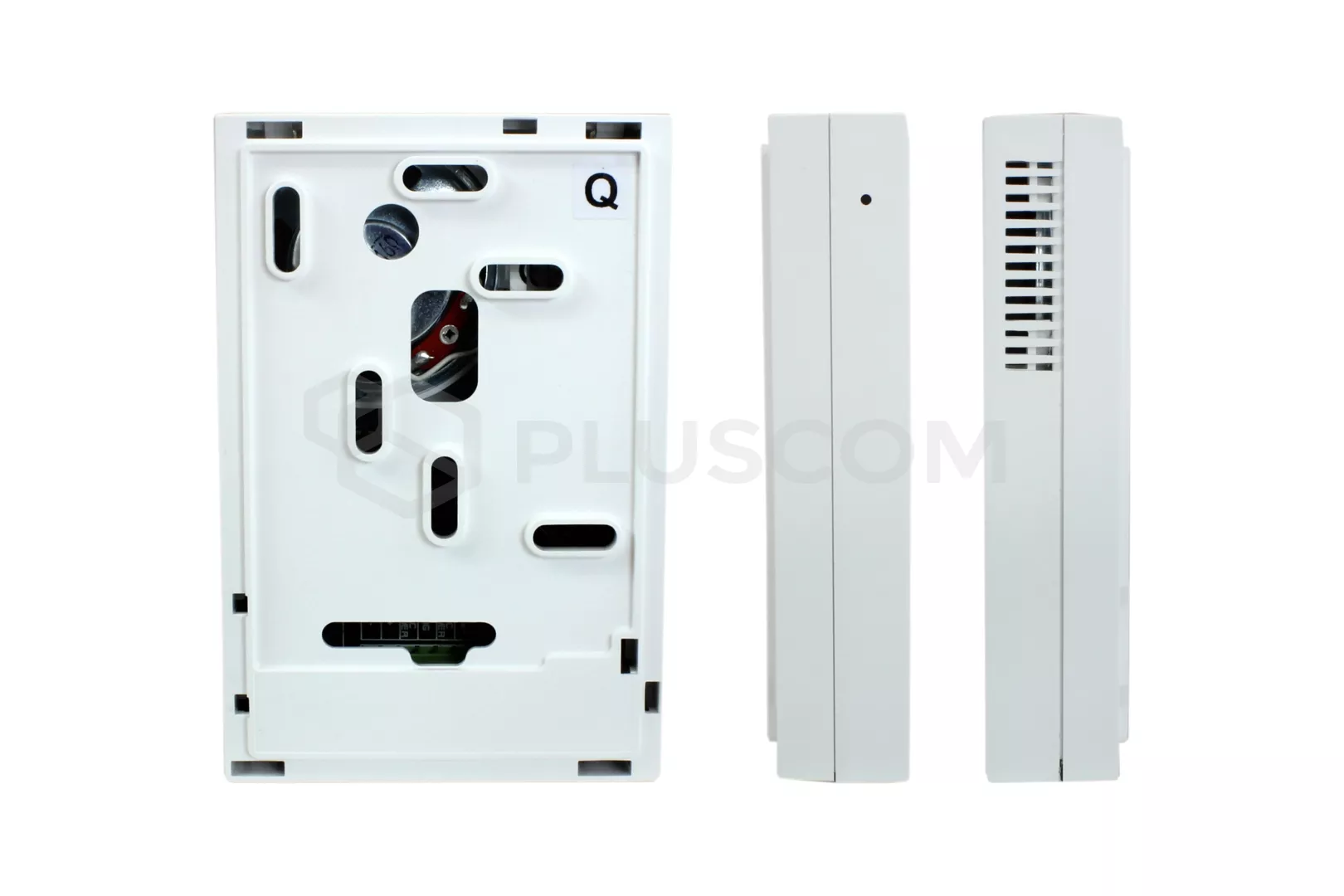

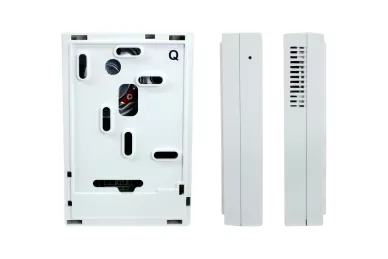

Mounting holes, microphone, spekaer:

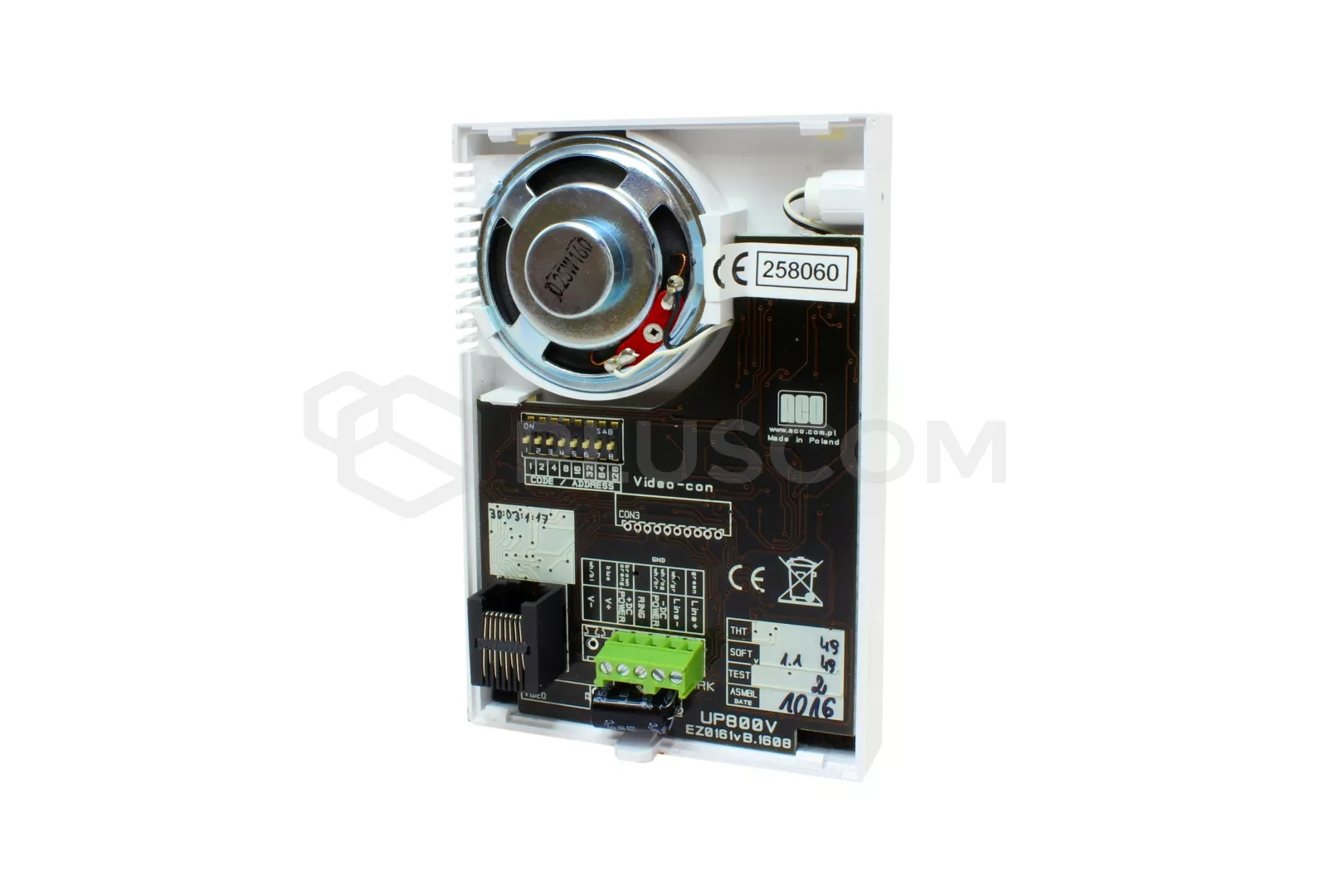

Connectors, DIP Switch:
