Aco INS-UP720B Digital uniphone with traditional hang up

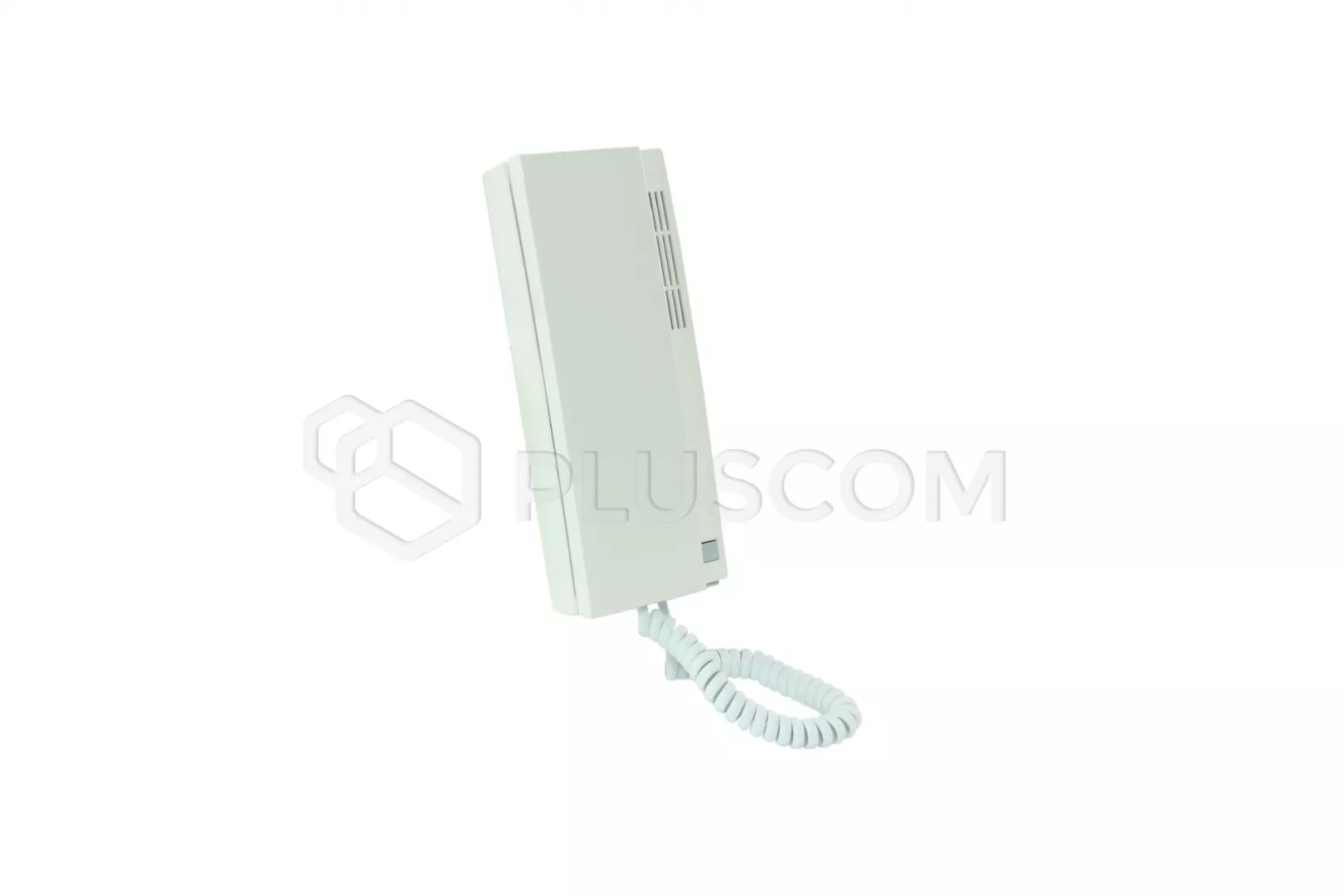

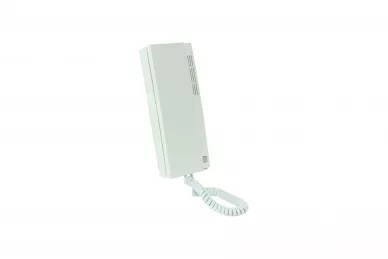

INS-UP720B Digital uniphone with traditional hang up

Modern, elegant uniphone cooperating with digital intercom systems CDN, Inspiro, and Familio P / PV by ACO.
Perfect for intercom installations for buildings multi-apartment.

White housing is made of high quality ABS plastic.
There are one button on the front of the housing - opening the door. INS-UP720B has 3-stage ring volume control switch.

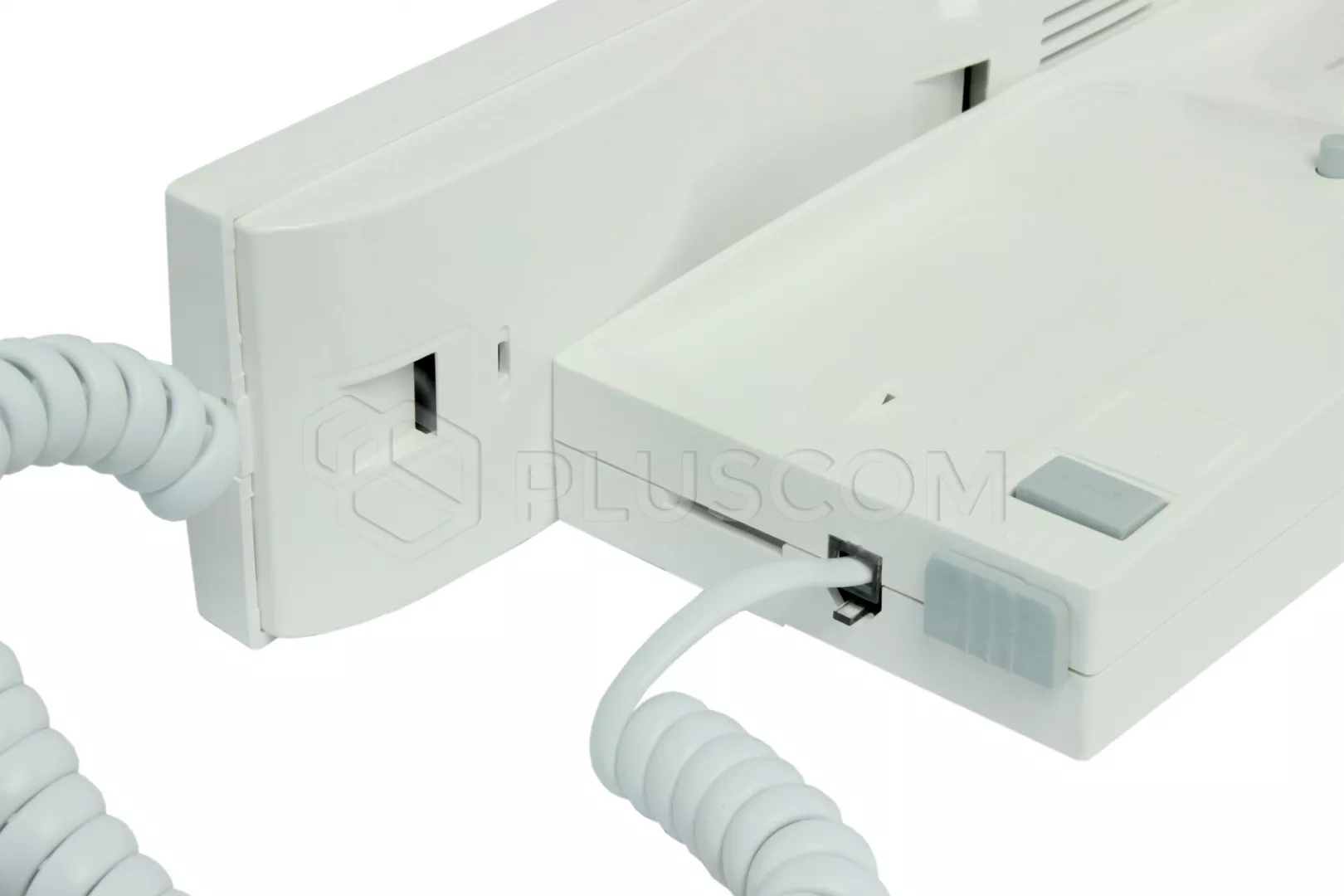

The uniphone has been equipped with a traditional hang up mechanism there are no traditional catches witch double catch, thanks to which the problem of breaking the catches remained eliminated.

TECHNICAL DATA

• 2-wire digital installation
• power supply: DC 12-18V from the bus
• power consumption: 0.09W in standby mode
• power consumption:

• • 7mA in standby mode
  • 50mA when calling

• ARK screw connectors

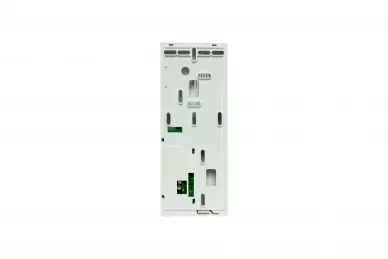

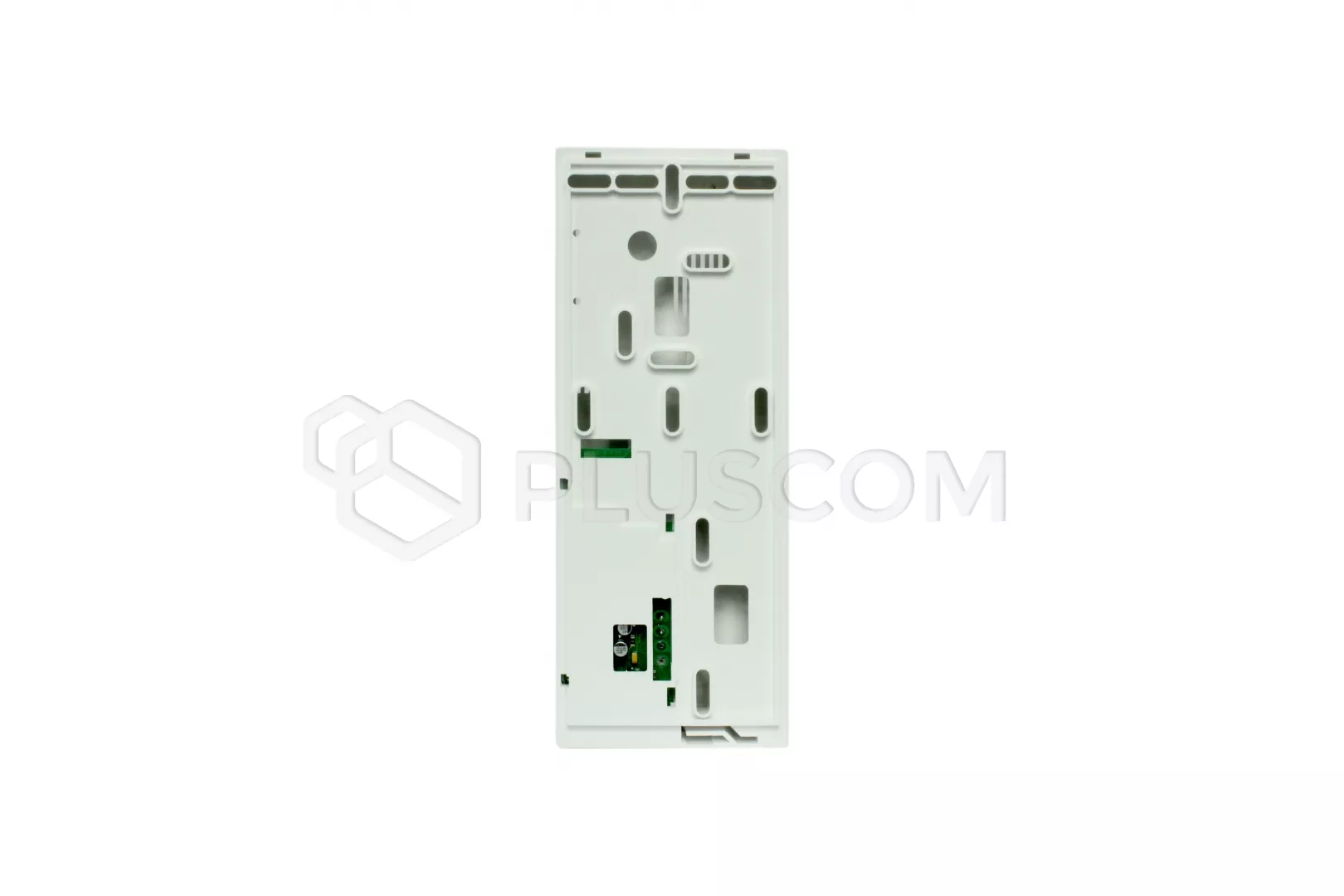

• surface mounting
• ABS plastic housing, white colour
• dimensions: 201x80x45mm
• working temperature: 10°C...50°C

INSTALLATION AND CONNECTION

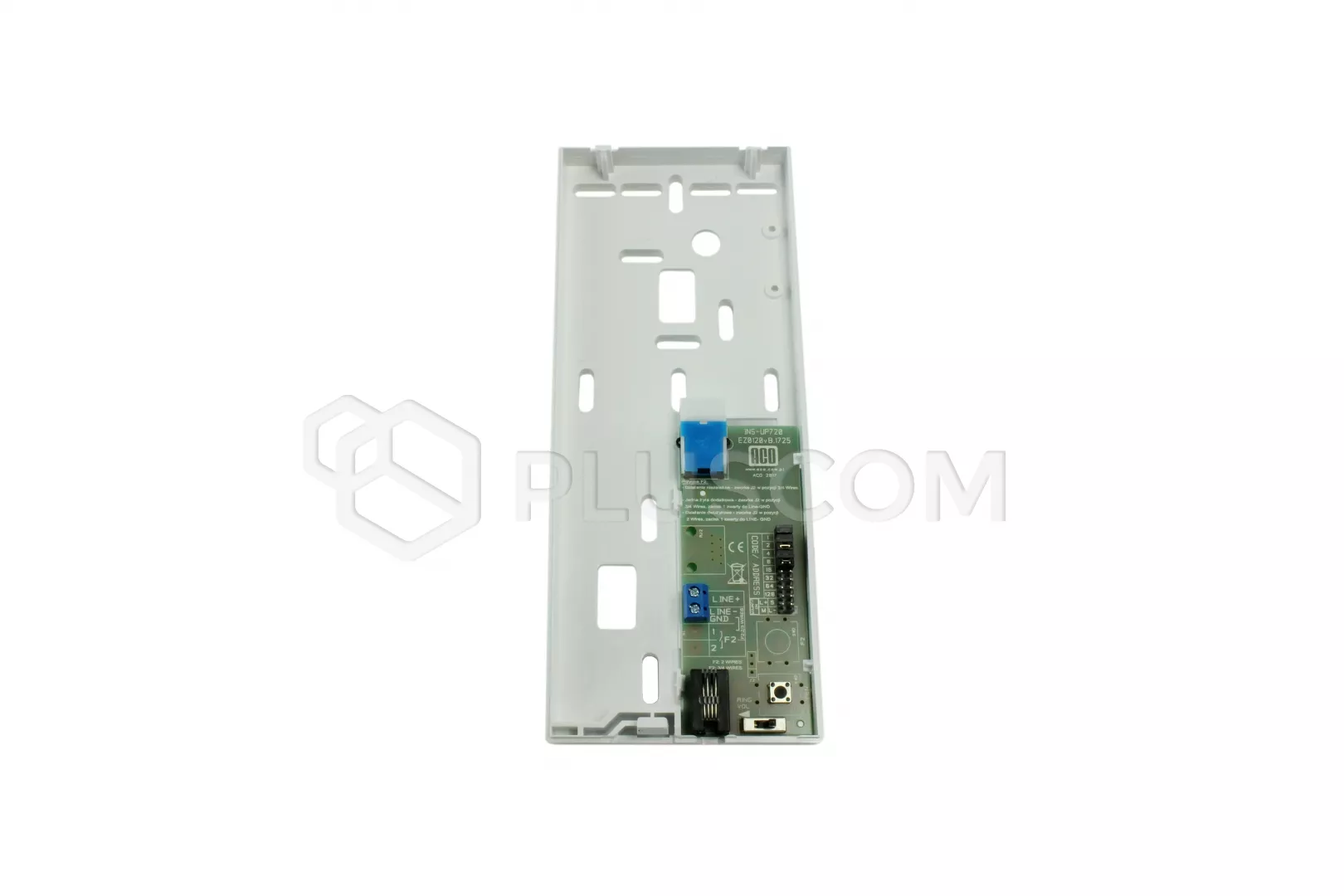

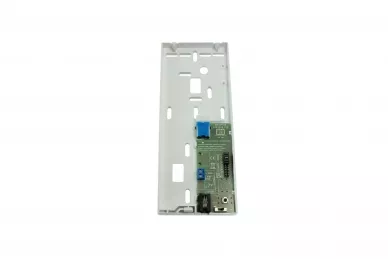

The uniphone is connected to a 2-wire digital bus, not required additional external power. The next step is setting required address / number at which the uniphone will be called. We do it for using jumpers on the uniphone electronics board.
