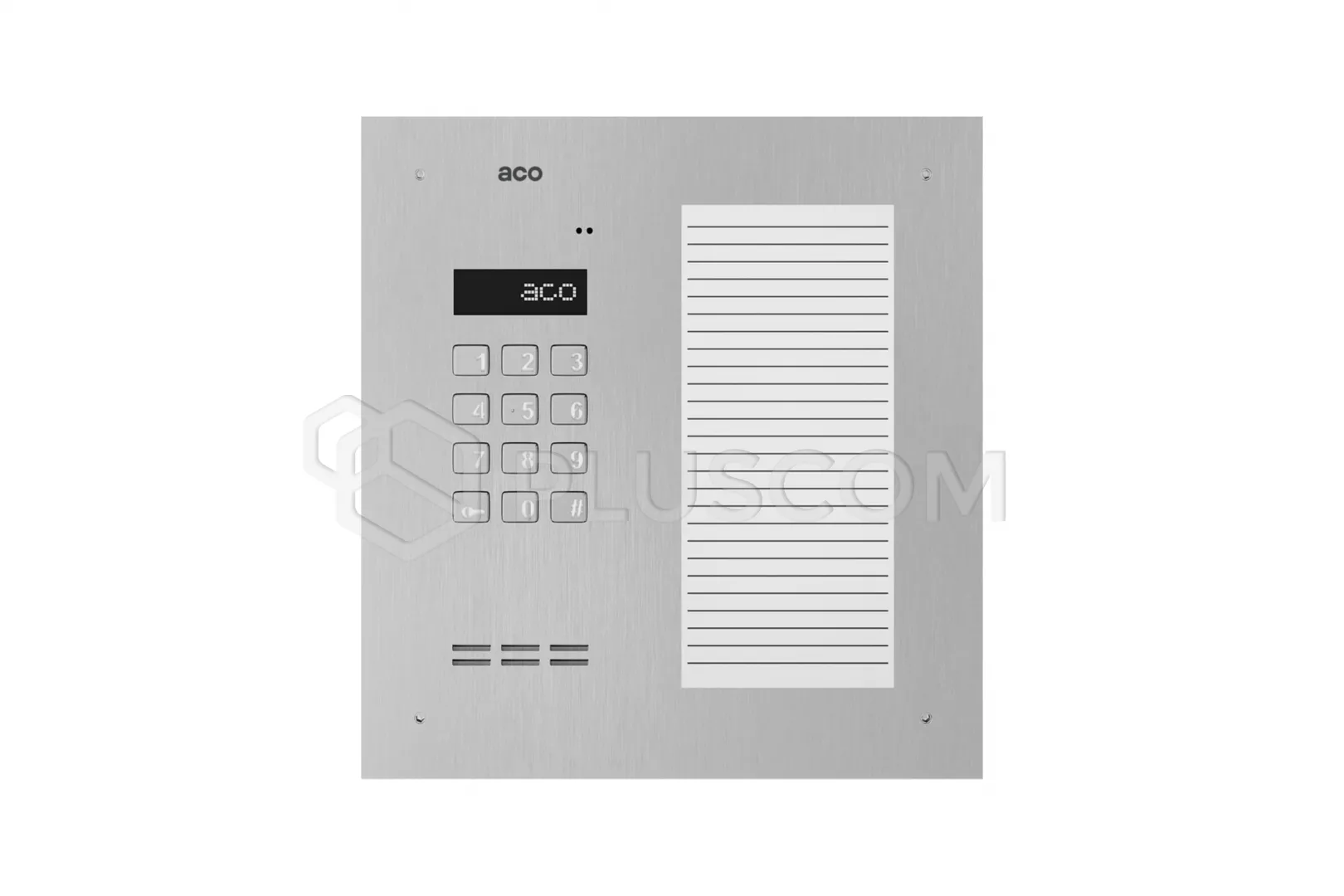

INSPIRO 17ACC+ Digital intercom with combination lock and proximity reader
and a large descriptive list
INSPIRO 17ACC+ is very elegant and resistant to weather conditions and acts
intercom vandalism. The housing and buttons are made of brushed 2mm thick
stainless steel. Modern design, high quality used materials ensure
failure-free operation for many years.
The device is compatible with all digital devices from the following groups:
CDN, Inspiro and Familio P are programmed using a USB cable, via switchboard or
computer.
To facilitate operation for disabled people, the panel is illuminated keys with
Braille, optical signaling and sound. Additionally, without having to answer
the call, we can remotely or automatically open the door and using the CDN-U
module, we can connect the an additional acoustic or light device in the
premises, signaling that someone is calling.
INSPIRO 17ACC+ supports 1020 premises for which a 4-digit code is available
tenant (different for everyone). It is equipped with a large illuminated list
module descriptive lock, combination lock and proximity reader. It has wide
possibilities individual configuration of settings for each premises and the
service itself is easy and comfortable. The device supports many expansion
modules, which is why system functionality increases.
MOST IMPORTANT FEATURES:
- possibility to set a 6-digit apartment number
- 4 different code tables
- available codes: 1020 tenant codes (4-digit), 5 administrator codes (4 or
6-digit), 1 installer (8-digit)
- programmed entry on the main display (max. 30 characters)
- adjustable max. talk time (40-120 seconds)
- support for many expansion modules increasing the functionality of the
system
- support for multi-input Master/Multimaster systems
- optional SW4S-DIN module required
- to support 1020 premises
- opening the electric strike or additional relay output without
conversations (CDN-I/O)
- home automation: controlling external devices, e.g. gate, barrier,
lighting, roller blinds, using a combination lock, key fob, receiver. Also
without an active connection
- opening the gate - triple key or - external control devices (CDN-I/O
module) – triple key
- enable or disable access to control external devices separately for each
premises
- possibility to connect multiple receivers under the same number using
active receivers
- wide possibilities of individual configuration of settings for everyone
premises
- intuitive and comfortable operation and configuration
- hallway opening function
- option to change the range of calling numbers in groups
- option to change calling numbers in groups
- possibility to set up to 8 numbers for which there is an option to call
without conversations
- auto-opening function for each premises
- porter function
- possibility to enter any max. 6 character text on the display during
porter redirection
- adjustable number of openings during a conversation (1-3)
- operating electric strikes and electromagnetic locks of various
types
- 8 priority additional numbers with individual parameter settings
calling
- Call forwarding for additional numbers
- programming from a computer without external power supply
- programming from the control panel and computer via USB cable
TECHNICAL PARAMETERS:
- installation method: flush-mounted
- dimensions:
-
- panel: 216x229mm
- can: 197x210x31.5mm
- description field: 73x166mm
- installation type: digital 2 wires
- line length: max 1000m
- power supply: 15V DC or 12V AC
- power consumption in standby mode: 1.23W
- first outputs to connect:
-
- traditional electric strike (max 1A)
- reversible electric strike (max 0.5A)
- relay module: CDN-PK (max 5A)
- second relay outputs to connect:
-
- home automation (max. 2A,30VDC)
- input: 1x normally open (NO)
It is worth remembering that ACO is a Polish manufacturer and designs its
products and produces in Poland. This is important information for the
installer because: in the event of a breakdown or service, he has access to
parts, documentation and support technical. It's completely different with
pro routes from the Far East.
The intercom is also available in a Slave version, for installation
multi-input
