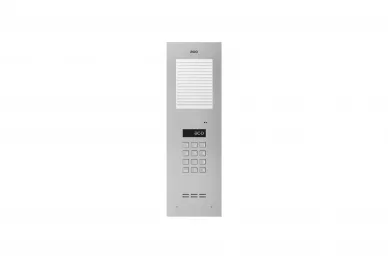

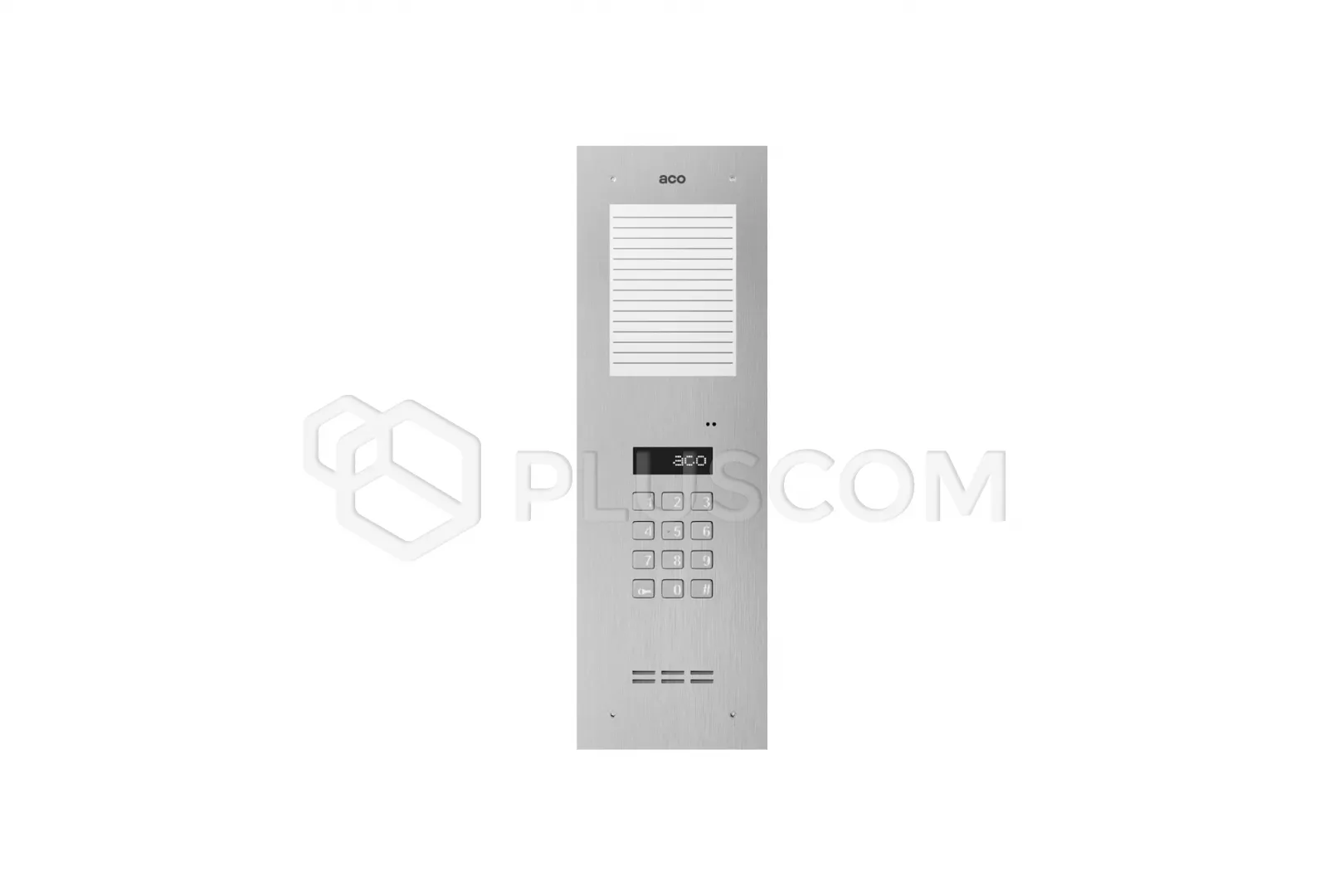

INSPIRO 10S+ Slave digital intercom with code lock and medium, illuminated
descriptive list
INSPIRO 10S+ is very elegant and resistant to weather conditions and acts
intercom vandalism. The housing and buttons are made of brushed 2mm thick
stainless steel. Modern design, high quality used materials ensure
failure-free operation for many years.
The device is compatible with all digital devices from the following groups:
CDN, Inspiro and Familio P are programmed using a USB cable, via switchboard or
computer.
To facilitate operation for disabled people, the panel is illuminated keys with
Braille, optical signaling and sound. Additionally, without having to answer
the call, we can remotely or automatically open the door and using the CDN-U
module, we can connect the an additional acoustic or light device in the
premises, signaling that someone is calling.
INSPIRO 10S+ supports 1,020 premises for which a 4-digit code is available
tenant (different for everyone). It is equipped with a medium backlit module
descriptive list, which allows for approximately 10 entries. It's wide
possibility of individual configuration of settings for each premises operation
is easy and comfortable. The device supports many expansion modules, which
increases the functionality of the system.
MOST IMPORTANT FEATURES:
- support for multi-input Slave systems
- possibility to connect multiple receivers under the same number using
active receivers
- control of external devices, e.g. entrance gate, barrier, lighting,
blinds
- opening the gate - triple key or
- heated LCD
- possibility to set a 6-digit apartment number
- available codes: 1020 tenant codes (4-digit), 5 administrator codes (4 or
6-digit), 1 installer (8-digit)
- 4 different code tables
- programmed entry on the main display (max. 30 characters)
- possibility to enter any max. 6 character text on the display during
porter redirection
- support for up to 6144 proximity elements
- adjustable max. talk time (40-120 seconds)
- possibility to set up to 8 numbers for which there is an option to call
without conversations
- Call forwarding for additional numbers
- 8 priority additional numbers with individual parameter settings
calling
- adjustable number of openings during a conversation (1-3)
- hallway opening
- porter function
- auto-opening function for each premises
- option of group change of calling numbers and their range
- enable or disable access to control external devices separately for each
premises
- operating electric strikes and electromagnetic locks of various
types
- opening the electric strike or additional relay output without
conversations (CDN-I/O)
TECHNICAL PARAMETERS:
- installation method: flush-mounted
- dimensions:
-
- panel: 111x351mm
- can: 92x332x31.5mm
- description field: 73x99.5mm
- installation type: digital 2-wire
- line length: max 1000m
- power supply: 15V DC or 12V AC
- power consumption in standby mode: 0.7W
- first outputs to connect:
-
- traditional electric strike (max 1A)
- reversible electric strike (max 0.5A)
- relay module: CDN-PK (max 5A)
- second relay outputs to connect:
-
- home automation (max. 2A,30VDC)
- input: 1x normally open (NO)
It is worth remembering that ACO is a Polish manufacturer and designs its
products and produces in Poland. This is important information for the
installer because: in the event of a breakdown or service, he has access to
parts, documentation and support technical. The situation is completely
different with products from the Far East.
