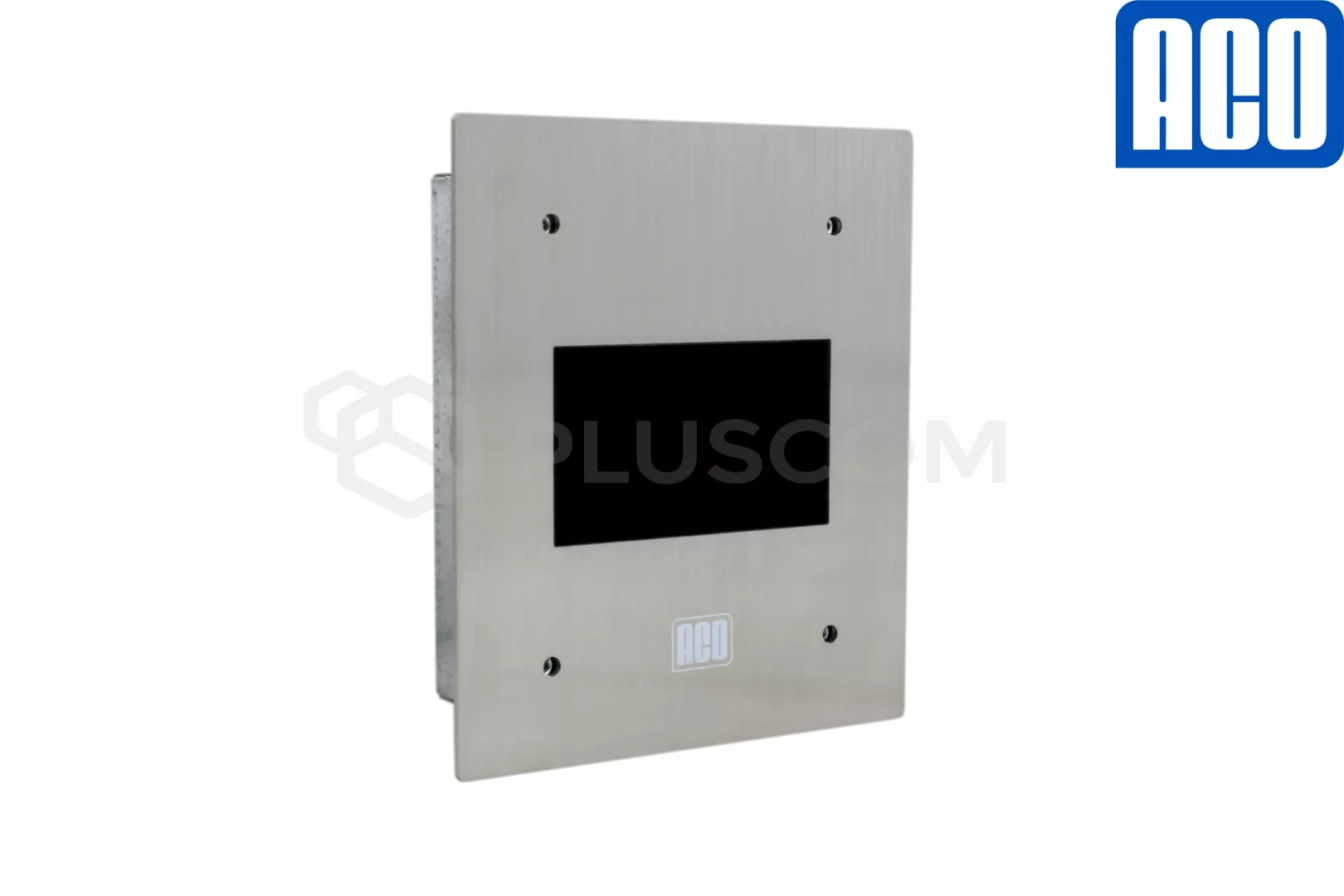

Aco INS-ACC Stand alone RFID reader

INS-ACC tand alone RFID reader

Stand alone RFID reader for Unique 125 kHz. The reader allows independent control over two outputs on different conditions. It is compatible with all ACO RFID readers and with other readers that work in the same standard which allows to open different doors with the same tag.


TECHNICAL PARAMETERS:

• Max. amount of phones: max 1536 key tags or gards
• Installation type:

  • 2 wires for power
  • 2 wires for e-lock
• Two independent outputs
• Two adjustable activity time of every output 1-9 s.
• Mounting: Flush Surface (additional mounting back box INS-P-XS NT)
• Diemnsions(mm): (optionally - surface backbox ins-p-xs nt 132,2x113,2x(37,5/29))

  • panel 111x130

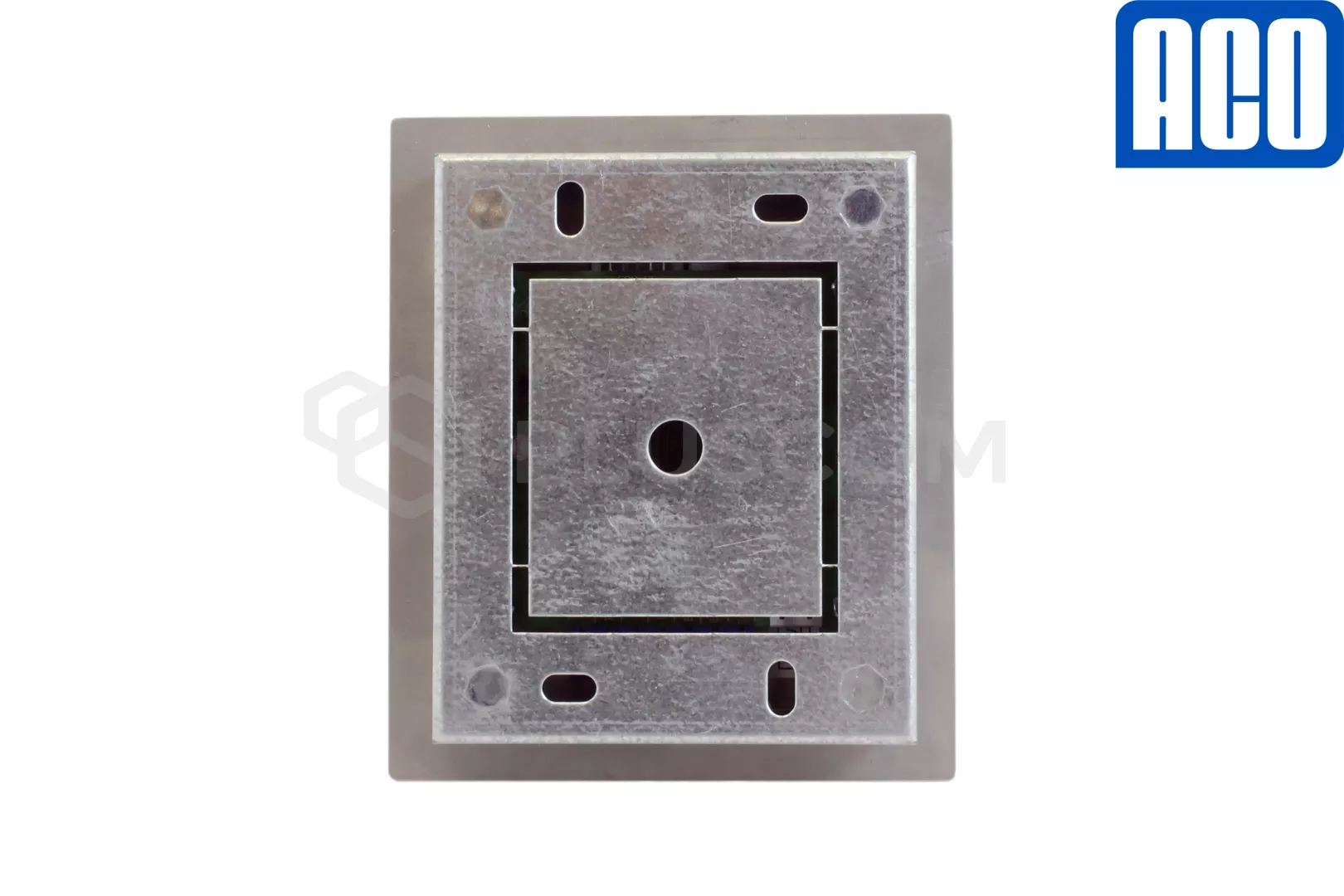

  • back box110x90x31
• Power supply: AC 12~0,5V, 260mA (the device only)
• Stand-by power consumption: ~1W

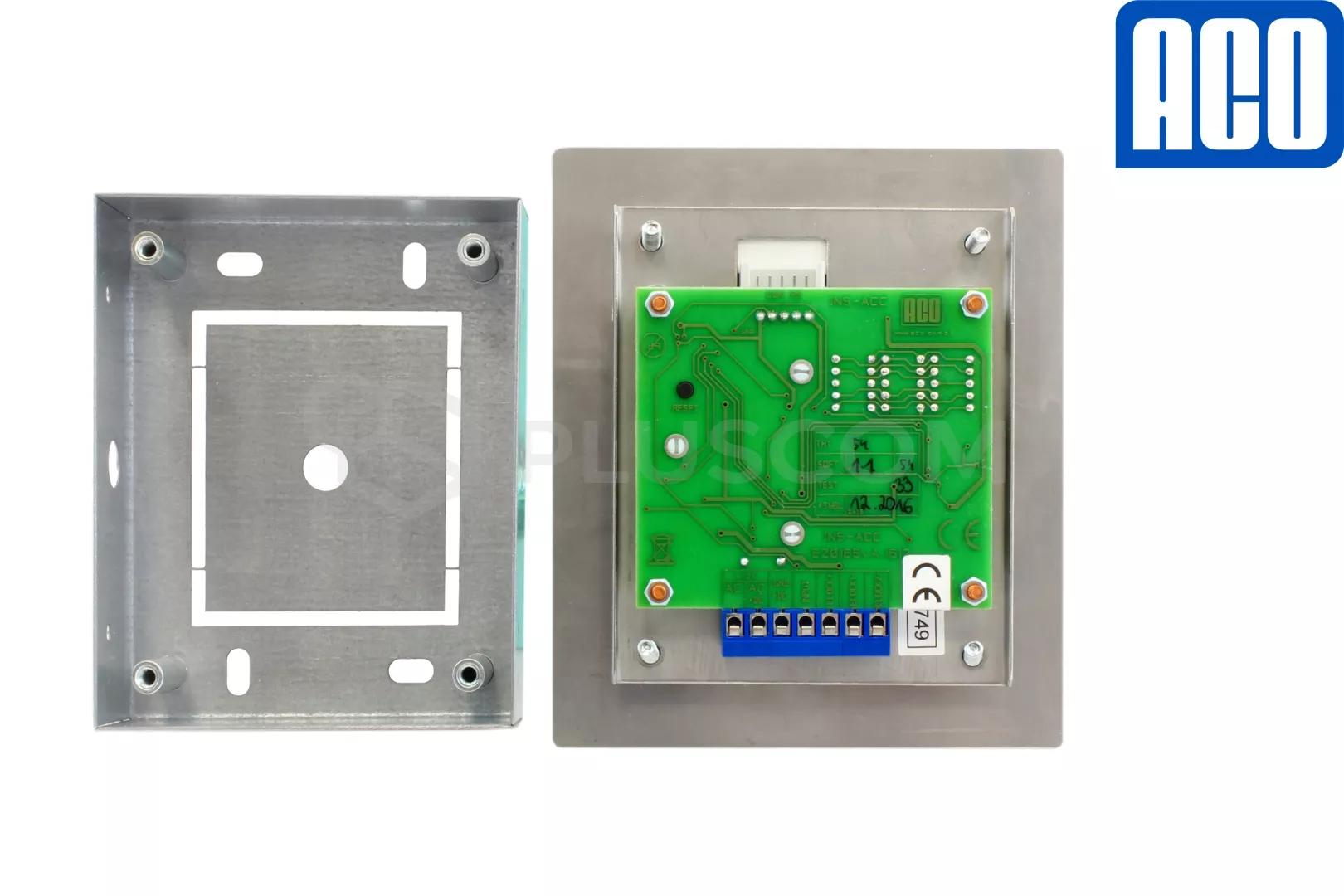

• Outputs: First and second output (screw terminals ARK) to connect:

  • traditional e-lock (max. 1A)
  • relay module CDN-PK (max. 5A)
• Inputs: Screw terminals ARK:

  • normally open contract for e.g Door bell - direct activation of the first e-lock
  • power connection
• Features for disabled: acoustic and optical signalisation of the device function
• Resistant to bad weather conditions and vandalism
• Compatible with traditional e-locks
• Controls reverse e-lock
• Compatible with reverse e-locks and magentic keepers (CDN-PK module essential)
• Controls outside opening button (1 output)
• Programmed easily with a master card
• Programmed via cpu with CDN-USB cable

Dedicated additional mounting back box:
