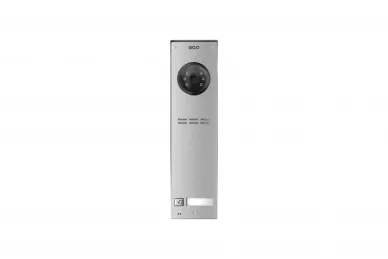

ACO COMO-PRO-V1 NT video intercom with one call button for operation one
premises.
The video intercom is an element of the digital ACO COMO PRO system, which can
be used in single-family construction.
This is the next generation of the famous FAMILIO-PRO series. Thanks to the
brand new one electronics design, ensures, among other things, greater
reliability and service longer installations, remote management and a larger

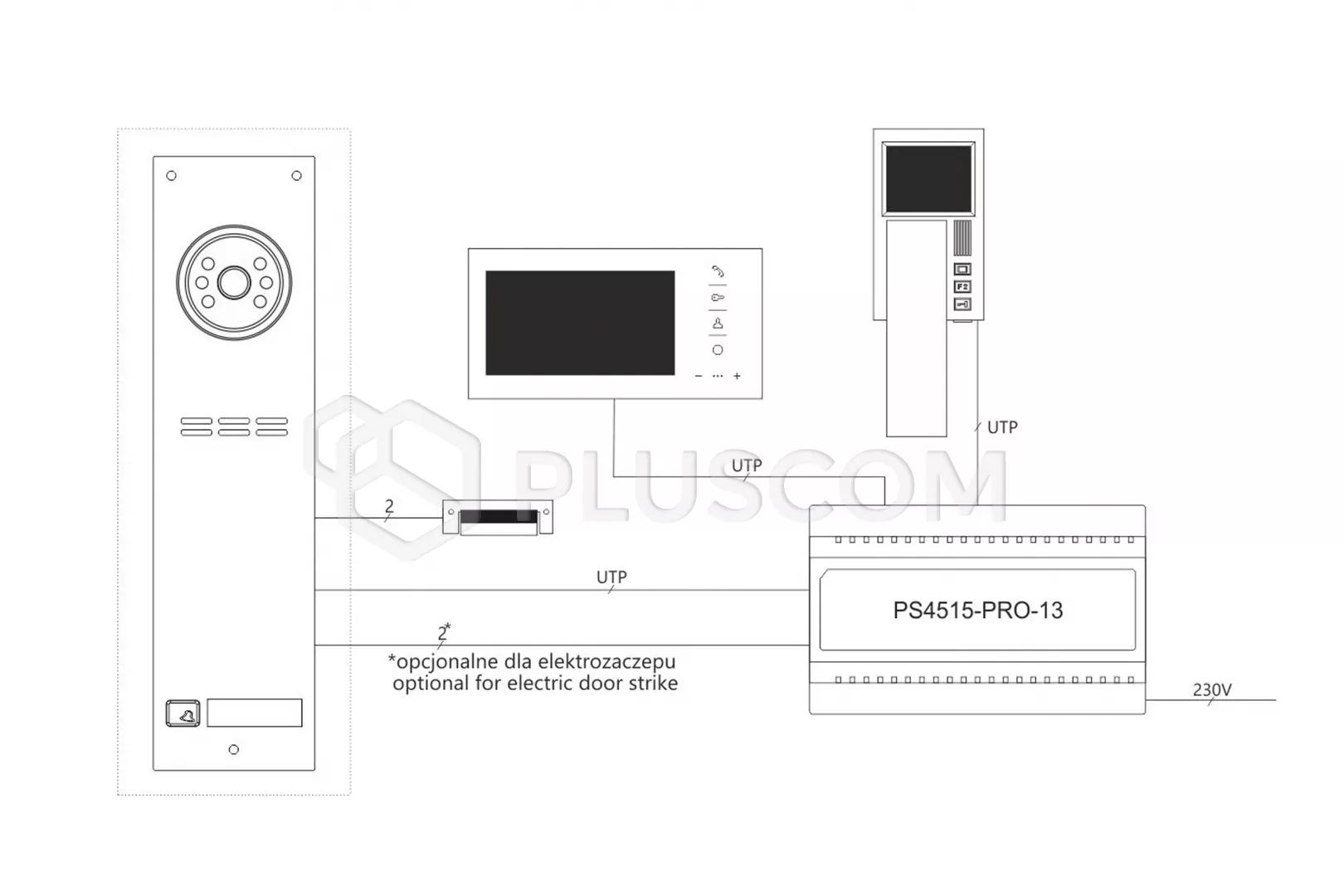

number of subscribers. The installation is based on UTP twisted pair. The
system allows you to connect in one two panel system: 1 x master and 1 x slave
(optional module required VIDEO-SW2 MINI–60), multiple receivers ringing
simultaneously, electric strikes various types of external opening button.
The ACO panel has many facilities for people with disabilities who use it.
Using the PRO-I/O module connected to the system bus, we can connect any
additional lighting or acoustic device that will be available was signaled by
ringing. You can also open the door without answering the call and thanks to
the auto-opening function, open the door automatically. Thanks By connecting
the PRO-I/O module, we can manage home automation such as a gate entrance,
barrier, lighting or roller blinds.
The panel operation itself is easy and intuitive, and programming is done with
panel level and computer level using a CDN-USB cable.

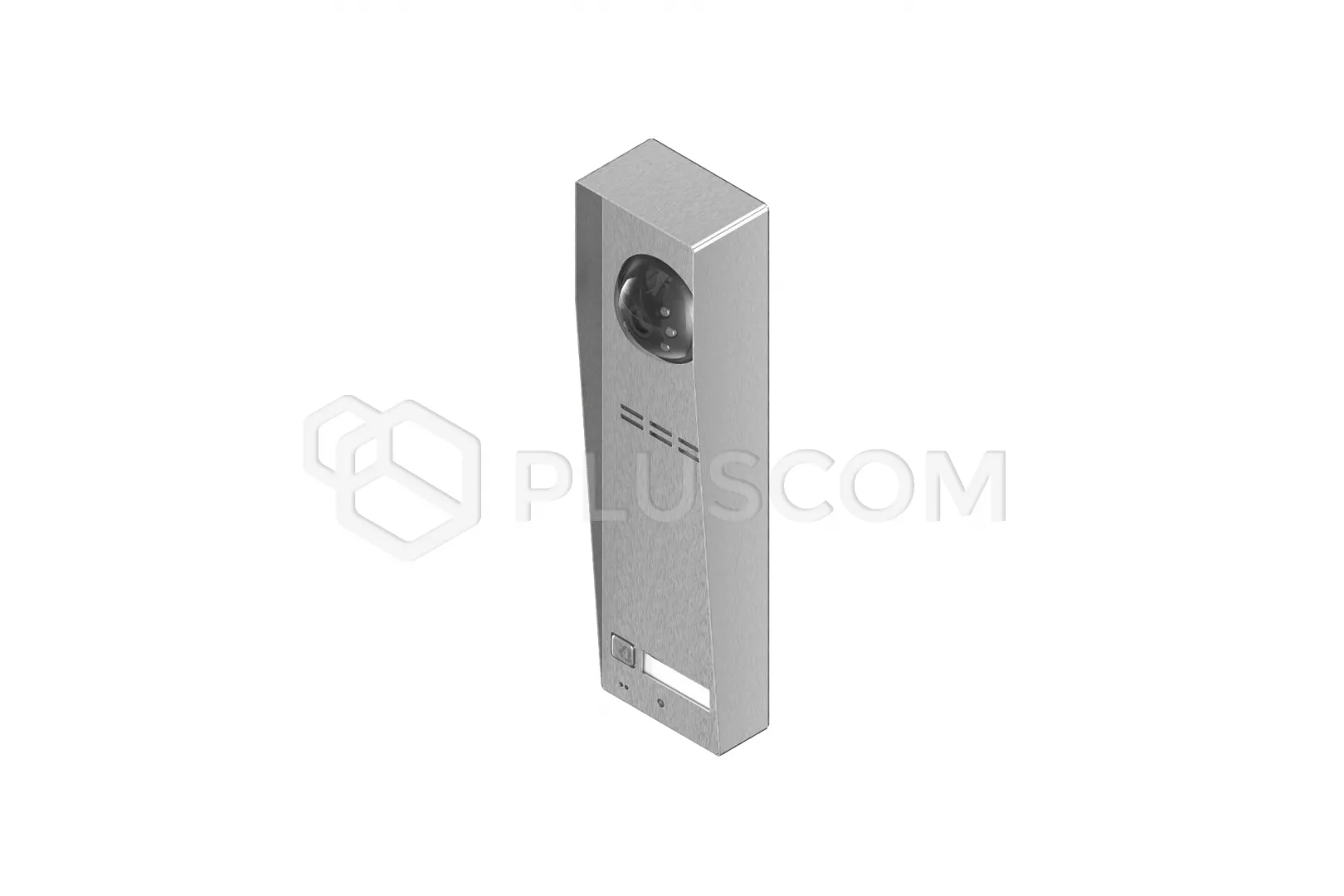

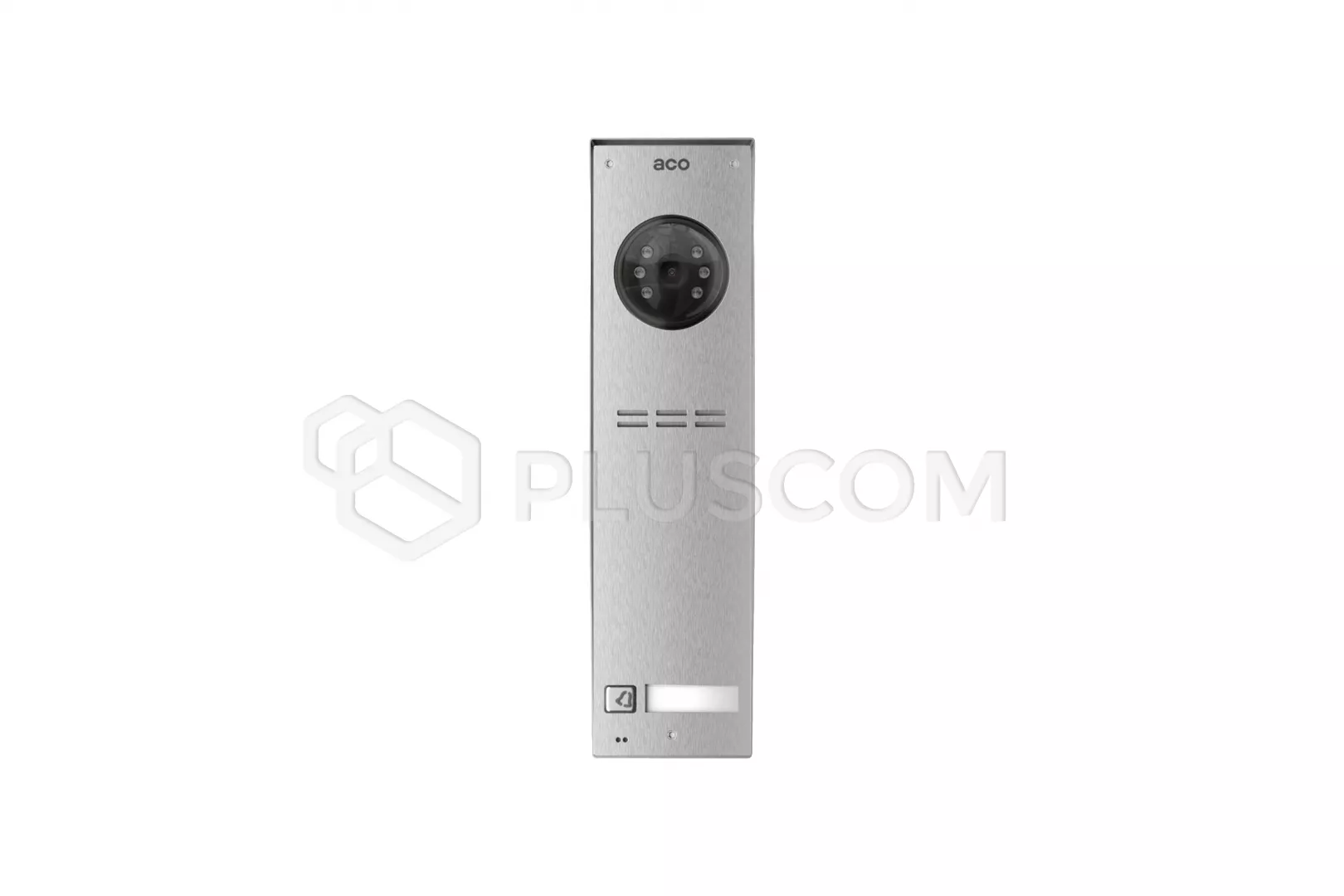

CONSTRUCTION AND EQUIPMENT OF THE PANEL:
- panel made of stainless steel (2mm thick), has one metal call
button
- The design and materials used ensure high resistance to weather
conditions and acts of vandalism
- built-in camera with IR illumination
-
- 2.8mm wide-angle lens
- high resolution (600 lines)
- angle adjustment +/-20° in each direction
- integrated proximity tag reader (Unique 125kHz) support for up to
10 key fobs for the premises (the reader is located behind the lower
one). description field)
- white backlit button and description field (straight description
replacement)
- control of various types of electric strike, electric strike is
connected directly to the panel
|
ACO COMO-PRO-V1 NT Digital video door entry system
|
In the new COMO-PRO generation, using the "master" keychain and
"super master" we can add and remove proximity tags.
TECHNICAL PARAMETERS:
- installation method: surface-mounted

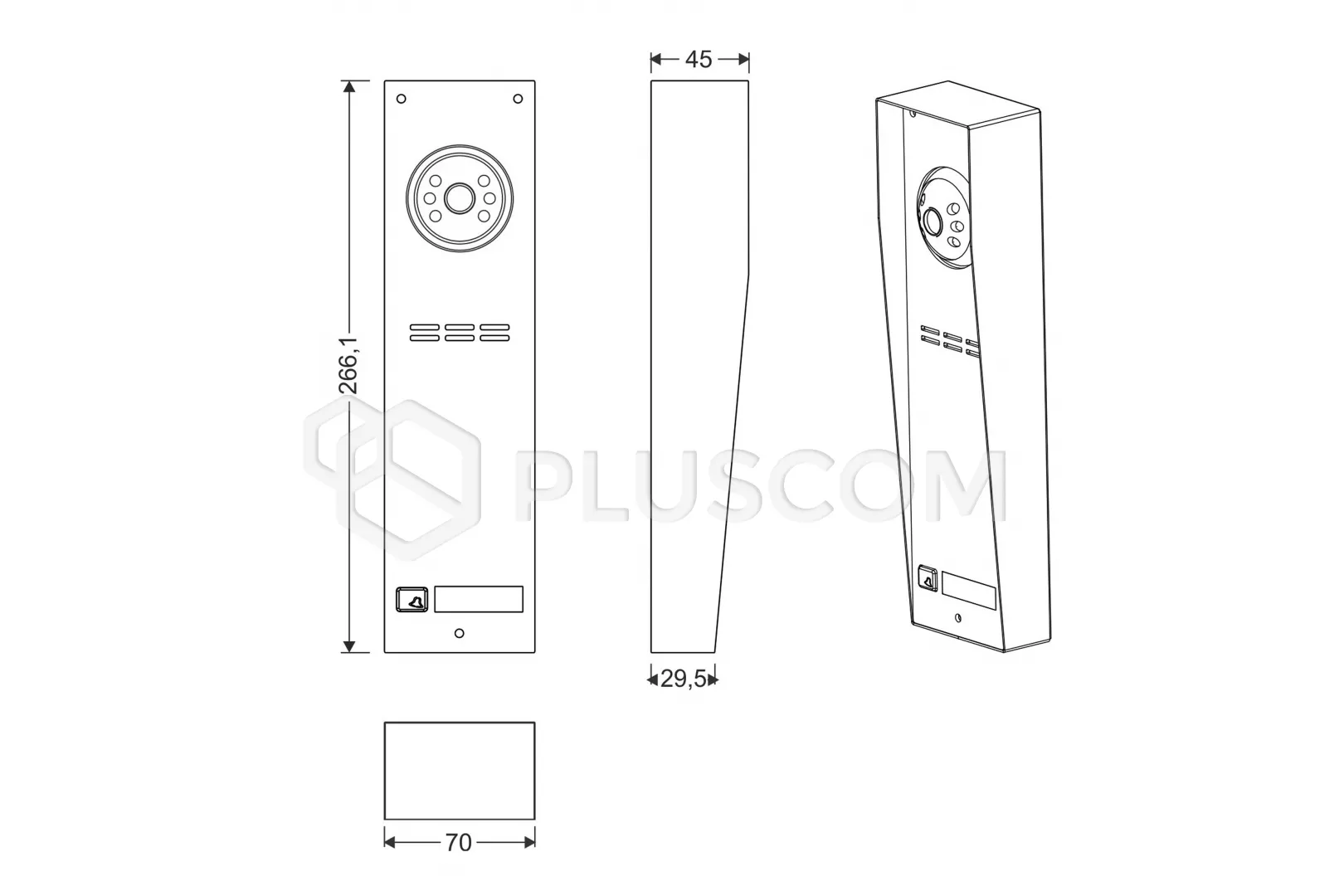

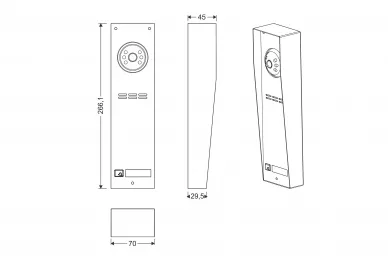

- dimensions:
-
- panel: 263.8×67.8mm
- can: 266.1x70x45/29.5mm
- installation type: digital twisted pair cat. 5e or 6
- line length: max 1000m
- power supply: 15V DC
- power consumption in standby mode: approx. 2.5W
- output: to connect:
-
- traditional electric strike (max 1.5A)
- reversible electric strike (max 1.5A)
- relay module: CDN-PK (max 5A)
- audio signal: "LINE"
- power supply: "+DC" and "-DC"
- Video signal: "V+" and "V-"
- PRO system bus
- input: to connect:
-
- NO button
- separate power supply for the electric strike output
It is worth remembering that ACO is a Polish manufacturer and designs its
products and produces in Poland. This is important information for the
installer because: in the event of a breakdown or service, he has access to
parts, documentation and support technical. The situation is completely
different with products from the Far East.
