Aco INS-ZS Stand alone code lock

INS-ZS Stand alone code lock

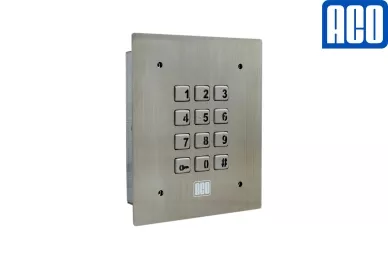

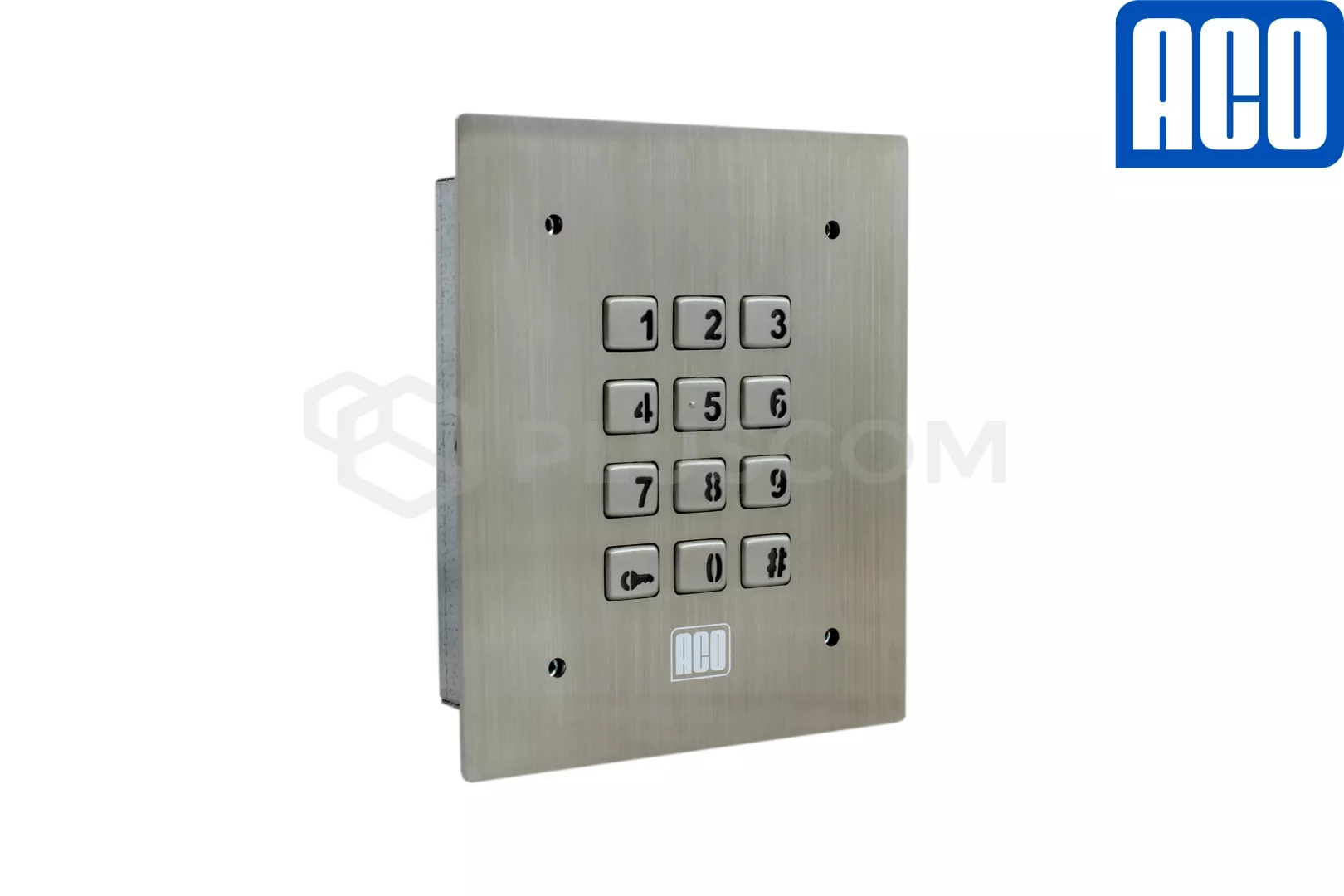

Stand alone code lock operates 255 individual 4 digit opening codes. Two function modes: direct opening after 4 digit code is typed in or by choosing the apartment number before entering the code. The lock allows to control independently two outputs depending on the code unput way – standard of with „the key”. It is compatible with all ACO devices with integrated keypad which allows opening different door with the same 4 digit code of the ACO's table of codes.

TECHNICAL PARAMETERS:

• Max. amount of phones: 255 different codes
• Material: Flat front panel, 2mm thick, buttons made of brushed stainless steel
• Mounting:

  • Flush
  • Surface (additional mounting back box INS-P-XS NT)
• Diemnsions(mm): (optionally - surface backbox  INS-P-XS NT 132,2x113,2x(37,5/29))

  • panel 111x130

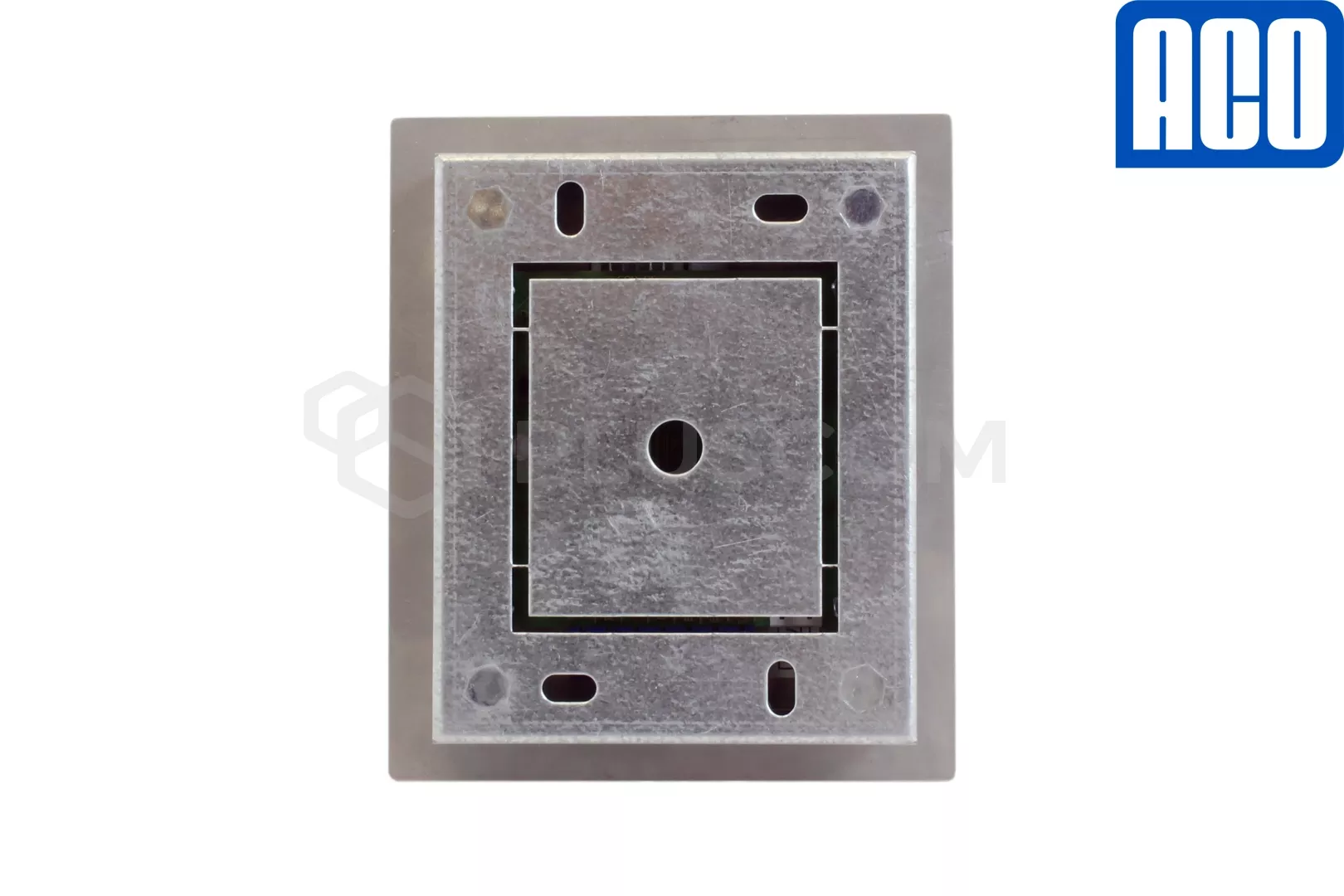

  • back box110x90x31
• Installation type:

  • 2 wires for power
  • 2 wires for e-lock
• Power supply: AC 12~0,5V, 160mA (the device only)
• Stand-by power consumption: ~0,5W

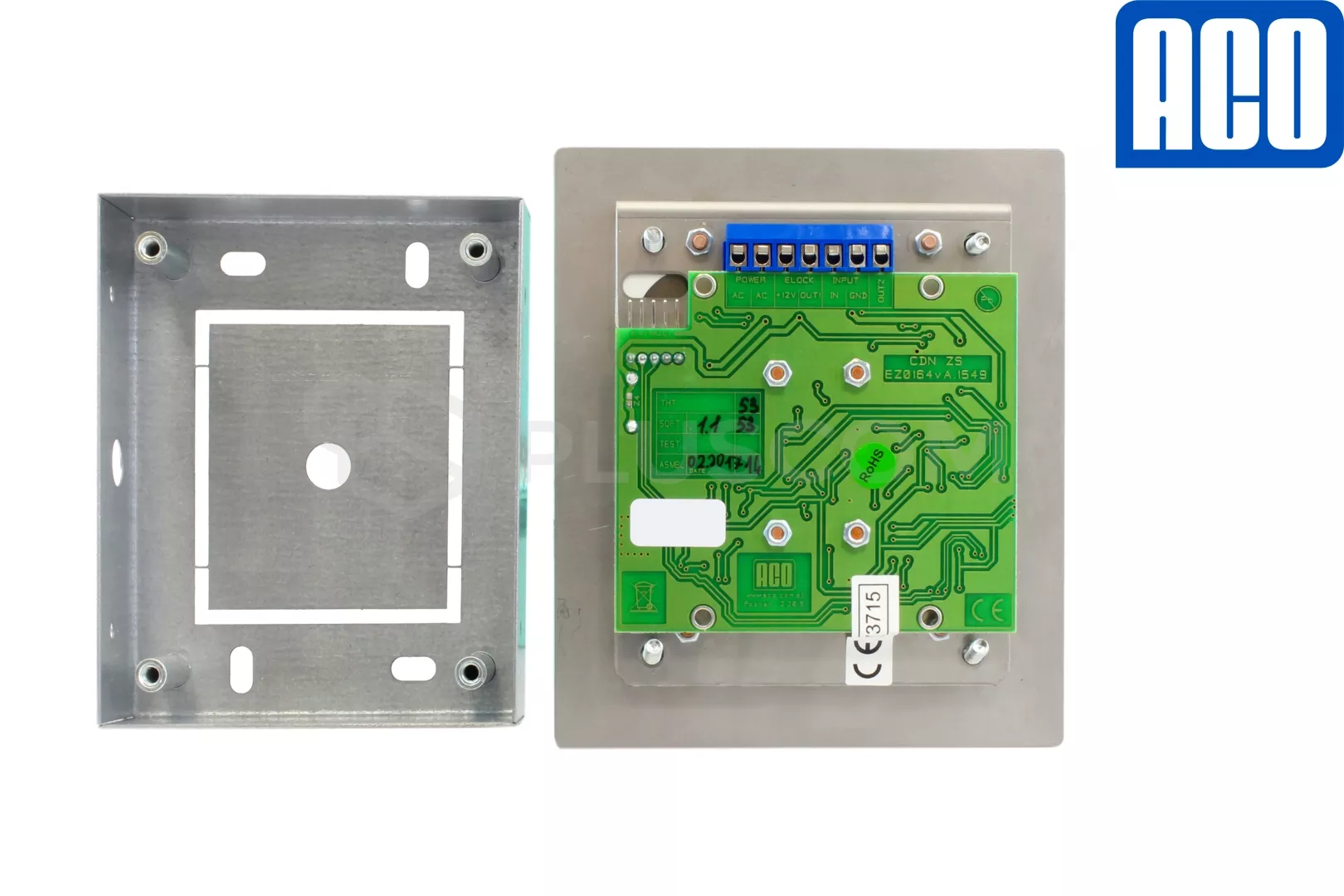

• Outputs: First and second output (screw terminals ARK) to connect:

  • traditional e-lock (max. 1A)
  • reverse e-lock (max. 0,5A) - only one output

  • relay module CDN-PK (max. 5A)
• Inputs: Screw terminals ARK:

  • NO switch for e.g. „bell” - direct activation of the first e-lock
  • power connection
• Features for disabled:  acoustic and optical signalisation of the device function
• Resistant to bad weather conditions and vandalism
• Compatible ACO table of codes
• 255 individual 4 digit opening codes
• Two independent outputs
• Adjustable acivity time of every output 1-9 s.

• Compatible with tranditional e-locks
• Controls reverse e-lock – only one output
• Compatible with reverse e-locks and magentic keepers (CDN-PK module essential)
• Sound signalisation can be disabled
• Programmed from the device
• Programmed via cpu with CDN-USB cable

Dedicated additional mounting back box:
