Aco GLASS-PRO-7 BK Digital video monitor 7''

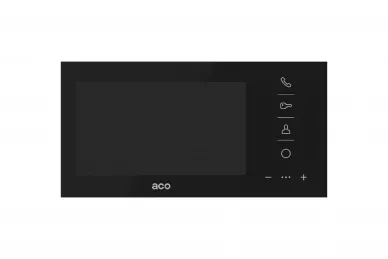

ACO GLASS-PRO-7 BK Video monitor with a flat glass front, speakerphone with a 7'' colour display and touch function icons, black

The GLASS-PRO-7 series is the next generation of 7-inch glass monitors for the PRO system. It replaces the previous generation of MPRO7 monitors. In addition to the renaming, the monitor control electronics have been redesigned to provide even greater reliability and capabilities. The third generation of these monitors includes support for larger (longer) installations, more addresses, remote management (from anywhere in the system), software updates and melodic ringtones. The monitor will be constantly developed, and thanks to software updates, all new functionalities and capabilities of the monitor will also be available to people who have already purchased the product.

New features of the 3rd generation GLASS-PRO-7 monitor:

• 8 melodic ringtones
• doorbell function (built-in terminals for connecting a doorbell push-button)
• Programming the settings and updating the software on the system bus (PRO-USB computer interface required)
• possibility of intercom calling within the main calling address and beyond the main calling address - feedback communication with other premises or e.g. a doorman
• compatible with previous generations of the PRO system
• individual number of each device: DevID
• search for all devices in the system
• individual or group facility management
• possibility to manage devices and update them in a working system
• one software to handle all devices: PRO 3 Manager

INPUT

• 5 x disconnectable screw terminals (PRO system bus connection):
• • audio signal connection: "LINE"
  • power supply connection: "+DC" and "-DC"
  • connection of the Video signal: "V+" and "V-"
• 1 x RJ45 connector: PRO system bus connection
• 2 x screw connections (detachable): 1x NO e.g. "bell" button - doorbell function

OUTPUT

• Function button ("F2" - "circle" icon):
• • activated at any time
  • controlled on the system bus (optional PRO-I/O relay module connected to the system bus required)

TECHNICAL SPECIFICATIONS

• Power supply: DC 15V
• Power consumption in standby mode: 0.4W
• Display: 7''
• Resolution: 800x480

• Installation type: cat. 5e lub 6
• Mounting: surface-mounted
• Dimensions: 237x121x25mm
