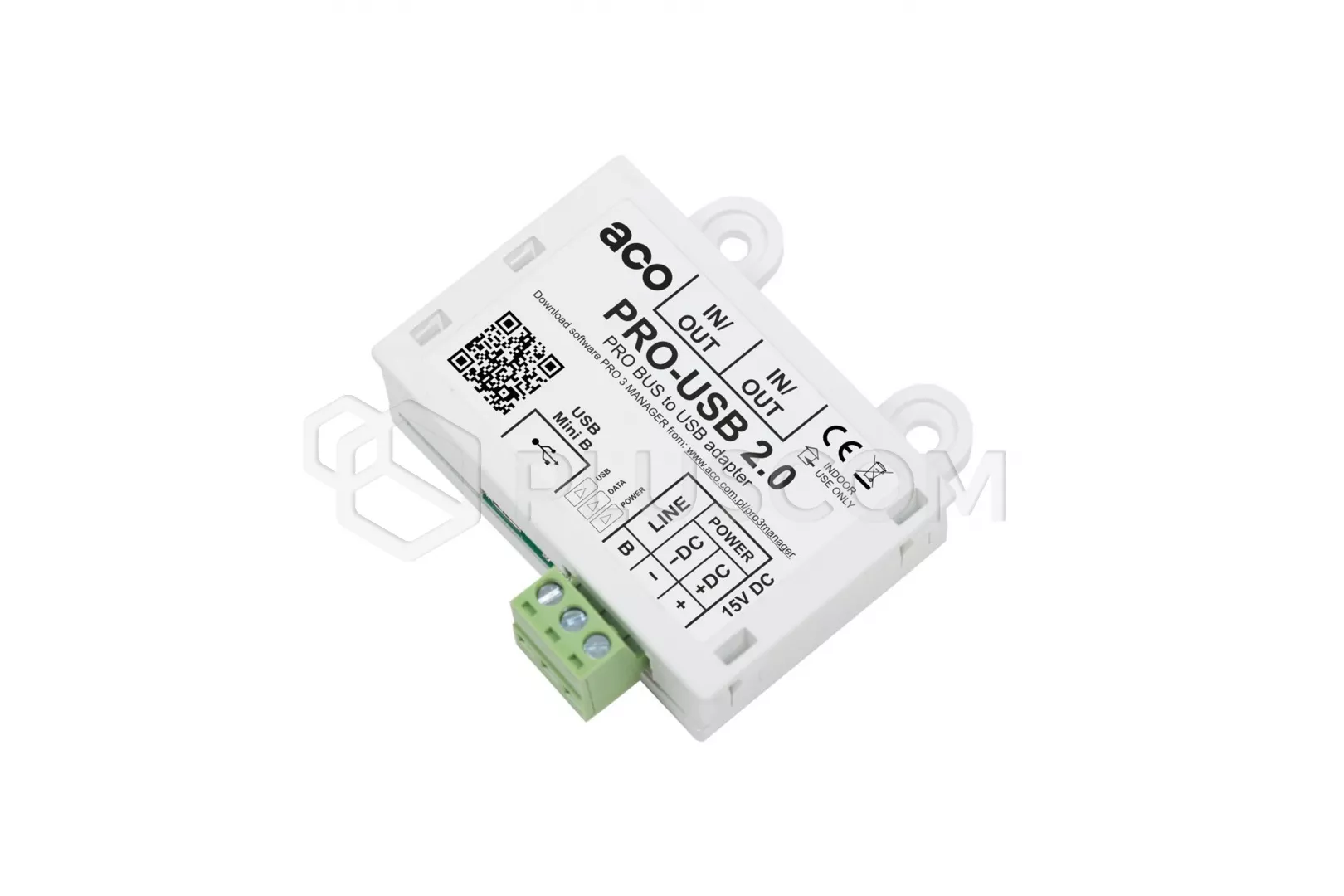

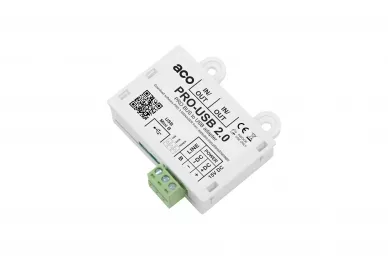

Aco PRO-USB 2.0 PRO-USB computer interface version 2.0

46,40 EUR including 23.00% VAT
Product code: #25489
Manufacturer: ACO
  • Power supply: 15 V DC
  • Handle all devices: PRO 3 Manager
  • Management via the intercom system bus
  • ABS enclosure in ACO standard (type A)
  • Installation method: surface-mounted
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco COMO-PRO-A1 NT Digital door entry system Aco GLASS-PRO-7 BK Digital video monitor 7'' Aco COMO-PRO-V1 Digital video door entry system Aco COMO-PRO-A1 Digital door entry system Aco UPRO800 Hands-free digital uniphone (G2) Aco GLASS-PRO-7 WH Digital video monitor 7''

PRO-USB 2.0 Computer interface for managing PRO device settings 3rd generation via the intercom system bus


A computer interface is a device that gives us easy access to... position of the computer, to any PRO 3G series device. PRO-USB is connected in any place on the bus of a running PRO system, and thanks to individual numbers of each device (Dev ID) we can search and manage settings all devices in the system (group or individually).
Each type of PRO generation 3 device has an individual set of settings, that we can manage via the interface. Moreover, every device has one ability to set a 4-digit password to access the settings (no password required this way cannot be reset or recovered - if you forget your password the device should be sent back to the manufacturer along with proof of purchase – device will be restored to factory settings). All settings and database Proximity key fobs can be saved to a file or in the cloud (Google Drive, drop box).

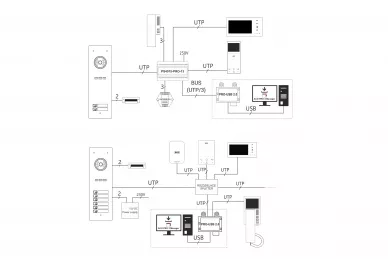

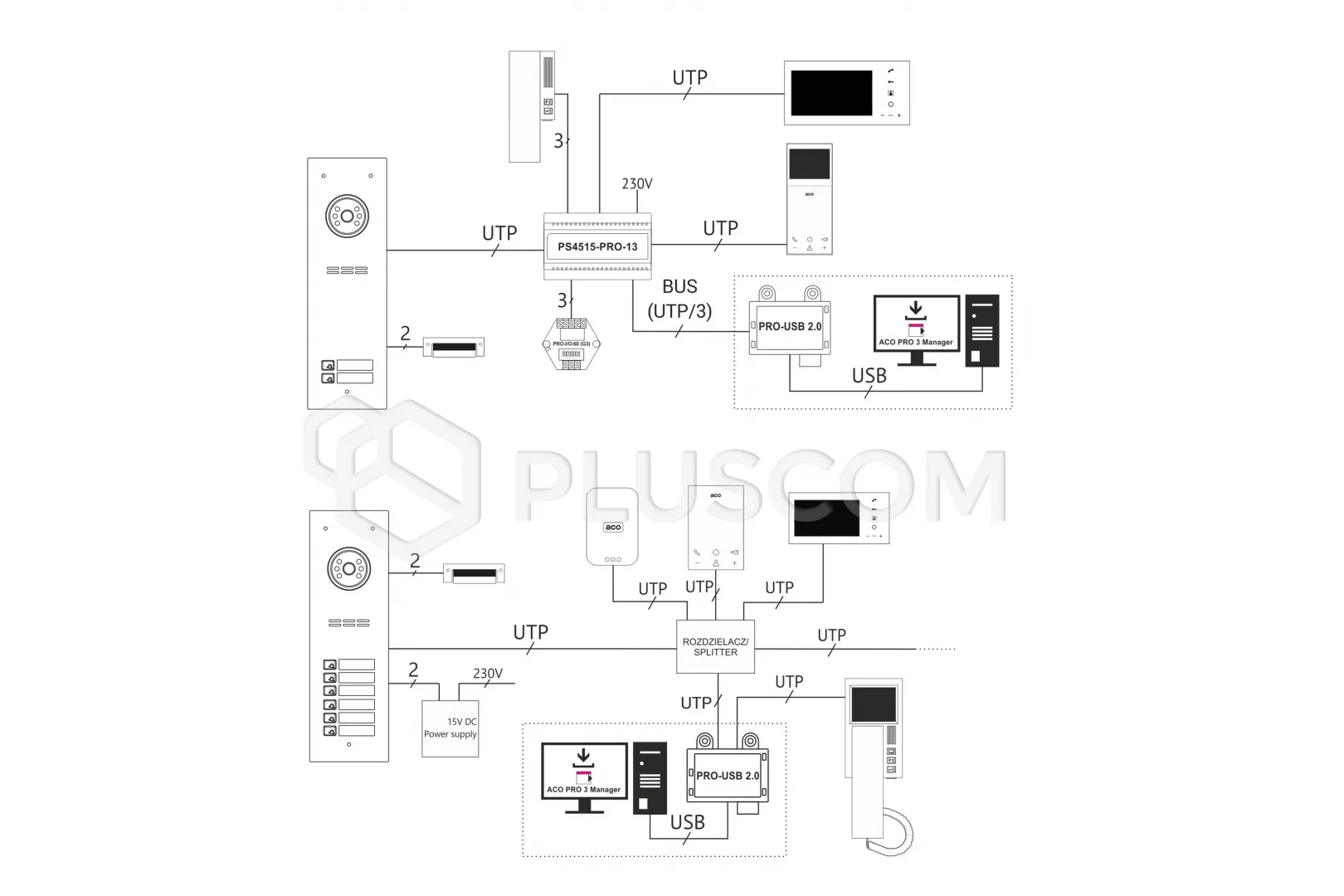

The module is connected to the PRO system bus using 3 wires (LINE, +DC and -DC) or RJ45 connectors (the module has 2 RJ45 connectors, which allows it to be plugged into any bus location). The PRO-USB 2.0 (2nd generation) interface is completely new design of the device with improved stability and parameters operation, a software update of the interface itself was introduced and added support for the latest generation 3 PRO devices.

PRO-USB and its features:
  • management of settings of all generation 3 PRO series devices
  • possibility to connect anywhere on the PRO system bus
  • software update for generation 3 PRO series devices
  • search for all devices in the system
  • individual or group device management
  • ability to manage devices and update them in a working one system
  • one PC software to support all devices: PRO 3 MANAGER (only for MS Windows)
  • Possibility to download the software for free from the website www.aco.com.pl/pro3manager
  • possibility to update the interface software

TECHNICAL DATA
  • power supply: 15V DC
  • system type: PRO (3rd generation)
  • installation method: surface mounting possible
  • connection: min. 3 cores or twisted pair cat.5 or 6
  • outputs:
    • 3 x ARK screw connectors (PRO system line connection: "LINE" and power supply: "+DC" and "-DC"
    • 2 x RJ45 connector (PRO system bus connection)
  • inputs: 1 x mini USB connection to a computer

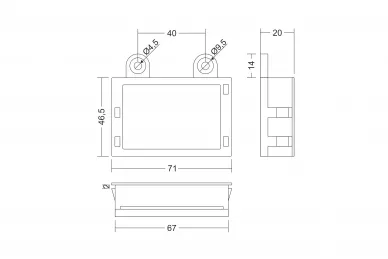

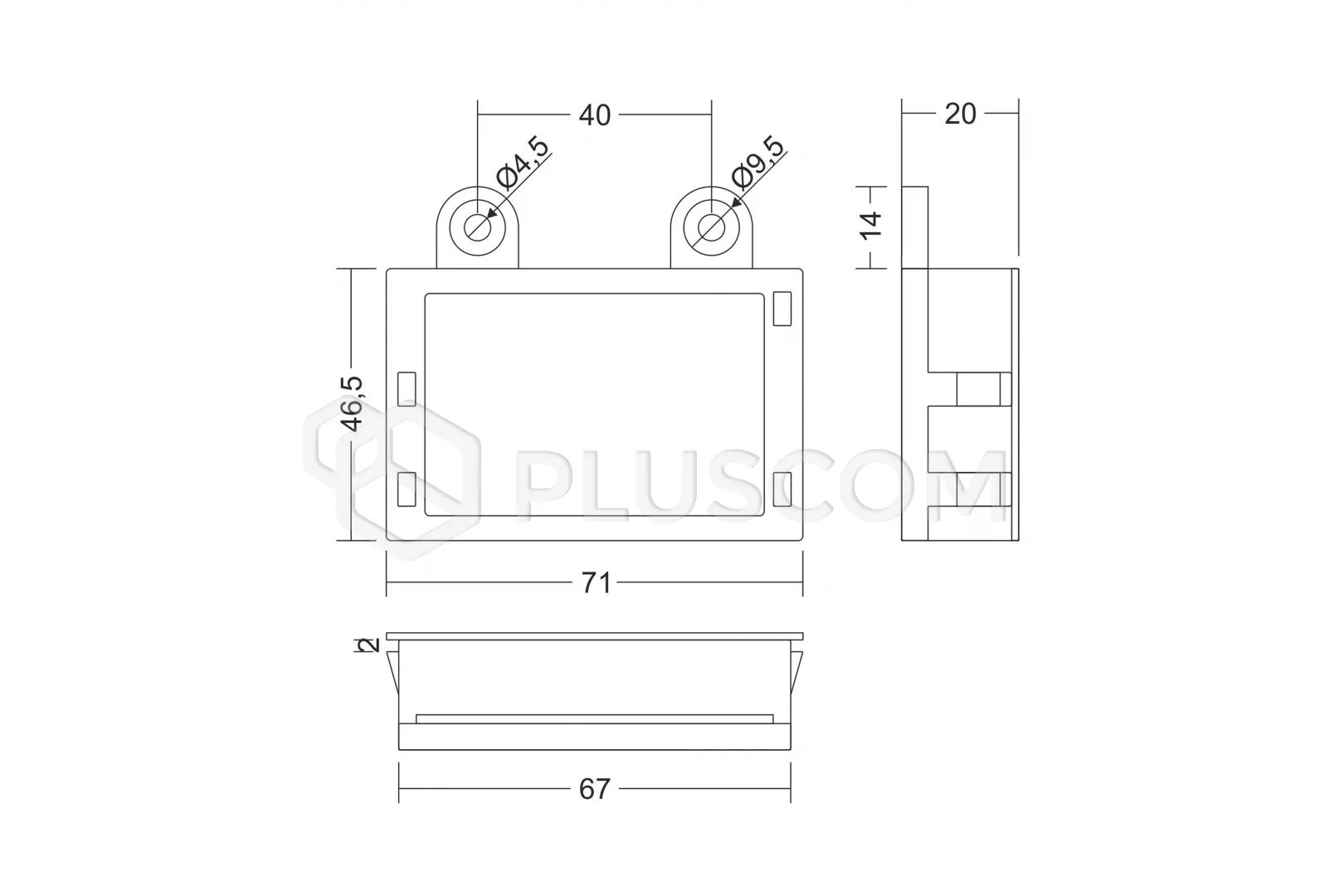

  • dimensions: 71.5x72x19.5mm
