Aco COMO-PRO-CODE-V1 Digital entry unit with code lock, key ring reader and 1 key button

ACO COMO-PRO-CODE-V1 Digital video intercom with code lock and reader key rings and 1 button

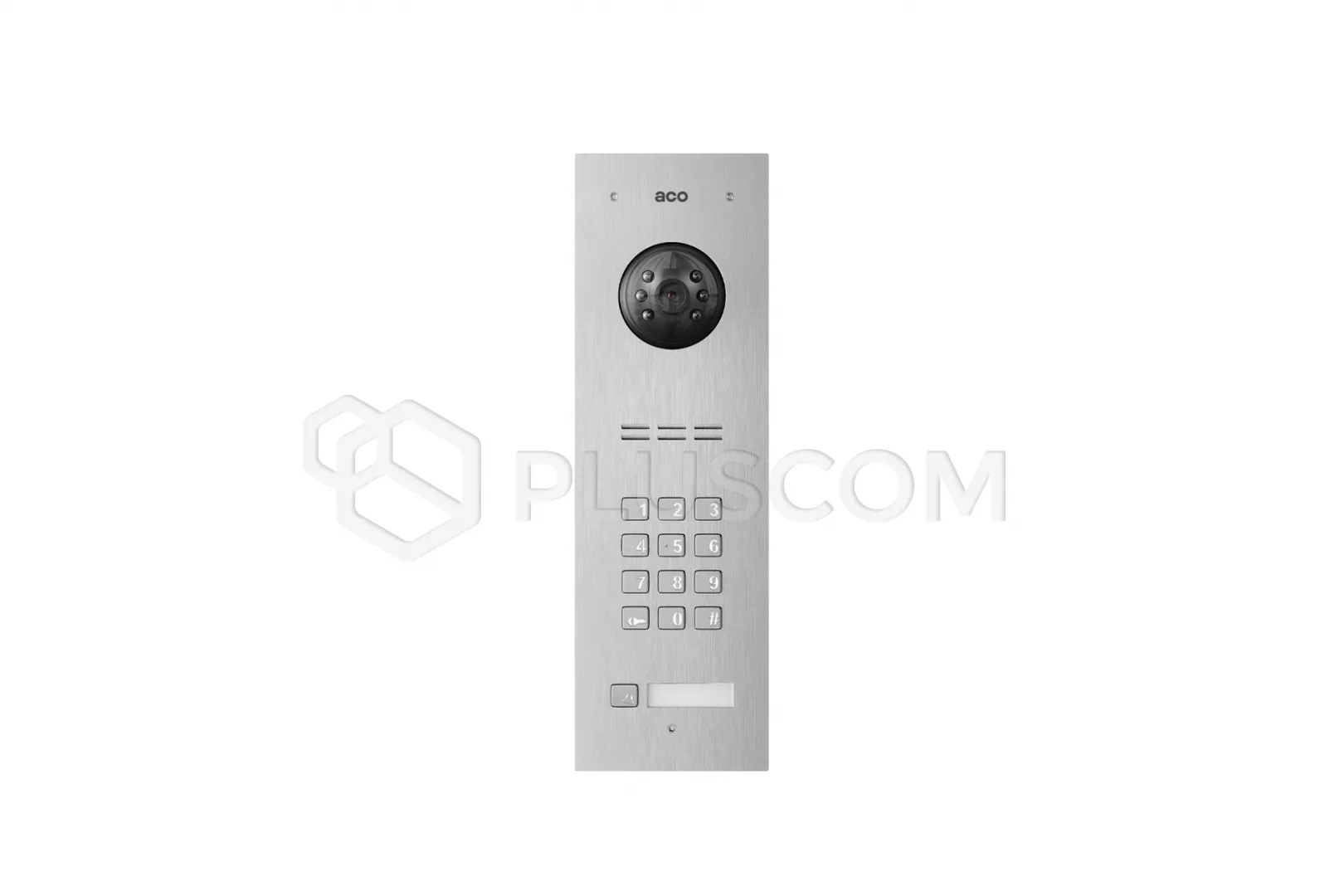

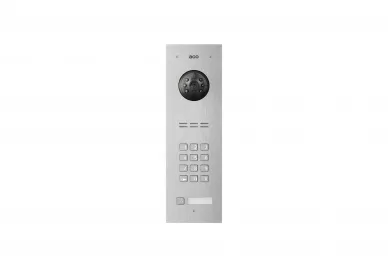

The digital video intercom panel COMO-PRO-CODE-V1 (generation 3) is dedicated to single and multi-family houses. It has a backlit lock keypad a combination code that allows you to open the gate/door using an individual key 4-digit code and one independent illuminated button calling, which can be assigned to a specific premises. Additionally next door button there is an illuminated description field where you can easily how to put the apartment number or other information. Together with the lower description field A proximity tag reader has been integrated, making it easy to do so opening the gate/door directly from the panel.

An important element of the panel is a high-resolution color camera (min. 600 lines) with a 2.8mm wide-angle lens. Adjustable viewing direction position cameras with infrared LED backlight: +/- 20° in each direction gives perfect image day and night.

New functions of 3rd generation COMO-PRO-CODE panels:

• connection of up to 2 panels in one system (optional module required PRO-VIDEO-SW2–60 (G3))
• adding and removing proximity tags using the "master" tag (separately for each premises) and using the "super master" key ring (incl all premises)
• programming settings and updating software via bus system (PRO-USB 2.0 computer interface required)
• search for all devices in the system
• individual or group device management
• ability to manage devices and update them in a working one system
• one software to support all devices: PRO 3 Manager

The ACO panel has many amenities for the people using it disability:

• acoustic and optical signaling of panel functions
• auto-opening function: automatically opening the door when someone calls (function activated in GLASS-PRO-7/MPRO7 receivers or using optional PRO-I/O module connected to the system bus)
• opening the door without having to answer the call: using additional button or e.g. remote control (required connection to the panel terminals or to the optional PRO-I/O module connected to the system bus)
• possibility to connect an additional acoustic or lighting device signaling the ringing (requires optional PRO-I/O module connected to system bus)

The panel operation itself is easy and intuitive, and programming is done with panel level and computer level using a CDN-USB cable.

FEATURES

• intuitive and comfortable operation and configuration
• resistant to acts of vandalism and weather conditions (from -20 to... 50ºC)
• Individually illuminated call buttons with easy illumination interchangeable descriptive places
• access control – built-in proximity key fob reader, integrated with lower description field and support for 1020 individual opening codes and 1 administrative (available via a computer program)
• possibility of changing codes by the user, 1 code active by default, the rest can be activated using the direct call button or using a computer
• support for 10 proximity key fobs (10 per premises)
• The set includes two key rings (including one "Master") assigned to the first one premises
• possibility to use up to 10,240 proximity tags despite the smaller number physical calling buttons, including 10 administrative buttons (available with computer level)
• acoustic information in the premises about opening the door (ringing) – only for key fobs and codes assigned to a given premises (applies to UPRO receivers, MPRO, xPRO800, GLASS-PRO-7; possibility of turning off the function from the level computer)
• support for many expansion modules increasing the functionality of the system
• optionally, the ability to dial the calling number using the keyboard numeric (option disabled by default)
• home automation: controlling external devices, e.g. gate entrance, barrier, lighting, roller shutters (optional module required PRO-I/O connected to the system bus), both via an access code and and proximity tag
• possibility to connect multiple receivers ringing simultaneously
• receiver presence detection (the panel will not ring if it is absent receiver)
• option of secured door opening control: electric strike connect to the optional PRO-I/O module (relay contacts) and the panel enables opening via the system bus
• Compatible with all digital devices running on PRO, PRO-A
• systems

TECHNICAL PARAMETERS:

• Supply voltage: 15VDC ±5%
• Power consumption in standby mode: ~2.5W
• Maximum current consumption: 400mA
• Electric strike supply voltage: 12VDC – 15VDC
• Permissible load on the electric strike output: 1.5A
• Output type: normal or reverse (default: normal)
• Lock activation time: 0.6 to 25s (default: 4s)
• Camera viewing angle approx. 90º
• Camera adjustment angle vertically and horizontally 20º
• Connector Type RJ45 Jack / ARK Removable Screw Connectors
• Type of output control: impulse for electric strike (factory) or constants to relay
• Standard of supported proximity cards (RFID): Unique 125 kHz
• Maximum number of supported proximity cards: 10 for each address/call button (or 10210 available from the application computer)
• Maximum number of supported codes: 1 for each address/button calling (or 1024 available from the computer application)
• Housing material Stainless steel
• Installation: flush-mounted

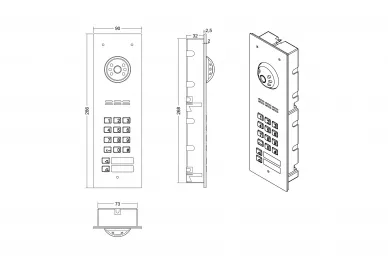

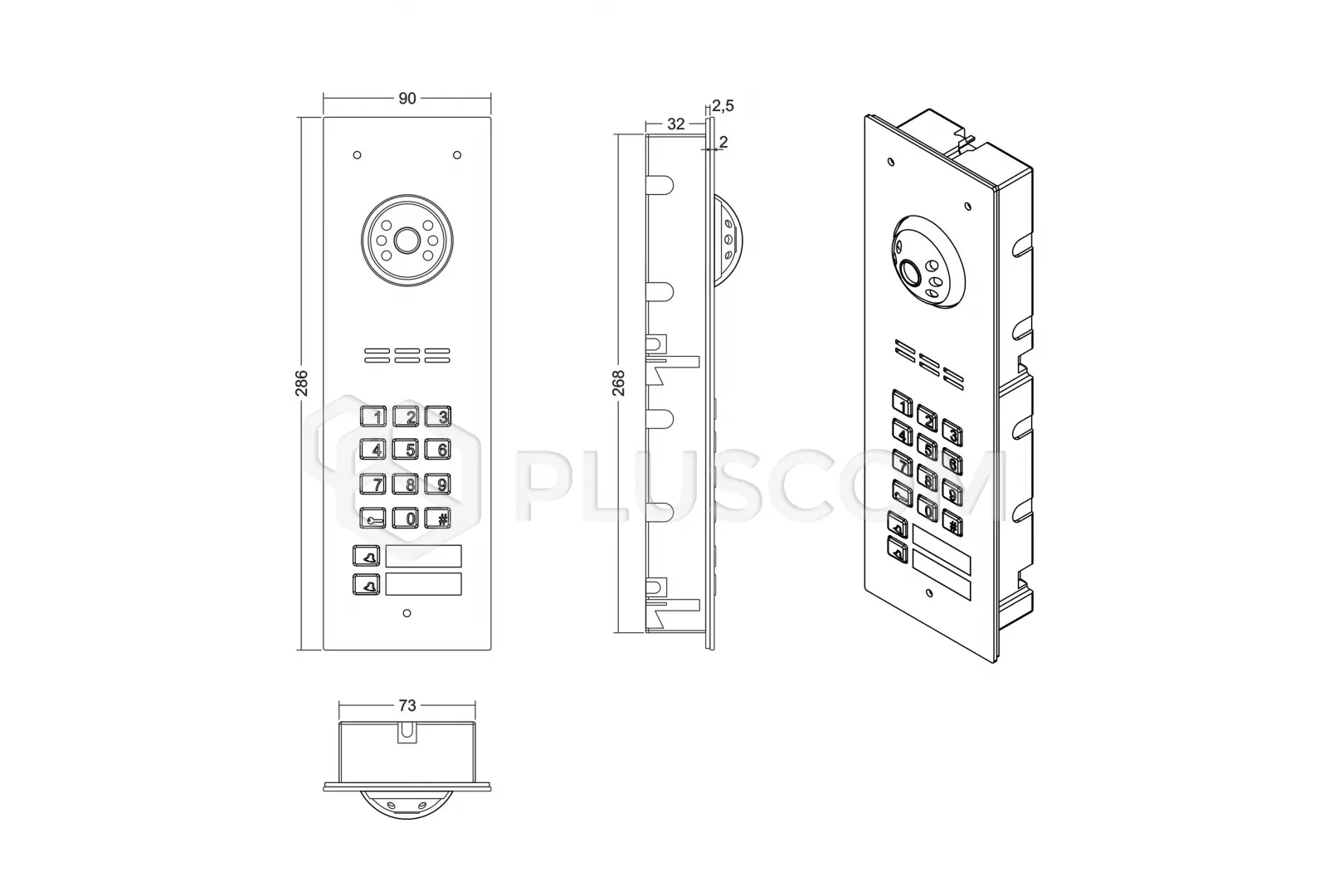

• Front dimensions: 286 x 90 mm
