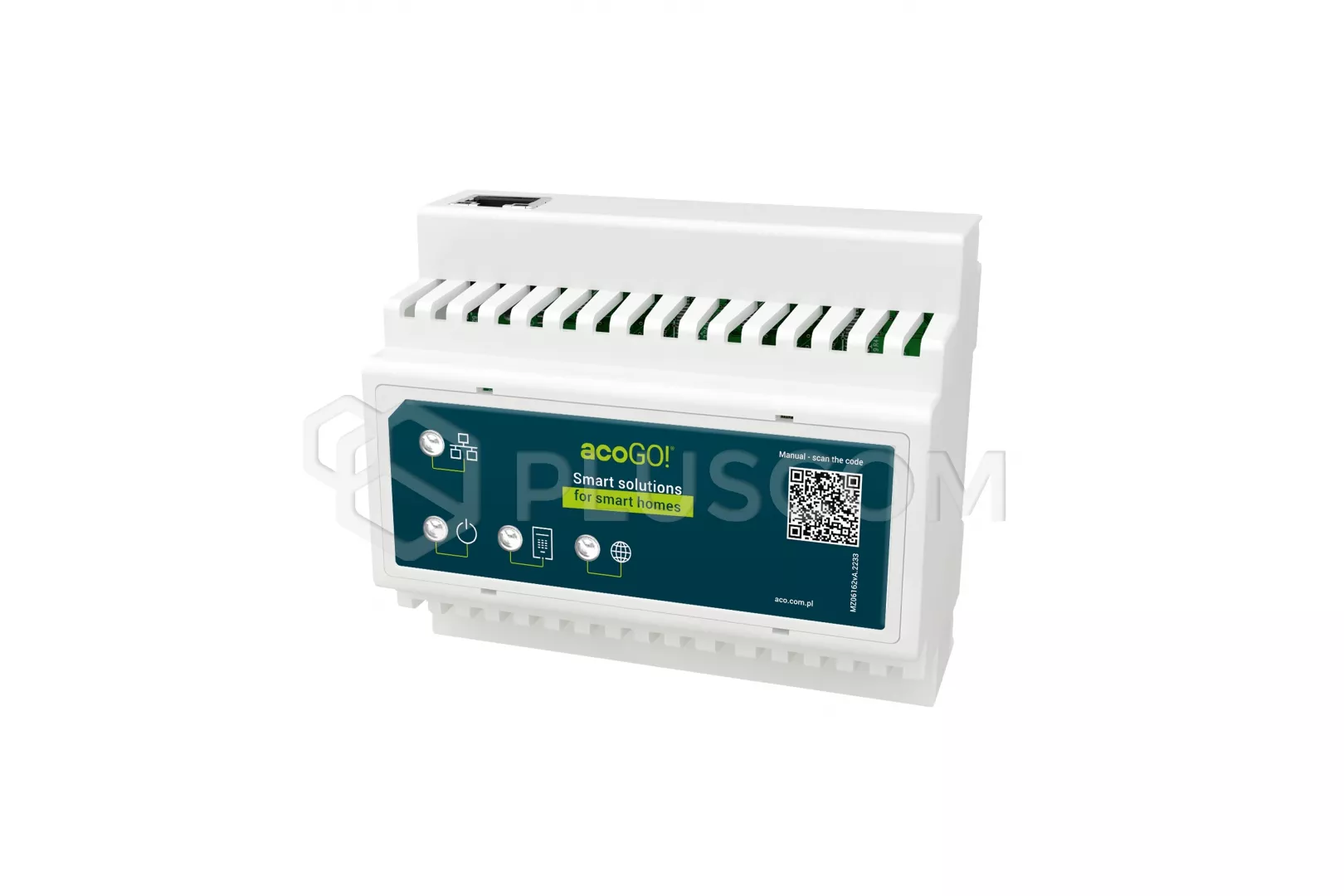

ACOGO! 2.0 PRO WiFi DIN – IP gateway to the PRO or PRO-A door entry system with WiFi

ACOGO! 2.0 P WiFi – IP gateway to the PRO or PRO-A door entry system with built-in WiFi mouten on DIN raily

The acoGO! 2.0 allows you to answer the door entry call on your smartphone using the mobile application acoGO! 2.0 mobile application available both for Apple smartphones with iOS software as well as any smartphone with Android system. The gateway allows you to remotely answer the call, open the door door, and control a second gate or other home automation system.
AcoGO! 2.0 is a multifunction device and can be used both in a single-family house as well as in a block of flats or tenement houses. In the case of multi-apartment buildings it is enough to install one device in the building and each resident can connect to the gate and use the “My acoGO! Multi”.

Minimalist form allows for versatile use of the device in various types of investments. It is designed mainly for wall or switchboard mounting. To operate the device requires a permanent connection to the Internet, which can be provided by a wireless WiFi network or wired LAN (recommended solution). Gateway can be mounted instead of a classic audio or video receiver, and also Enables sending video signal from panel camera as RTSP stream, which can be captured by e.g. video recorder.
They cooperate with ACO devices working in PRO and PRO-A systems.

Features:

• redirects intercom receiver functions to a smartphone with acoGO! 2.0
• application available both in Google Play store (Android systems) and in App Store (iOS system)
• Application on a smartphone allows, among others.:
• • audio conversation: clear, interference-free sound
  • viewing video image from the calling video intercom
  • opening the door – both without the need to establish a connection with the premises
  • control of additional devices, e.g. second gate, barrier, lighting, roller-blinds or other home automation by means of an additional relay output* (F2 function) – both without the need to establish a connection with the premises
  • full privacy of the connection
  • intuitive and comfortable operation
• loud-speaking mode or as a classic phone call
• Volume control for ringing/talking
• can be mounted instead of the receiver (possibility of automatic operation without classic intercom receiver)
• possibility to work in parallel with the receiver (on the same address as the classic intercom receiver)
• can be connected anywhere on the intercom bus
• works via the Internet (Internet access is required for both the gateway and the smartphone)
• connection to the Internet via LAN (Ethernet) / recommended or Wi-Fi
• simple configuration
• supports calling address from the pool available in the system: 1023 addresses
• can react to any ringing address (after setting the address to “0”)
• remote control of the device via web browser and acoGO! portal (from any place, on any device)
• possibility of increasing the device capabilities by purchasing a license and subscription on the acoGO! portal
• supports up to 64 units (after purchasing the appropriate license – Multi version)
• possibility to connect up to two phones (Single version) free of charge
• ability to connect up to 4 phones (after purchasing the subscription – Single/Multi version)
• management of the device settings via a regular www browser (possibility to log in the local network to the configuration page of the device)
• transmission of video stream from the video doorphone in RTSP format
• possibility of firmware / software update
• compatible with all digital devices working in PRO and PRO-A systems
• 4 LEDs informing about device status
• individual number of each device: DevID
• continuous development and improvement of mobile application, gateway and portal – constantly added functions and possibilities of acoGO

Amenities for people with disabilities (thanks to the application on smartphone):

• answering the intercom remotely and talking
• preview of the image from the panel's camera (video system PRO required)
• remote door opener
• remote control of home automation, e.g. opening a second gate, barrier, blinds, lighting control (proper installation required intercom)

The device is mainly intended for installation in switchgears.

TECHNICAL DATA:

• Power: 15V DC / 500mA
• Standby power consumption: ~6W
• Inputs:
• • 6 x screw connectors (PRO system bus connection):
  • • connection of audio communication line: "LINE"
    • power connection: "+DC" and "-DC"
    • Video signal connection: "V+" and "V-"
  • 1 x RJ45 connector: PRO system bus connection
  • 1 x RJ45 connector: LAN connection
• Installation type: digital PRO system: min. 3 wires or twisted pair cat. 5e or 6
• Mounting method: DIN rail
• Dimensions: 109x92x59mm (6 DIN modules)
