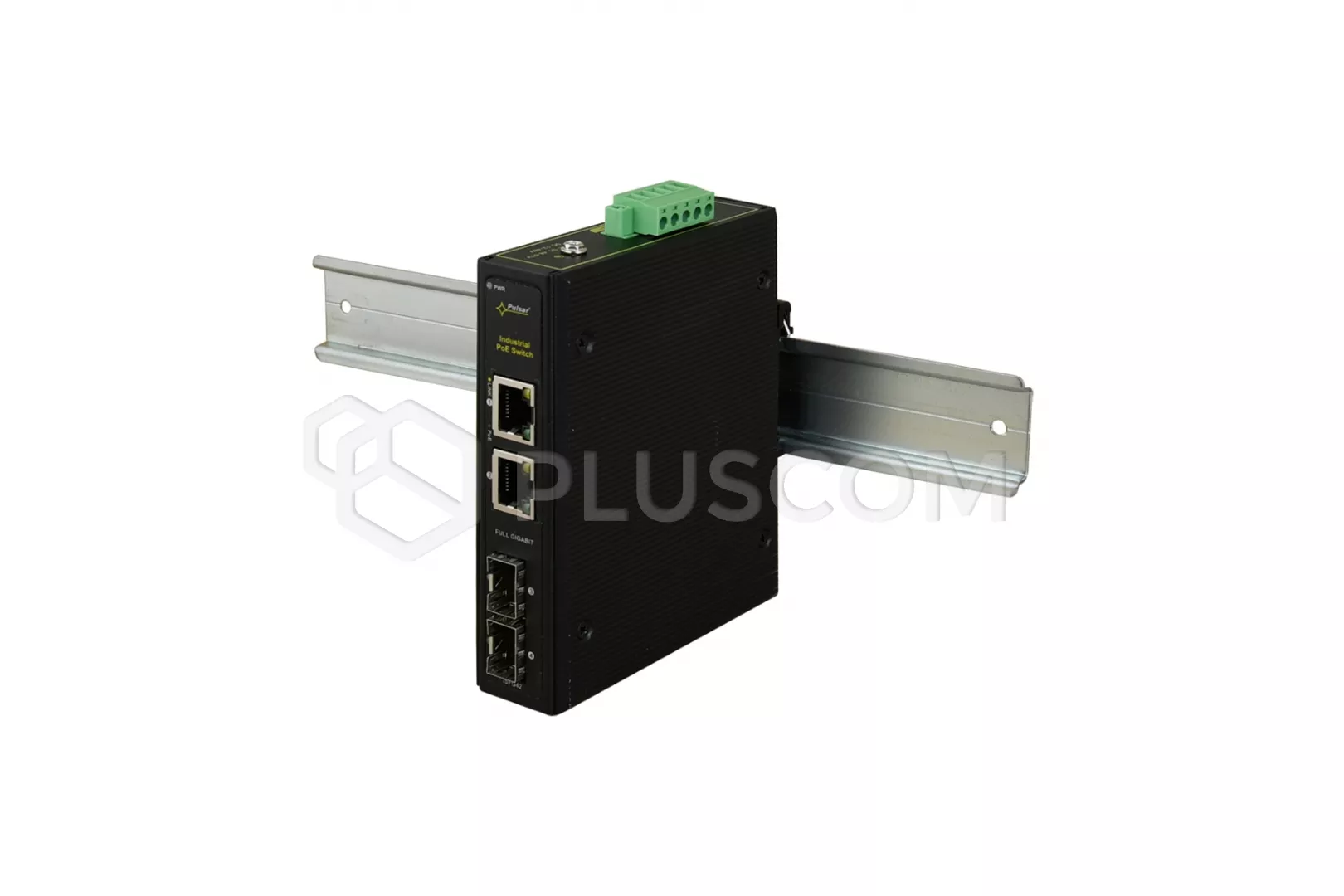

Industrial switch Pulsar ISFG42 for 2 IP cameras

110,85 EUR including 23.00% VAT
Product code: #22244
Manufacturer: Pulsar
  • The number of PoE ports: 2 + 2SFP
  • PoE IEEE 802.3af/at, 52VDC / 30W per port
  • 60W – max. total power for all PoE ports
  • Mounting on a DIN rail (TH35)

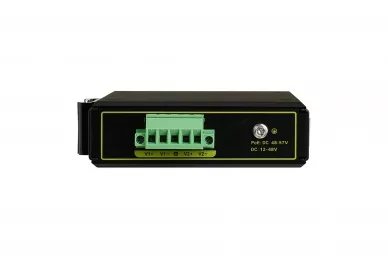

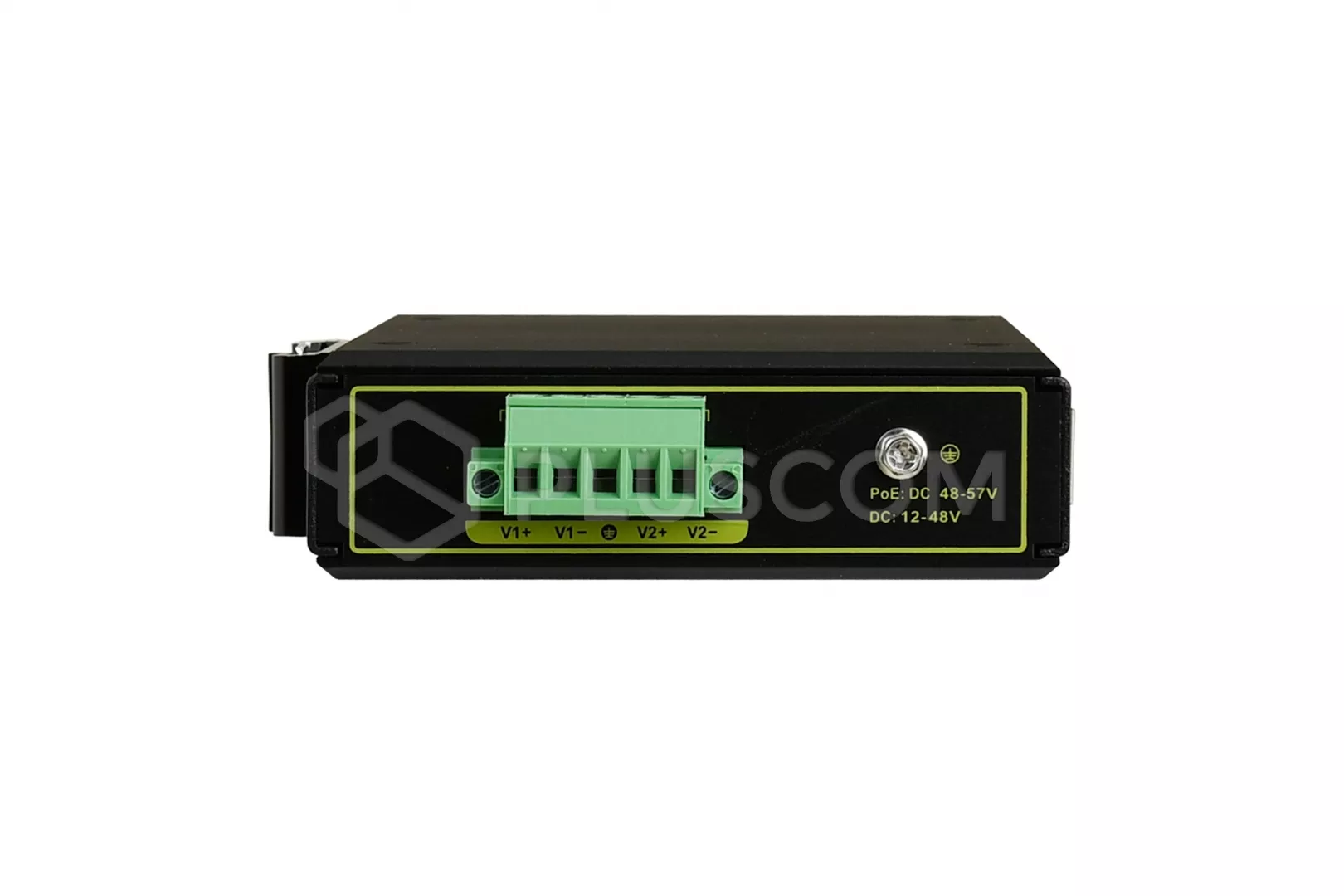

  • Possibility of redundant power supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
NDR-75-48 Mean Well 48V/1,6A/75W DIN rail power supply

Industrial switch Pulsar ISFG42 for 2 IP cameras

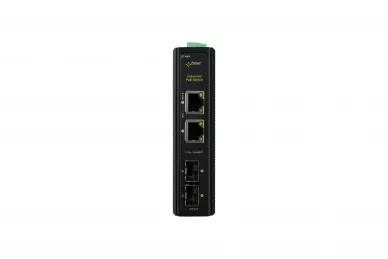

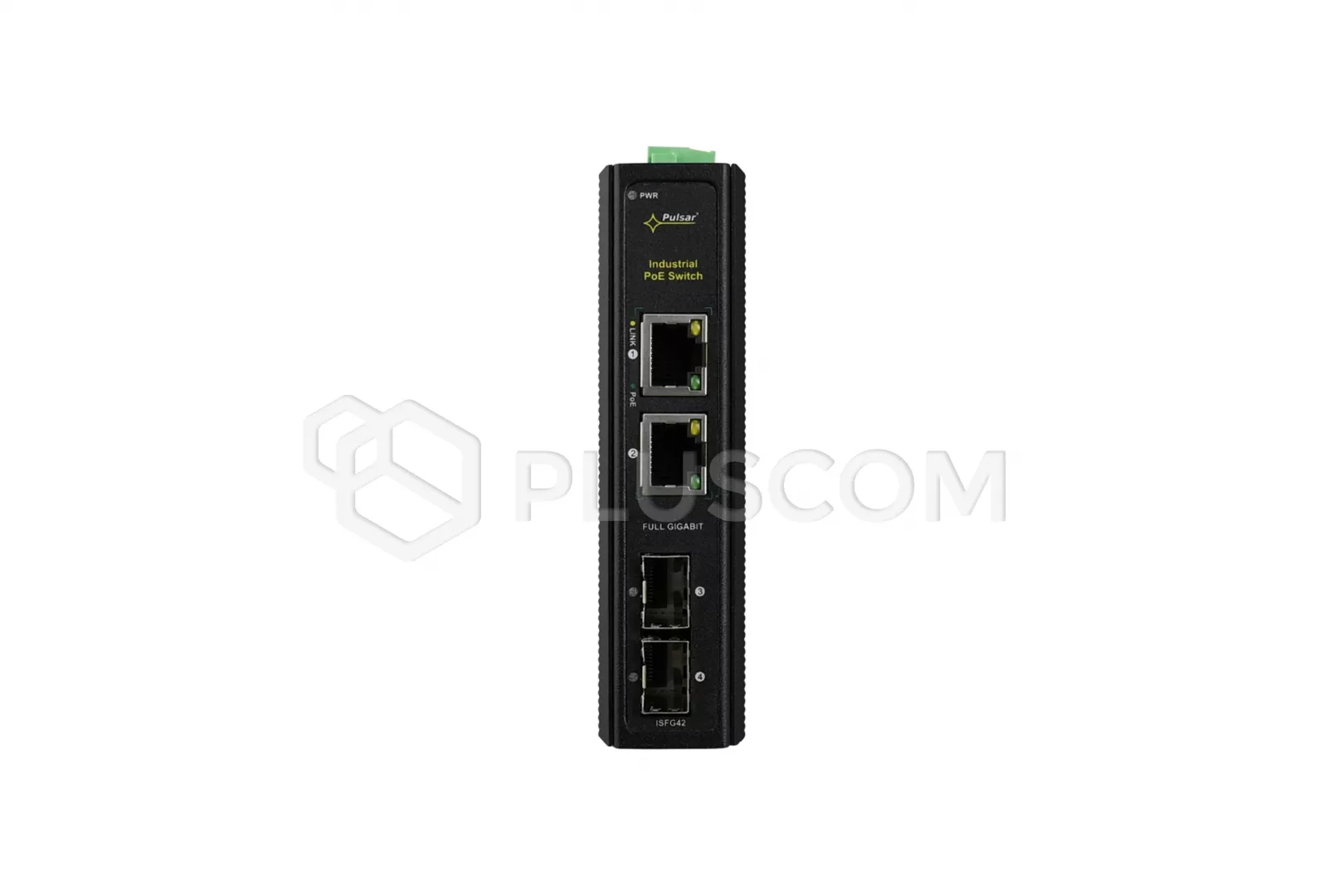

ISFG42 is a 4-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 2 ports of the switch. UP LINK ports (marked 3 and 4) are used to connect further network devices using fiber optics (using SFP modules - GBIC). On front panel there is LEDs signaling of the device's status (description in table below). Device has solutions that allow it to be powered from two sources (emergency power supply, redundant power supply) – in case of a failure of one source, it immediately switches to backup one.

The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or router.
Industrial switch Pulsar ISFG42 for 2 IP cameras

Industrial switch Pulsar ISFG42 for 2 IP cameras

Industrial switch Pulsar ISFG42 for 2 IP cameras

Industrial switch Pulsar ISFG42 for 2 IP cameras


TECHNICAL PARAMETERS:
  • 2 ports 10/100/1000Mb/s PoE
  • 2 porty 100/1000 Mb/s SFP
  • power supply
    • Switch: 12-57 V DC; 1.2 A max.
    • PoE: 48-57 V DC; 1.2 A max.
  • possibility of redundant power supply
  • LED indication
  • supports auto-learning and auto-aging of MAC addresses (8K size)
  • mounting on a DIN rail (TH35)
  • dimensions: 30x128x112mm
  • weight: 0.4kg
  • operating temperature: -30°C...+70°C
