Somfy Axovia MultiPro 3S io 24V Comfort Pack, set for swing gates o 300 kg
weight per gate leaf (1216500)
PACK INCLUDES
- Axovia MultiPro io actuator with standard arm - 2pcs
- 1-way Keygo 4io remote control - 2pcs
- 3S Axovia io
- switch
- Master Pro 24V lamp with built-in antenna
- set of Master Pro photocells - Bitech
- buffer battery
|
Smofy Axovia MultiPro 3S io 24V Comfort Pack 1216500
|
Crooked arm actuators for swing gates with a leaf length up to 2.5 m
and weight up to 300 kg.
The drive can be controlled remotely via the Internet using the TaHoma system
Premium.
Using the application, you can remotely check that the entrance gate is there
properly closed.
The most important features of the drive include:
- short opening time: 90 ° in 15 sec.
- soft closing of the gate
- various accessories to expand the set
- safe decoupling with an individual key from outside the property
- limit switches built into the arms
- Internet remote control after adding the drive to TaHom

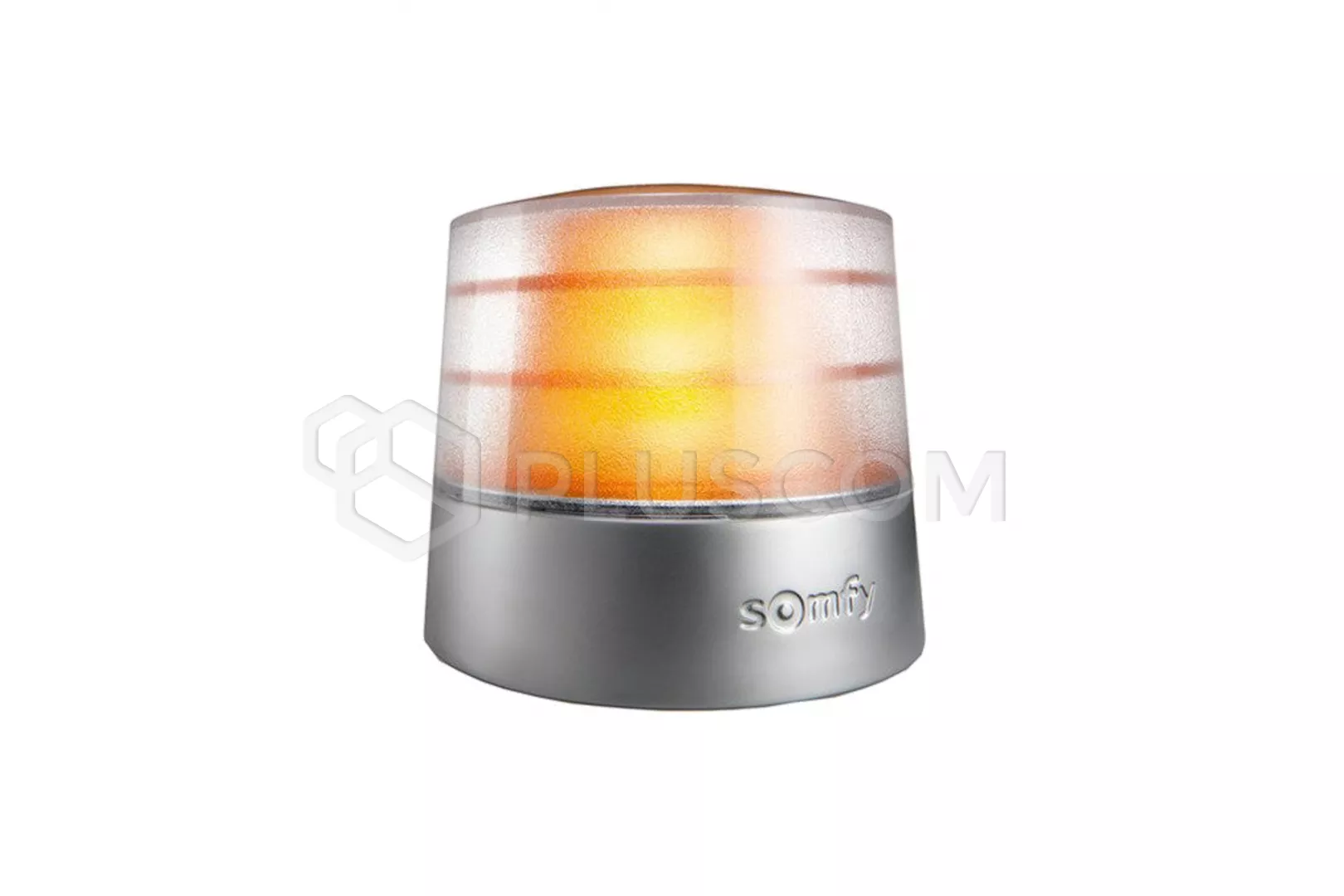

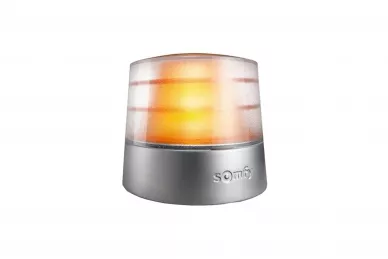

Orange Master Pro lamp signals the movement of the entrance gate.
It has a bright orange light, class III insulation.
Specification:
- power: 3 W
- power supply: 24V AC/DC
- flashing management: controlled from the drive control panel
- integrated antenna: io 868.95MHz
- electrical insulation class: class III
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|
io 24V Master Pro lamp
|

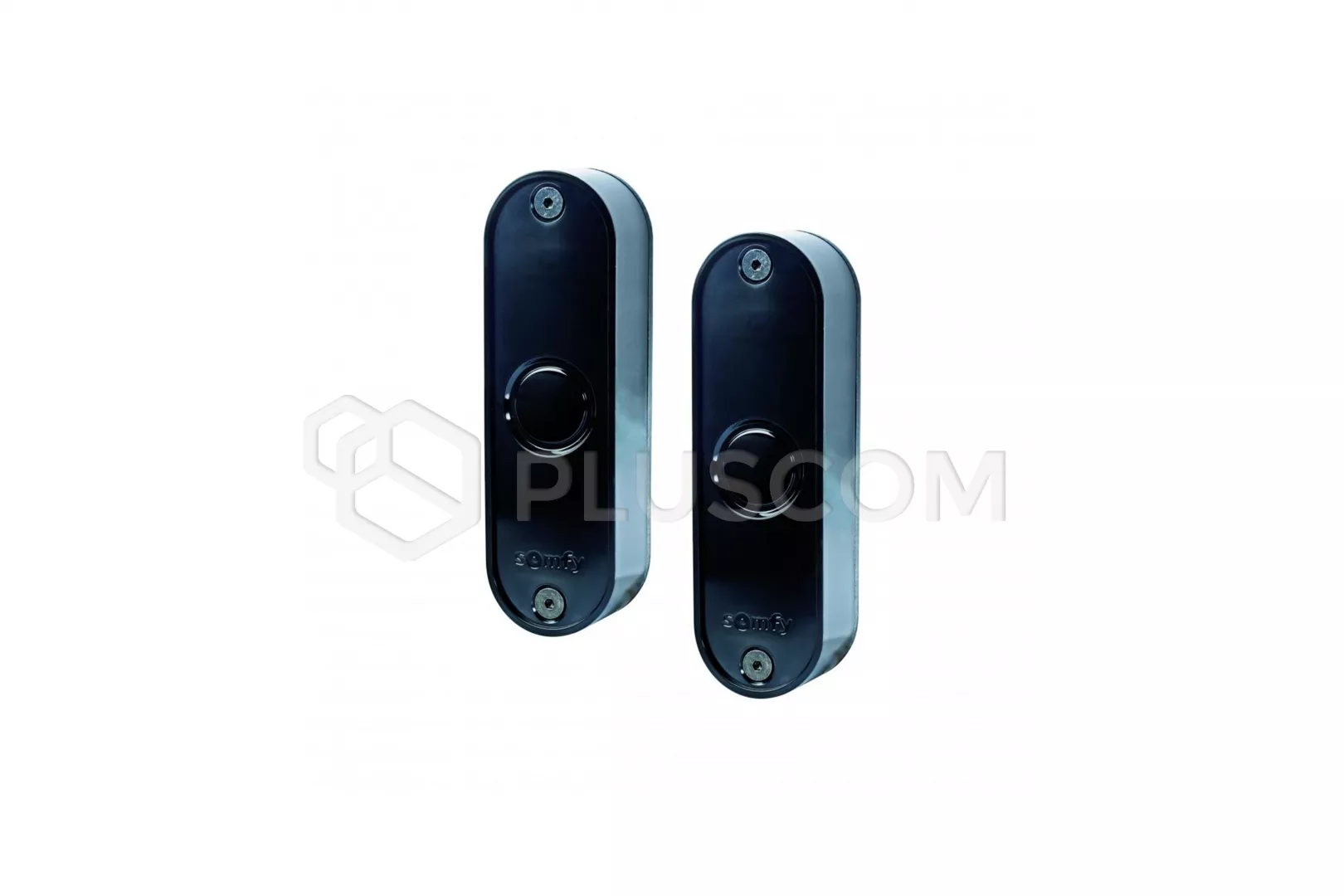

Master Pro - Bitech photocells are discrete devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10 m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Master Pro photocells - Bitech
|
Kit includes

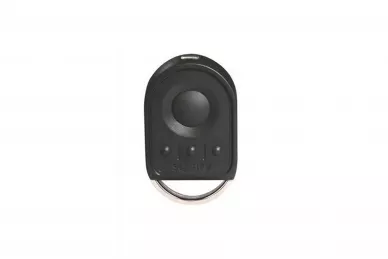

two Keygo 4 io 4-channel remote controls . It is
resistant to moisture and damage and we can control up to 4 devices. Big
central easy to press button without having to look at the remote control.
Remote specification
- number of channels: 4
- frequency: 868.95MHz unidirectional
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
|
Keygo 4io 4-channel remote control
|
The drive is controlled by the 3S io control unit, which can
control both one and two actuators. The control panel is ready for operation in
2 minutes all settings are pre-programmed.
It has the ability to select parameters for non-standard work. It has a wide
variety connection to the control panel of safety accessories and the
possibility of connection zone illumination (e.g. Halogen 500W).
The control panel menu is intuitive. Multi-colored marking of the connection
bones wires, eliminates errors in connection and the programming system
prevents committing them.
The operating status of the drive, error codes and drive malfunctions are
displayed in real time. It also displays the number of work cycles, reports,
etc.
The control panel is compatible with all Somfy devices operating in io
technology. Using TaHoma® Premium, the device is remotely controlled a
feedback is sent to bi-directional remotes.
PANEL SPECIFICATION
- Mains power: 220-230 V - 50-60 Hz
- Power: 800 W (with 500 W lighting)
- 7-button programming interface: 3-character LCD
- Radio frequency io: 868 - 870 MHz
- Number of storable remote control devices:
-
- One-way (Keygo 4 io, ...):
-
- Gate control: max 30 channels
- Lighting control: max. 4 channels
- Auxiliary device control: max. 4 channels
- Bidirectional: Unlimited
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V - 50-60 Hz
- motor power supply: 24 VDC
- accessory power supply: 24V DC / 1200mA
- maximum power consumption: 130 W
- lighting output: 500W max. halogen
- time to open 90 °: 15 seconds
- number of storable remote control devices:
-
- unidirectional: max. 38 channels
- bidirectional: unlimited
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
