Satel Smart Dimmer ADC-200 Wireless Lighting Dimmer 230 V AC

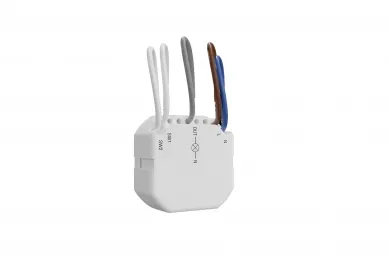

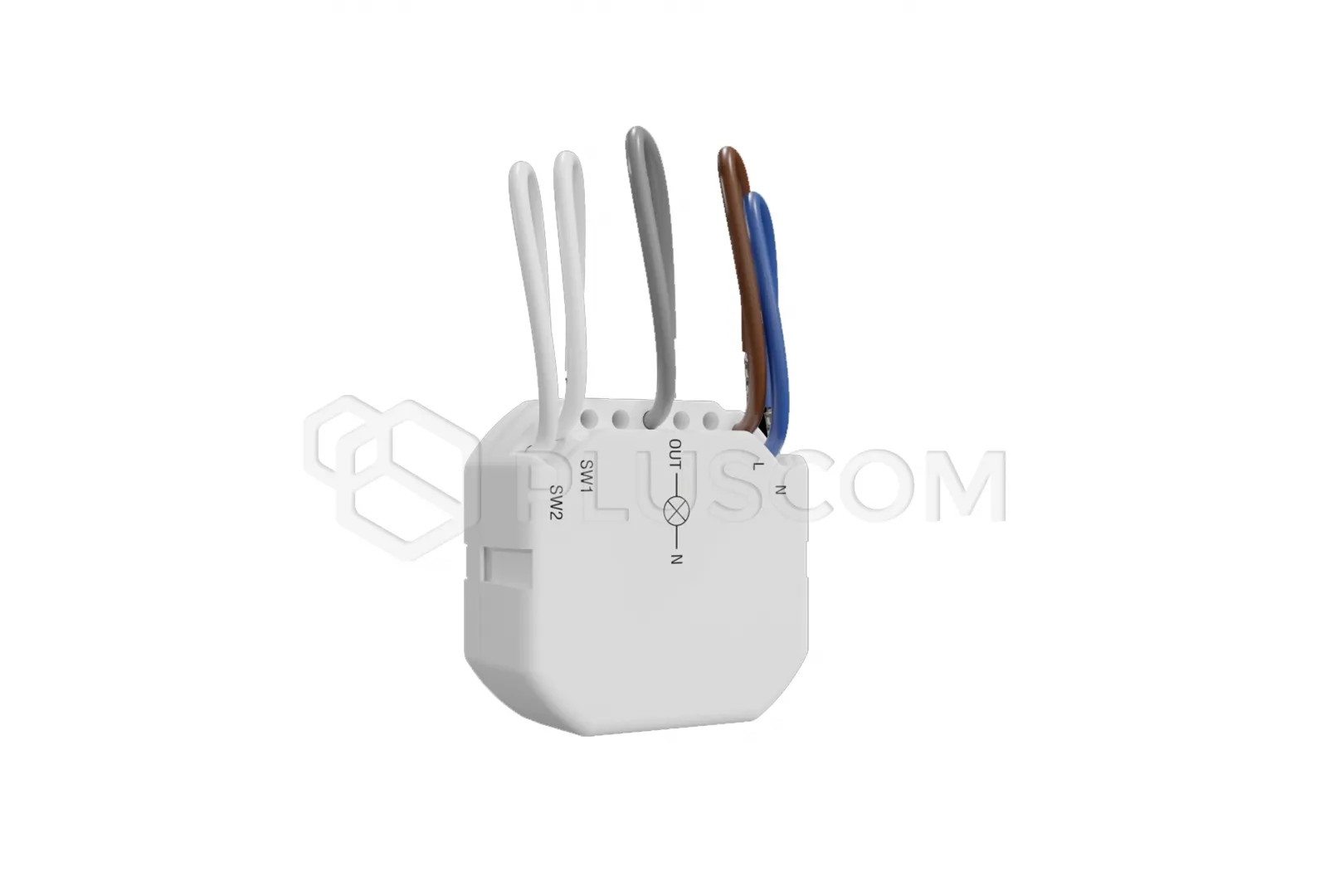

Smart Dimmer is a compact, flush-mounted module designed specifically to
control selected light sources. It not only allows you to turn the light on and
off, but also smoothly change its intensity depending on the needs of the
moment.
The Smart Dimmer has been designed to work with various types of bulbs powered
by 230 V AC or lower. The device has one output channel, which means that it
can be used to control a single bulb or a group of bulbs, provided that their
power does not exceed 150 W.
Convenient control
- Smartphone with the BE WAVE application
- Smart Keyfob or Smart Button
- Wall button
- Automatically, e.g. at a specific time
The Smart Dimmer electronics system detects what type of lighting has been
connected to it. The module itself determines the so-called type of connected
load in order to be able to adjust the way it works with a given light source,
so that everything works properly. The device works with a wide range of
traditional and LED bulbs that offer the possibility of dimming, as well as
with light sources powered by a transformer.
Compact and discreet
Smart Dimmer is a compact device, designed for use inside installation boxes.
This method of installation ensures the safety of the controller, while
ensuring the harmonious appearance of the rooms - without disturbing the
aesthetics of the interior.
Easy configuration
In the application, you can easily add Smart Dimmer to the system, as well as
configure its settings in an intuitive way. You also do not have to remember to
update the module software, Smart HUB will do it automatically without having
to dismantle the device itself.
TECHNICAL DATA:
- Operating frequency band: 868.0 MHz ÷ 868.6 MHz
- Radio communication range (in open area): up to 800 m
- Power supply voltage: 230 V AC, 50 Hz
- Power consumption in standby mode: 0.6 W
- Maximum power consumption: 1 W
- Maximum load: 0.7 A / 150 W / 230 V AC
- Standards met: EN 50130-4, EN 50130-5
- Environmental class according to EN 50130-5: II
- Operating temperature range: -10°C...+55°C
- Maximum humidity: 93±3%
- Dimensions: 47 x 47 x 22 mm
- Weight: 33 g
