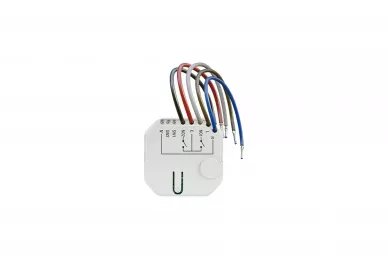

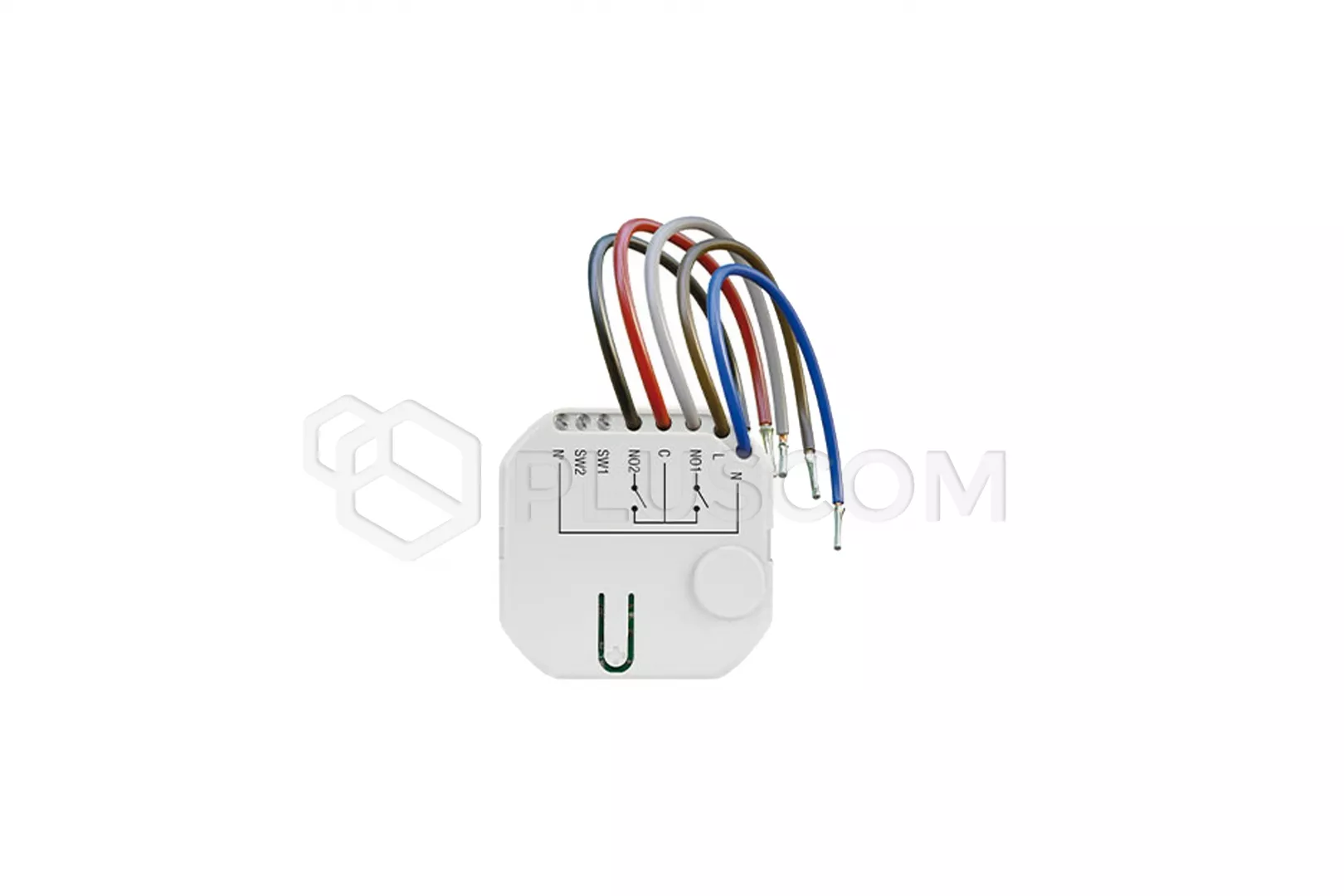

Satel ASW-210 Wireless two-channel 230V AC in-wall controller

Satel ASW-210 Wireless two-channel 230V AC in-wall controller

The ASW-210 controller enables 230 V AC wired devices to be remotely switched ON/OFF. Additionally, the controller inputs make it possible to manually control these devices by using wired switches. The controller is designed to work as part of the ABAX 2 / ABAX two-way wireless system. This manual applies to the controller with firmware version 1.0, which is supported by:

• ABAX 2:
• • ACU-220 / ACU-280 controller
  • ARU-200 repeater
• ABAX:
• • ACU-120 / ACU-270 controller (firmware version 5.05 or newer)
  • ARU-100 repeater (firmware version 2.02 or newer)
  • INTEGRA 128-WRL control panel (firmware version 1.19 or newer and firmware version of processor used to operate ABAX system 3.11 or newer)

The ASW-210 controller is designed for mounting inside an electrical junction box (60 mm deep). It should be installed indoors, in spaces with normal air humidity.
