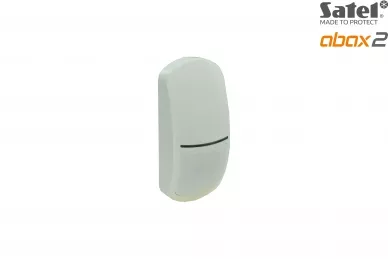

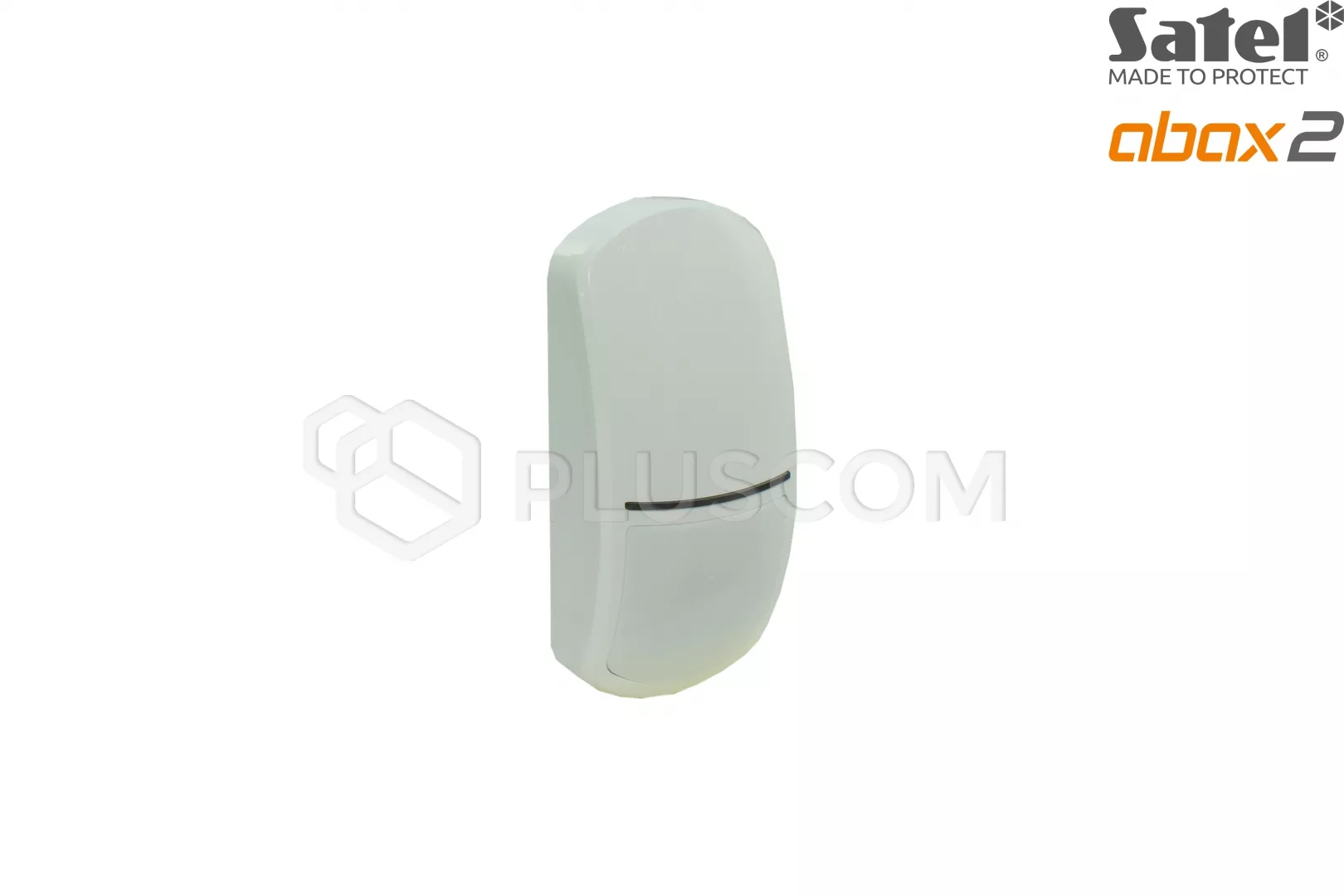

Satel APD-200 PET Wireless passive infrared detector ABAX 2 with pet immunity (up to 20 kg)

The APD-200 detector is designed to detect movement in the protected area. A quadruple pyroelement, advanced detection algorithms and temperature compensation have been used to detect movement to minimize the risk of false alarms.
The detector has pet immunity (up to 20 kg) Animal movement in the detector's detection area will not trigger alarms.

The detector operates within the two-way wireless ABAX 2 system. It works with the following controllers:
  • ABAX 2
  • ACU-220, ACU-280 controller
  • ARU-200 retransmitter
  • ABAX
  • ACU-120, ACU-270 controller (software version 5.04 or newer)
  • ARU-100 retransmitter (software version 2.02 or newer)
  • INTEGRA 128-WRL control panel (software version 1.19 or newer) newer and processor software version supporting ABAX 3.10 or newer)
Satel APD-200 PET Wireless PIR detector ABAX 2

Satel APD-200 PET Wireless PIR detector ABAX 2


FEATURES:
  • quadruple pyroelement
  • digital motion detection algorithm
  • digital ambient temperature compensation
  • pet immunity function up to 20kg
  • built-in temperature sensor (measuring range -10°C...55°C)
  • possibility to replace the lens with a curtain or long-range
  • adjustable mounting bracket included
  • sabotage protection against opening the housing or tearing it off the surface
TECHNICAL PARAMETERS:
  • operating frequency: 868MHz - 868.6MHz
  • radio communication range:
  • ABAX 2
    • ACU-220 - up to 2000m in open terrain
    • ACU-280 - up to 1600m in open terrain
  • ABAX - up to 500m in open terrain
  • temperature measurement range: -10°C...55°C (accuracy +/- 1°)
  • detectable movement speed: 0.3 - 3m/s
  • CR123A 3V battery, battery life up to 2 years
  • current consumption in standby mode: 70uA
  • maximum current consumption: 12mA
  • time start-up: 35s
  • recommended mounting height: 2-2.4m
  • detection area: 14x16m 83°
  • operating temperature range: -10°C...55°C
  • maximum humidity: 93+/-3%
  • dimensions: 62x137x42mm
  • weight: 107g
  • Standards met: EN50131-1, EN50130-4, EN50130-5
  • Protection class according to EN50131-2-2 (mounting directly to the wall): Grade 2
  • Environmental class according to EN50130-5: II

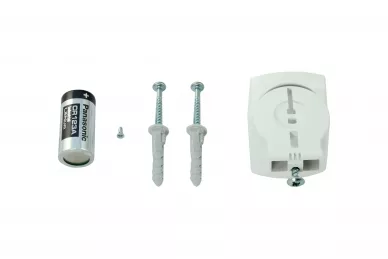

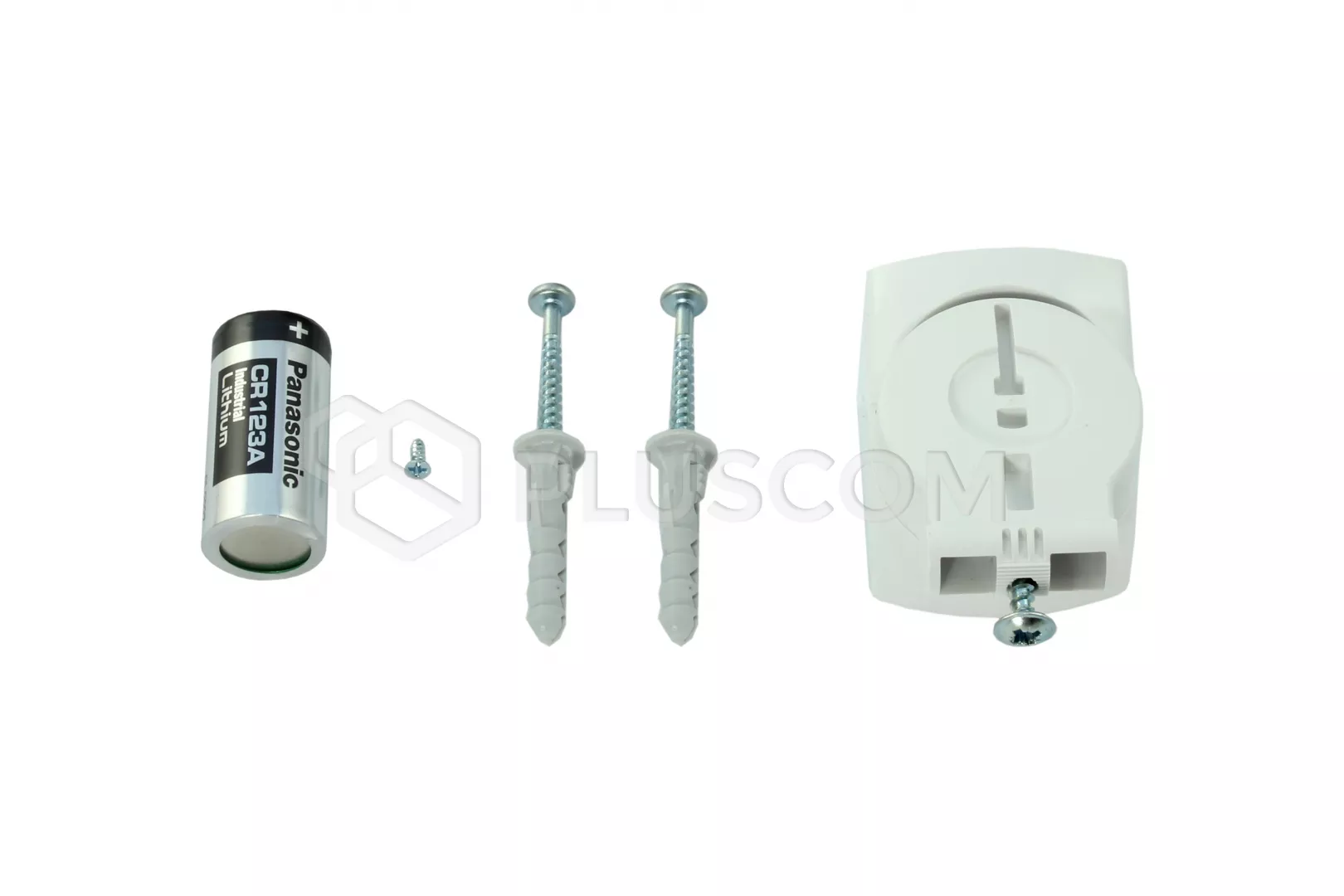

Battery, mounting elements:

Battery, mounting elements:

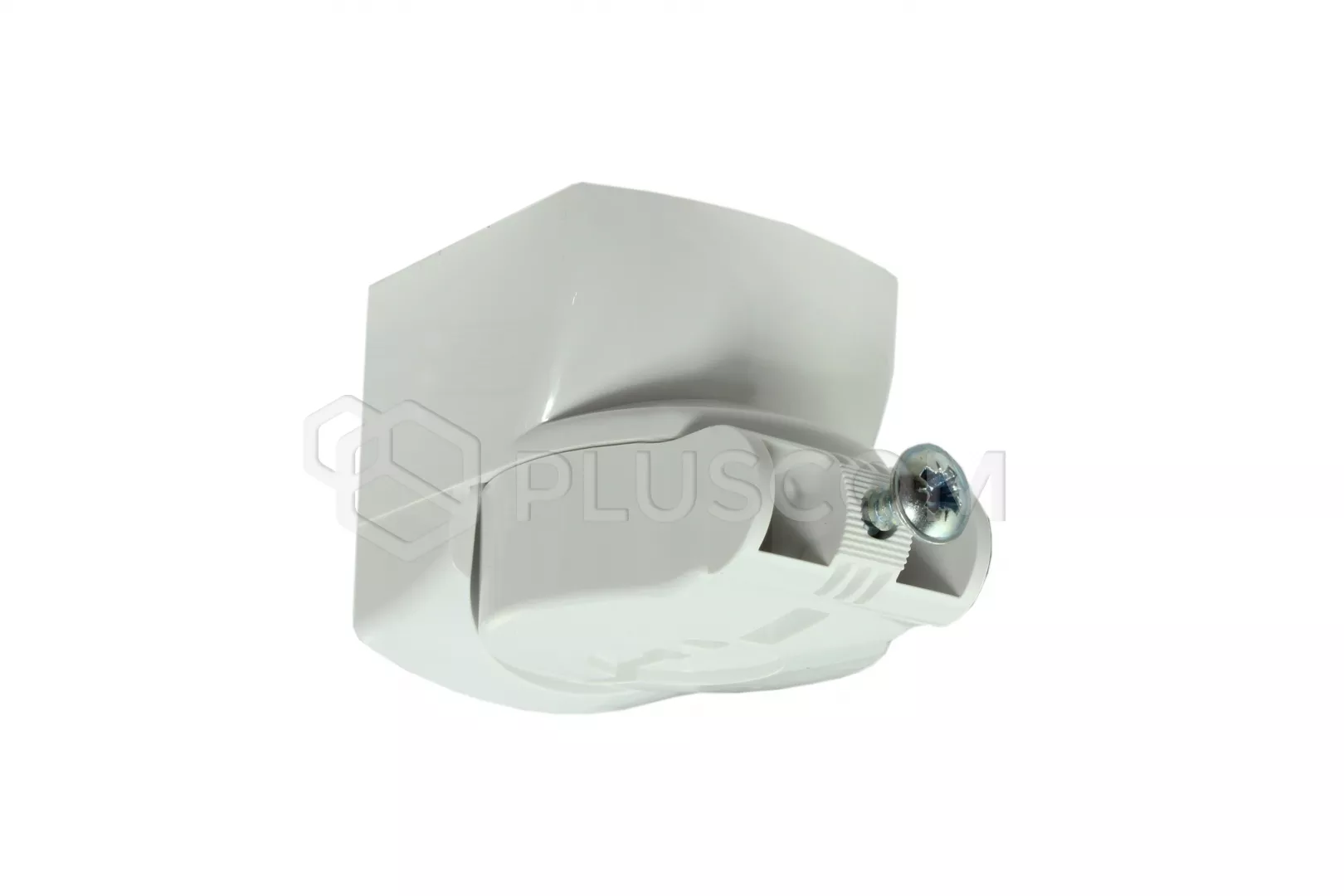

Bracket:

Bracket:
