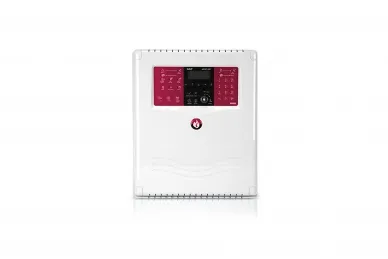

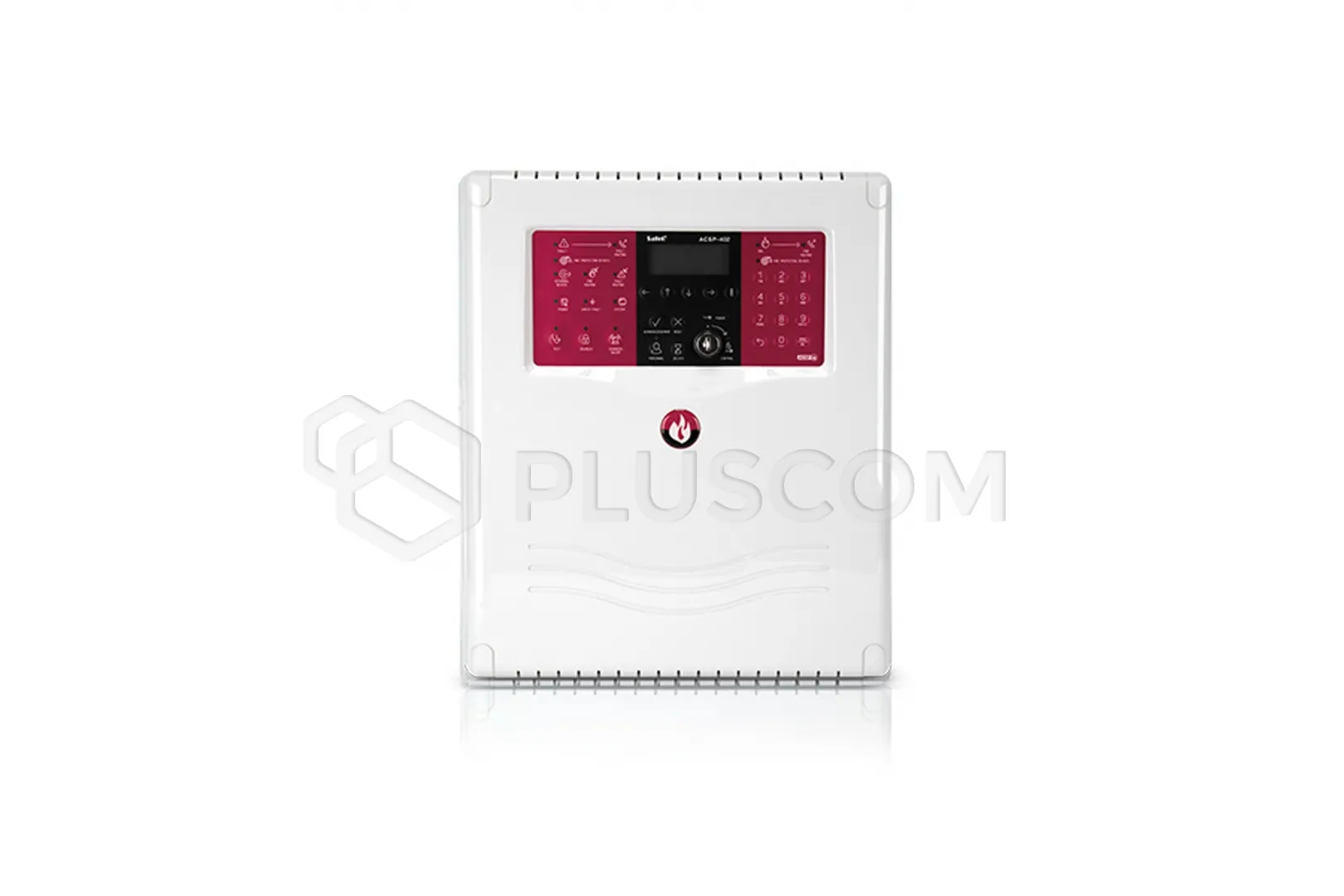

Satel ACSP-402 Fire Alarm Control Panel

On the main control panel module you will find: LEDs for signalling the status of the control panel and external devices LCD display for: setting up the control panel presenting information about fire alarm presenting information about disablement, test or failure conditions viewing the list of current disablement, test or failure conditions viewing the history of alarms and other events USB port to connect a computer power supply connection battery connection built-in piezo transducer for acoustic signalling real-time clock with battery back-up power

Satel ACSP-402 Fire Alarm Control Panel

The ACSP-402 fire alarm control panel is designed to:

• monitor operation of automatic and manual call points,
• control sirens,
• control devices used to transmit fire alarms and failure signals
• control the operation of fire protection devices or systems,
• monitor the operation of fire protection devices or systems,
• monitor the operation of other external devices,
• control other external devices

These features make it possible to detect a fire at its earlies stage and alert the users of the building with acoustic and/or optical signals as well as notify relevant services. This in turn allows one to quickly commence fire-fighting activities. The control panel can also automatically activate fire protection devices.

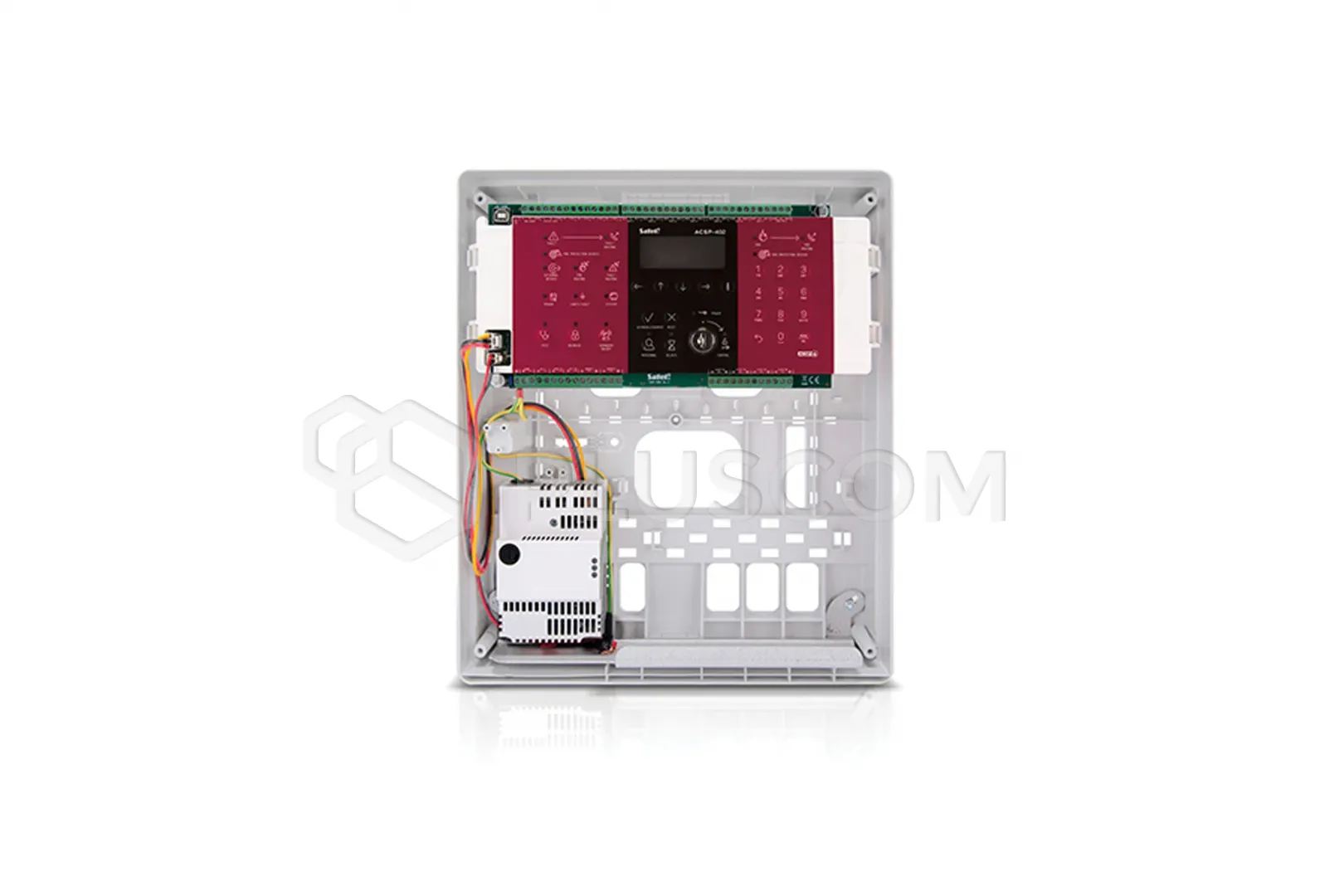

The control panel is powered by the APS-318 switching power supply. In the event of a power outage, it automatically switches to emergency power (battery).

On the main control panel module you will find:

• LEDs for signalling the status of the control panel and external devices
• LCD display for:
• • setting up the control panel
  • presenting information about fire alarm
  • presenting information about disablement, test or failure conditions
  • viewing the list of current disablement, test or failure conditions
  • viewing the history of alarms and other events
• USB port to connect a computer
• power supply connection
• battery connection
• built-in piezo transducer for acoustic signalling
• real-time clock with battery back-up power

The ACSP-402 can be configured using the buttons on the control panel's front panel or using the free ACSP Soft program, which allows for configuration of the control panel via a USB port. It has an event memory for up to 9,999 fire alarms and 8,999 events (including fire alarms).

Inputs

• 4 programmable inputs on the control panel mainboard (NO, NC)
• monitoring the status of external devices, e.g., for reporting fire alarms and faults

Outputs

• 2 outputs for controlling conventional sirens
• Output for controlling devices for transmitting fire alarms
• Output for controlling devices for transmitting fault signals
• 8 programmable relay outputs:
• • Control of external devices
  • Output for controlling automatic fire protection devices
• 24 V DC power supply output
• Dedicated output for powering ACSP-ETH and ACSP-RSI modules
• signal delay at outputs

FEATURES:

• LCD display for easy system operation
• Supports remote and virtual panels
• 2 loops – up to 128 devices can be connected to each
• Up to 256 detection zones
• Connection methods: loop or radial
• 4 inputs with functionality defined by the installer
• 8 relay outputs programmable by the installer (output no. 8 has circuit continuity monitoring and can be programmed as an output for fire protection devices)
• Supports fire and fault transmission devices
• Built-in buffer power supply compatible with a single 12 V battery
• 24 V power outputs
• Staff attendance plan – automatic mode changes alarm and sensitivity of smoke detectors
