Ropam EXP-O8T-RN-D4M Outpaut expander in a DIN housing

89,68 EUR including 23.00% VAT
Product code: #21918
Manufacturer: Ropam
  • DIN rail housing (4M)
  • 8 additional outputs in the system
  • 8 transistor outputs 0.7A (GND controlled)
  • Cooperation with NeoGSM-IP (-64), OptimaGSM, Hub-SimplePLC
  • Protection: OLP, OVP, OHP, OCP

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam RM85-12V-1P Relay module Ropam PSR-ECO-2012 Intelligent, buffer type supervised AC-DC power supply Ropam RM5-12V-1P Miniature relay module

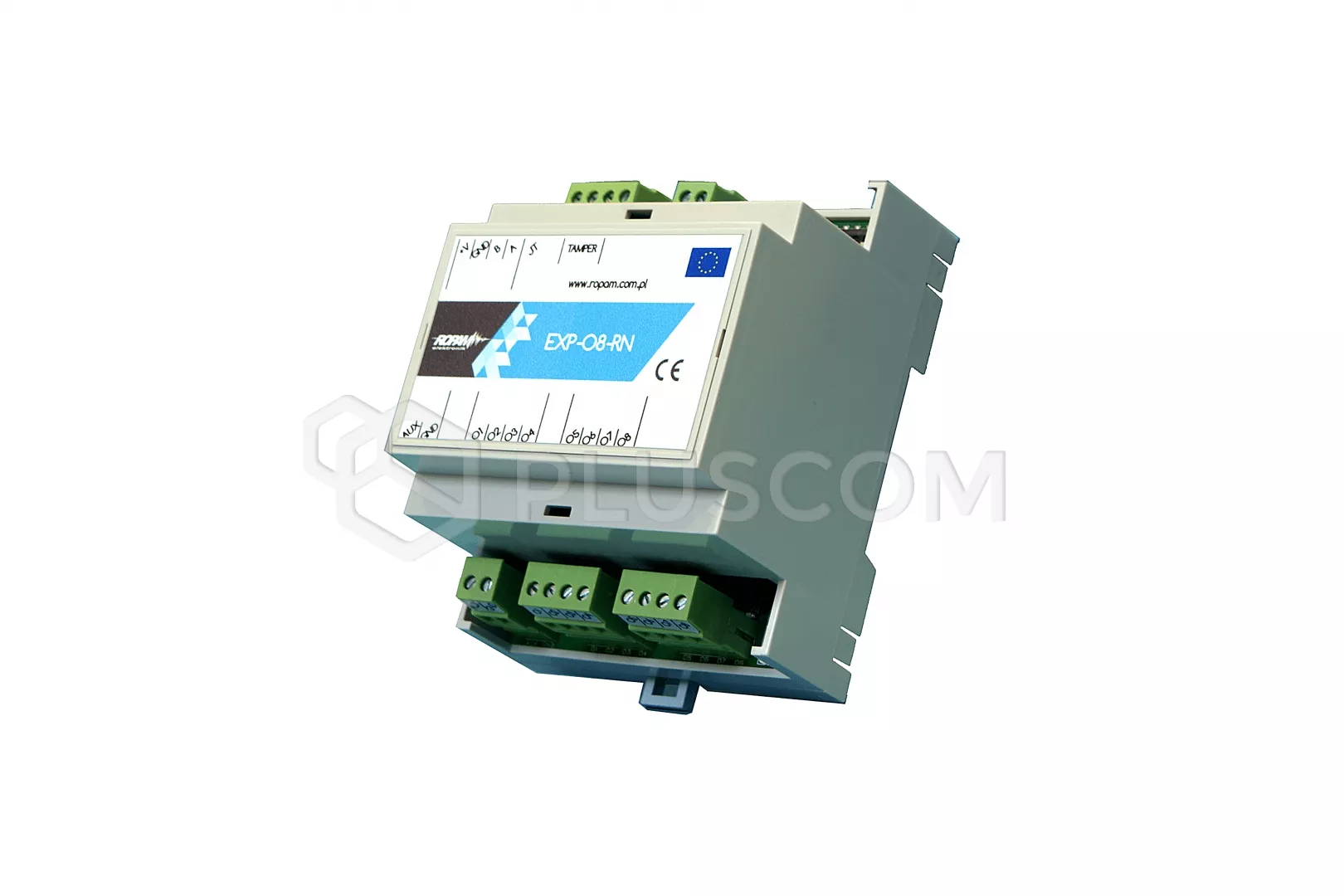

Ropam EXP-O8T-RN-D4M Outpaut expander in a DIN housing


EXP-O8T-RN-D4M is a module that works with NeoGSM-IP (-64), OptimaGSM, Hub-SimplePLC. It extends the possibilities of center by eight number of outputs in the system.

The device is in a housing for a DIN rail, 4 modules.

PROPERTIES
  • compatibility: OptimaGSM, Hub-SimplePLC, (RopamNET)
  • system module on system bus (-RN RopamNET)
  • 8 additional outputs in system
  • 8 transistor outputs 0,7A (GND control)
  • max. voltage 24VDC
  • protection: short circuit protection (SCP), overload protection (OLP), thermal protection (OHP), overvoltage protection (OVP)
  • MOSFET transistors with low RDC ON - 500 mOhm
  • dedicated for control DC resistive or inductive devices
  • outputs control according to system settings
  • AUX output protected by PTC 12VDC/100mA - RopamNET bus
  • TAMPER input for connecting antisabotage connector (NC)
  • pluggable terminal blocks, groupped by ports
  • optical signalization
  • PCB mount, in system casing
