Roger Technology KIT MONOS4/220/L KIT LIGHT

1039,44 EUR including 23.00% VAT
Product code: #33247
Manufacturer: Roger Technology
  • Leaf length up to 4m
  • Weight up to 450kg
  • Engine power supply 230V
  • Intensity 30%
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology KT248 MONOS wing mounting bracket Roger Technology HT420 MONOS Actuator Piston Cover

Roger Technology KIT BE20/210/L SET LIGHT with 36V brushless motor drive for swing gates up to 2.8m per wing

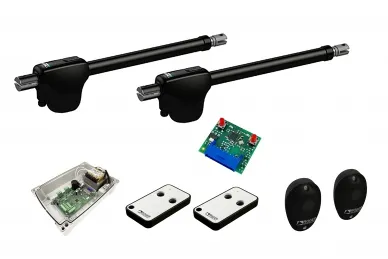

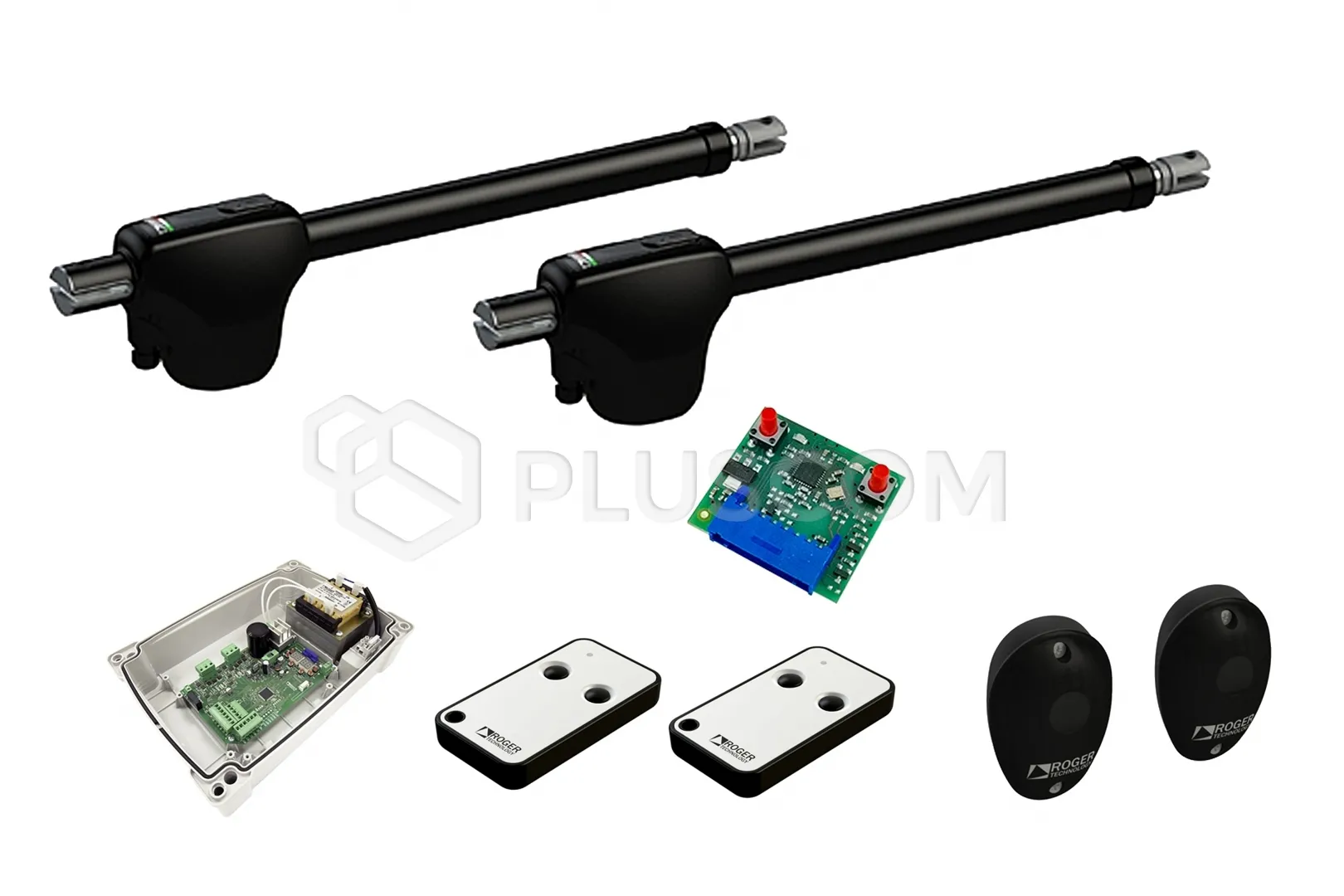

The set consists of:
Roger Technology KIT MONOS4/220/L KIT LIGHT

Roger Technology KIT MONOS4/220/L KIT LIGHT
Drive with 24 V brushless motor, for very intensive work, for swing gates with a maximum leaf length of 2.8 m with a digital encoder, mechanical limiters, adjustable bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • 24 V brushless motor
  • Super intensive use - 800 cycles per day
  • Mechanical limiter for opening and closing
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Digital encoder management
  • High work culture
  • Very low energy consumption
  • Screw stroke 400 mm
The actuator set is enriched with two 2-channel remote controls E80/TX52R/2 with fixed code 433.92 MHz with copy function and a set of R90/F2ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC
  • Nominal power: 200 W
  • Force: 2400 N
  • Speed: 1.66 cm/s (24 s opening to 90°)
  • Stroke: 400 mm
  • Use frequency: 30%
  • Gear motor type: irreversible
  • Encoder: built-in optical
  • Protection class: IP 43
  • Motor thermal protection: 150°
  • Operating temperature: -20°C to +55°C
  • Dimensions: 823 x 178 x 111 mm
  • Weight: 8.5 kg
