Roger Technology KIT MONOS4/220/F KIT FULL

1104,79 EUR including 23.00% VAT
Product code: #33246
Manufacturer: Roger Technology
  • Leaf length up to 4m
  • Weight up to 450kg
  • Engine power supply 230V
  • Intensity 30%
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F4ES photocells, FIFTHY/230 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology KT248 MONOS wing mounting bracket Roger Technology HT420 MONOS Actuator Piston Cover

Roger Technology KIT MONOS4/220/F LIT FULL kit with drive with motor 230V for swing gate up to 4m per wing

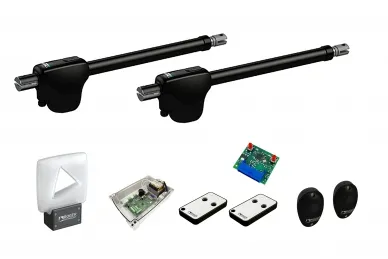

The kit consists of:
Roger Technology KIT MONOS4/220/F KIT FULL

Roger Technology KIT MONOS4/220/F KIT FULL
Drive with 230 V motor, for swing gates with a maximum leaf length of 4 m, adjustable bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • 230 V AC motor
  • 30% intensity
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • High work culture
  • Screw stroke 400 mm
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a fixed code of 433.92 MHz with a copy function, a set of photocells R90/F2ES, based on infrared technology and a LED signal lamp FIFTHY/230/ 230V with a built-in 433.92 MHz antenna increasing operating range of pilots.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC
  • Nominal power: 200 W
  • Force: 2400 N
  • Speed: 1.66 cm/s (24 s opening to 90°)
  • Stroke: 400 mm
  • Use frequency: 30%
  • Gear motor type: irreversible
  • Encoder: built-in optical
  • Protection class: IP 43
  • Motor thermal protection: 150°
  • Operating temperature: -20°C to +55°C
  • Dimensions: 823 x 178 x 111 mm
  • Weight: 8.5kg
