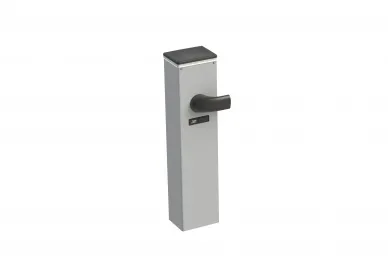

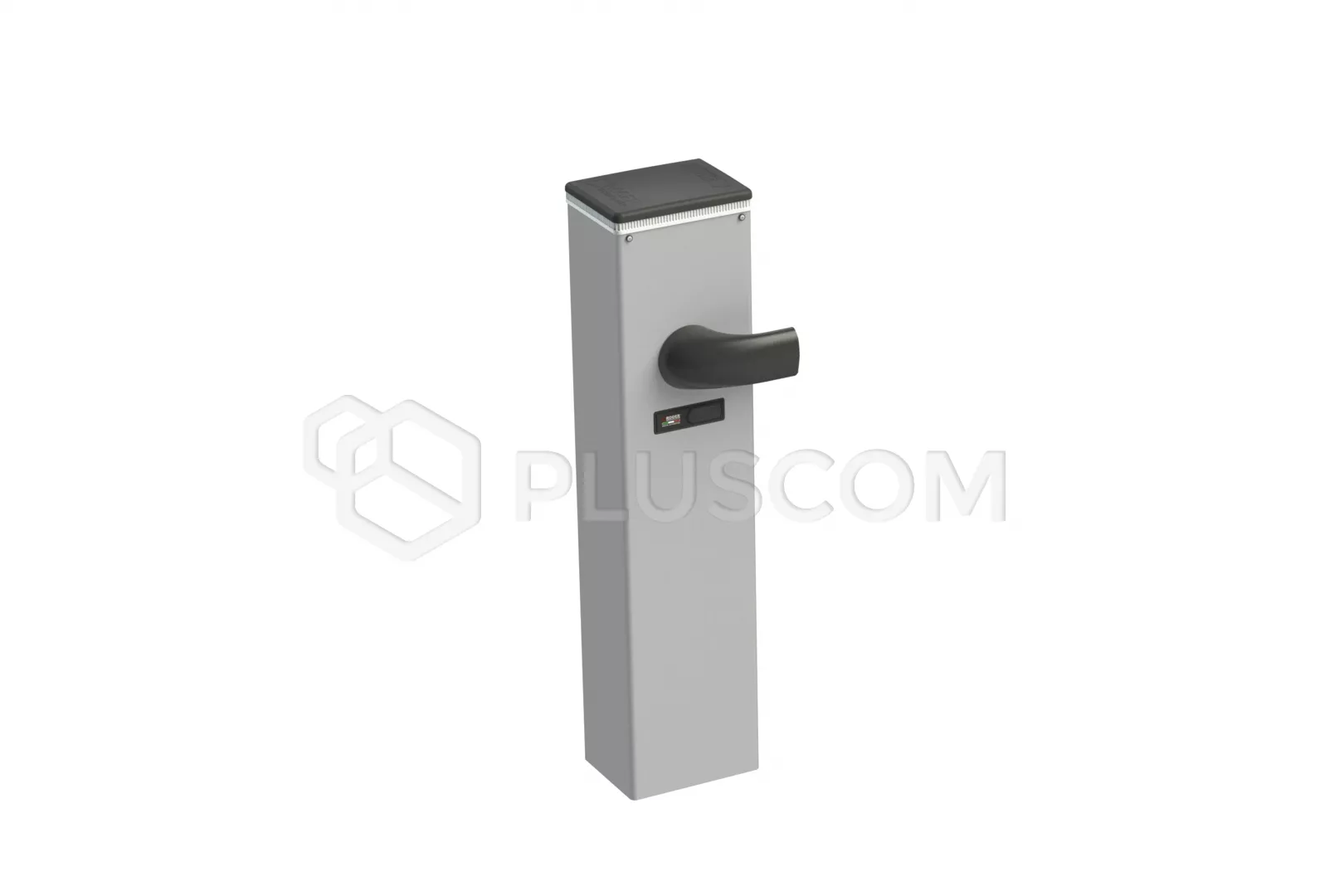

Roger Technology BI/004 Electromechanical brushless barrier column 36V

Roger Technology BI/004 Electromechanical brushless barrier column 36V

THE BARRIER CONSISTS OF THE FOLLOWING ELEMENTS:

36V brushless electromechanical barrier column digital encoder built-in CTRL switchboard LED column lighting foundation base arm holder

Roger Technology BI/004 Electromechanical brushless barrier column 36V

The barrier guarantees intensive work cycles and a frame can be installed on it up to 4m. It is equipped with a CTRL control unit, dygital encoder, and lighting LED columns, mounting base with anchoring elements and flanges for arm mounting.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability. Housing made of carbon steel protected against corrosion and painted.

SPECIAL FEATURES:

• 36V brushless motor
• Super intensive use
• Continuous use 5000 cycles per day
• Avg. failure-free operation time 5,000,000 cycles (MCBF)
• Metal alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• LED lighting of the column and arm
• Strong construction
• Aluminum arm

By default, the barrier is adjusted for right-side installation, viewed from the inspection flap.

---
