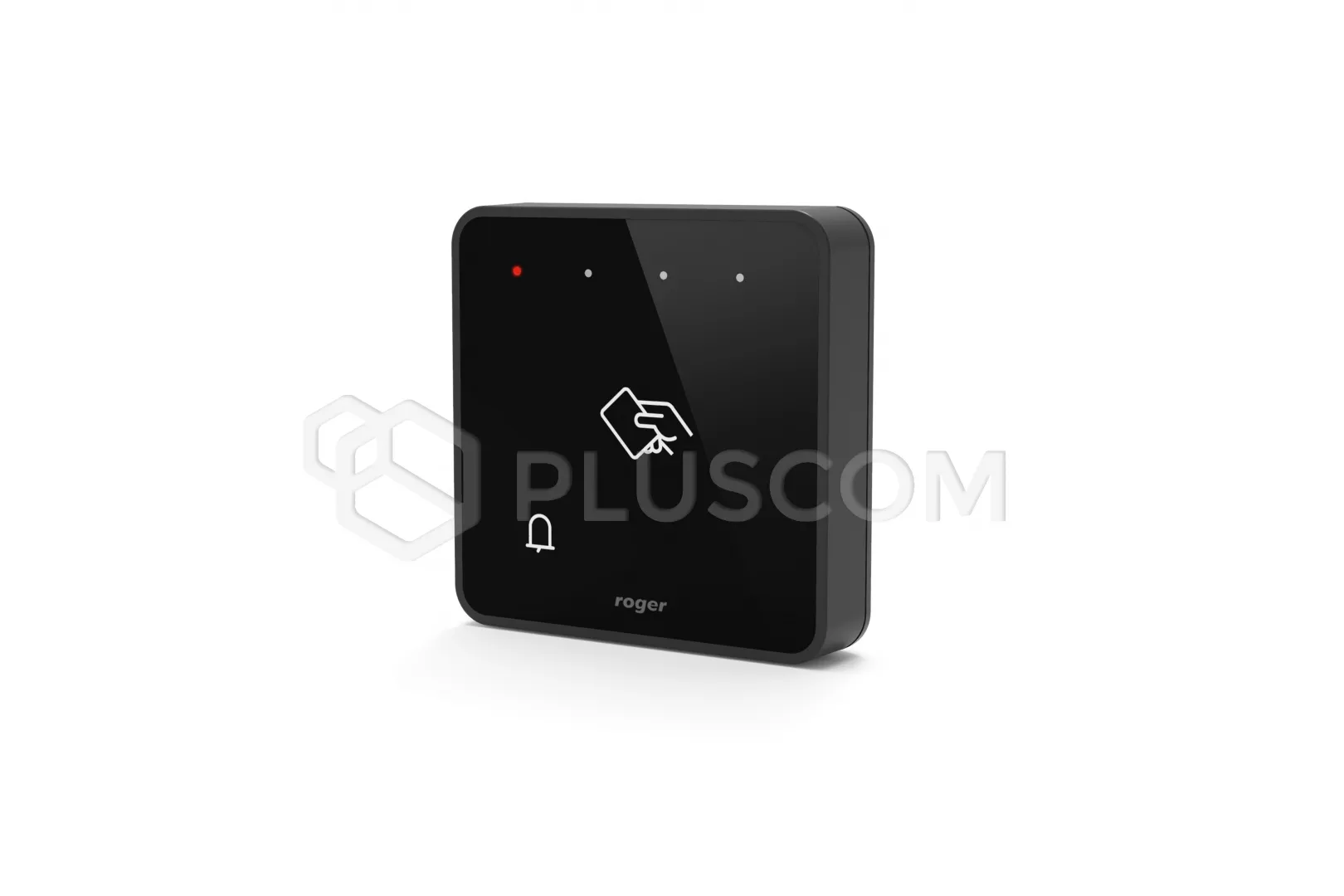

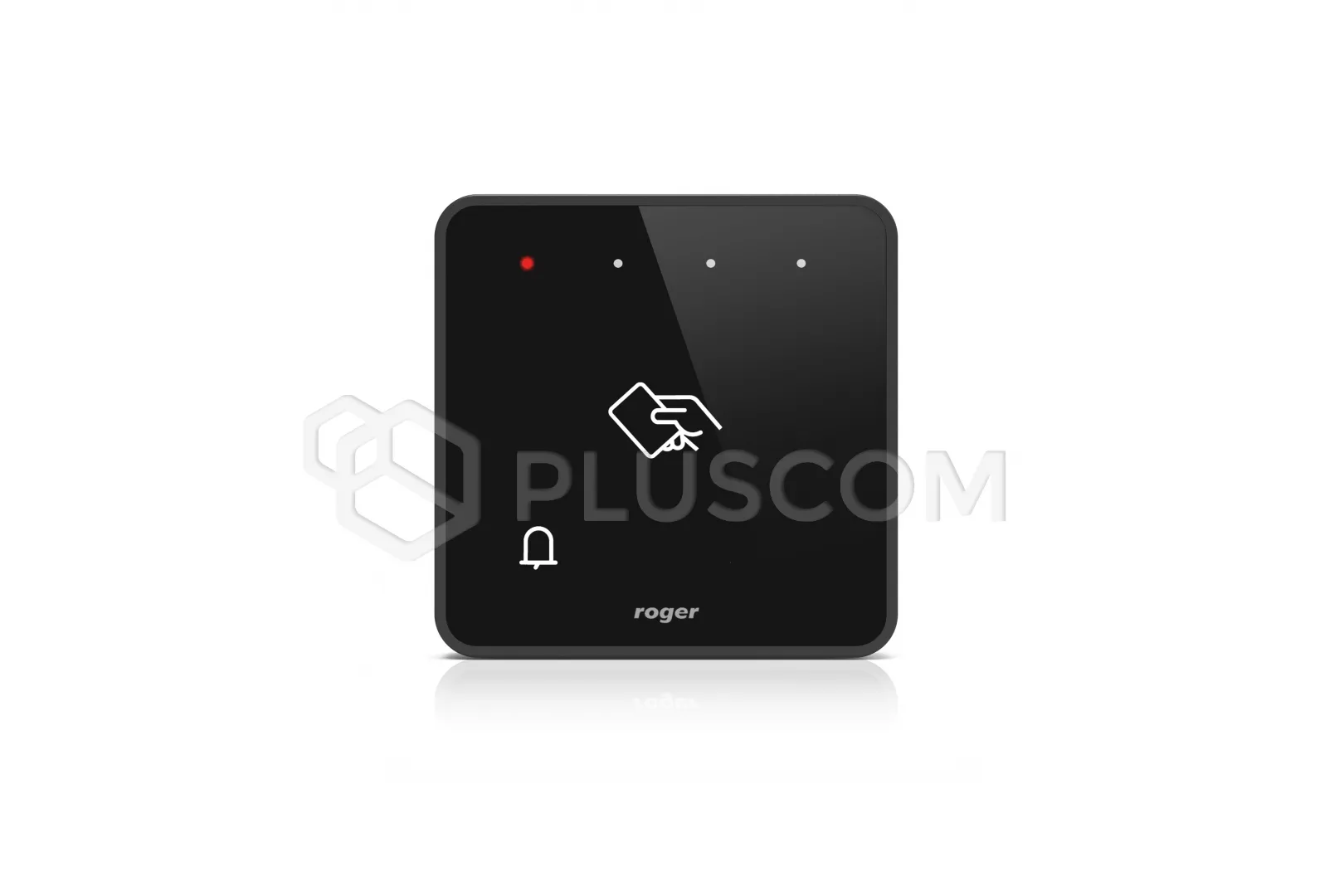

Roger MCT82M-IO-HR Hotel Room Entry Terminal

169,89 EUR including 23.00% VAT
Product code: #22408
Manufacturer: Roger
  • MIFARE Ultralight/Classic/DESFire/Plus card reader
  • 4 programmable LEDs and door bell button
  • Built-in IO lines
  • Glass front panel
  • Surface type enclosure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger ME-9 Metal protective enclosure for proximity readers Roger MCT82M-IO-CH Access terminal with card holder Roger MFC-4 MIFARE DESFire EV1 2K ISO Proximity Card Roger MFC-3 MIFARE 4K ISO Proximity Card Roger MFC-2 MIFARE 1K ISO Proximity Card Roger MFC-1 MIFARE Ultralight ISO Proximity Card

Roger MCT82M-IO-HR Hotel Room Entry Terminal


The MCT82M-IO-HR is a RACS 5 system terminal dedicated to hotel installations.
The main function of the device is to provide room entry control and presentation of the hotel signalisations: Do Not Disturb, Make up the Room, Emergency Call and Service Call. Besides mentioned, terminal offers door bell button and programmable built-in IO lines. The door bell can be signalised on internal buzzer located on any MCT terminal installed in the room or electronic sounder connected to any terminal’s output. The built-in IOs can be used to control electric equipment (e.g. door lock, siren, electrical supply) and for connection of additional push buttons, switches and sensors (e.g. light switches, door contact, window contact).

Along with card holder terminal (MCT82M-IO-CH or MCT86M-IO-CH-HR) the MCT82M-IO-HR can compose the set of hardware which enables access and basic hotel room automation. Using RACS 5 Integration server third party application can monitor system operation and provide an extra functionality which is not originally available in the system.

The MCT82M-IO-HR operates with encrypted memory of the MIFARE proximity cards what protects system from use of non-native cards and from cloning of the original ones. The logic of the entire system is provided by the controller to which the terminal has to be connected through RS485 addressable communication bus.

FEATURESL
  • MIFARE Ultralight/Classic/DESFire/Plus card reader
  • touch type door bell button
  • 4 status LEDs
  • 3 EOL inputs
  • 2 transistor outputs 150 mA
  • 1 relay output 1.5 A
  • adjustable buzzer loudness
  • automatic LED dimming when in standby
  • connection to controller through RS485
  • tamper
  • indoor operation only
  • QUADRUS series product line
  • Surface type enclosure

Roger MCT82M-IO-HR Hotel Room Entry Terminal

Roger MCT82M-IO-HR Hotel Room Entry Terminal


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 60mA
  • proximity cards: 13,56 MHz MIFARE Ultralight/Classic/DESFire/Plus
  • reading range:
    • up to 7 cm for MIFARE Ultralight/Classic cards
    • up to 4 cm for MIFARE DESFire/Plus
  • Distance: 1200m maximal cable length for RS485 bus between controller and reader
  • environment class: II
  • IP41
  • working temperature: -10°C ~ +50°C
  • dimensions: 85x85x22mm
  • weight: approx. 100g
