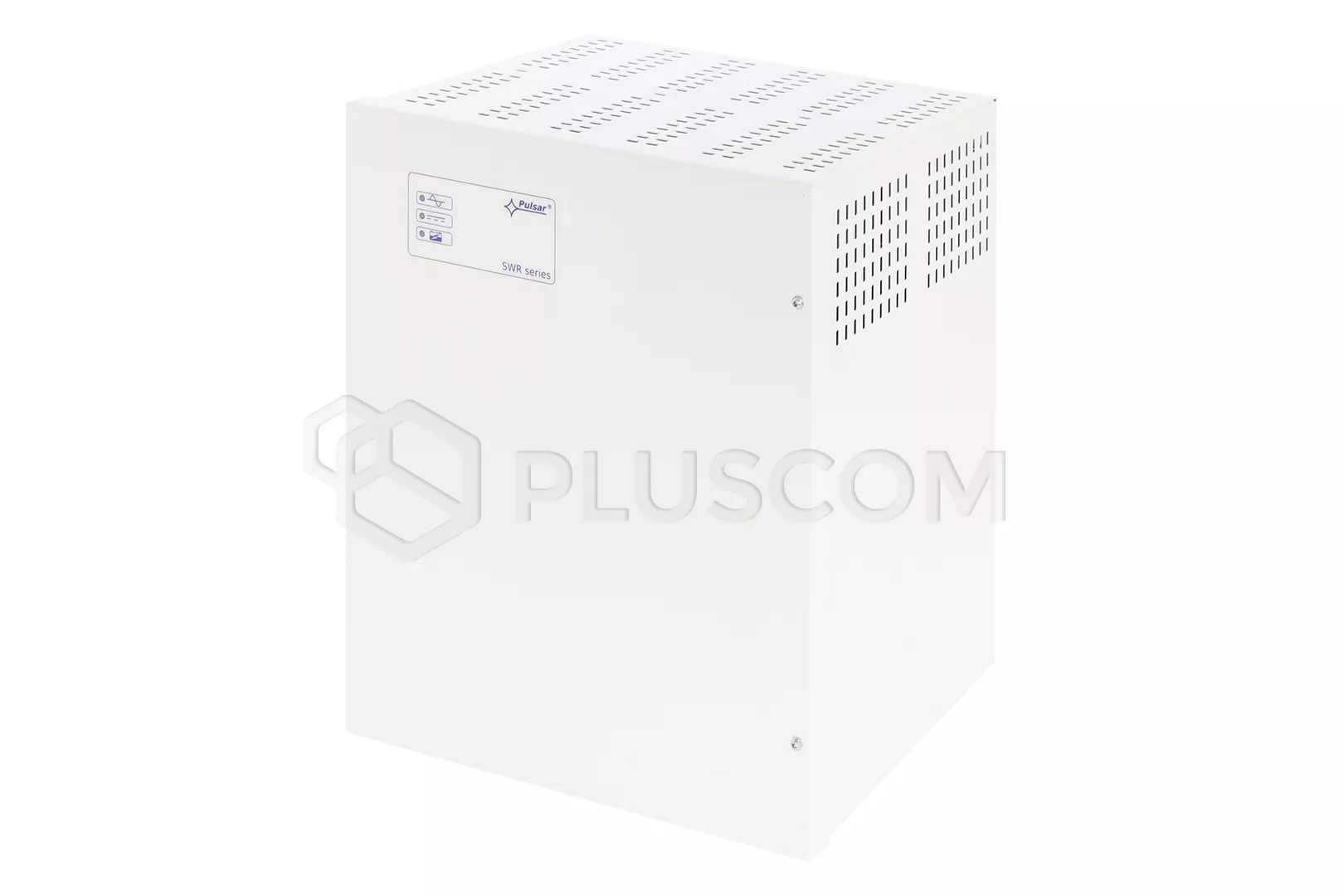

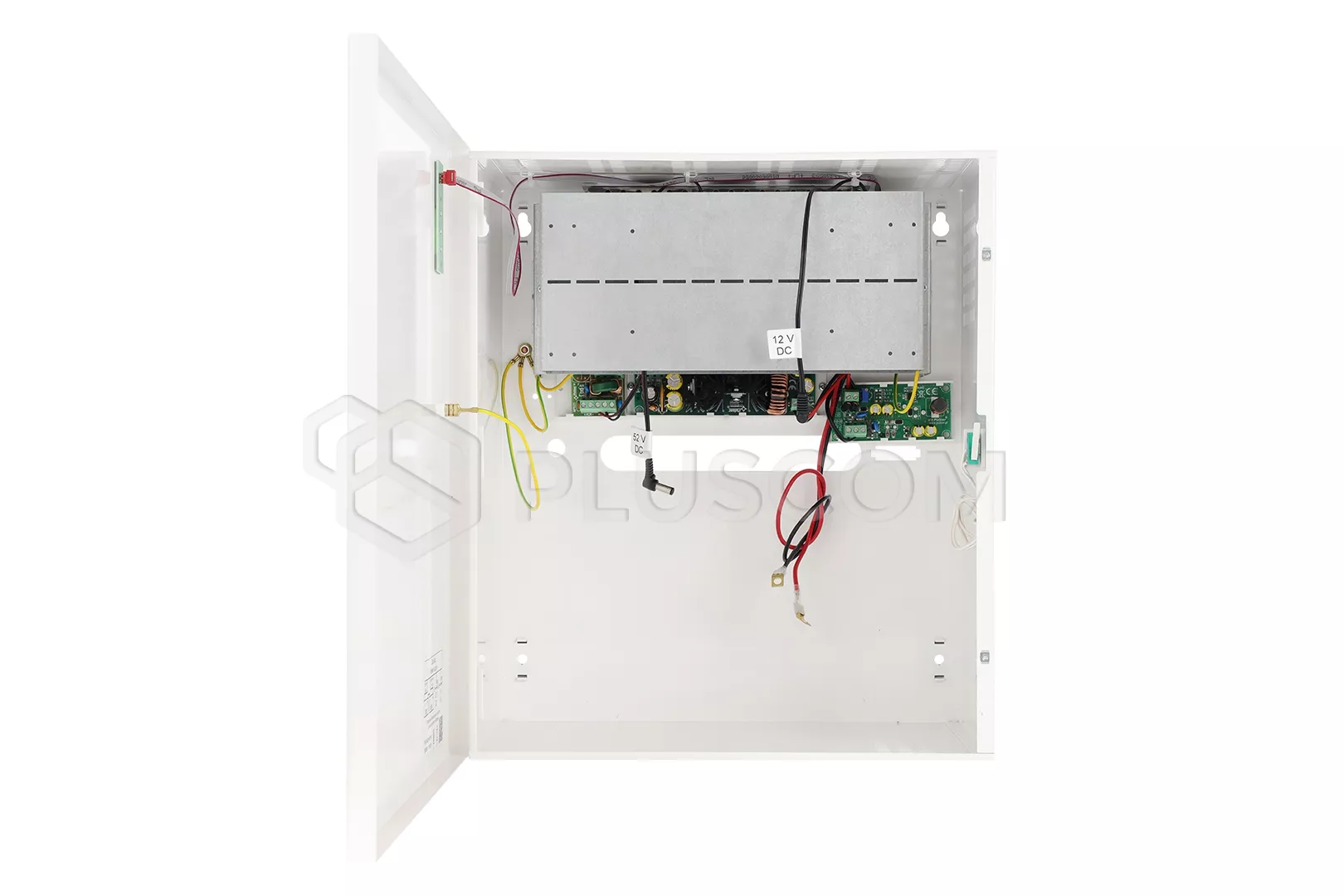

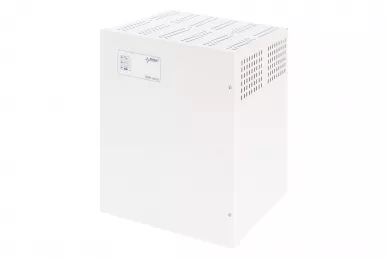

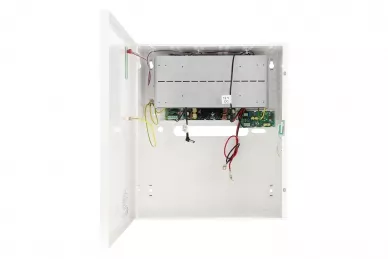

Pulsar SWR-120 Buffer power supply system for PoE switches and recorder (12)52VDC/2x17Ah/120W

275,56 EUR including 23.00% VAT
Product code: #30754
Manufacturer: Pulsar
  • Power supply: 200 - 240 V AC
  • Recorder power supply output: 2A/12V DCpower cable included - JACK 5,5 / 2,1
  • Battery charging current: 0.5A/2A
  • Battery: 2 x 17Ah
  • Efficiency: 85%

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar SWR-300 Buffer power supply system for PoE switches and recorder (12)54VDC/4x17Ah/300W

Pulsar SWR-120 Buffer power supply system for PoE switches and recorder (12)52VDC/2x17Ah/120W


Technical parameters:

  • Power supply: 200 - 240 V AC
  • Power supply output: 54 V DC/120 Wpower cable included - JACK 5,5 / 2,1(Sumaryczna moc PoE oraz rejestratora)
  • Recorder power supply output: 2A/12V DCpower cable included - JACK 5,5 / 2,1
  • Battery charging current: 0.5A/2A
  • Battery: 2 x 17Ah
  • Efficiency: 85%
  • Dimensions: 330 x 380 x 173 [+/-2 mm]distance from surface: 8 mm
  • Dimensions of recorder space: 250 x 350 x 48 [+/-2 mm]
  • Protections: SCP, OLP, OVP, UVP, tamper – opening of enclosurepossibility of mounting tamper switch PKAZ067 detects detachment from the wall
  • Closing: bolted (lock assembly possible)
  • Indication: LED optical indication
  • Material: steel DC01, 1mm, RAL9003 (white), metallic
  • Warranty: 2 years

Download
Data sheet 0.79 MB
Instruction 0.7 MB
