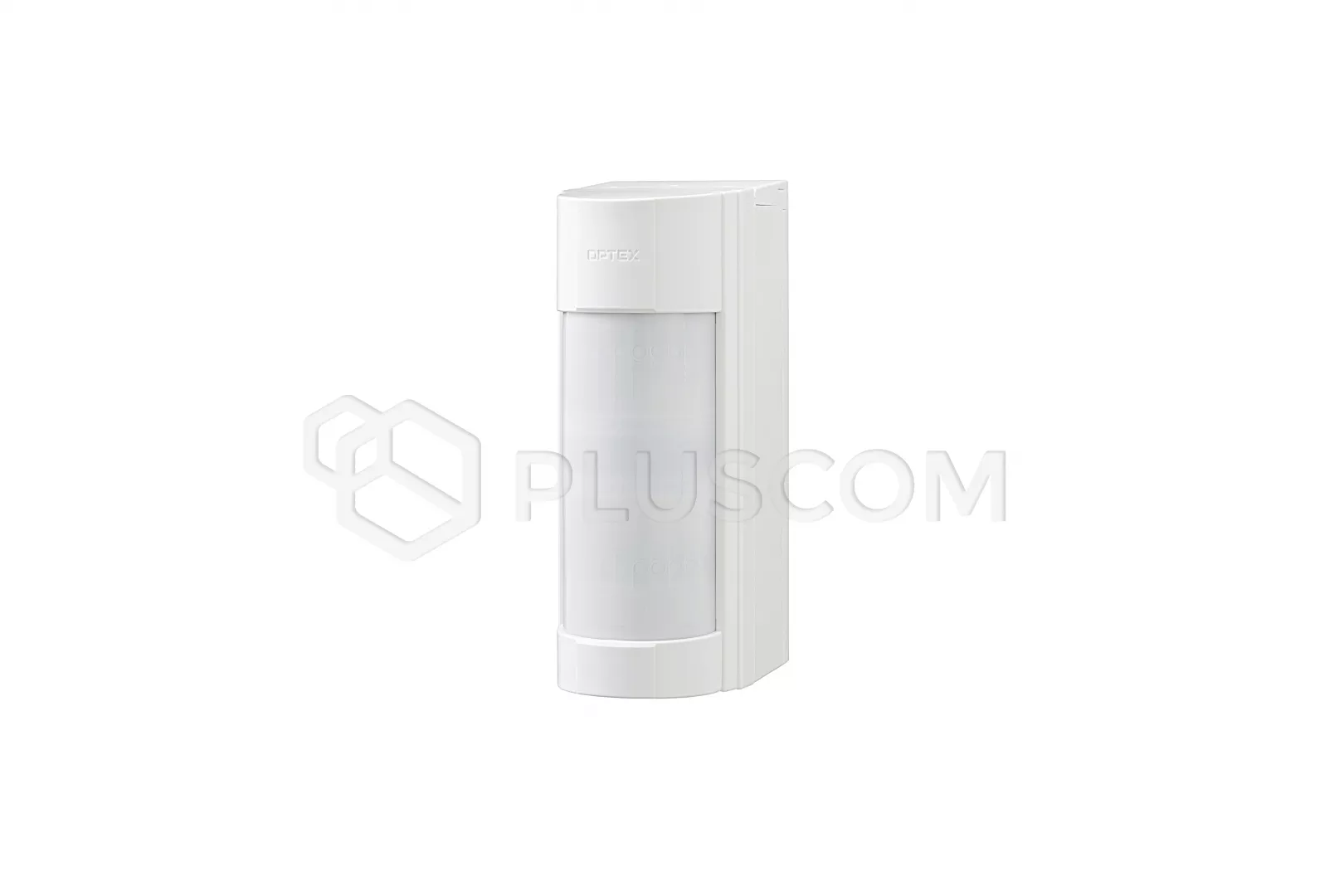

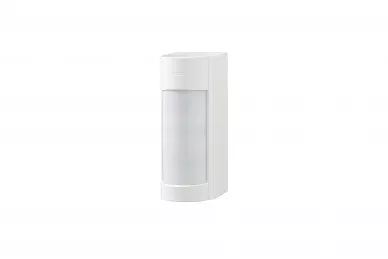

OPTEX VXI-RAM advanced detector with range adjustment and anti-masking,
battery-powered
VXI-RAM provides a very reliable approach detection with a range of up to 12m
for residential and commercial applications. The sensor which should be mounted
at ca 1.2m height includes two PIRs providing a double layered detection area,
the sensor will only trigger when both layers are activated. The VXI sensors
are animal tolerant and feature digital analysis to eclude cause of false
alarm. The VXI-RAM is the battery-powered model with antimasking.
Digital analysis for enhanced reliability
The VXI sensors features a digital microprocessor which analyses the infrared
emissions received and differentiate the ones generated by human from the ones
generated by sunlight, animals, vegetation sway, or weather conditions. This
intelligence makes the risk of false alarm very low.
The convenience of wireless
The VXI-RAM sensor can be powered by a variety of universal batteries including
CR123, CR2 and 1/2 AA. Its housing can accommodate most wireless radio
transmitters available in the market. This makes it easy to add a VXI sensor
onto the shed, garage or any outer buildings and link it to an existing
wireless alarm panel The sensors are also easy to install in remote or
temporary locations.
Flexible detection coverage
The detection length of the VXI sensors can be set to 12m, 8.5m, 6m, 5.5m or
2.5m to adapt to the site configuration. The sensor comes as well with a choice
of pre-cut masking templates to modify the detection areas and only focus on
the points of interest.
Key Features
- 12m battery-powered PIR for approach detection
- Digital signal analysis to greater reliability
- Accommodates most wireless transmitters
- Active infrared antimasking
SPECYFICATION
- Detection method: passive infrared
- PIR range: 12m, angle 90 ° / 16 zones
- PIR range adjustment: 2.5-12m (5 steps)
- Movement speed performed: 0.3 - 1.5 m/s
- Tenderness: 2 ° C at 0.6 m / s
- Power: 3-9V DC,lithium or alkaline battery
- Power consumption: 10μA (standby) / 4mA (max.) At 3V DC
- Alarm period: 2 (±1) s
- Warm-up period: approx. 60 s (LED flashes)
- Alarm output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A
(max)
- Trouble alarm: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A
(max)
- LED indicator:
-
- Disable: During normal operation.
- Enable: During WALK TEST or LED SW on.
- Red: Warm-up, alarm, masking detection (VXI-RAM only)
- RF interference: No 10V / m alarm
- Working temperature: -20°C~60°C
- Humidity: 95% max.
- Housing tightness: IP55
- Mounting height: 0.8 - 1.2 m
- Dimensions:
- Weight: 500 g
Accessories: Connector for POWER and ALARM, Connector for TROUBLE, Screw
(4×20mm) ×2, Masking seal ×3
