Nice WALKY2024 Set
|
KIT INCLUDES:
|

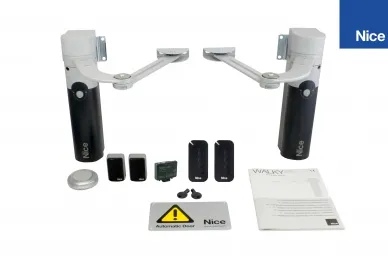

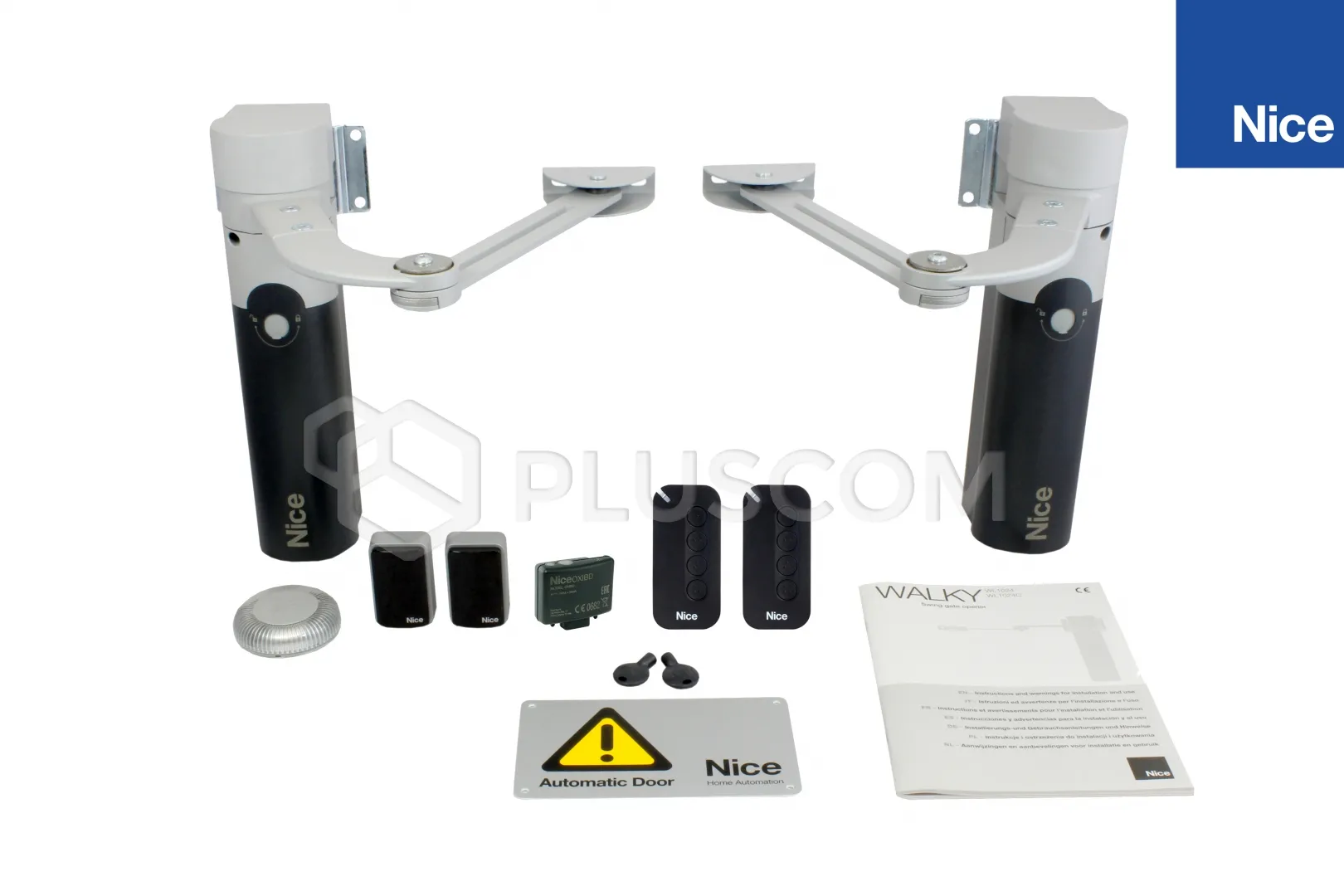

Nice WALKY 2024 ERA ONE Set
|

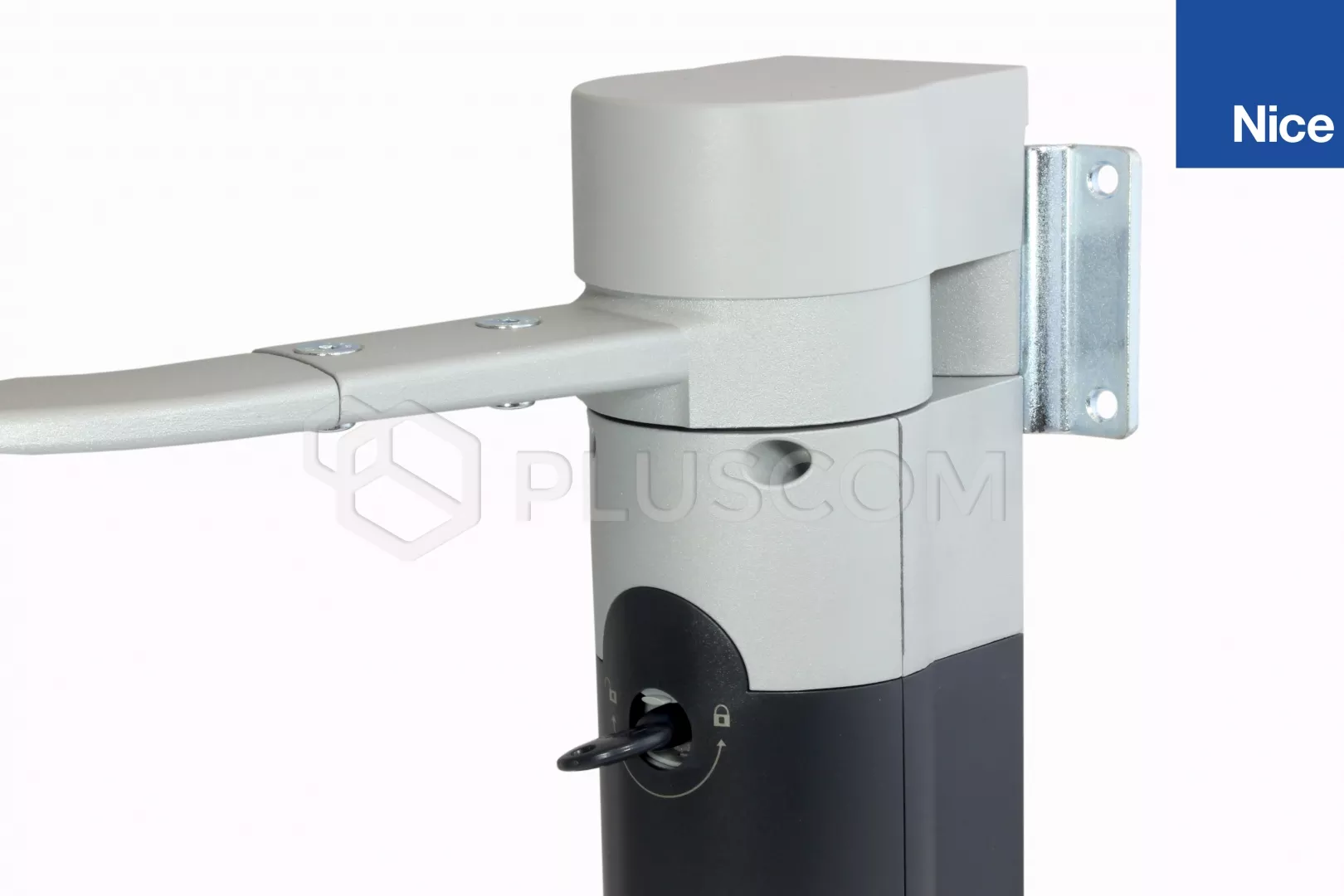

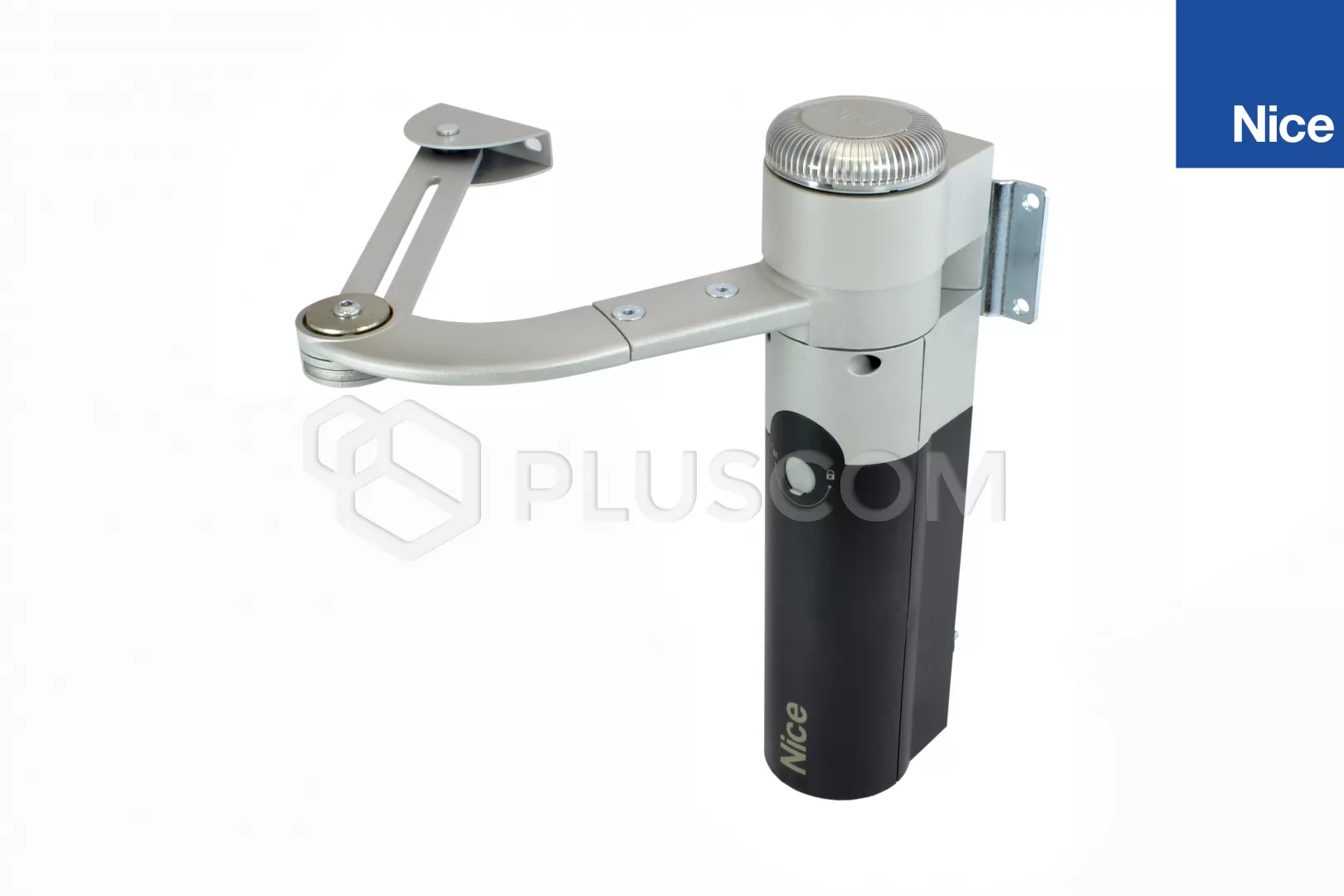

Walky is Irreversible electromechanicalgear motor at 24 V DC, with articulated
arm, for swing gates withleaves up to 1.8 m. Especially suited to gates in wood
orPVC.
Compatible for operation with Solemyoand Opera systems.
Ultra compact:ideal
forpedestrian gates, recommended for small posts (width 8 cm).
Safe:thanks to the
irreversiblemotor and anti-shear arm with built-in mechanical stop on
closure(with installation of entire arm).
Practical:the articulated
armenables installation in specific conditions, such as in the presenceof small
walls or obstacles adjacent to the post.
Quick:no waiting in front of
thegate, just 7 seconds to open or close (in optimal installationconditions,
with reduced arm and 90° opening).

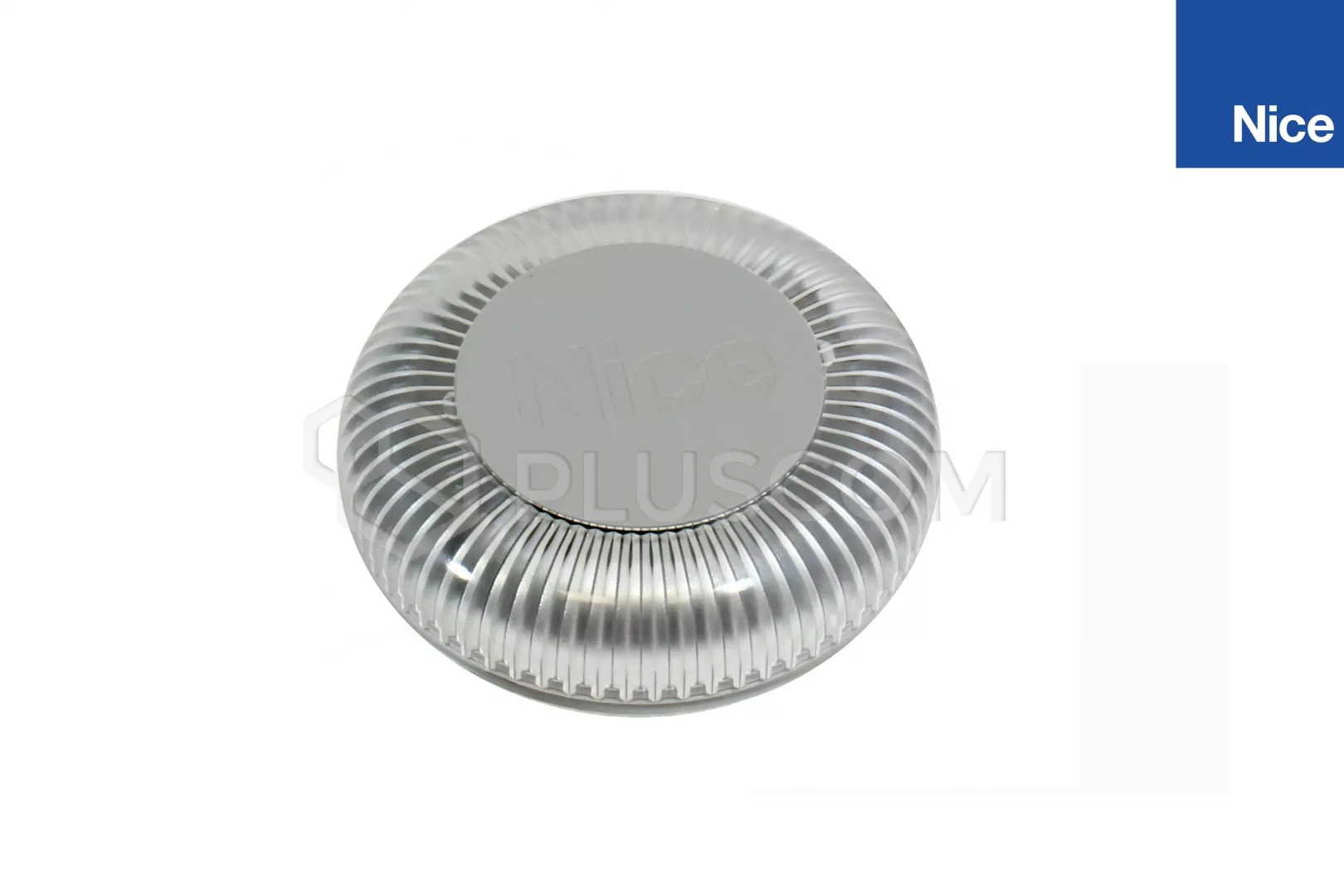

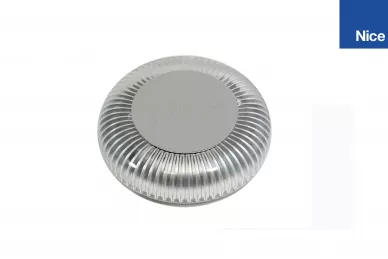

Convenient: incorporableflashing
Led indicator, with courtesy light function (WLT, optional);rapid motor release
for manual movement of the gate.

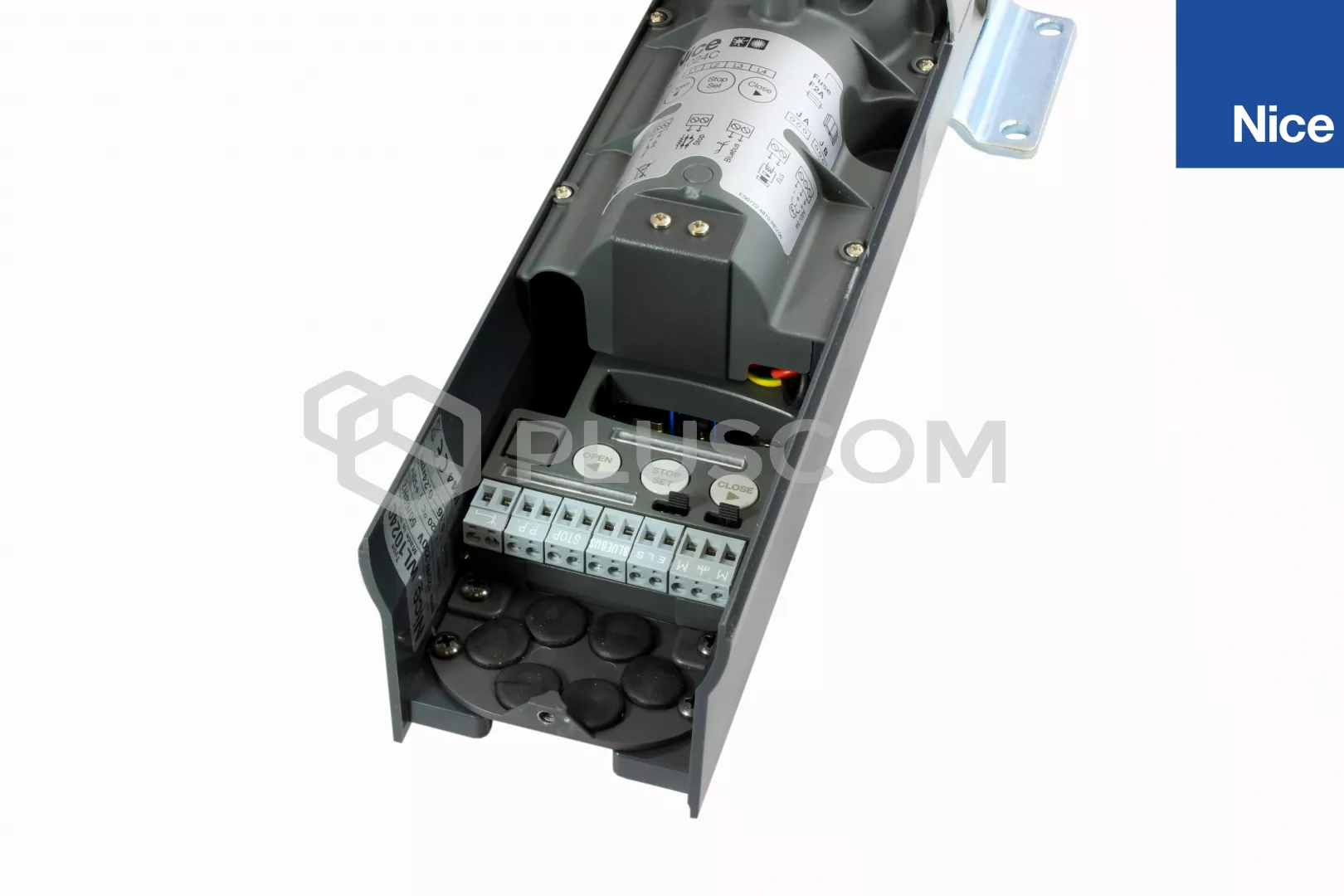

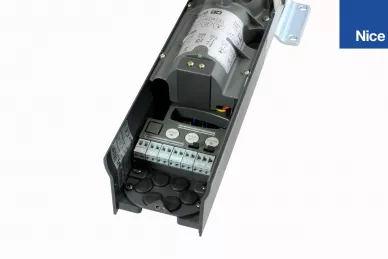

Built-in control unit WLA1:
- simple programming;
- self-learning of opening andclosing limit positions;
- automatic fault diagnostics;
- programming of pause time;
- pedestrian pass door;
- deceleration on opening andclosing;
- provision for connection of latestgeneration resistive sensitive
edges.
No black out:operation in
theevent of a power failure by means of optional batteries (PS424)housed inside
the motor

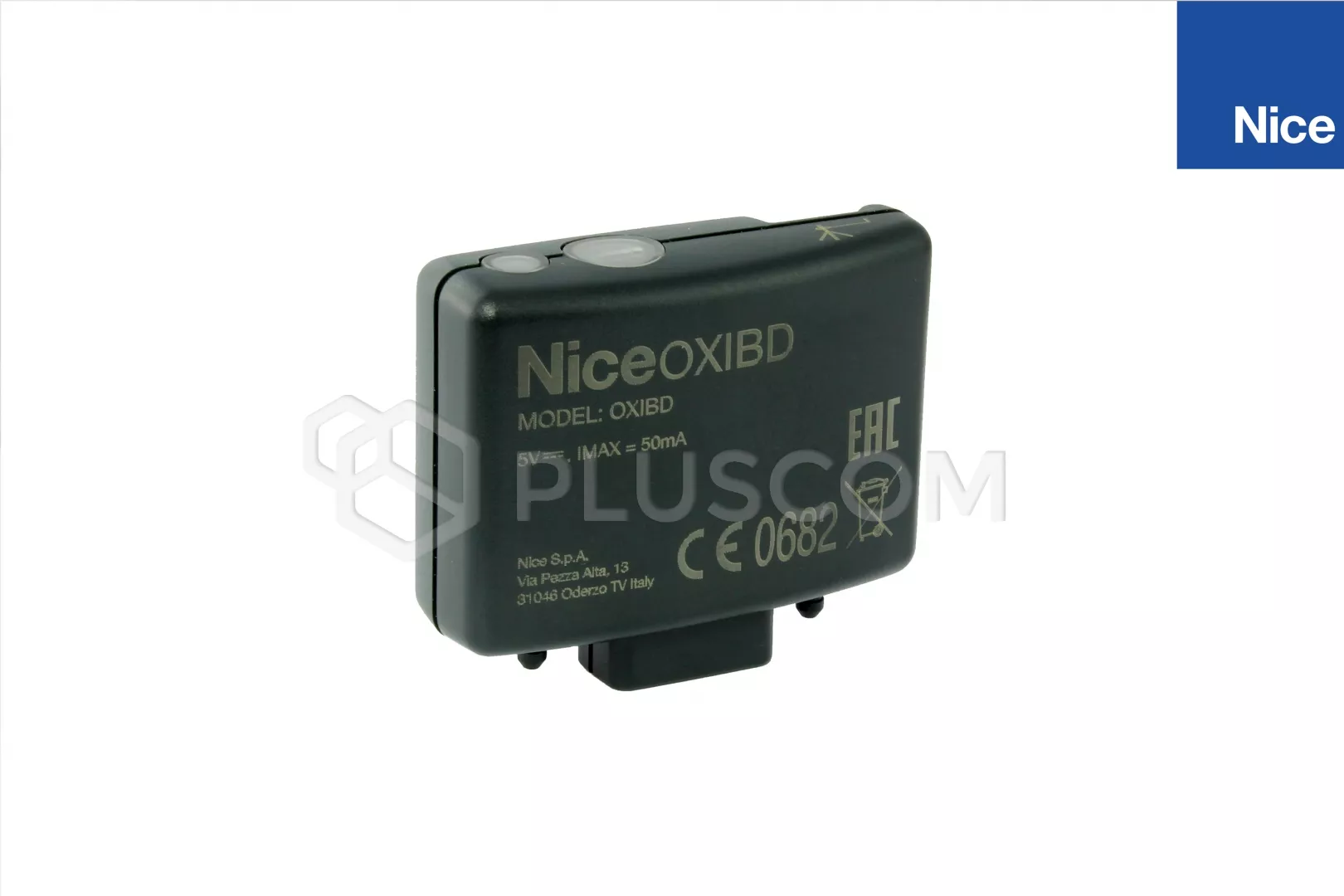

The receiver, if it contains one-way transmitters only, can manage 1024 memory
locations at the most: one location can alternatively memorise a single
transmitter (if its keys are memorised as a “single set”, with the Mode 1
procedures), or a single key (if memorised with the Mode 2 procedures). If the
receiver contains two-way transmitters only, a maximum of 750 two-way
transmitters can be memorised.

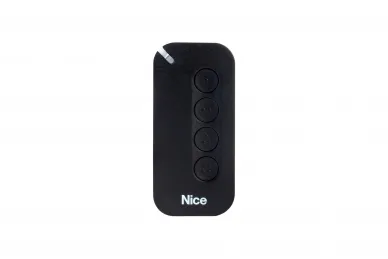

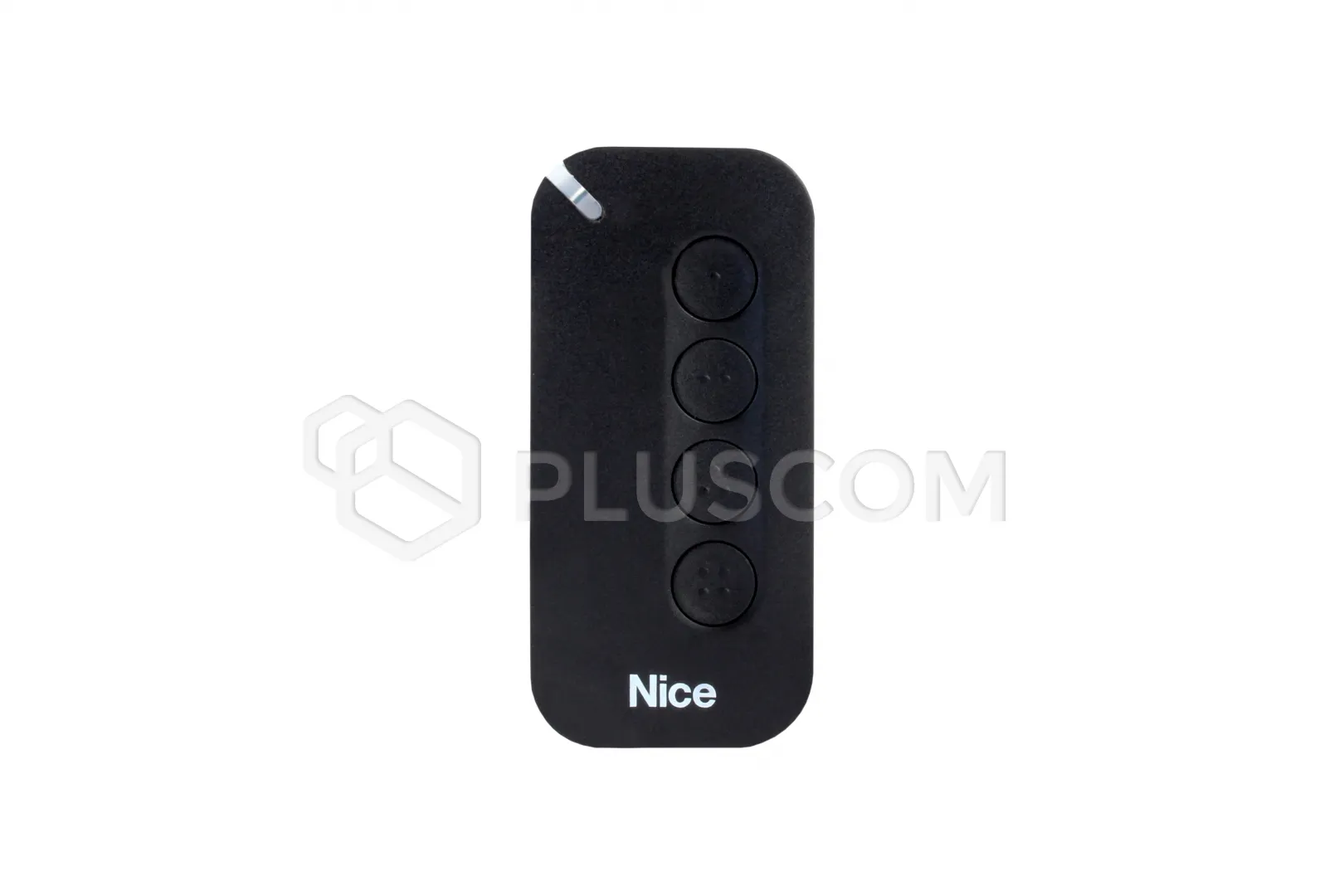

The MYGO4 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO4 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from a memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
ACTUATOR PARAMETERS
- 24V motor power
- power consumption: 120W max
- rotation speed: 1.7-2.5 rpm
- torque: 100Nm
- work intensity: 50 cycles/day
- degree of protection: IP 44
- dimensions: 90x125x358mm
