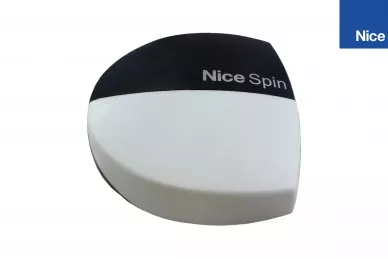

Nice SPIN 22 R10 MYGO Set for garage doors up to
9m² with reinforced belt
PURPOSE OF THE DRIVE:
Automation of garage doors with a height of over 235cm and a surface area of
up to 9m²
- tilt-up gate - height 3.2m, width up to 2.9m
- sectional gate - height 3.4m, width up to 3.1m

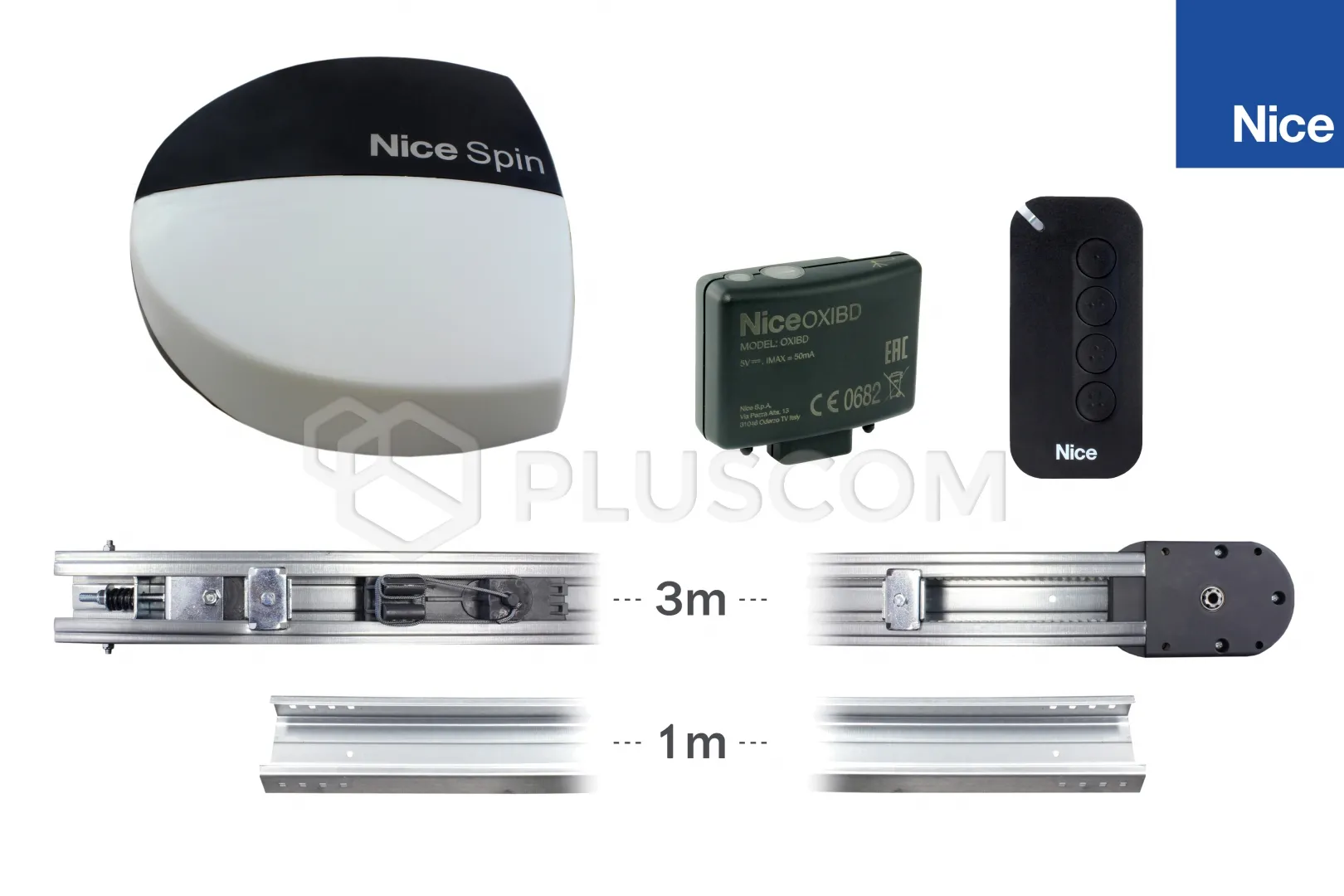

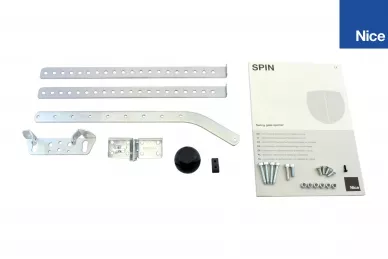

KIT COMPOSITION:
TECHNICAL PARAMETERS:
- pulling force: 650N
- work intensity: 50 cycles per day
- power supply: 230V
- engine power supply: 24V
- power consumption: 250W
Nice SPIN22BDKCE Set for garage doors
PRODUCT DESCRIPTION:

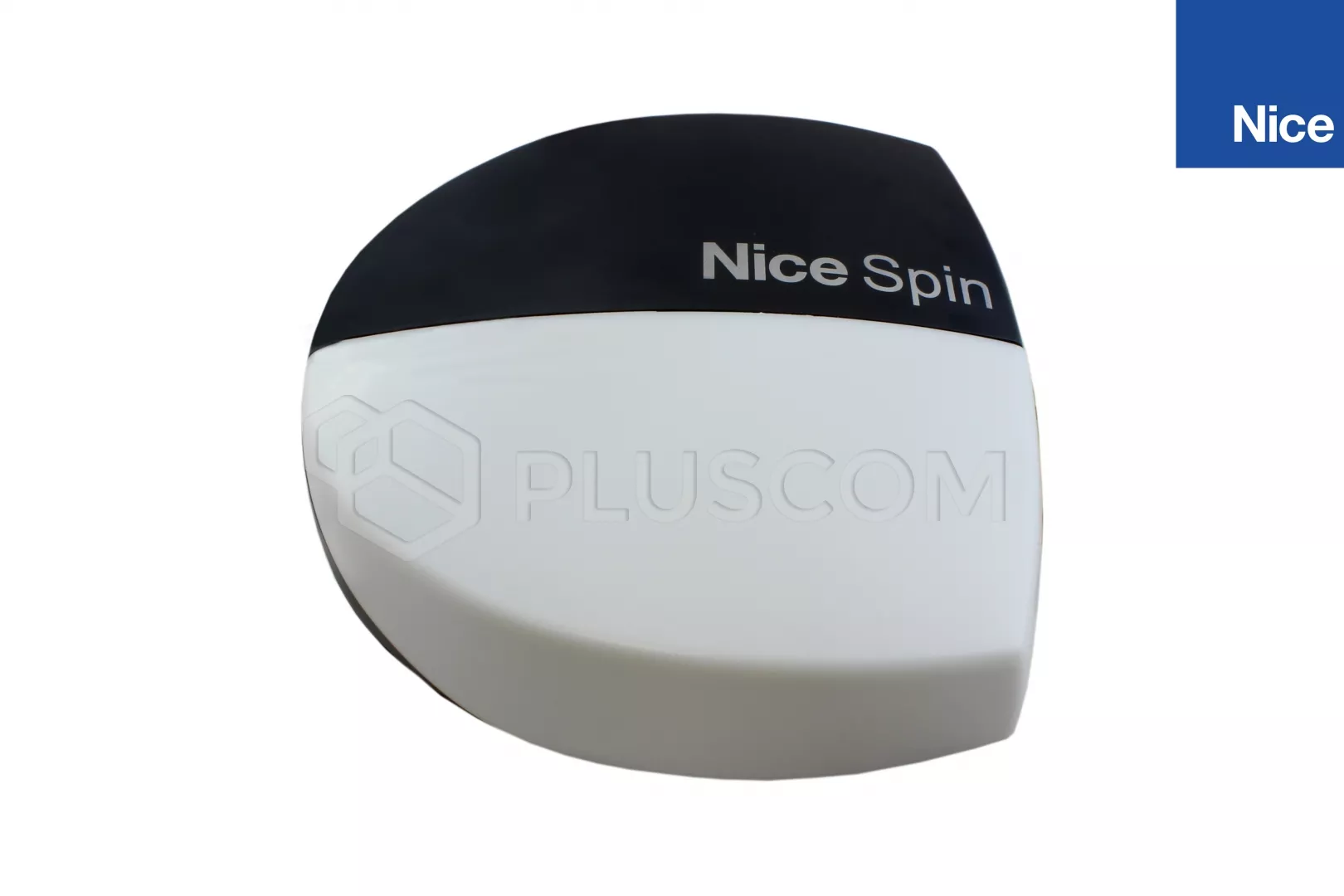

Simple in use and at the same time very functional garage door actuator. A
durable reinforced toothed belt was used to transmit the drive, the greatest
advantage of which is
quiet operation and lack of

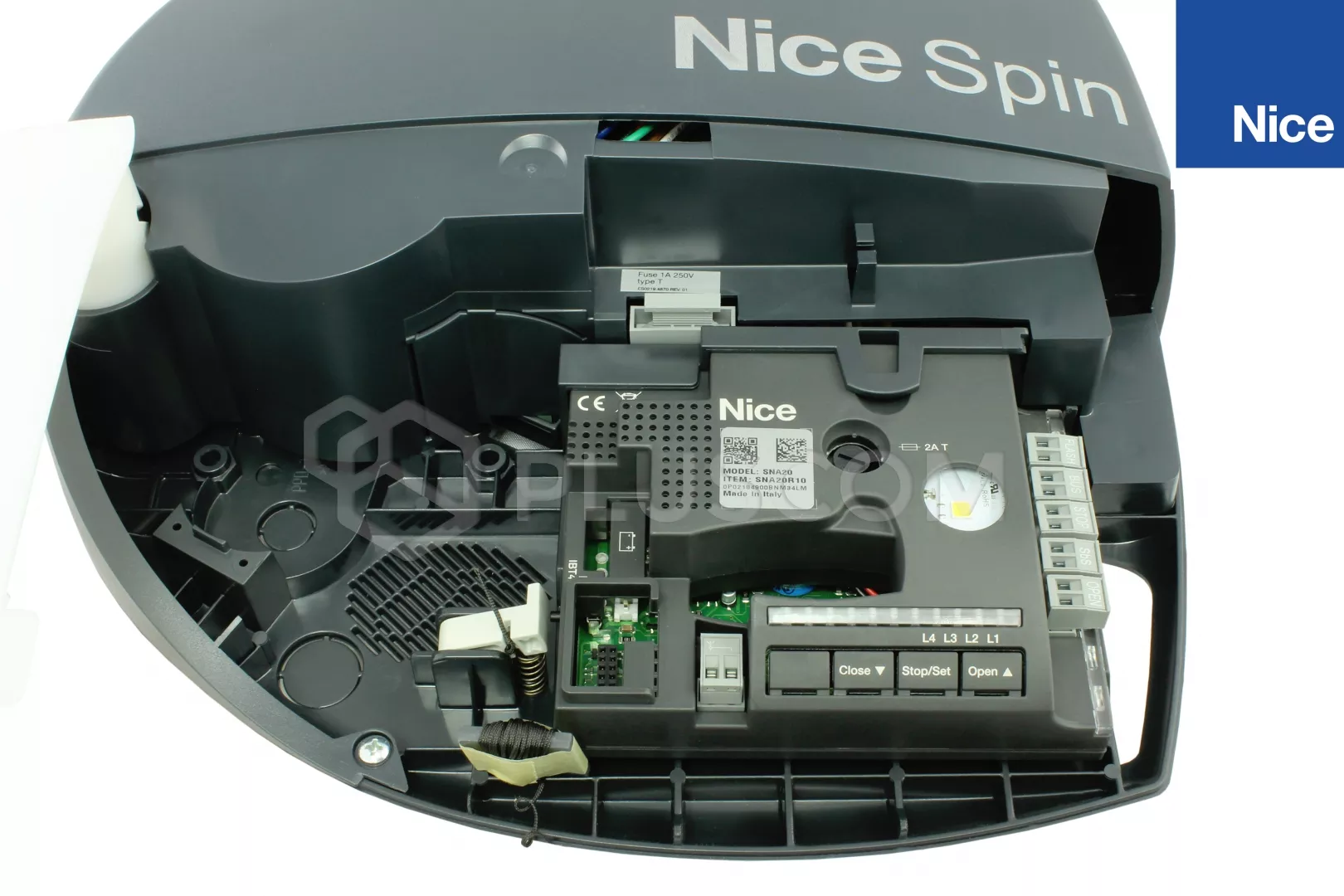

necessity of maintenance. The modern control unit with BLUEBUS
technology enables easy programming of functions (only three convenient buttons
and LED diodes) and automatically recognizes connected additional devices such
as photocells, a resistive strip or a warning lamp. The actuator can work with
two photocell lines and a resistive strip. Such a configuration makes the use
of the gate as safe as possible and does not pose a threat to users or objects.

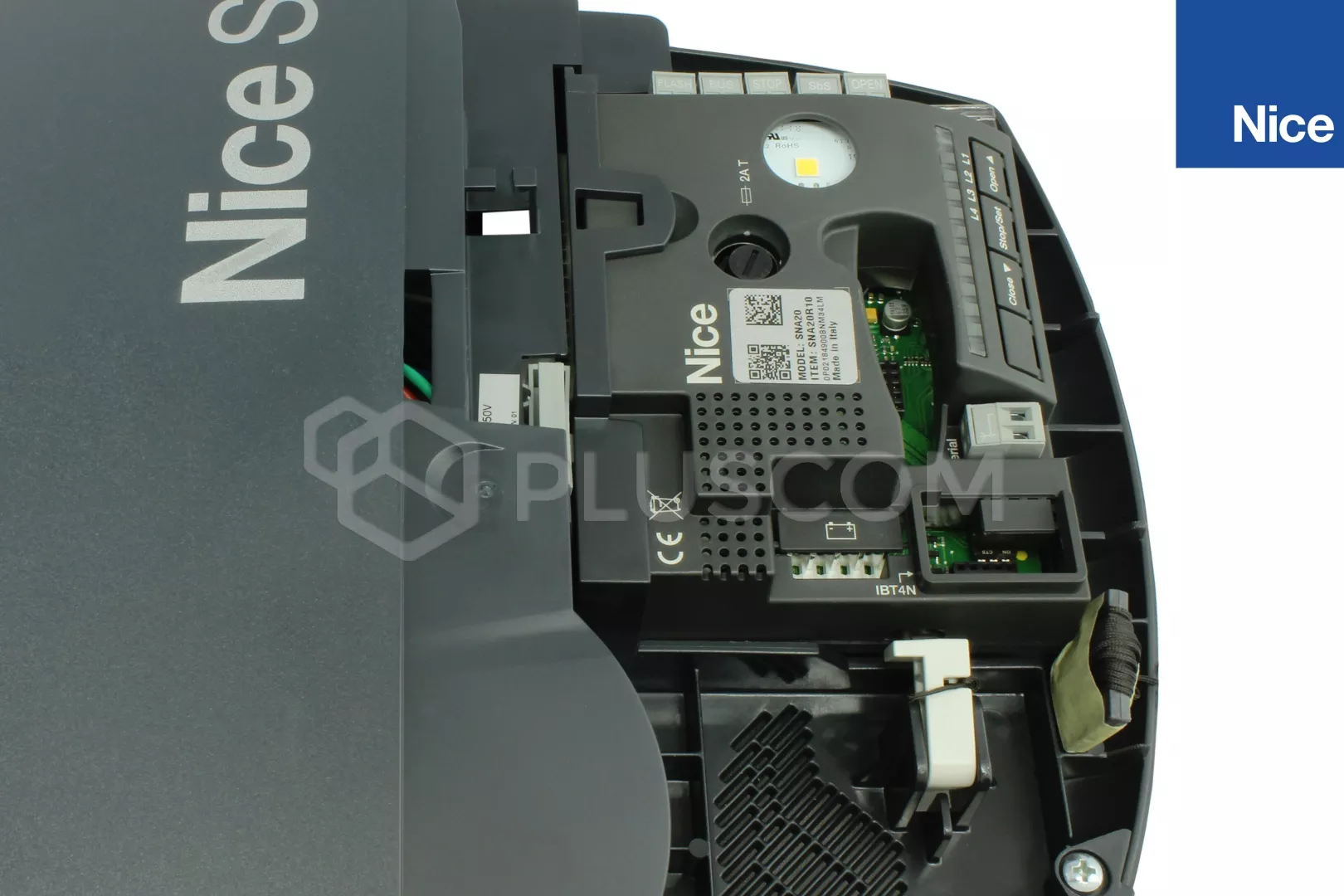

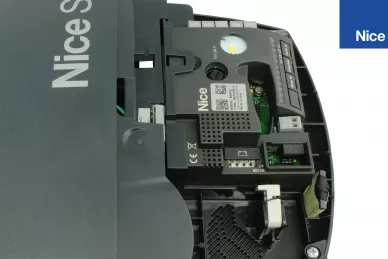

A few practical functions performed by the modern SNA20R10 control unit and
features that distinguish the SPIN22 model:
autoprogramming: during the first start-up, the actuator
automatically determines and remembers the gate's end positions
electronic speed control: during start-up, the gate moves
gently and slowly, before closing, the drive slows down to quietly close the
gate, the entire movement is smooth without jerks and noise
amperometric obstacle detection system: allows detection of a
possible obstacle, stopping the gate and immediately changing the direction of
its movement
partial opening of the gate: a practical function that allows
ventilation of the garage from exhaust fumes

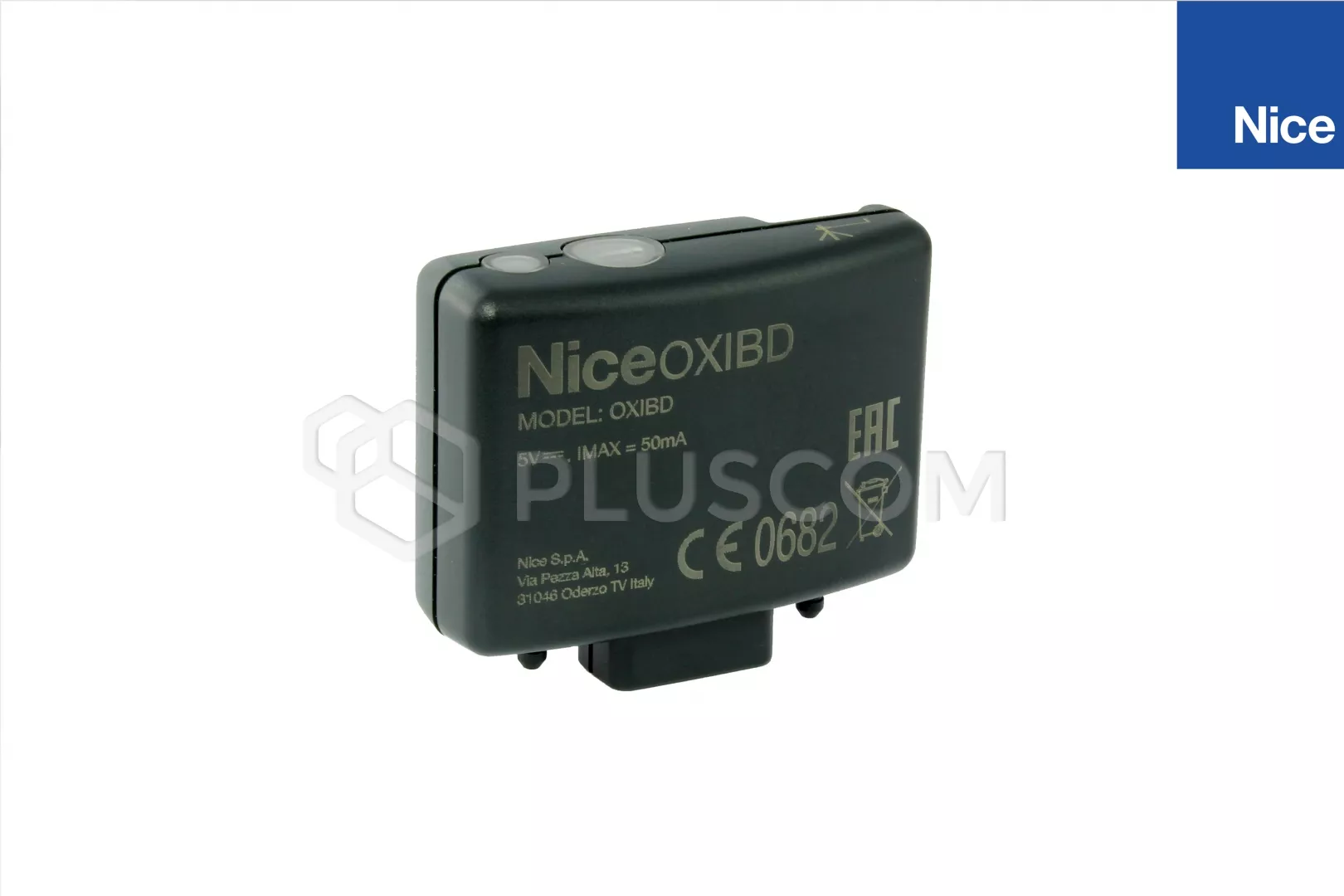

Two-way OXIBD radio receiver for mounting directly in the drive control unit.
The receiver can memorize up to 750 bidirectional transmitters or 1024
unidirectional ones.
The bidirectional radio protocol has many advantages (function available only
with ON3EBD remote controls):
- extension of radio range up to 500 m (max. 10 jumps)
- confirmation by automation of correct reception of commands
- possibility to check the automation status at any time
- high security thanks to encrypted communication
- low power consumption in standby mode
This coding system allows the use of all advanced
functions of the system "NiceOpera".

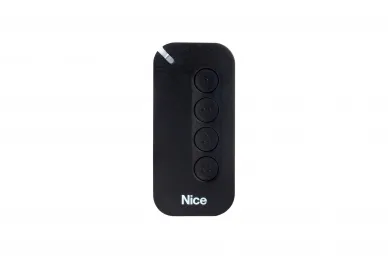

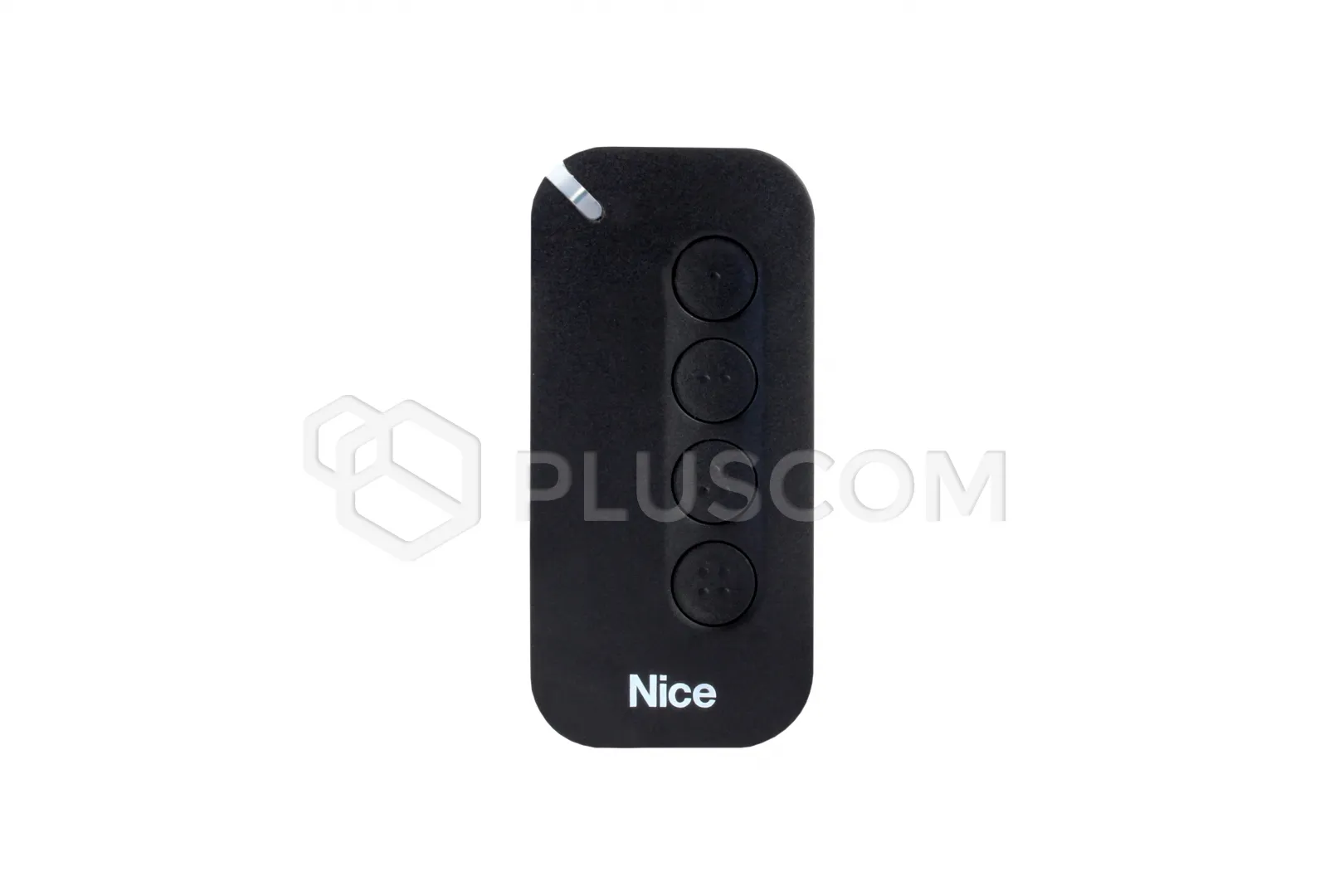

The remote control provides radio control with a dynamically changing code,
with a frequency of 433.92 MHz, which provides a high level of safety of use
and makes the code impossible to copy.
MYGO4 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from the memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
