Nice ME3024HS MYGO kit for double-leaf gates up to 3m and 300kg

Product code: #43508
Manufacturer: Nice

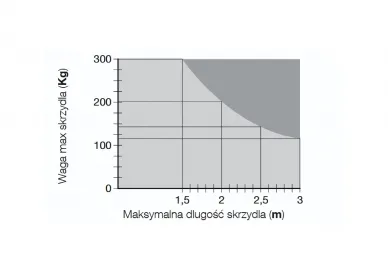

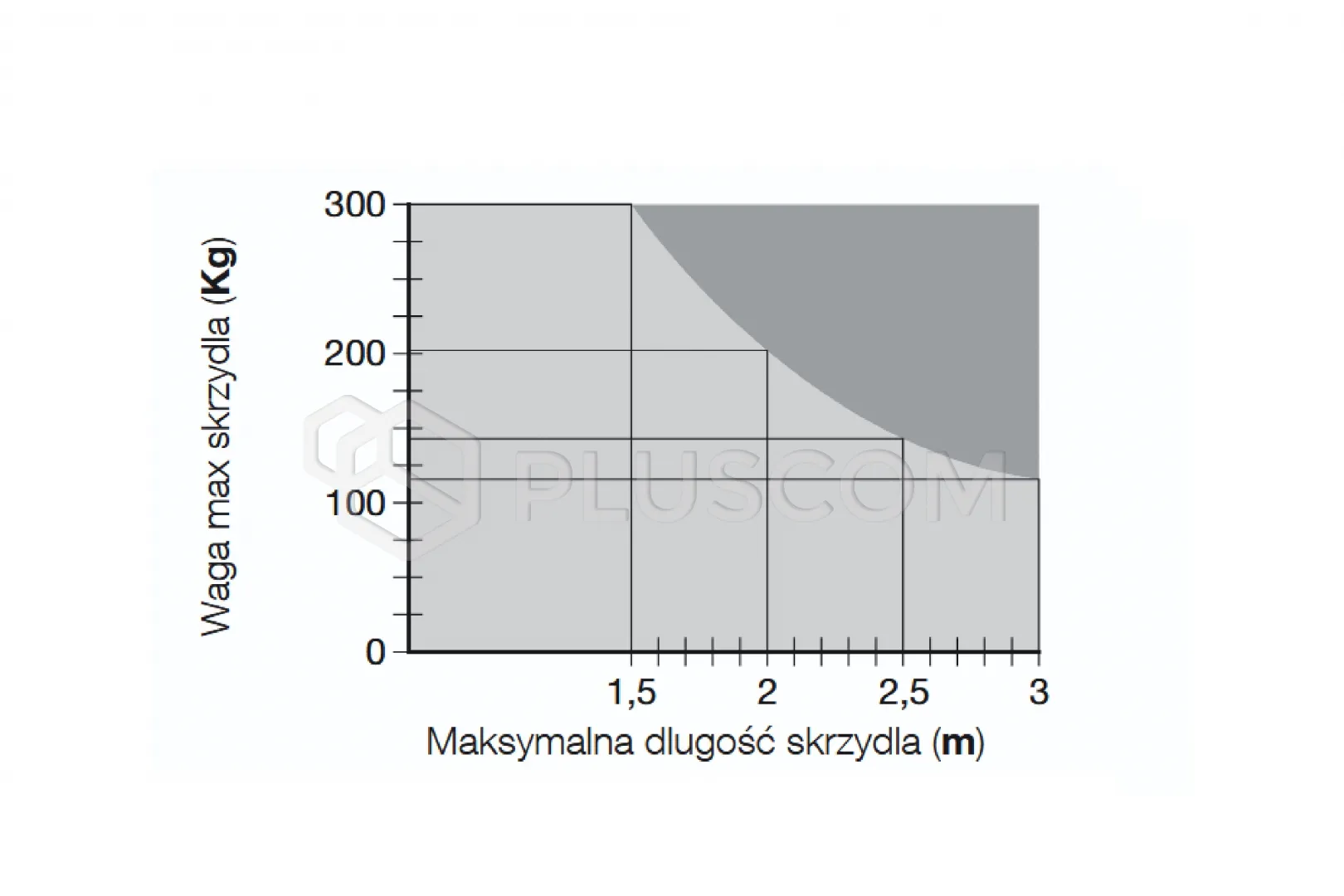

  • Maximum leaf length: 3m
  • Max. leaf weight: 300 kg
  • For intensive use
  • Protection class: IP67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger Nice BiDi WiFi module for programming and configuration of control panels Nice MEA5 Lever for MEA3 (additional) Nice MEA1 accessories for increasing the opening angle up to 180 degrees

Nice Zestaw ME3024HS MYGO do bram dwuskrzydłowych do 3m i 300kg

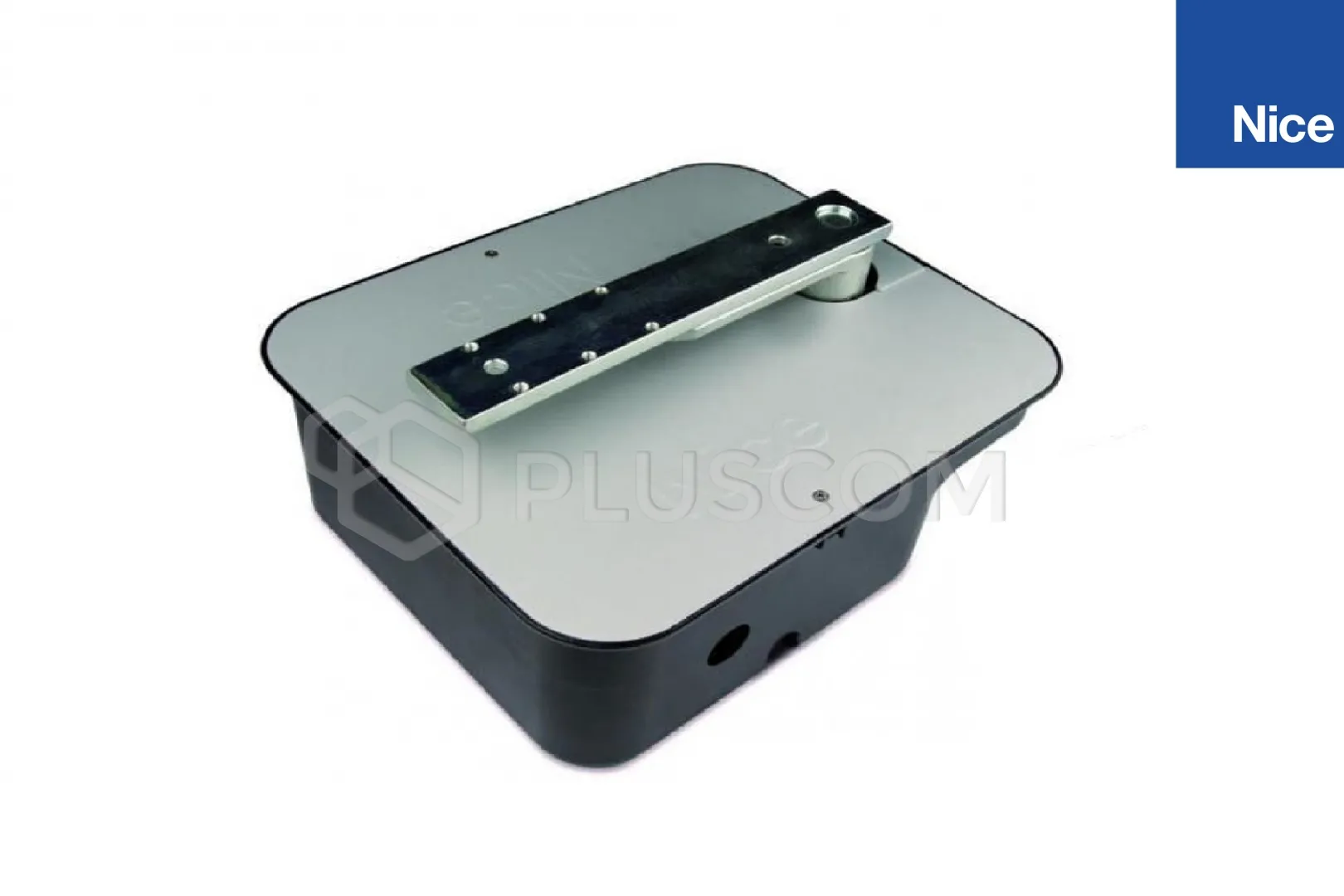

Faster than ever, the HI-SPEED underground swing gate operator is perfect for swing gates up to 3.0m long and weighing up to 300kg. Perfect for residential gates. 24Vdc electromechanical actuator with a magnetic encoder. Ideal for intensive use and fast operation: opening to 90 degrees takes up to 8* seconds!

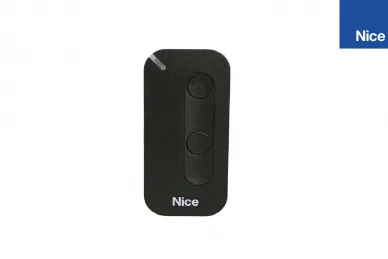

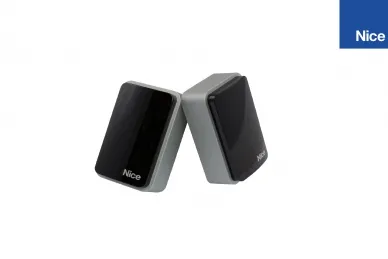

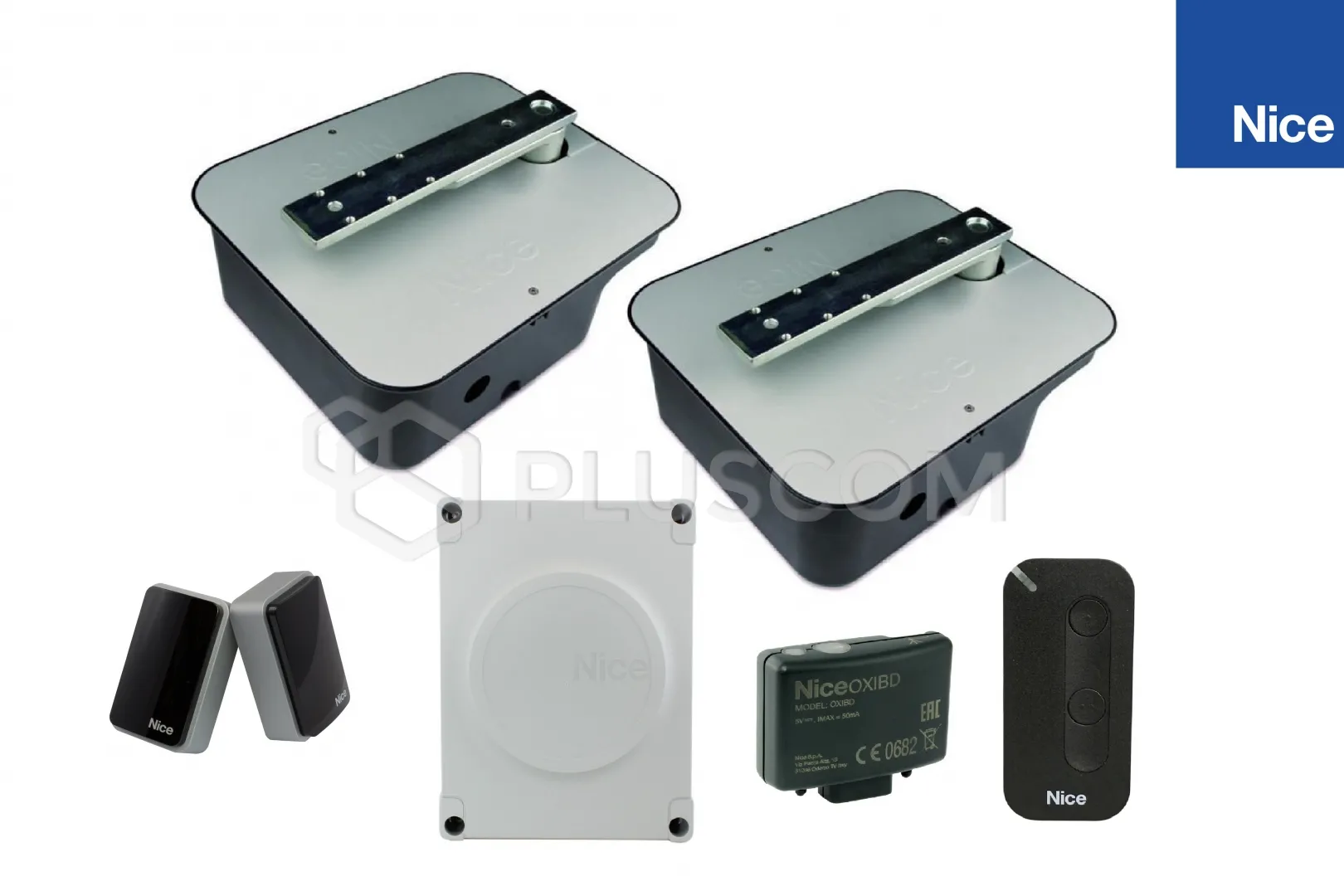

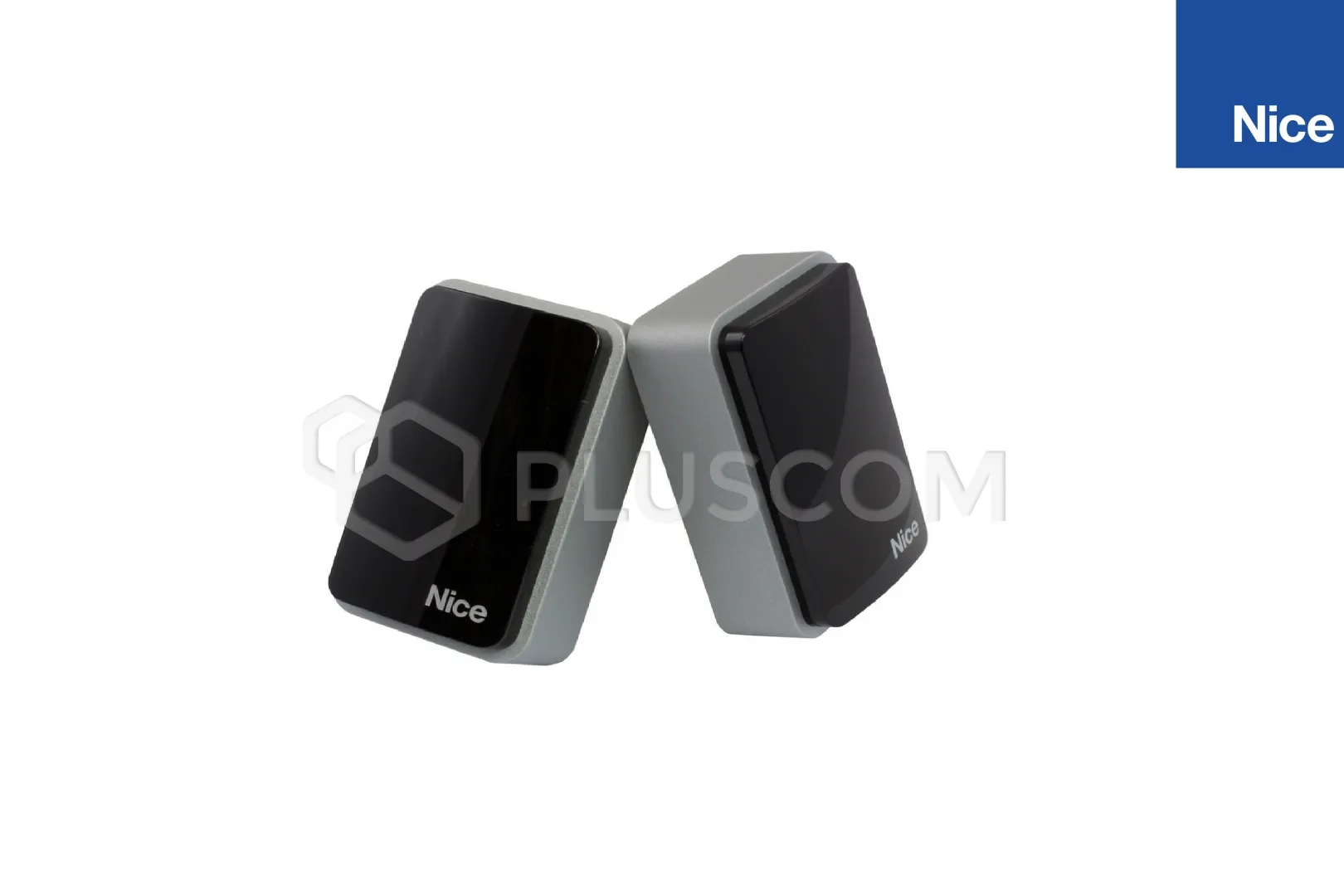

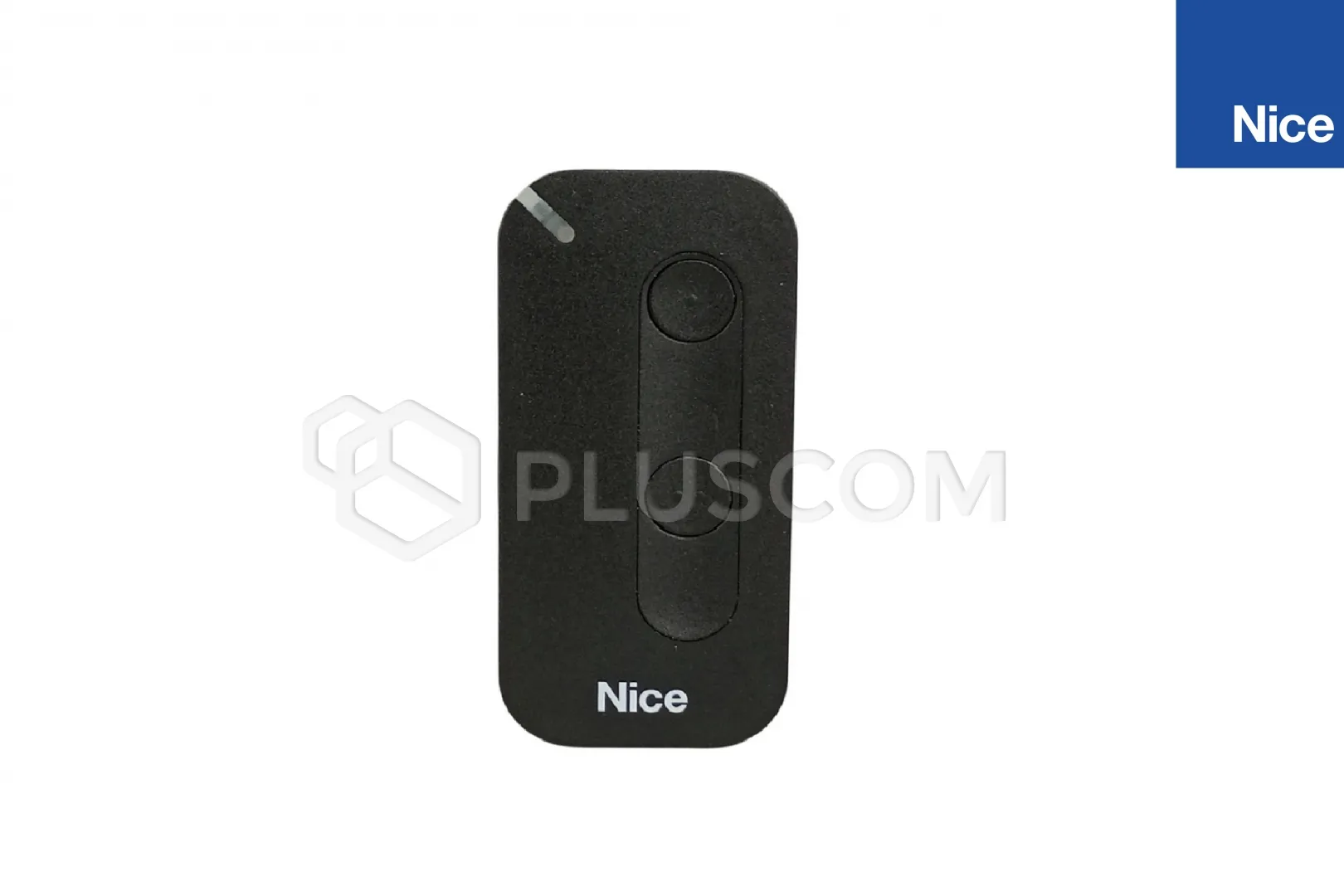

The set includes:
Nice ME3024HS MYGO kit for double-leaf gates up to 3m and 300kg

Nice ME3024HS MYGO kit for double-leaf gates up to 3m and 300kg

Extremely strong

Foundation boxes made of pressed steel sheet.
FAB BOX has a mechanical opening limiter:

  • Made of stainless steel (MECX), ideal for extreme environmental conditions
  • Painted using the cataphoresis process (MECF), highly corrosion-resistant

Durable:

Solid steel internal components. IP67 protection rating. Die-cast housing.

Universal:

Full freedom of choice, release from both sides of the gate. Unlocked with a key or lever.

Easy to use:

Mechanical closing limiter. Standard opening up to 110 degrees, optionally up to 180 degrees.

*Based on standard installation, excluding acceleration and deceleration phases.

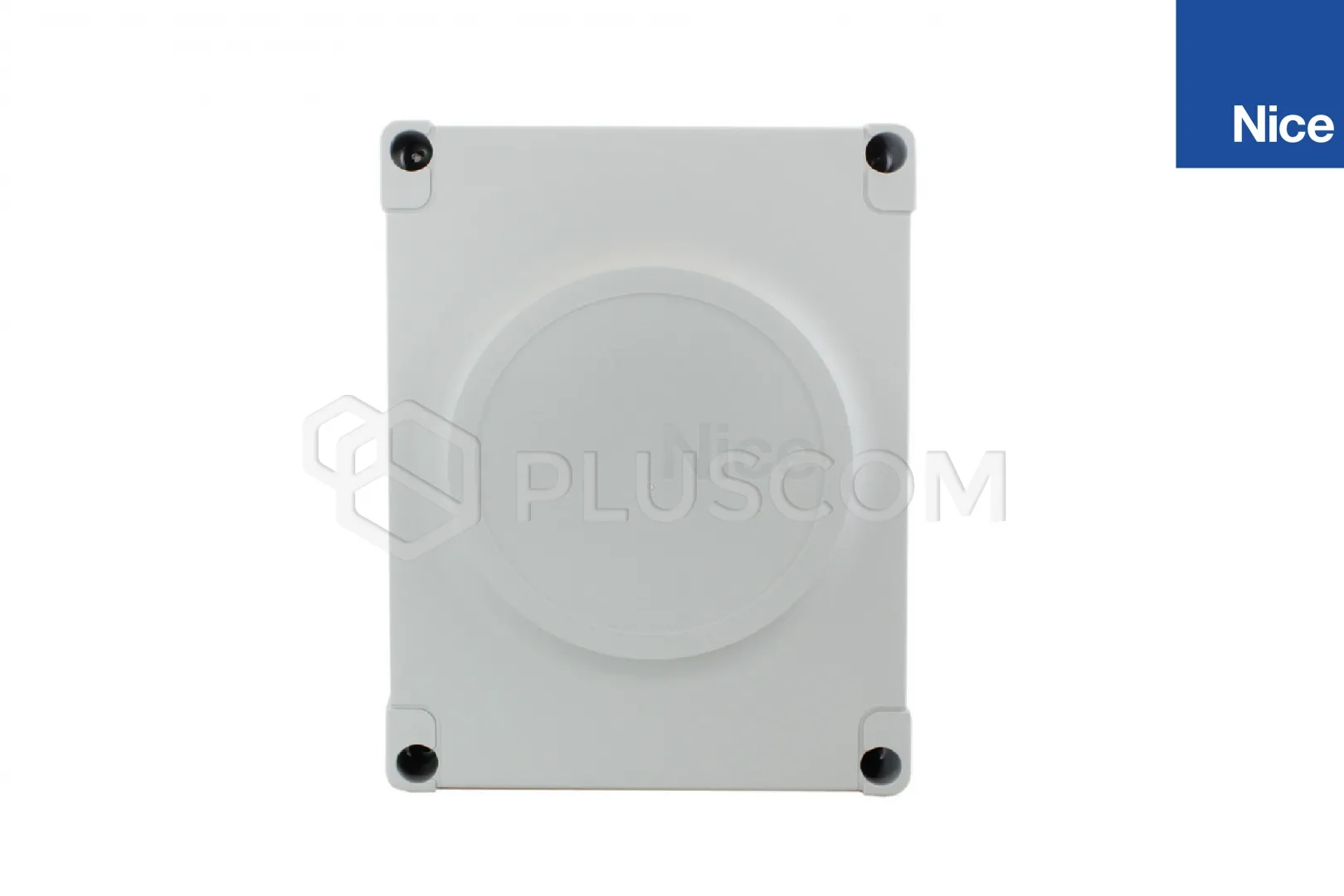

Control unit MC824HR10:

  • For two 24V motors with encoder
  • BLUEBUS technology
  • Intelligent: motors automatically memorize the gate's end positions during programming (self-learning), LEDs indicate active functions
  • Advanced: only three programming buttons, adjustable operating mode, opening time, etc.
  • Convenient: partial gate opening function (pedestrian function)
  • Always works: thanks to the PS324 battery (optional), the motors will open and close the gate, even in the event of a power outage

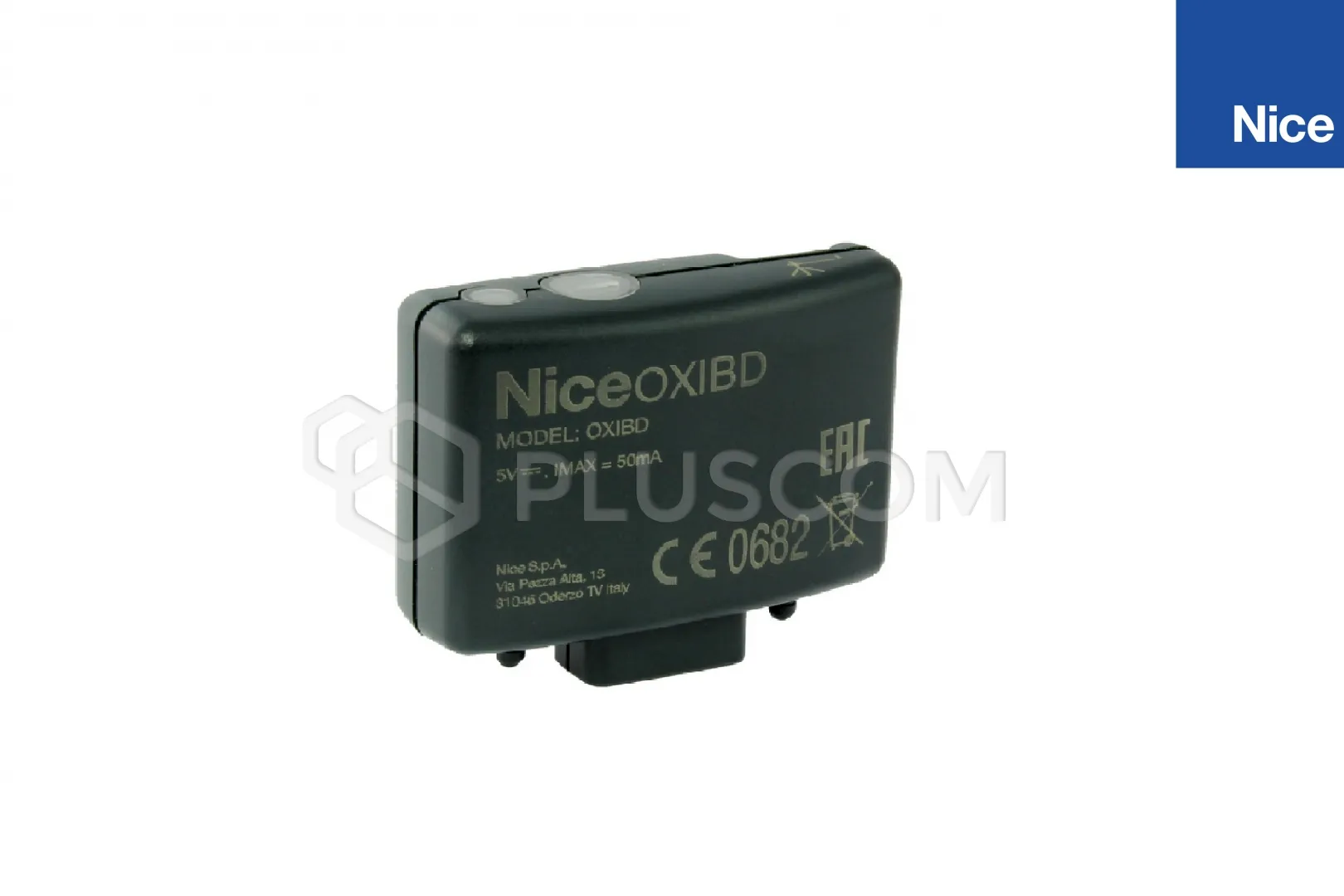

  • SM, OXIBD radio interface
  • Compatible with the OPERA and SOLEMYO systems
  • Parameters can be set using O-View/ProView.

Technical specifications:

  • Motor power supply: 24V.
  • Maximum power consumption: 170W.
  • Nominal current: 6A.
  • Protection rating: IP67.
  • Rotation speed: 2.6 (rpm).
  • Operating temperature: -20 to +50°C.
  • Working intensity: 60 cycles/h.
  • Weight: 11kg.
  • Dimensions: 390x322x194 mm.
