Leelen video intercom set JB305N V31 with doorphone N15pc, Proximity
keyring, Card MiFare and power supply
The set will find its application in single-family homes. It's simple in
installation, durable and elegant in appearance.

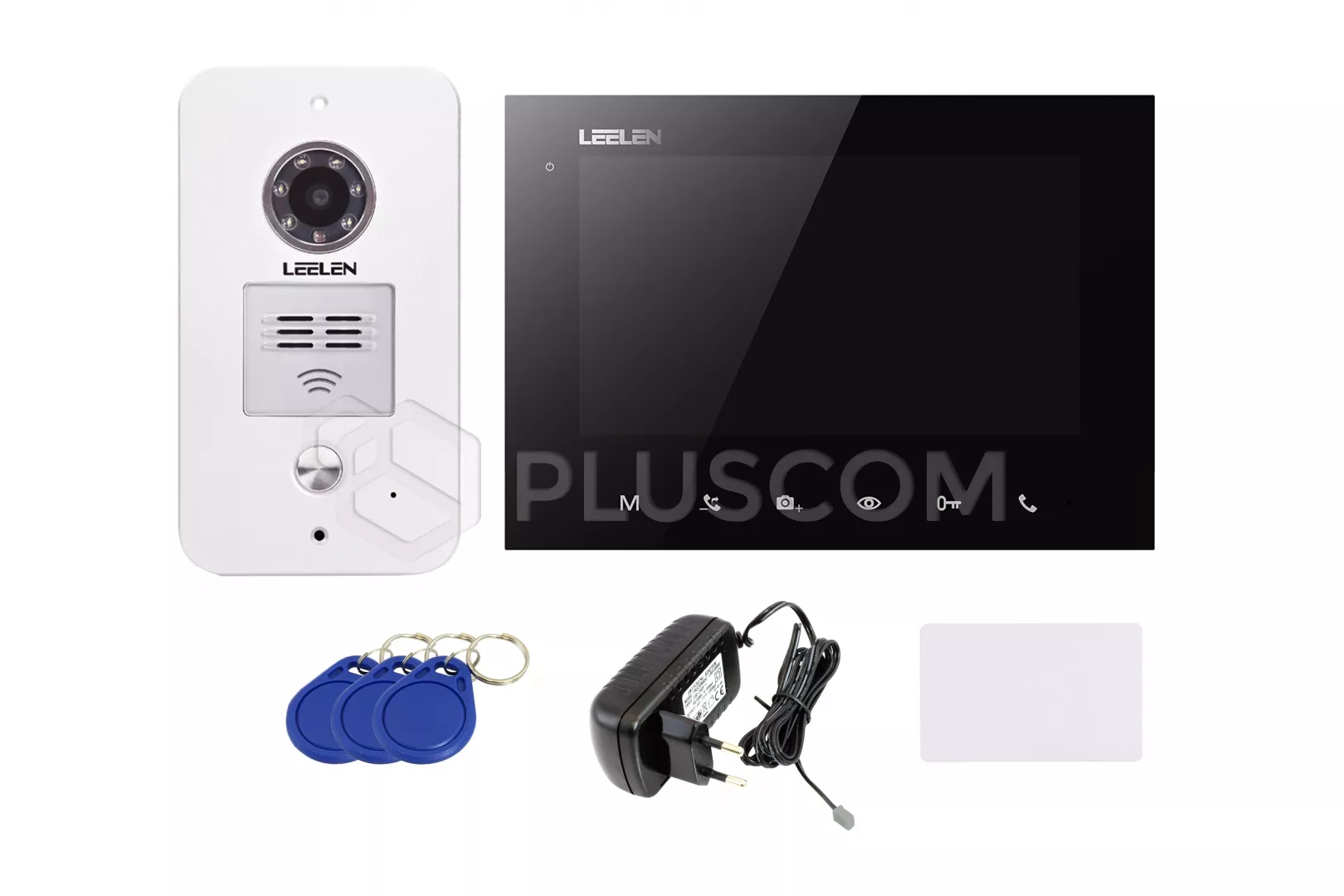

Leelen Video Doorphone Set JB305N V31/N15pc (Photo memory)
The kit includes:
- Monitor V31 7'' black
- Doorphone N15pc
- 3 x Proximity keyring MiFare 13,56MHz
- Card MiFare 13,56MHz (1K)
- Power supply 18V
The JB-305N video intercom system is the successor of the JB-304 system
and works on four-wire bus. A modern procsor was used in JB-305N, which
significantly improves the quality of calls and video, while reducing noise and
increases stability.
The most important features of the set include:
- flush mounting
- expandable
- built-in photo memory
- possibility of opening with a card and a proximity tag
- compatibility with most electric locks available in Polish market
- vandal and waterproof doorphone
The N15pc doorphone has a concealed casing made of cast aluminum, making
it walnado and waterproof.

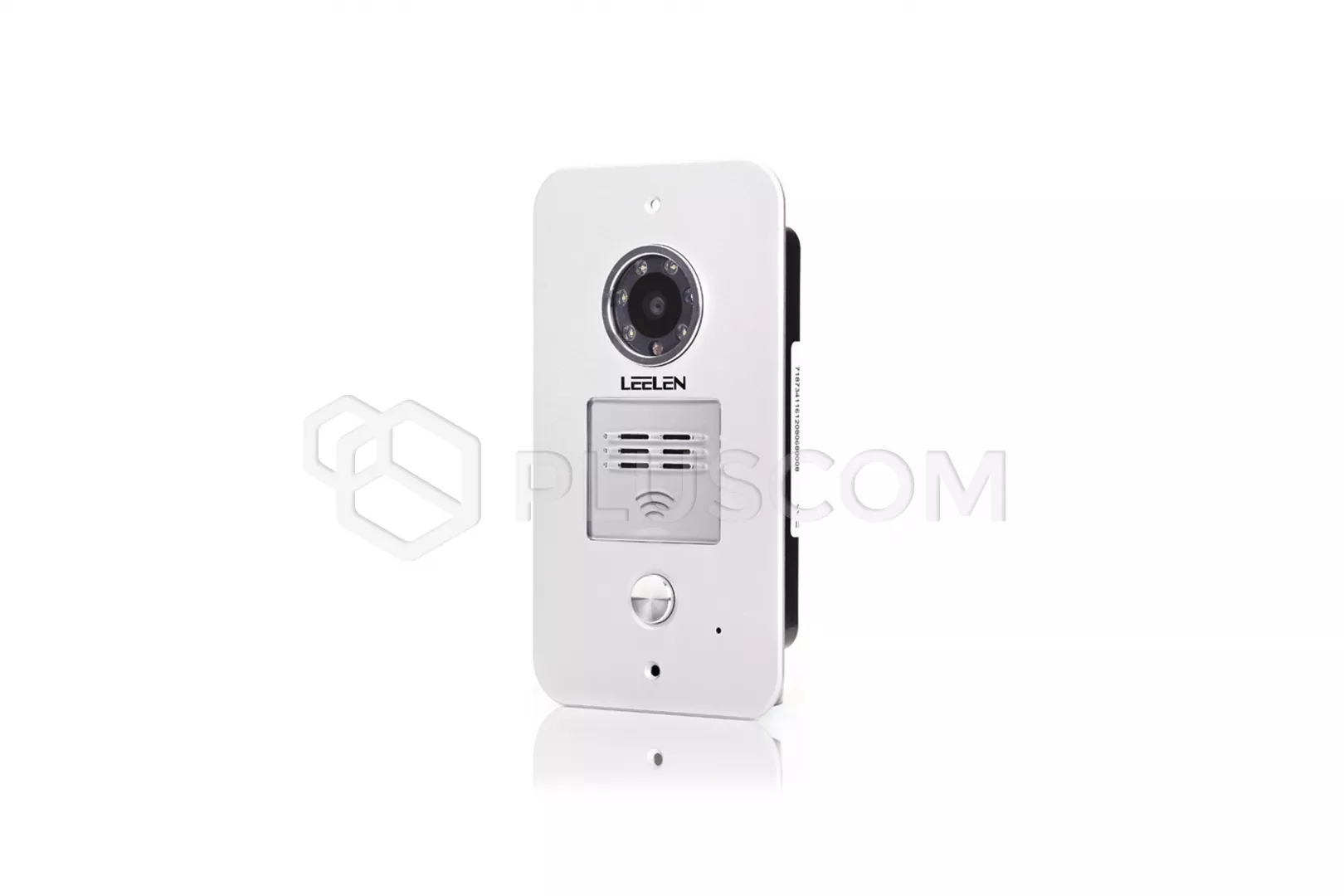

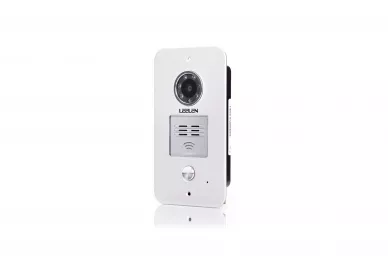

Doorphone N15pc
Key features:
- Installation via 4-wire cable
- The panel is made of cast aluminum
- Built-in proximity reader for kayfobs and RFID proximity cards
- Camera module 110 °
- Camera illuminated with white LED diodes with light sensor
- Electronics is made in SMT technology
- Controlling 3 outputs directly from the door station (wicket, gate,
garage)
- The device is compatible with the majority of electric locks available in
Polish market
The JB305N V31 monitor is an elegant interior panel that is equipped with
touch buttons and a 7'' screen. The monitor has a built-in memory, in
which stores photos taken while calling. That way, we can see visitors.
Leelen Monitor 7' Kolorowy 305N V31
Key features:
- 7'' LCD display with adjustable brightness and contrast call
volume
- ability to preview image from external panel
- image preview button
- intercom function between monitors
- possibility to control 3 outputs (wicket, gate, garage)
- electric lock control
- image memory - I can remember up to 200 photos with date and time

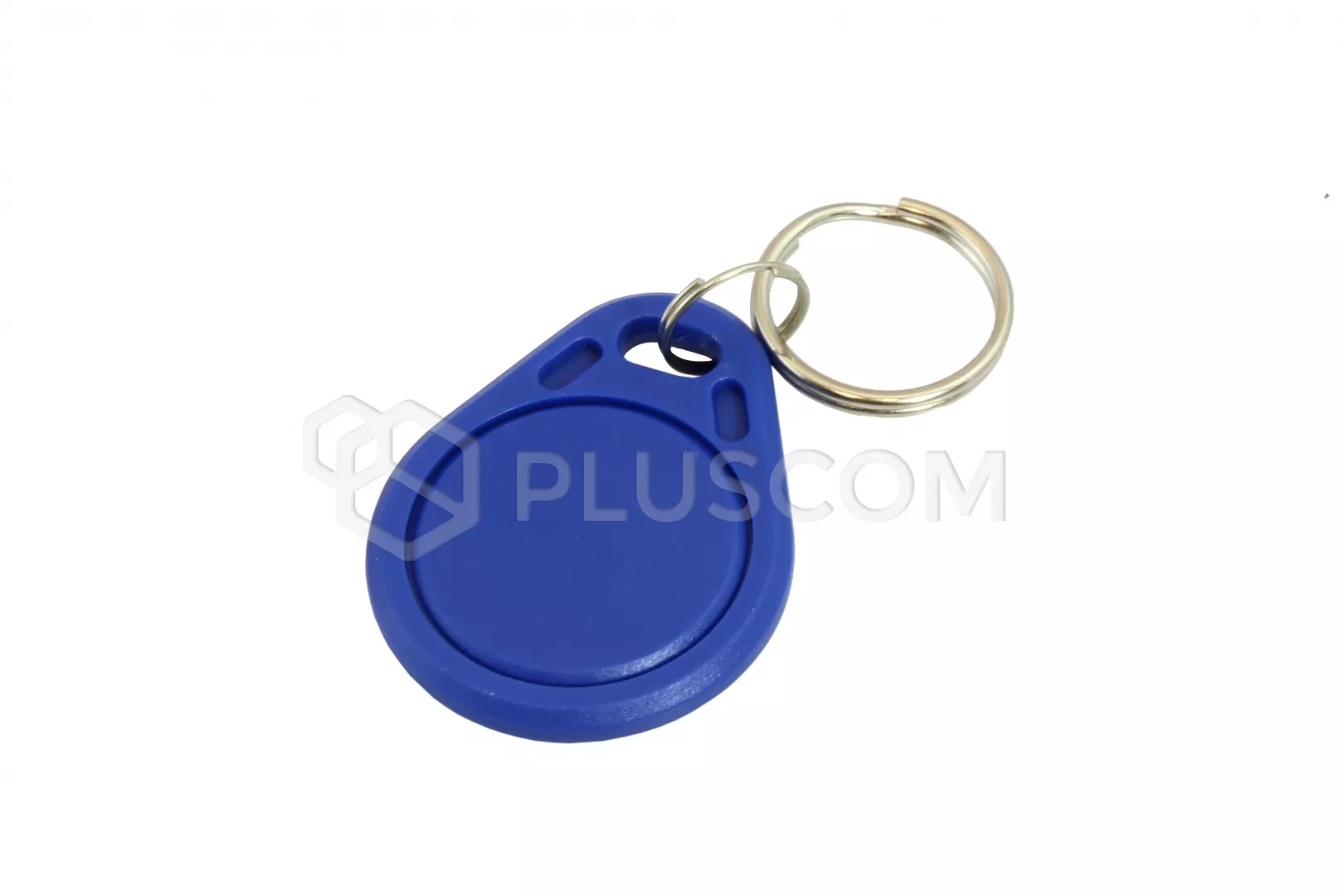

Proximity keyring MiFare 13,56MHz
Proximity keyring MiFare 13,56MHz
MiFare 13,56MHz proximity tag. Works with most 13,5KHz readers. A very
convenient solution, perfectly works as an alternative to the card.

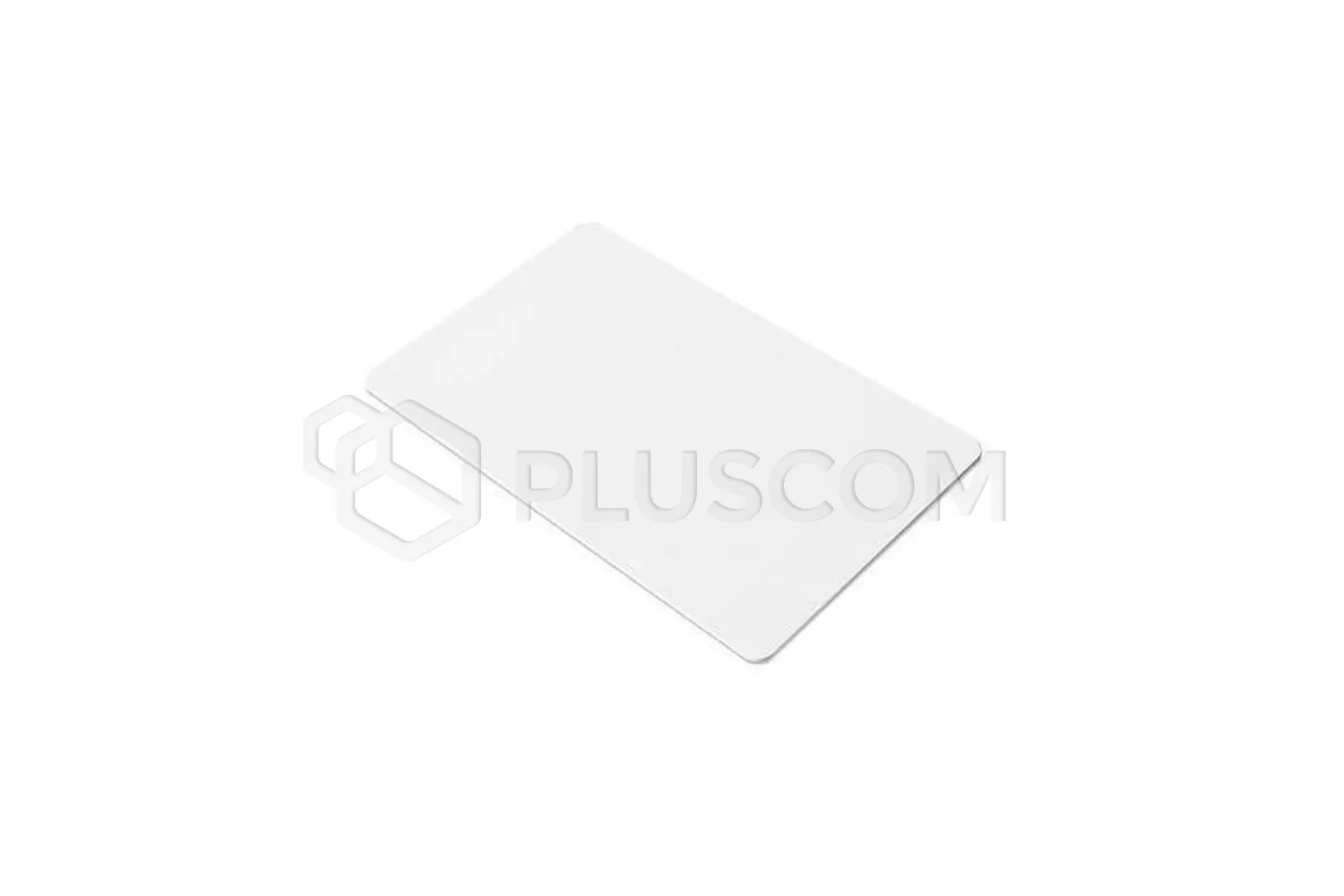

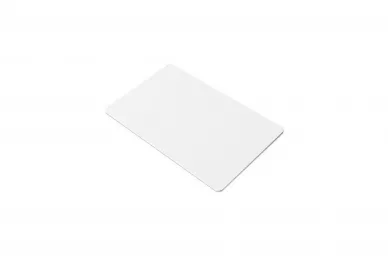

Card MiFare 13,56MHz (1K)
Proximity card works with all series readers JB305. It has a standard
credit card size and will fit perfectly wallet next to an ATM card or business
cards.
After authorizing the card in the system, just bring it closer to the reader to
open the electric lock that he controls.

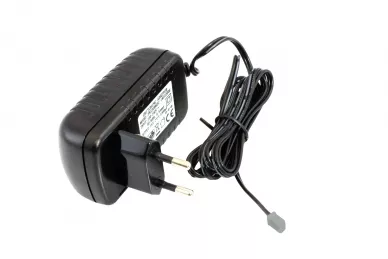

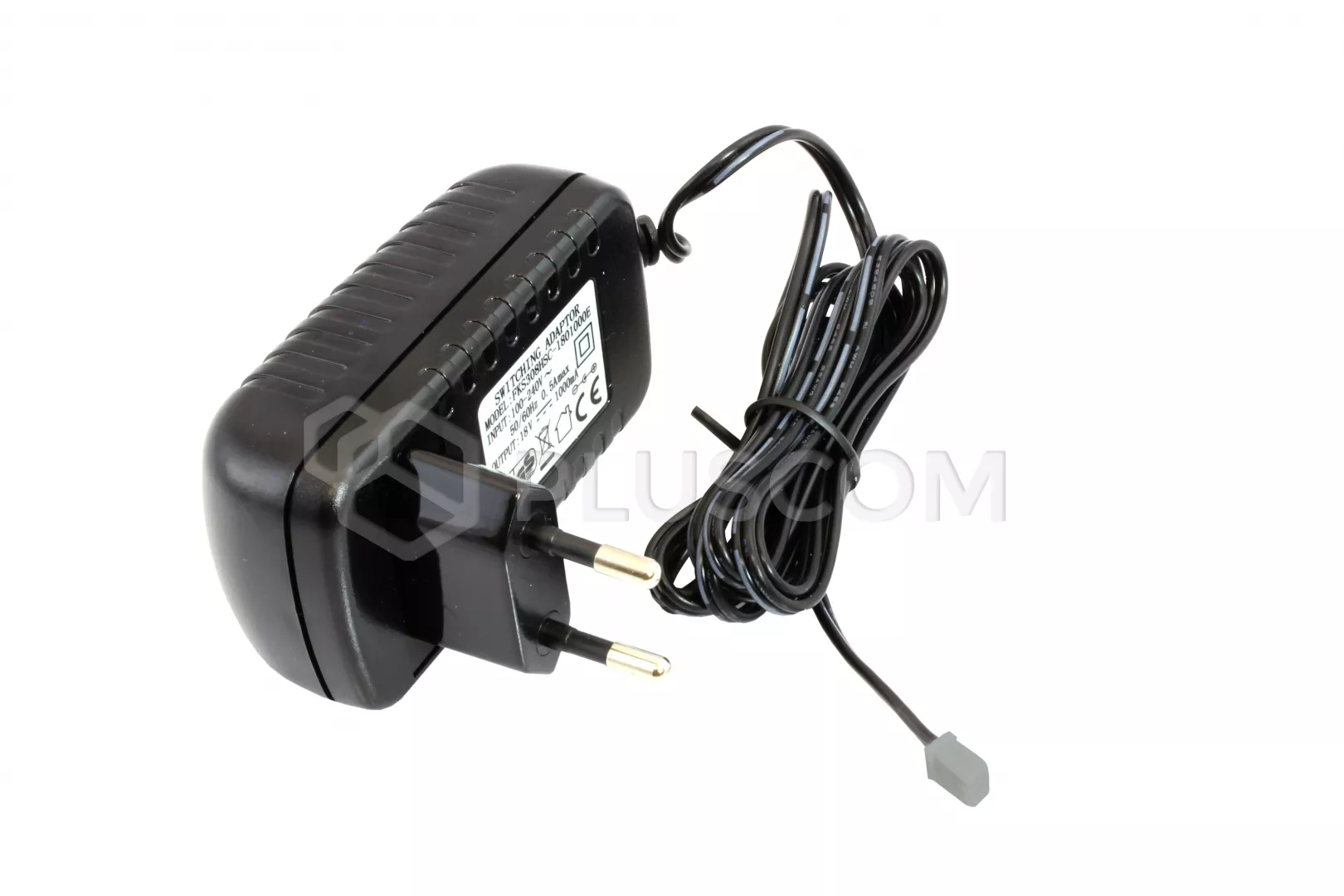

Power supply for JB305 18V DC 1A
The JB305 18V DC 1A power supply is the standard power supply used in
JB305 system. Allows powering one basic set, consisting of:
- Video intercom
- 4-wire bus
- Doorphone
- Electric lock
The power supply produces a constant voltage of 18 V and a current of 1A.
