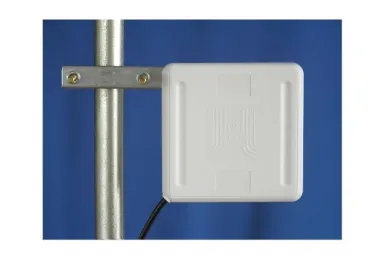

Jirous JPA-9 Panel Antenna

Product code: #43076
Manufacturer: Jirous
  • Energy gain: 9 dBi ± 0.5
  • Beam width: 65° in both planes
  • Connector: RP-SMA gold-plated
  • Dimensions: 123 x 123 x 13 mm
  • Polarization: Horizontal or vertical depending on position
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JPA-9 Panel Antenna

Specifications:

  • Panel antenna for users
  • The lowest price on the market with a quality guarantee
  • For end-use as a client antenna
  • No additional adapters or cables - gold-plated RP-SMA connector
  • The included JPA-9L adhesive set allows you to stick the antennas to windows - indoors and outdoors (some modern windows have high attenuation, requiring the antenna to be glued outdoors) or to any other developed surface.

Technical parameters:

  • Frequency range: 2.4 - 2.485 GHz
  • Gain: 9 dBi ± 0.5
  • SWR coefficient 3 m strip: ≤ 1.6
  • SWR coefficient 0.5 m strip: ≤ 2.0
  • Beamwidth -3 dB: 65° in both planes
  • Connector: RP-SMA gold-plated
  • Polarization: Horizontal or vertical depending on the application
  • Cover: UV-resistant ABS plastic
  • Strip attenuation: 0.55 dB/m
  • Dimensions: 123 x 123 x 13 mm

The antenna is available in various versions:

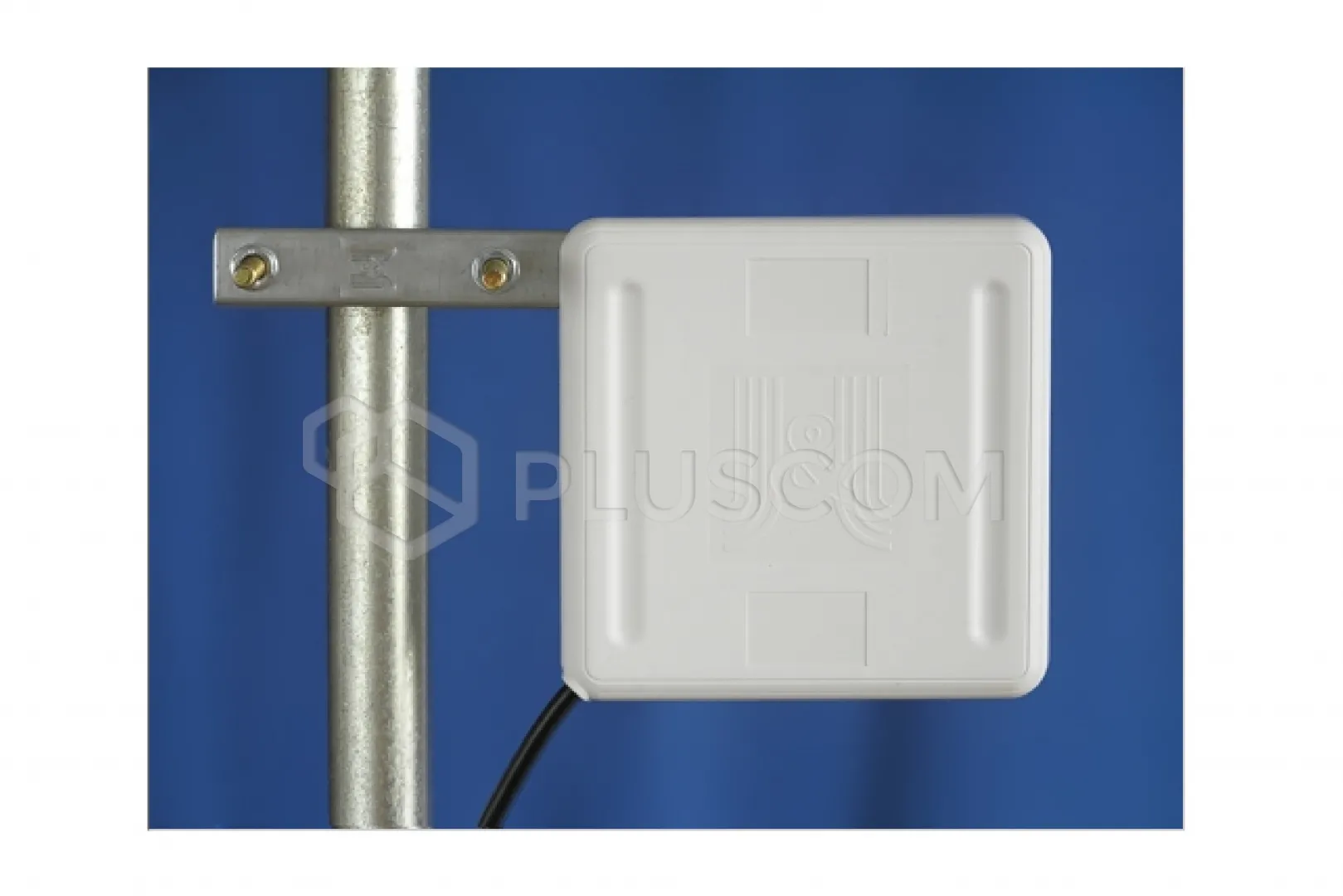

  • JPA-9T with a mount for a mast diameter 19 - 54 mm
  • JPA-9L with a set of glass adhesives and a degreasing cloth – all in 3M quality
  • JPA-9P with wireless, UV-resistant mast mounts – economical version
  • All versions with 0.5 or 3 m cables
  • Other cable lengths available upon request – min. 300 pcs
