Fadini 78778BB3L COMBI 787 P3 Underground actuator without manual opening
function and with slow-down function
COMBI 787 230V oil-hydraulic actuator without manual opening function and with

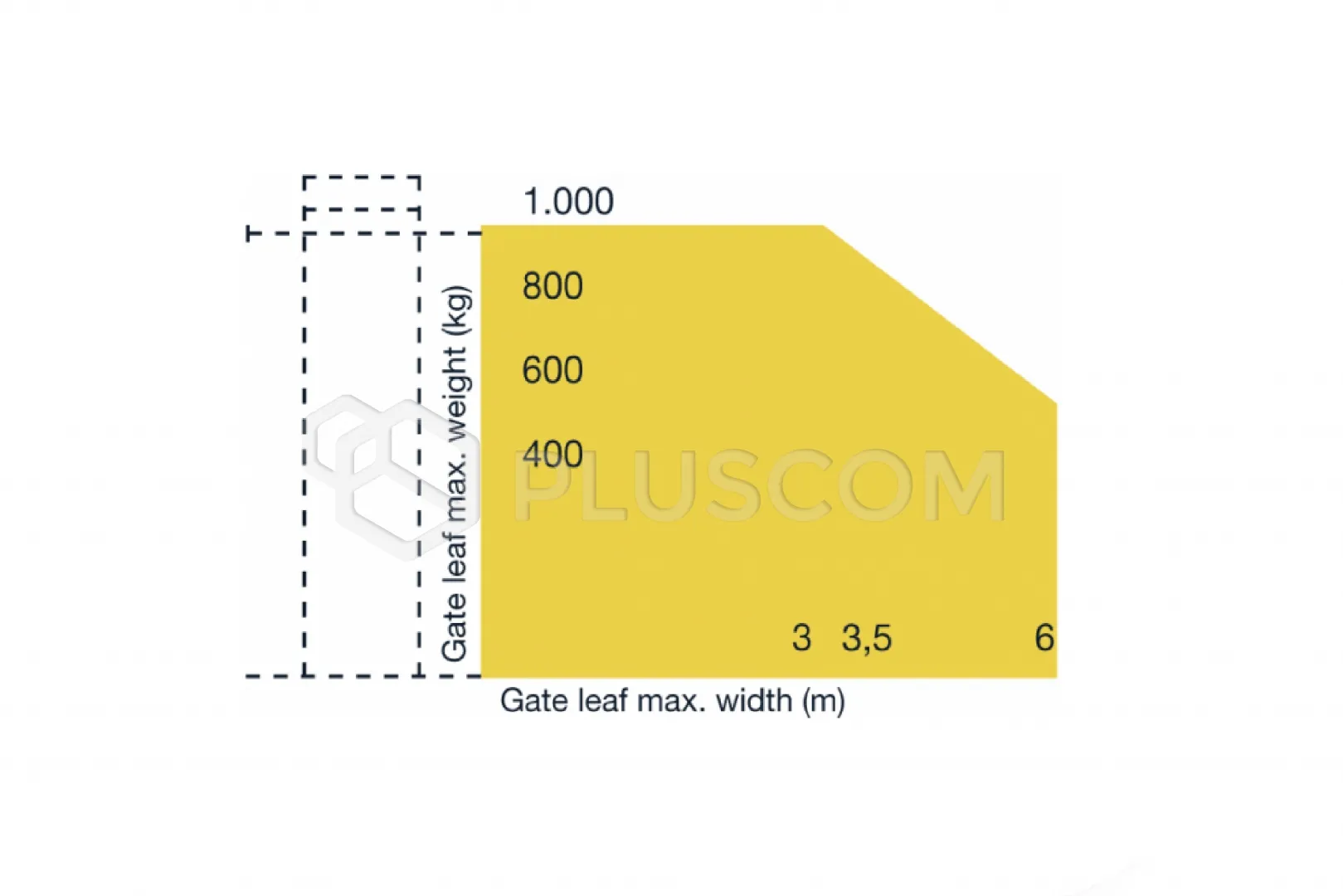

slow-down function and electric power cable for swing gates up to 1000 kg and
with a leaf length of up to 6 m. For residential and industrial use.
COMPACT, STRONG AND HIDDEN

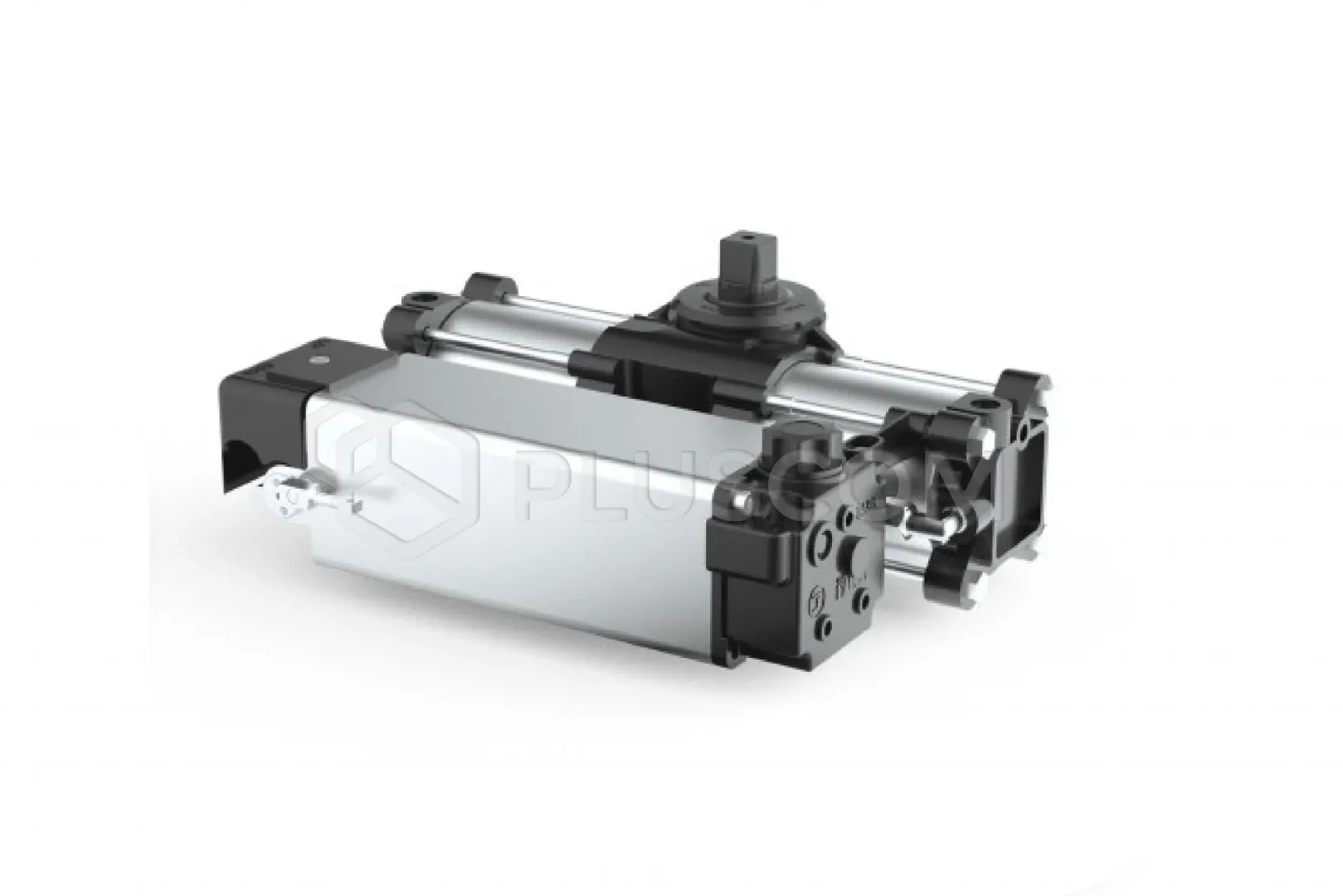

Hydraulic actuator with pump, housed in a
machined steel housing (5 mm thick electrolytically galvanized) to ensure high
corrosion resistance. The box is available in AISI 304 stainless steel. The
mechanical stops, adjustable both in closing and opening, can be mounted
directly inside the housing. The actuator can be mounted or dismantled without
having to dismantle the gate leaf. No special maintenance required.
HYDRAULIC
A wide range of versions suitable for any type of
installation: non-self-locking without hydraulic lock, with bidirectional
hydraulic lock (self-locking), with possibility of hydraulic self-locking
slowing down on opening and closing and with flow regulator. Safety against
crushing is ensured by bypass valves mounted on the actuator. Opening angle up
to 110°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from
the inside and outside using a special key with ergonomic handle.
SELF-LOCKING DEVICE
Hydraulic actuator with self-locking device slowing
down the movement of the gate leaf, operating, depending on the model, in the
opening phase, closing phase or both. Electromechanical actuator equipped with
an electronic brake and a slowing system during the opening and closing of the
gate leaf.
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed
and open position (when the engine is not running). To manually open or close
the leaf, the actuator must first be unlocked.
HYDRAULICS POWER TECHNOLOGY
A cylinder using a movement transmission
system using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 330W
- Current consumption: 1.8A
- Power efficiency: 0.24 kW / 0.33 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Open / close time: ~ 23 s

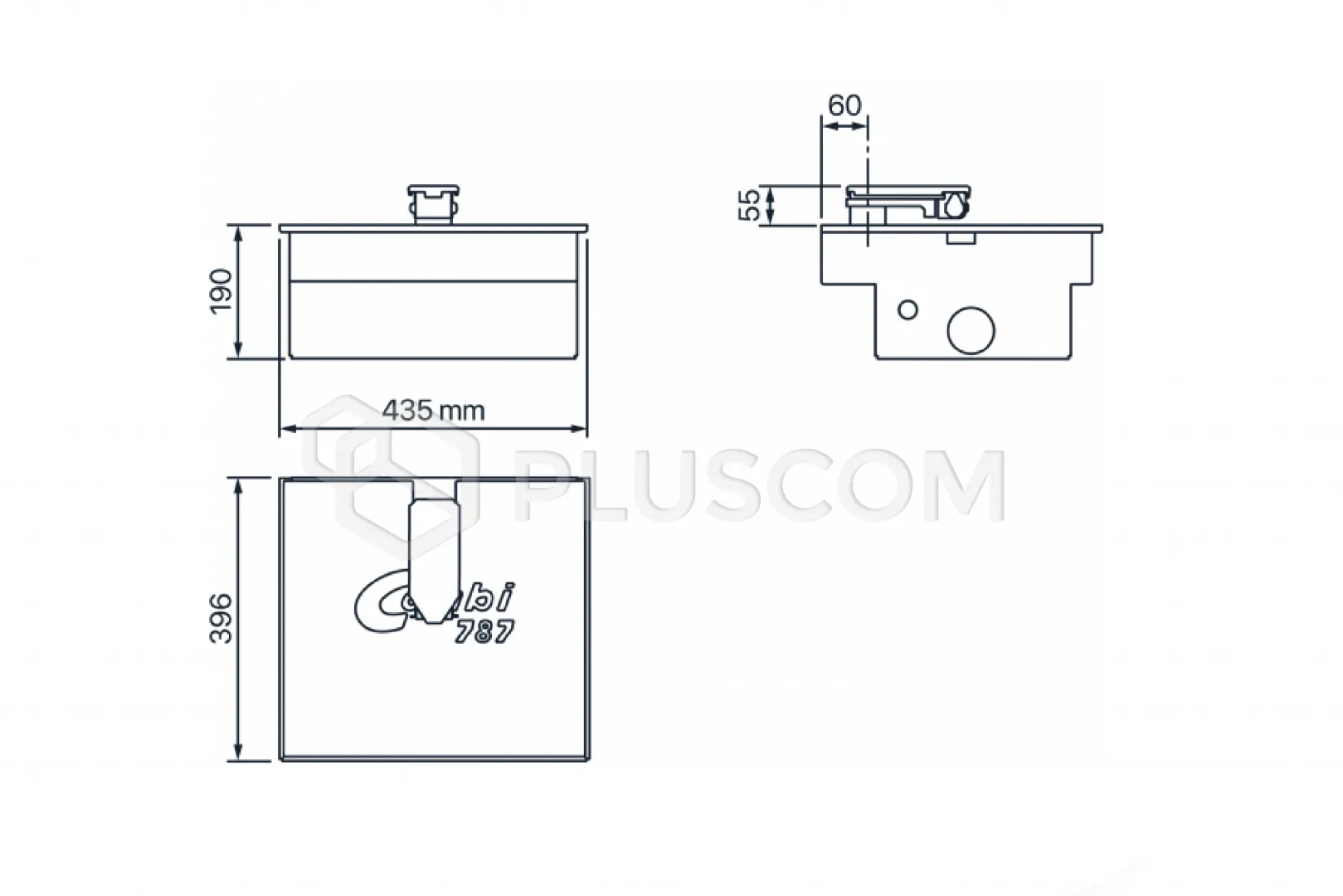

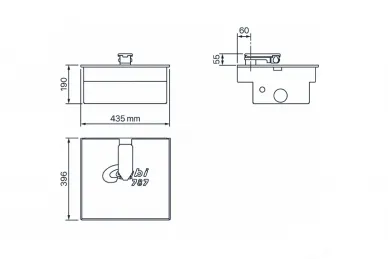

- Weight with box: 34 kg
- Use frequency: intensive
